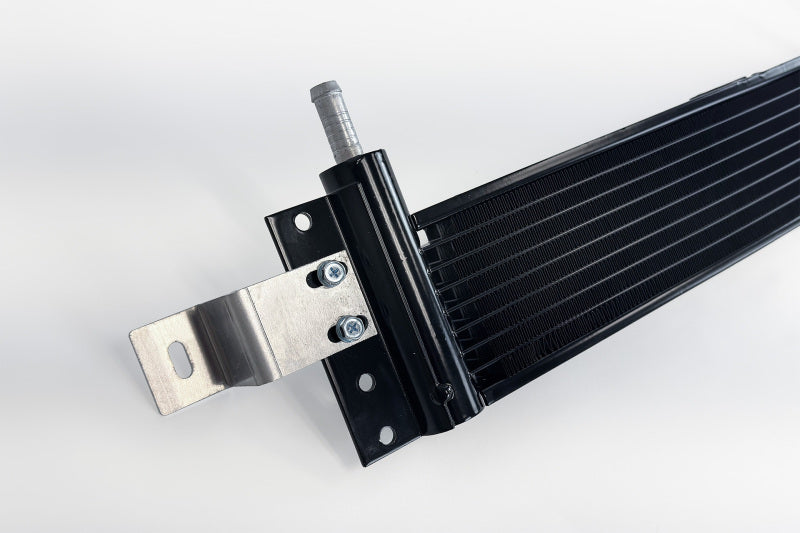

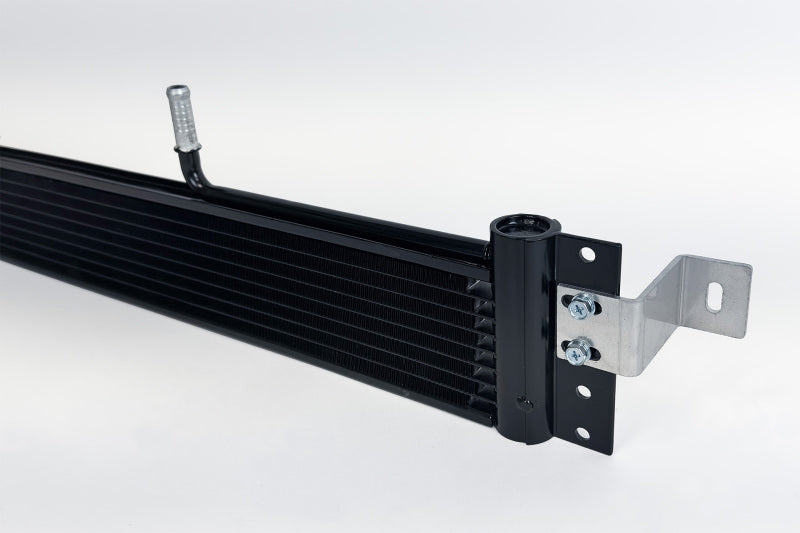

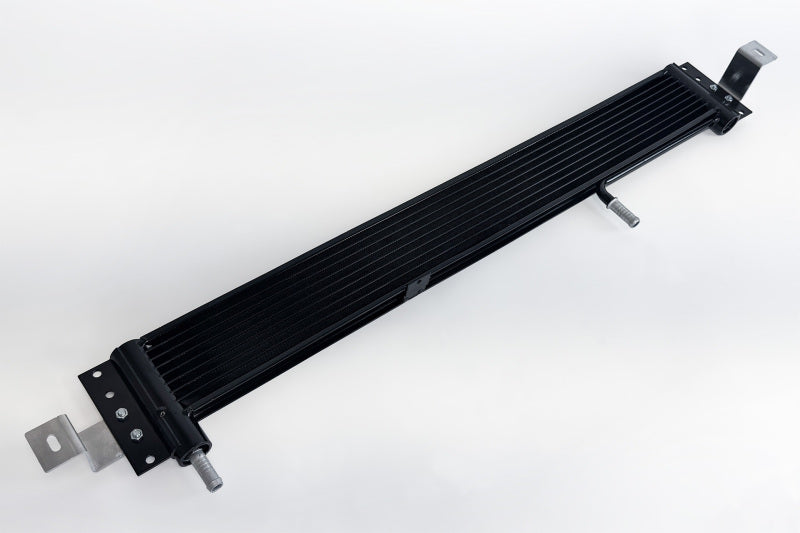

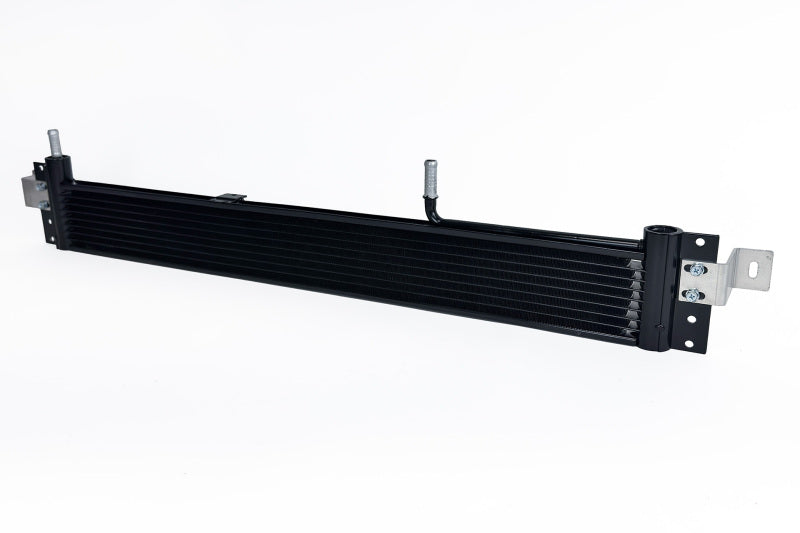

CSF Transmission Oil Cooler for 2015-2025 Ford F-150 & Raptor - 8102

Key Features & Specs:

• Part Number: CSF 8102
• Product Type: High-performance transmission oil cooler
• Cooler Construction: Tube-and-fin aluminum design
• Core Technology: 26mm high-pressure, 10-channel microtube core
• Cooling Fins: 8mm tall multi-louvered fins
• Cooling Capacity: Approximately 40% larger than factory cooler
• Construction: Welded all-aluminum construction
• Connections: OEM-style inlet and outlet connections

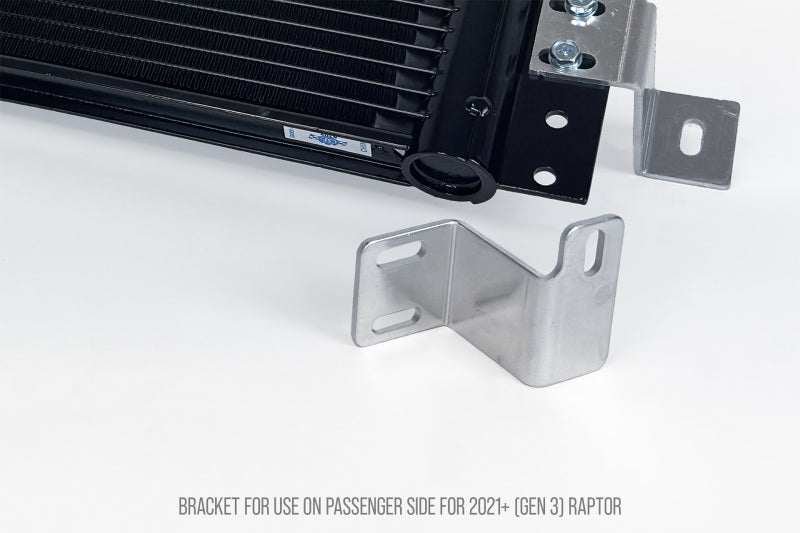

• Mounting: Laser-cut mounting brackets
• Inlet Size: Stock
• Outlet Size: Stock
• Finish: Black coated OEM-plus finish
• Installation: Direct drop-in fit; no modifications required
• Fan Included: No
• Quantity: Sold individually
• Warranty: 2-year limited warranty
• Replaces OEM Numbers: Ford FL3Z-7A095-A, HL3Z-7A095-A

Fitment:

• 2015-2020 Ford F-150 2.7L EcoBoost
• 2015-2020 Ford F-150 3.5L EcoBoost
• 2015-2020 Ford F-150 5.0L V8
• 2017-2020 Ford F-150 Raptor 3.5L EcoBoost
• 2021-2025 Ford F-150 2.7L EcoBoost
• 2021-2025 Ford F-150 3.5L EcoBoost
• 2021-2025 Ford F-150 5.0L V8
• 2021-2025 Ford F-150 Raptor 3.5L EcoBoost
• 2025 Ford F-150 Raptor R 5.2L Supercharged V8

Keep transmission temperatures under control with the CSF 8102 High-Performance Transmission Oil Cooler for select 2015-2025 Ford F-150 and Raptor trucks. Designed as a direct-fit upgrade, this all-aluminum cooler uses CSF A/C condenser technology with a high-pressure 10-channel microtube core and multi-louvered fins to promote efficient fluid cooling. With approximately 40% greater capacity than the factory cooler, OEM-style connections, laser-cut brackets, and a durable black finish, the CSF 8102 is built for towing, off-road driving, high-performance use, and demanding daily operation.
