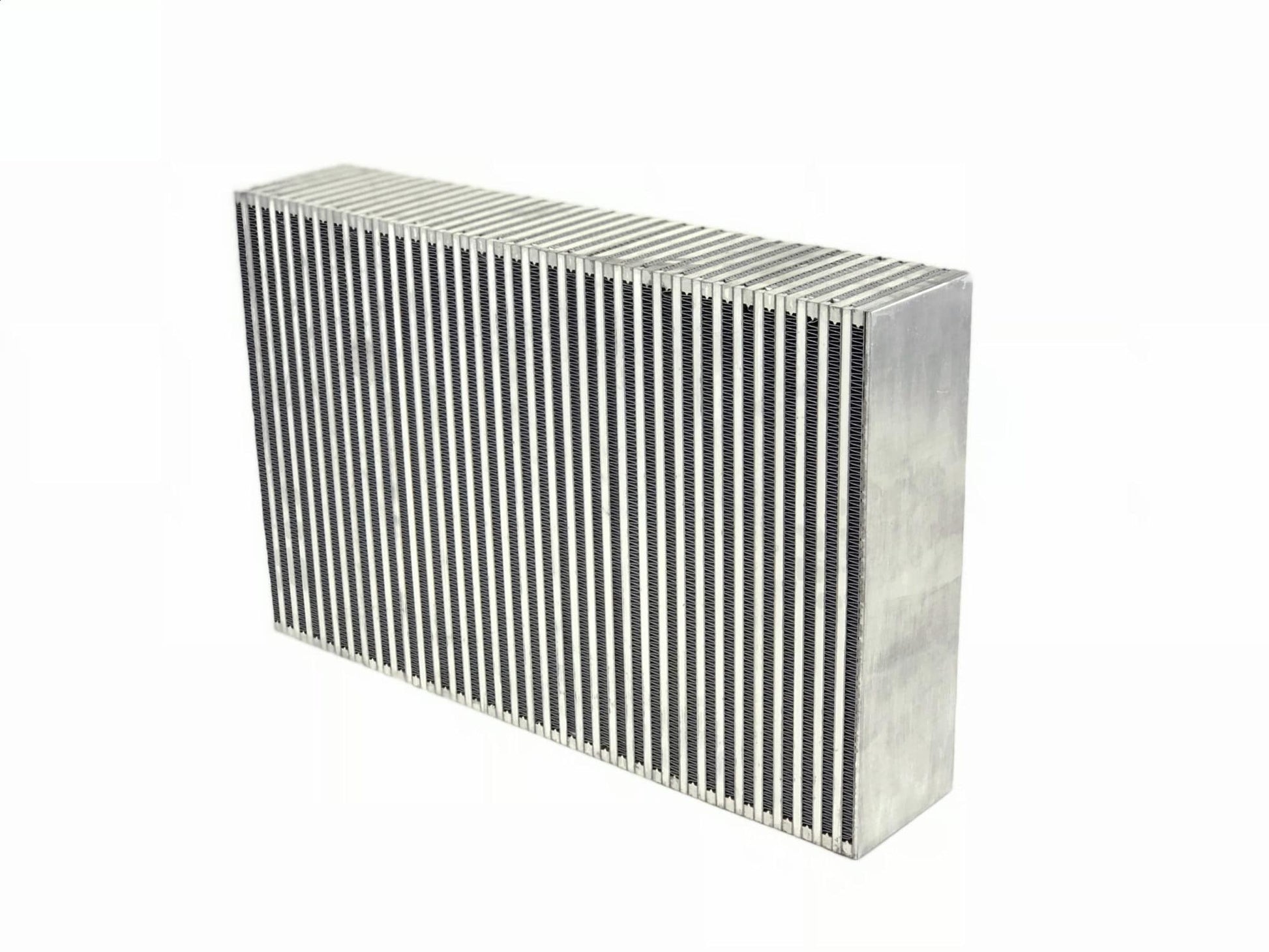

CSF Bar & Plate Intercooler Core for Nissan R35 GT-R - 8117

Key Features & Specs:

• Part Number: CSF 8117
• Product Type: Bar and plate intercooler core
• Flow Direction: Vertical flow
• Primary Application: Nissan R35 GT-R custom intercooler builds
• Core Length: 22.00 inches / 560mm
• Core Height: 14.00 inches / 355mm
• Core Width: 4.50 inches / 115mm
• Horsepower Rating: Up to 1,500 HP
• Core Design: Heavy-duty bar and plate construction
• Fin Design: High-precision staggered multi-louvered fins
• Airflow Design: Optimized fin structure on ambient and charge-air sides
• Pressure Testing: Individually pressure tested to 120 psi
• Manufacturing: Hand-built using fixtures for a straight, weld-ready core
• Brazing Process: Batch brazed in a digital vacuum brazing oven
• Quality Control: Individually inspected and pressure tested
• Installation Note: Intercooler core only; custom end tanks, piping, welding, and fabrication are required

Fitment:

• Nissan R35 GT-R Custom Intercooler Applications

Build a high-capacity charge-air cooling system with the CSF 8117 Heavy-Duty Bar & Plate Intercooler Core. Designed in a vertical-flow configuration for Nissan R35 GT-R applications, this 22 x 14 x 4.5-inch core is engineered for extreme boosted builds rated up to 1,500 horsepower. Its multi-louvered staggered fin design promotes efficient airflow across both the ambient and charge-air sides, while hand-built construction and 120 psi pressure testing help deliver dependable performance for custom intercooler fabrication.
