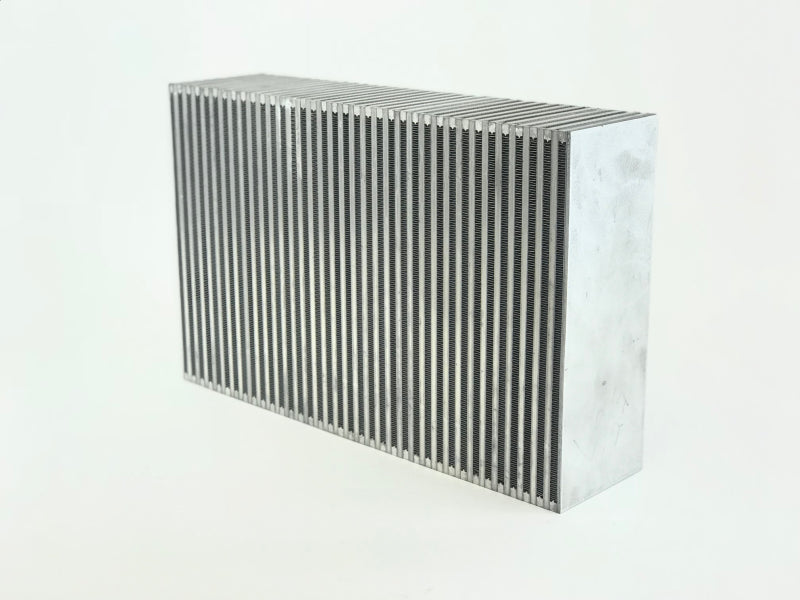

CSF Bar-and-Plate Intercooler Core for Nissan R35 GT-R - 8117W

Key Features & Specs:

• Part Number: CSF 8117W
• Product Type: Bar-and-plate intercooler core
• Flow Direction: Vertical flow
• Fitment Style: Nissan R35 GT-R sizing / custom fabrication
• Core Dimensions: 22 in. L x 14 in. H x 5.5 in. W
• Metric Dimensions: 560mm x 355mm x 140mm
• Horsepower Rating: Up to 2,000 HP
• Pressure Testing: Individually pressure tested to 120 psi
• Core Construction: Heavy-duty bar-and-plate design
• Fin Design: Multi-louvered, high-precision staggered fins on ambient and charge-air sides
• Manufacturing: Hand-built using jigs and fixtures for straight, weld-ready core alignment
• Brazing Process: Digitally controlled vacuum brazing
• Quality Control: Individually inspected and pressure tested
• Packaging: Individually boxed for protected shipment

Fitment:

• Universal Custom Application: Nissan R35 GT-R-style vertical-flow intercooler fabrication
• Installation Note: Core only. End tanks, piping, mounting hardware, and welding are required for installation.

The CSF 8117W is a heavy-duty vertical-flow bar-and-plate intercooler core sized for Nissan R35 GT-R fitment and high-boost custom fabrication projects. Measuring 22 x 14 x 5.5 inches, this hand-built core is rated to support up to 2,000 horsepower and pressure tested to 120 psi. Precision staggered fins, clean-room assembly, and vacuum-brazed construction provide a strong, straight welding surface for fabricators building durable, high-capacity charge-air cooling systems.
