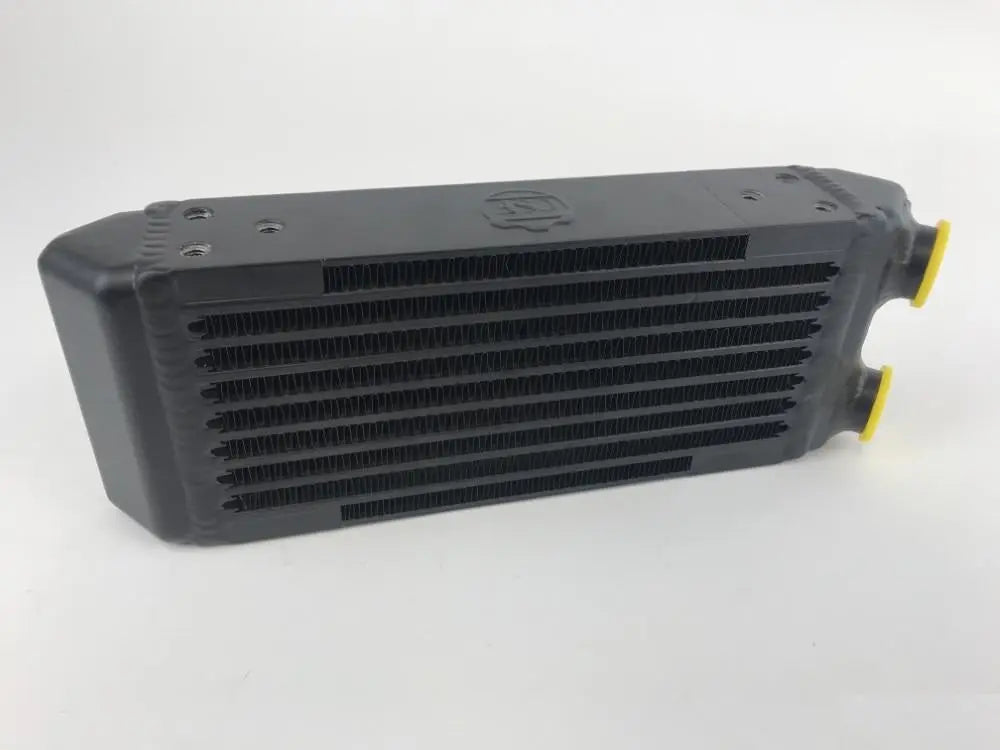

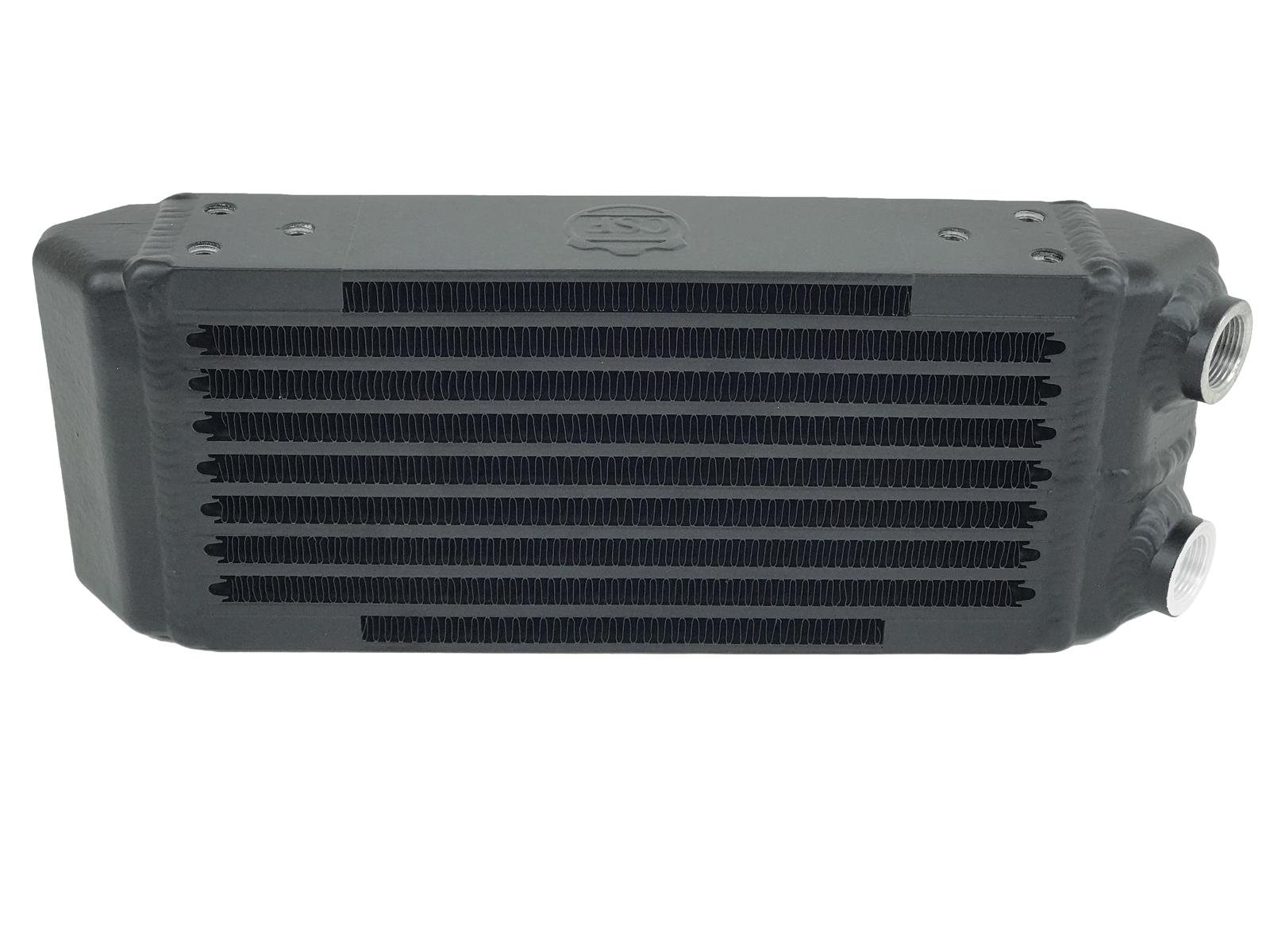

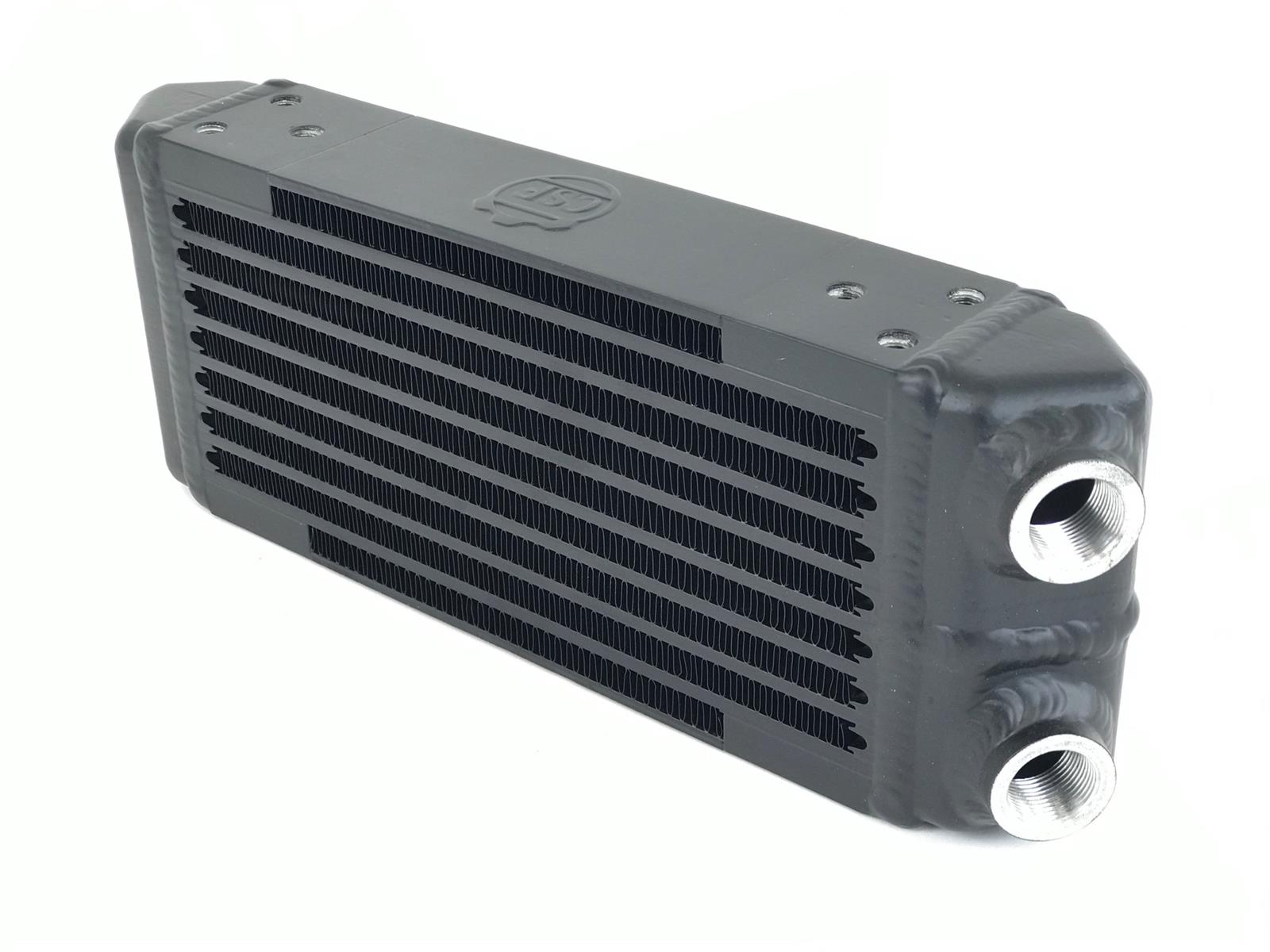

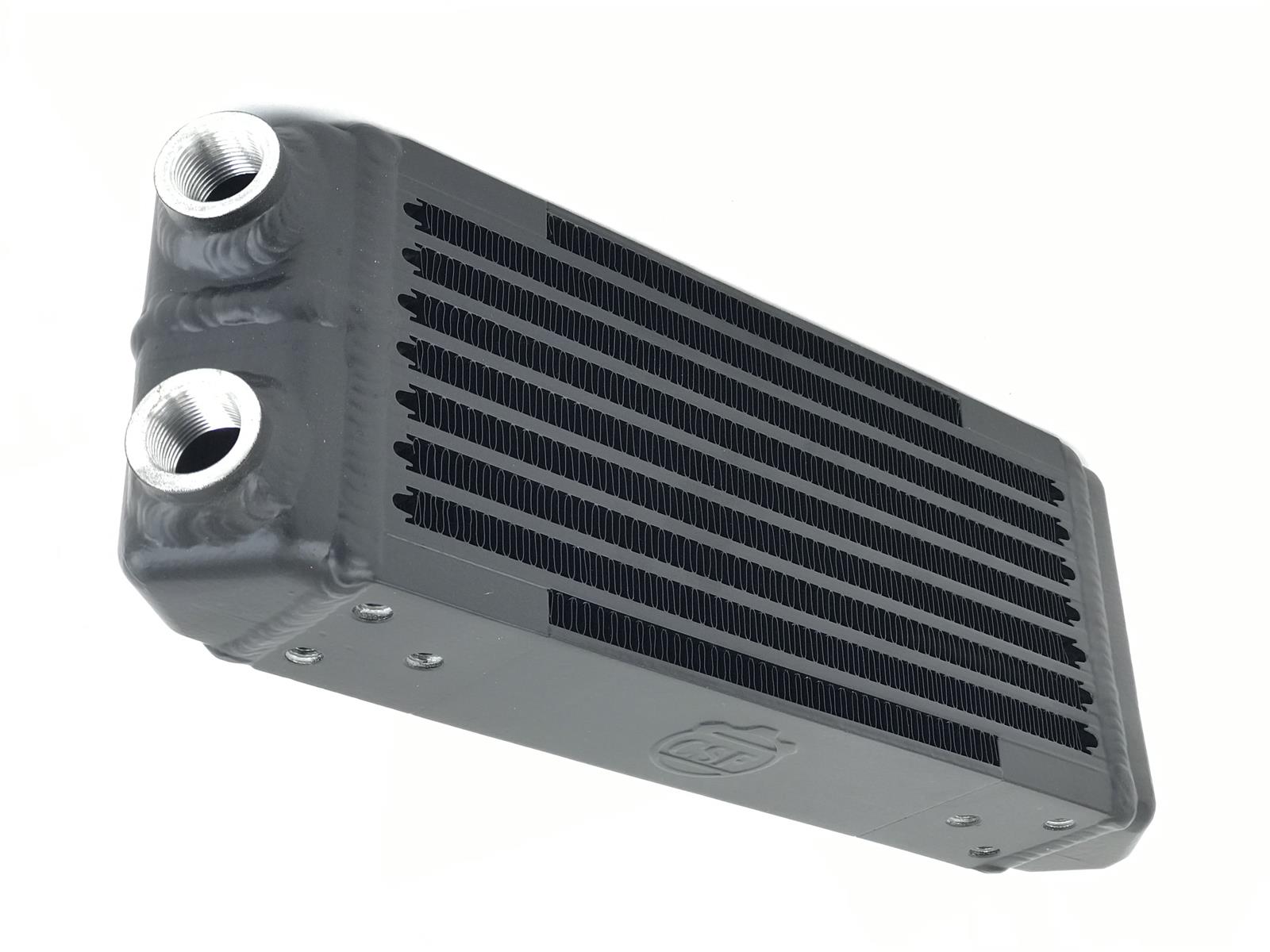

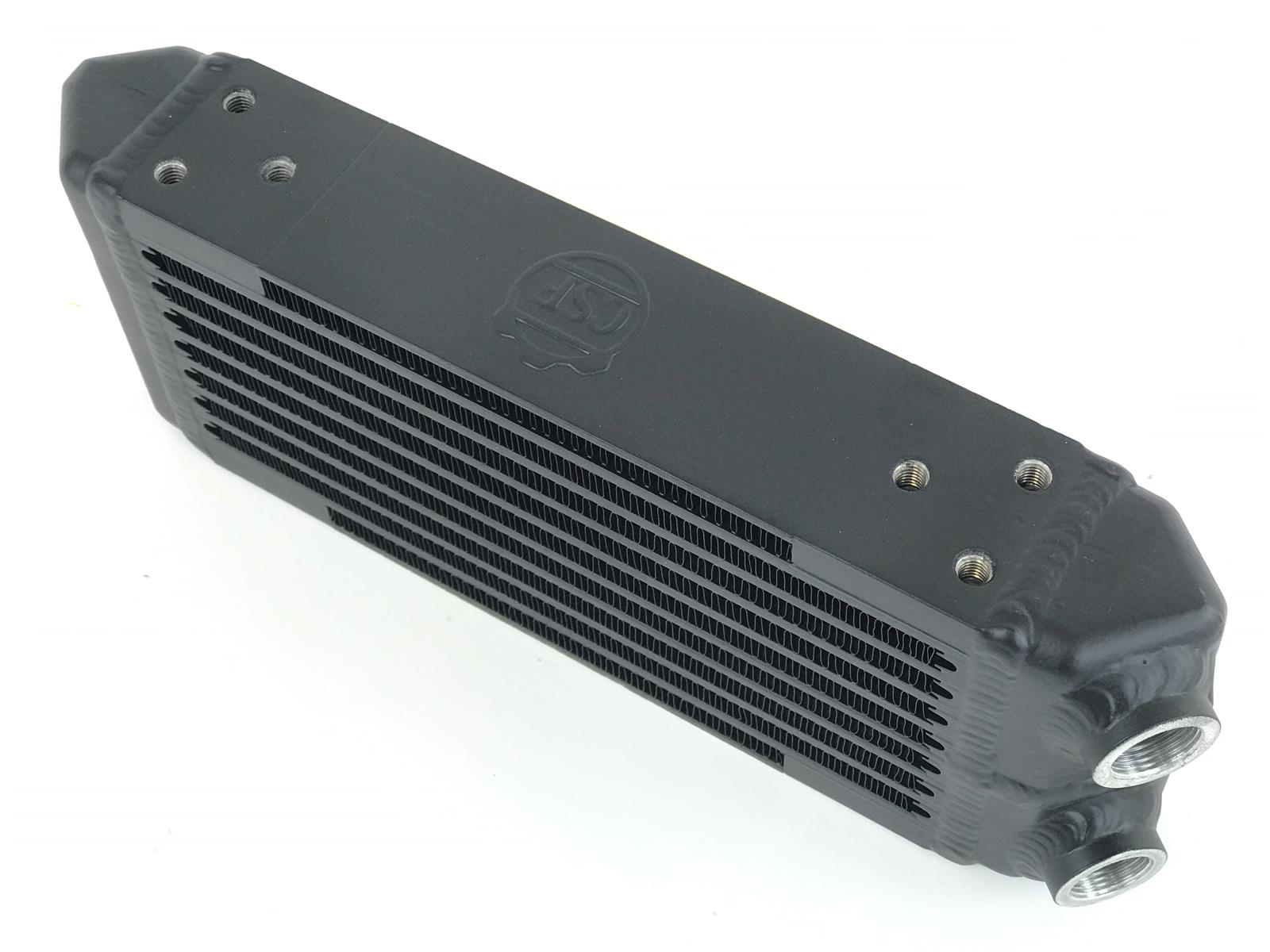

CSF Universal Dual-Pass Oil Cooler M22 x 1.5 - 8119

Key Features & Specs:

• Part Number: CSF 8119
• Product Type: Universal dual-pass oil cooler
• Cooler Construction: High-pressure bar-and-plate design
• Cooling Rows: 8 rows
• Flow Design: Dual-pass internal flow
• Cooler Material: Aluminum
• Finish: Black powder-coated finish
• Overall Length: 13.00 inches
• Overall Height: 4.75 inches
• Overall Thickness: 2.16 inches
• Port Size: M22 x 1.5
• Port Type: Female-thread inlet and outlet
• Port Layout: Same-side feed and return with 40-degree angle
• Fluid Capacity: 0.53 liters / 0.56 quart
• Adapter Compatibility: M30, -16 AN, or -12 AN union adapters
• Fan Included: No
• Quantity: Sold individually
• Installation Note: Universal application; custom brackets, hoses, fittings, and plumbing are required.

Fitment:

• Universal oil-cooling applications
• Custom engine oil, transmission fluid, differential fluid, or power-steering cooling systems
• Verify available mounting space, fluid type, line size, fitting compatibility, and system pressure before installation

Add high-capacity fluid cooling to a custom street, track, towing, or racing build with the CSF 8119 Universal Dual-Pass Oil Cooler. This compact black powder-coated aluminum plate-style cooler uses eight rows of high-pressure bar-and-plate cooling and a dual-pass internal flow design to increase fluid contact time through the core. Both M22 x 1.5 female ports are positioned on the same side with a 40-degree feed-and-return angle, allowing flexible plumbing with compatible M30, -16 AN, or -12 AN union adapters.
