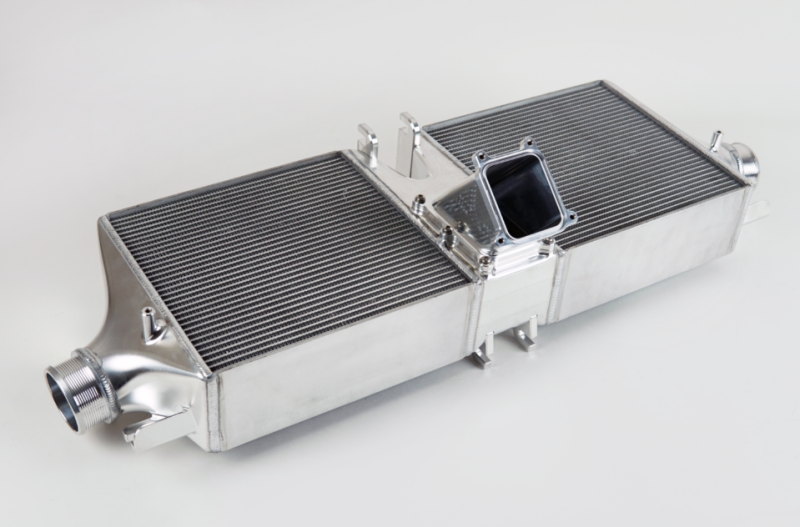

CSF Twin Intercooler System for 2021-2026 Porsche 911 Turbo & Carrera - 8188

Key Features & Specs:

• Part Number: CSF 8188
• Product Type: Twin air-to-air intercooler system
• Core Design: PWR Formula 1-grade 2-row rolled-tube core
• Core Tubes: 33 tubes versus 17 on the OEM intercooler
• Tube Construction: 3mm rolled tubes with internal fins
• Fin Height: 4.85mm
• Construction: 100% TIG-welded aluminum

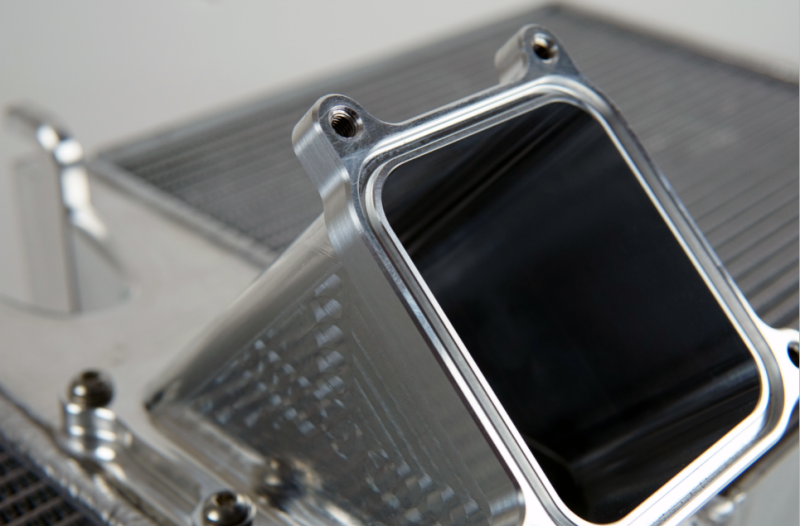

• End Tanks: CNC-machined billet aluminum with integrated throttle-body Y-pipe connection
• Connections: OEM-style CNC-machined inlet and outlet connections
• Ports: Three 1/8-inch NPT ports for methanol injection, boost monitoring, or sensors
• Finish: Polished
• Weight: 20 lb. total / 9.07 kg
• Installation: Plug-and-play drop-in fit
• Manufacturing: Made in the USA by PWR North America
• Intercooler Pipes Included: No
• Mounting Brackets Included: No
• Replaces OEM Numbers: Porsche 992145805G, 992145805N

Fitment:

• 2021-2025 Porsche 911 Turbo 992 3.7L Turbo H6
• 2021-2025 Porsche 911 Turbo S 992 3.7L Turbo H6
• 2023-2024 Porsche 911 Sport Classic 992 3.7L Turbo H6
• 2025 Porsche 911 Turbo 50 Years 992 3.7L Turbo H6
• 2025-2026 Porsche 911 Carrera 992.2 3.0L Turbo H6
• 2025-2026 Porsche 911 Carrera T 992.2 3.0L Turbo H6
• 2025-2026 Porsche 911 Carrera S 992.2 3.0L Turbo H6
• 2025 Porsche 911 Carrera 4S 992.2 3.0L Turbo H6
• 2025 Porsche 911 Targa 4 992.2 3.0L Turbo H6
• 2025 Porsche 911 Targa 4S 992.2 3.0L Turbo H6

Reduce charge-air temperatures in your Porsche 992 with the CSF 8188 Twin Intercooler System. Designed for 911 Turbo, Turbo S, Sport Classic, and select 992.2 Carrera models, this high-performance air-to-air upgrade uses Formula 1-grade PWR cores, billet end tanks, and TIG-welded construction to help resist heat soak in high-boost and track-driven applications. OEM-style connections and integrated throttle-body Y-pipe routing support a true plug-and-play installation while providing three 1/8-inch NPT ports for optional boost monitoring or methanol injection.
