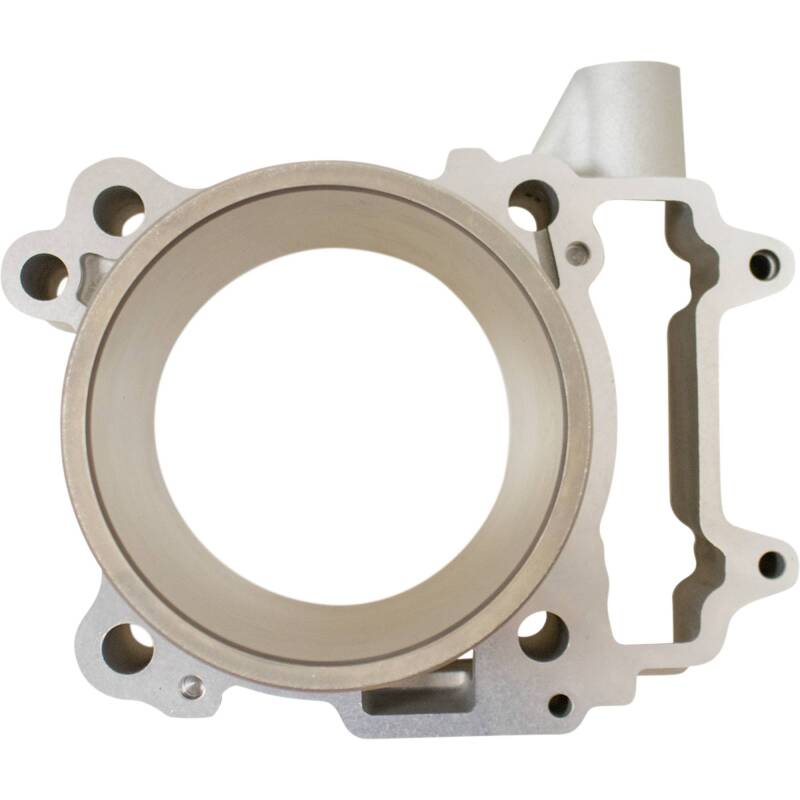

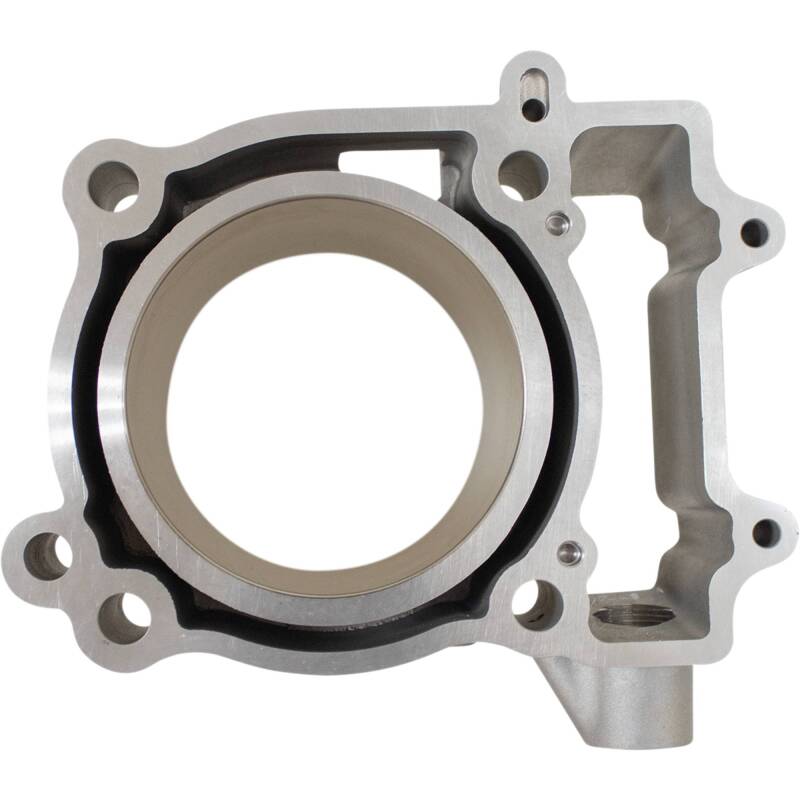

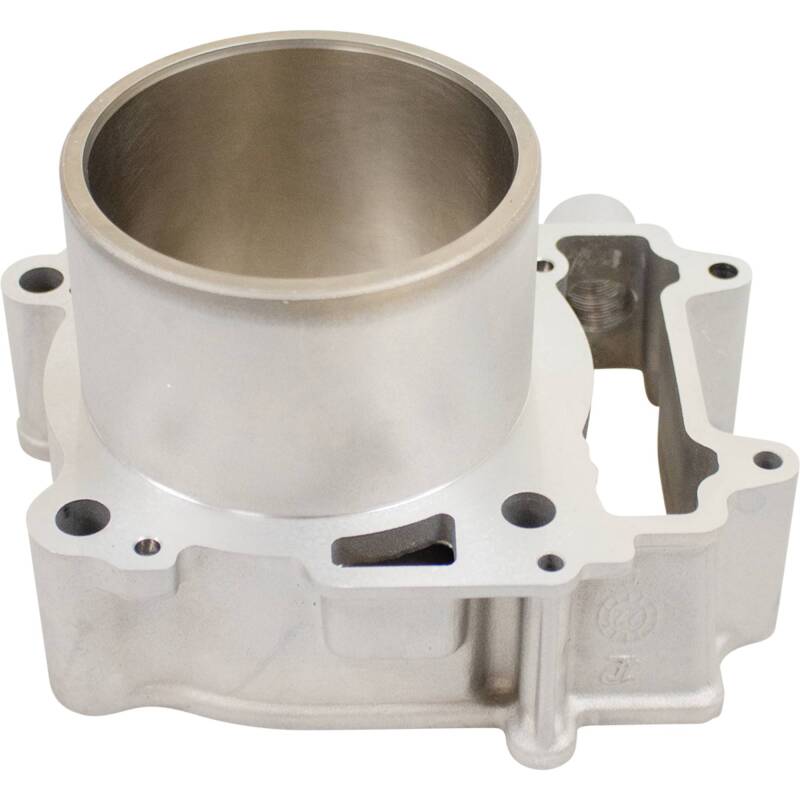

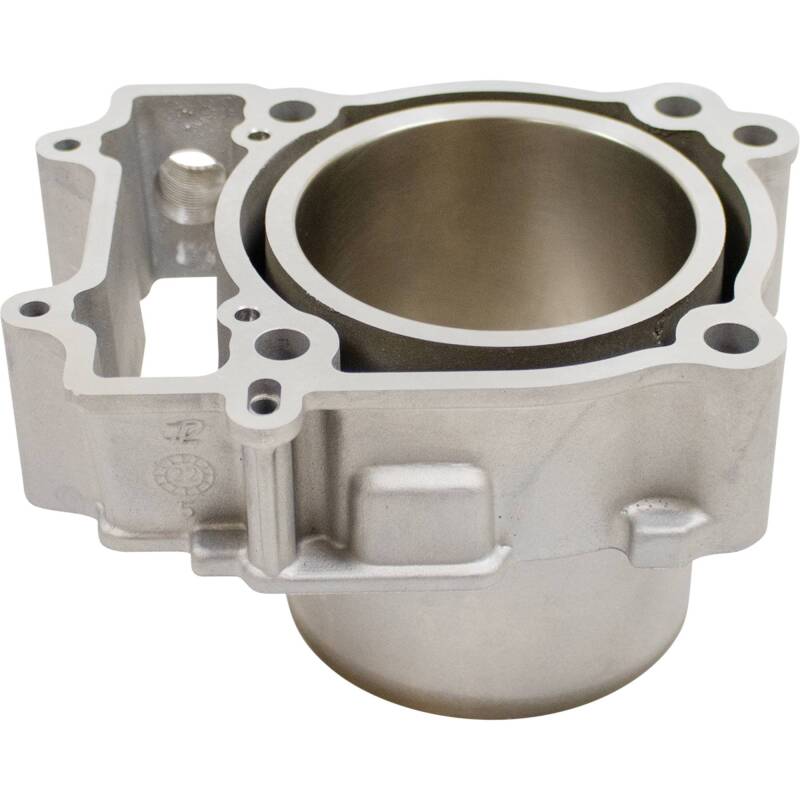

Cylinder Works Standard Bore Cylinder for Polaris ACE 570 / ACE 570 [Euro] / ACE 570 [MD] & More - 60005

The Cylinder Works Standard Bore Cylinder, part number 60005, is a new, not remanufactured cast-aluminum replacement cylinder designed as an OEM-style alternative to replating a worn cylinder. It is intended for Polaris ACE 570, ACE 570 [Euro], and ACE 570 [MD]; see the complete vehicle list below.

Features

• Stock-bore replacement configuration for a standard-displacement top-end rebuild
• New cast-aluminum cylinder with an OEM-style appearance
• Nickel-silicon-carbide (NSC) electroplated bore for wear resistance, oil retention, and reduced friction
• Precision diamond honed to the proper bore dimension and surface finish to support ring seal

What Is Included

• Cylinder only

Specifications

• Brand: Cylinder Works
• Product Type: Standard Bore Cylinder
• Bore Configuration: Standard bore
• Construction: Cast aluminum
• Bore Finish: Nickel-silicon-carbide electroplate
• Manufacturer Part Number: 60005

Vehicle Fitment

Make: Polaris

• ACE 570 (2015-2019)
• ACE 570 [Euro] (2015-2018)
• ACE 570 [MD] (2016)
• ACE 570 HD (2015-2019)
• Ranger 570 [Euro] (2015-2016)
• Ranger 570 [INTL] (2014)
• Ranger 570 4x4 (2014-2021)
• Ranger 570 4x4 [Euro] (2016)
• Ranger 570 4x4 [INTL] (2014-2015, 2017-2018)
• Ranger 570 4x4 Crew (2014-2021)
• Ranger 570 4x4 Crew EPS (2014-2021)
• Ranger 570 4x4 Crew MidSize (2015-2016)
• Ranger 570 4x4 EPS (2017-2019)
• Ranger 570 4x4 EPS HDPE (2017)
• Ranger 570 4x4 EPS HDPS (2018)
• Ranger 570 4x4 Full Size (2015-2023)
• Ranger 570 4x4 Full Size Crew (2015-2019)
• Ranger 570 4x4 Full Size EPS (2015)
• Ranger 570 Crew Premium (2021)
• Ranger 570 Crew SP (2022-2023)
• Ranger 570 Crew SP NorthStar Edition (2022)
• Ranger 570 Crew SP Premium (2022-2023)
• Ranger 570 EPS (2014-2019)
• Ranger 570 HD (2019)
• Ranger 570 Premium (2021)
• Ranger 570 SP (2022-2023)
• Ranger 570 SP NorthStar Edition (2022)
• Ranger 570 SP Premium (2022-2023)
• Ranger 570 XP (2016)
• Ranger 570-6 Full Size Crew (2016-2023)
• RZR 570 (2012-2020)
• RZR 570 [Euro] (2015-2018)
• RZR 570 [INTL] (2012-2014)
• RZR 570 EPS (2013, 2015-2020)
• RZR 570 EPS Trail (2015-2016)
• RZR 570 Trail (2021-2022)
• RZR 570 Trail Premium (2021)
• Sportsman 450 4x4 HO (2016)
• Sportsman 450 4x4 Tractor (2016)
• Sportsman 450 EFI [MD] (2016)
• Sportsman 450 EPS ZUG (2016)
• Sportsman 450 HO (2016)
• Sportsman 450 HO 2x4 [MD] (2016)
• Sportsman 570 (2014-2023)
• Sportsman 570 [Euro] (2017-2018)
• Sportsman 570 [MD] (2015-2017)
• Sportsman 570 6x6 (2017-2023)
• Sportsman 570 6x6 [Euro] (2021)
• Sportsman 570 6x6 Tractor (2017-2018)
• Sportsman 570 EFI EPS Forest Quad (2015)
• Sportsman 570 EFI SP EPS [MD] (2017)
• Sportsman 570 EFI Touring [INTL] (2014)
• Sportsman 570 EFI X2 EPS (2015-2016)
• Sportsman 570 EPS (2014-2016, 2022-2023)
• Sportsman 570 EPS [Euro] (2017-2018)
• Sportsman 570 EPS [MD] (2015)
• Sportsman 570 EPS UTE (2016)
• Sportsman 570 EPS ZUG (2016-2018)
• Sportsman 570 HD (2014-2019)
• Sportsman 570 Hunt Edition (2021-2022)
• Sportsman 570 Premium (2021-2023)
• Sportsman 570 Ride Command LE (2022)
• Sportsman 570 SP (2015-2020)
• Sportsman 570 SP [MD] (2015-2016)
• Sportsman 570 SP EPS (2015-2017)
• Sportsman 570 SP Tractor (2018)
• Sportsman 570 SP ZUG EPS (2018)
• Sportsman 570 Tractor (2016-2019)
• Sport

Fitment and Installation Note: Confirm the complete year, make, model, engine configuration, and manufacturer part number before ordering. Engine assembly should follow the vehicle manufacturer’s specifications, clearances, torque values, and break-in procedures.
