DeatschWerks 1200cc Fuel Injectors for 2002-2015 Honda / Acura K-Series - 16MX-03-1200-4

DeatschWerks | 1200cc Fuel Injectors | Bosch EV14 | Honda Civic Si K20 / K24 | S2000 F22 | Acura RSX / TSX | Minitimer Extended Nozzle | Set of 4

Fuel your Honda or Acura performance build with the DeatschWerks 1200cc Bosch EV14 Fuel Injector Set, part number 16MX-03-1200-4. Designed for select 2002-2015 Honda Civic Si K20/K24, 2006-2009 S2000 F22, Acura RSX/TSX, and compatible four-cylinder applications, these injectors deliver 1,200 cc/min (approximately 114 lb/hr) per injector. Featuring a Bosch EV14 extended-nozzle design, Jetronic/Minitimer electrical connectors, and 12.4-ohm high-impedance coils, this matched set provides increased fuel delivery capacity for properly tuned performance engines. Each package includes four flow-matched injectors, O-rings, wiring components, and an individual matched-set flow report.

Key Features & Specifications:

• Brand: DeatschWerks

• Part Number: 16MX-03-1200-4

• Product Type: High-Flow Electronic Fuel Injectors

• Injector Body Style: Bosch EV14

• Injector Design: Extended Nozzle

• Flow Rate: 1,200 cc/min Per Injector

• Flow Rate in Liters: 1.2 L/min Per Injector

• Advertised Flow Rate: 114 lb/hr Per Injector

• Electrical Connector: Jetronic / Minitimer

• Connector Configuration: Minitimer Extended Nozzle

• Injector Impedance: 12.4 Ohms

• Impedance Category: High Impedance (High-Z)

• Fuel Compatibility: Gasoline and Ethanol Fuels, Including E85

• Flow Matching: Static and Dynamic

• Flow Balance: Approximately 1-2% Across the Set

• Spray Characteristics: Designed for Consistent Atomization and Fuel Delivery

• Engine Applications: Honda F22 and Honda/Acura K20/K24 Four-Cylinder Engines

• Additional Applications: Honda CR-Z and Compatible Acura ILX Configurations

• Wiring Harness Included: Yes

• O-Rings Included: Yes

• Matched Set Flow Report: Included

• Injector Characterization Data: Available for ECU Calibration

• Alternative Part Number: 21U-01-1300-4

• Quantity: Matched Set of 4 Injectors

• UPC: 00887753525734

Kit Includes:

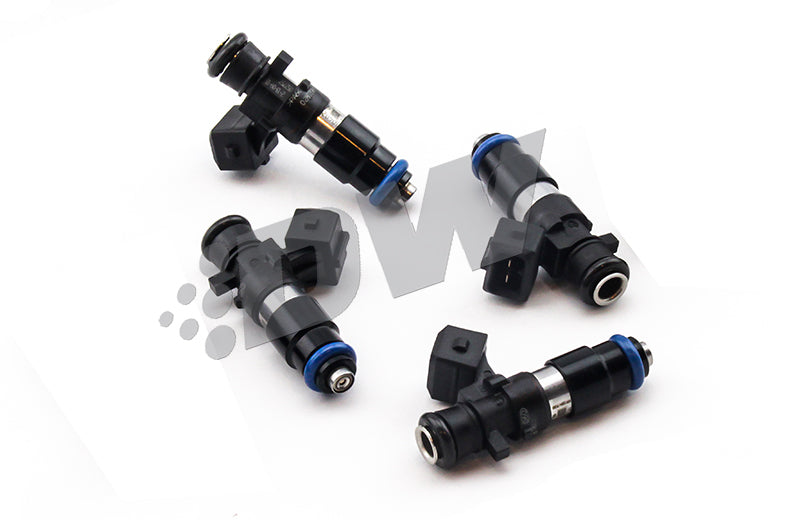

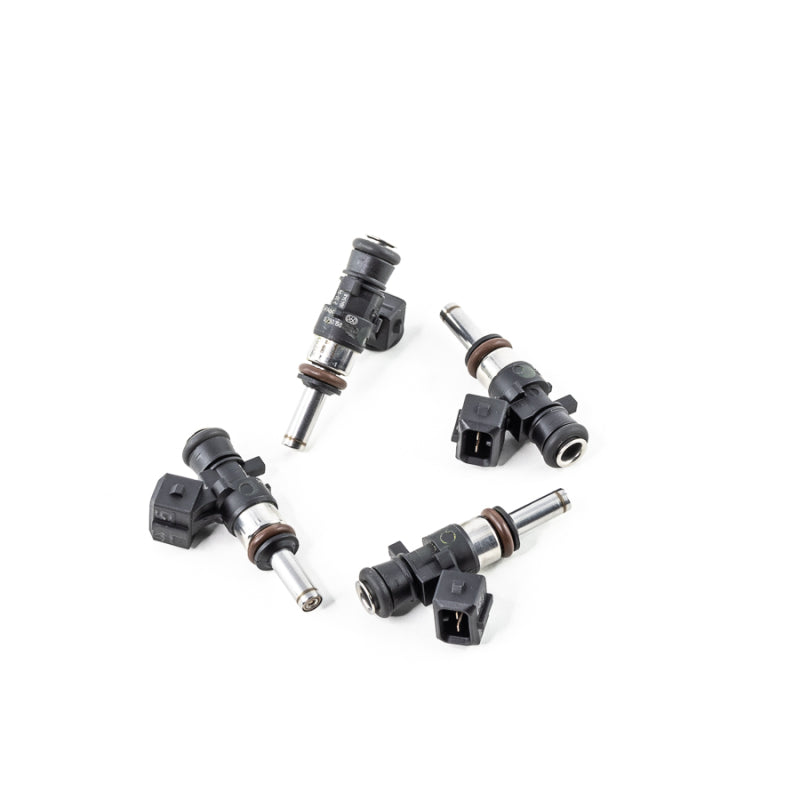

• 4 x DeatschWerks 1200cc Bosch EV14 Extended-Nozzle Fuel Injectors

• Injector O-Rings

• Wiring Harness Components

• Matched Set Flow Report

About the DeatschWerks 1200cc Fuel Injectors

The DeatschWerks 1200cc Bosch EV14 injector set combines high-flow fuel delivery with the precise injector operation needed for modified four-cylinder engines. Its extended-nozzle configuration is designed for compatible fuel rails and intake manifolds, while the high-impedance coil design supports appropriate electronic injector drivers.

Every set is statically and dynamically flow-matched, with injector-to-injector variation balanced to approximately 1-2%. This helps provide consistent cylinder-to-cylinder fueling and a more reliable foundation for accurate ECU calibration.

Gasoline and ethanol compatibility, including E85, makes these injectors suitable for properly configured performance fuel systems. The included wiring components and O-rings support installation into compatible engine configurations.

For turbocharged, supercharged, and high-output naturally aspirated Honda and Acura builds, the 1200cc rating offers substantial fuel capacity while retaining the response characteristics of the Bosch EV14 design.

Fitment & Installation Notes:

• 2006-2009 Honda S2000: 2.2L F22C1, including 2008-2009 CR.

• 2002-2015 Honda Civic Si: K20 and K24 four-cylinder applications.

• 2002-2006 Acura RSX: Base and Type-S, K-series.

• 2004-2014 Acura TSX: Compatible K24 four-cylinder applications.

• 2013-2015 Acura ILX: Compatible four-cylinder applications.

• 2011-2015 Honda CR-Z: Base and EX, subject to the correct injector configuration.

• Dodge SRT-4 Applications: Listed in the broader application family; exact fitment for this injector configuration should be confirmed before ordering.

• Injector Design: Bosch EV14 extended nozzle.

• Electrical Connector: Jetronic/Minitimer.

• Injector Impedance: 12.4 ohms, high impedance.

• Wiring Harness: Included.

• Fuel Rail Compatibility: Verify injector seating, extended-nozzle dimensions, O-ring fitment, and electrical connections.

• ECU Tuning: Required when upgrading from factory injector flow rates.

• Flow Rating: 1,200 cc/min per injector. Actual fuel delivery depends on differential fuel pressure.

• Fuel System Matching: Confirm fuel pump capacity, pressure regulation, injector characterization data, and engine-management compatibility.

The DeatschWerks 16MX-03-1200-4 delivers a matched set of four Bosch EV14 extended-nozzle injectors with 1200cc fuel capacity, E85 compatibility, and high-impedance Minitimer connections for compatible Honda and Acura performance builds.
