DeatschWerks 265 LPH Compact In-Tank Fuel Pump w/ Clips & Universal Install Kit

DeatschWerks | DW65C | 265 LPH Fuel Pump | Universal In-Tank | Compact Electric Fuel Pump | Ethanol Compatible | Mounting Clips | Installation Kit

Give your performance build the fuel delivery it needs with the DeatschWerks DW65C 265 LPH Compact In-Tank Fuel Pump, part number 9-652-1000. Designed for compatible factory fuel pump modules and custom installations, this high-flow electric pump combines a compact design with a quiet turbine-style impeller and gasoline and ethanol compatibility. Unlike the DW65C universal kit sold without mounting clips, this version includes mounting clips and a universal installation kit, making it a versatile option for enthusiasts upgrading an existing fuel system or building a custom in-tank setup.

Key Features & Specifications:

• Brand: DeatschWerks

• Series: DW65C

• Part Number: 9-652-1000

• Product Type: Compact High-Flow Fuel Pump

• Fuel Pump Type: Electric In-Tank

• Fitment Type: Universal / Custom Installation

• Flow Rate: 265 LPH (Approximately 70 GPH)

• Fuel Pressure Specification: 100 PSI

• Fuel Pump Voltage: 12V

• Pump Technology: Quiet Turbine Impeller

• Fuel Compatibility: Gasoline and Ethanol Fuels

• Fuel Pump Inlet Size: 11.00mm

• Inlet Quantity: 1

• Inlet Attachment: Hose Barb

• Fuel Pump Outlet Size: 5/16 Inch

• Outlet Quantity: 1

• Outlet Attachment: Hose Barb

• Mounting Clips Included: Yes

• Universal Installation Kit Included: Yes

• Wiring Harness Included: No

• Mounting Bracket Included: No

• Fuel Pressure Regulator Included: No

• Sending Unit Included: No

• Gasket Included: No

• Factory Sending Unit: Reused Where Applicable

• Quantity: 1 Fuel Pump with Universal Installation Kit

• UPC: 00887753530288

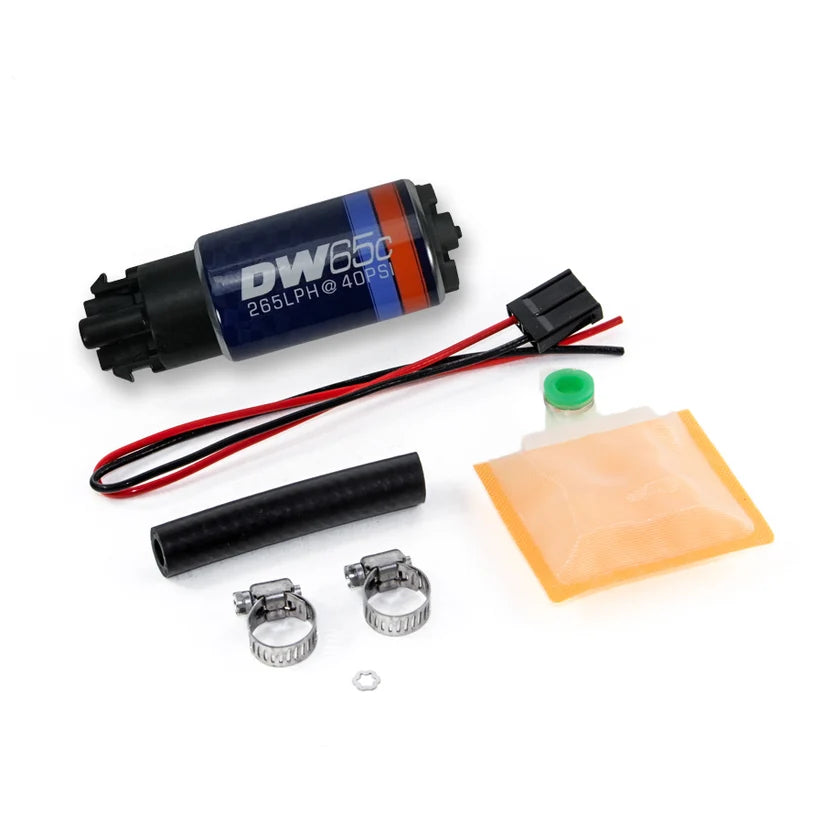

Kit Includes:

• 1 x DeatschWerks DW65C 265 LPH Compact In-Tank Fuel Pump

• 1 x Universal Fuel Pump Installation Kit

• Mounting Clips: Included with this configuration

A separate wiring harness, fuel pressure regulator, replacement sending unit, and mounting bracket are not included.

About the DeatschWerks DW65C Fuel Pump

The DeatschWerks DW65C brings high-flow fuel delivery to compact factory fuel pump assemblies. Rated at 265 liters per hour, this electric in-tank pump provides additional fuel delivery capacity for properly matched performance applications.

Its turbine-style impeller is designed for quiet operation, while compatibility with gasoline and ethanol fuels provides flexibility for enthusiasts upgrading their fuel systems.

DeatschWerks tests its fuel pumps for flow, pressure relief valve activation, and electrical current draw to ensure each pump meets its specified performance requirements.

The major advantage of 9-652-1000 is its included mounting clips. Paired with the universal installation kit, this package provides additional mounting flexibility compared with the clip-free DW65C universal kit, part #9-651-1000.

Fitment & Installation Notes:

• Universal Application: Compatible aftermarket in-tank fuel pump installations.

• Vehicle Compatibility: Not a guaranteed direct replacement for every vehicle. Confirm the fuel pump module, available space, connections, and mounting requirements.

• Mounting Clips: Included with this version.

• Installation Kit: Universal installation components included.

• Factory Sending Unit: Must be reused where applicable.

• Electrical Requirements: 12V nominal operation; confirm adequate pump voltage and wiring capacity.

• Fuel Connections: 11.00mm hose-barb inlet and 5/16 Inch hose-barb outlet.

• Fuel Compatibility: Gasoline and ethanol fuels.

• Fuel System Matching: Confirm fuel pressure regulation, injector capacity, and filtration requirements for your application.

• Fuel Flow: Actual delivery varies with operating pressure and supplied voltage.

• Installation: Follow DeatschWerks installation instructions and inspect all fuel connections for leaks before operating the vehicle.

The DeatschWerks DW65C 9-652-1000 combines compact 265 LPH fuel delivery, ethanol compatibility, mounting clips, and universal installation components for flexible performance fuel system upgrades.
