DeatschWerks 20ft -6AN Stainless Braided PTFE Fuel Hose - 6-02-0861-20

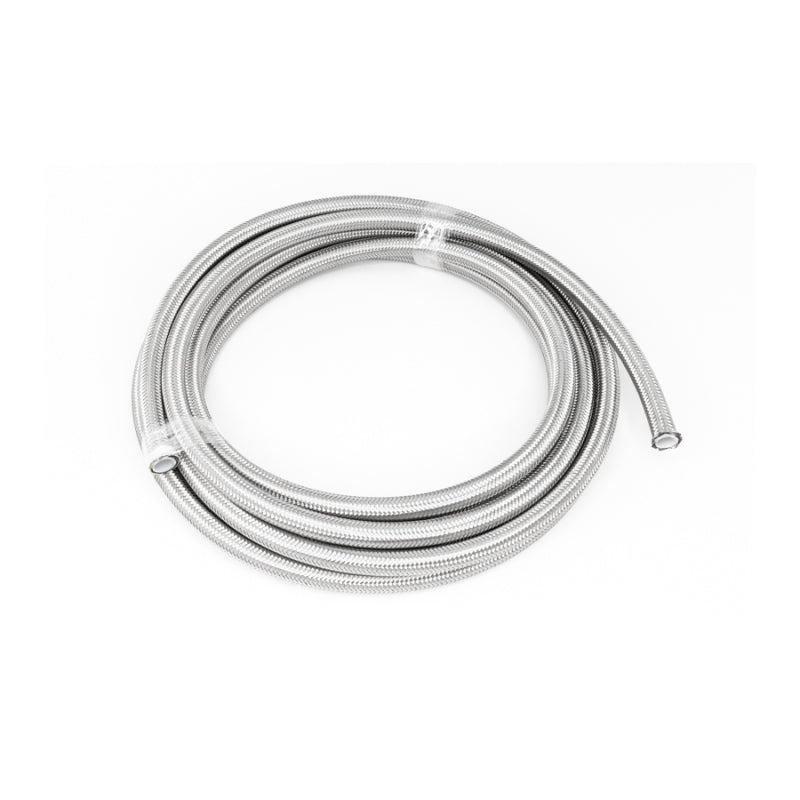

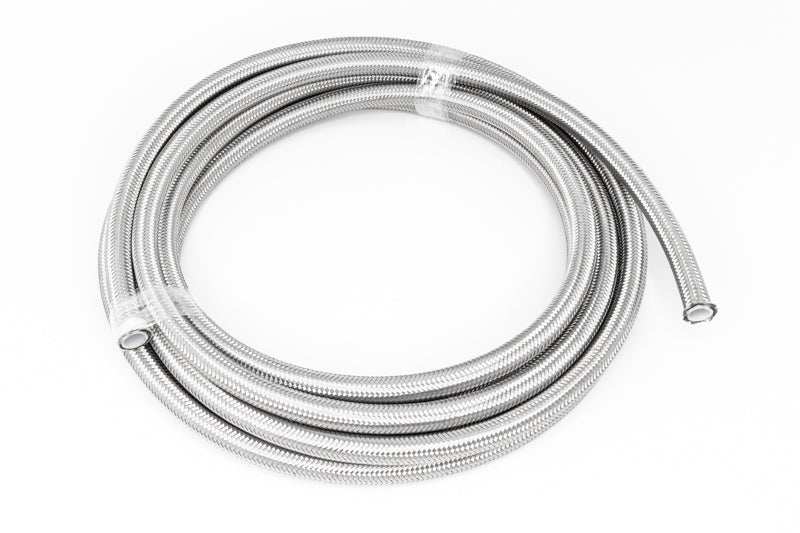

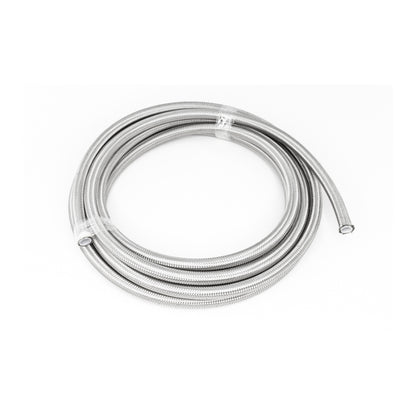

DeatschWerks 6-02-0861-20 provides 20 feet of -6AN silver stainless steel double-braided PTFE fuel hose for custom fuel feed and return lines. Cut the hose to suit your routing and assemble it with the matching hose ends, sold separately.

Quick View & Specifications

• Hose Length: 20 ft (240 in)
• AN Size: -6AN
• Hose Type: Braided fuel hose
• Series: DW PTFE Braided Hose
• Inner Material: PTFE (polytetrafluoroethylene)
• Outer Covering: Stainless steel double braid
• Color: Silver
• Fuel Rated: Yes
• Fuel Compatibility: Pump gasoline, race fuels, E85, E100, and methanol
• Pressure Rating: 1,000 PSI
• Operating Temperature: -70°F to 500°F
• Cut to Length: Yes; trim to the required installation length
• Fittings Included: No; hose ends and adapters sold separately
• Required Hose Ends: DeatschWerks -6AN PTFE hose ends
• Application: Custom fuel feed and return plumbing
• SKU: DWK6-02-0861-20
• Manufacturer Part Number: 6-02-0861-20
• UPC: 887753532497

DW PTFE Braided Hose

DW PTFE Braided Hose combines broad fuel compatibility with a liner that prevents fuel vapor from permeating through the hose wall. It supports gasoline, ethanol fuels through E100, and methanol, and allows tighter-radius routing than DW CPE hose. This version uses a silver stainless steel double braid. Use DeatschWerks PTFE hose ends in the matching AN size to complete the line.
