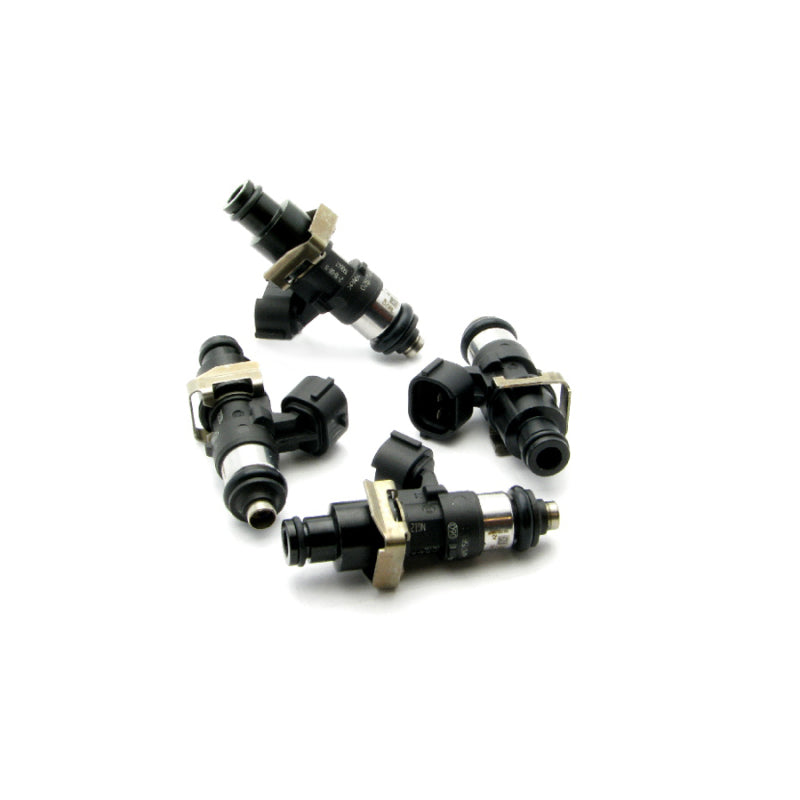

DeatschWerks 2200cc Bosch EV14 Injectors, Universal 48mm, 11mm Set of 4 - 16S-10-2200-4

Key Features & Specs:

• Brand: DeatschWerks
• Part Number: 16S-10-2200-4
• Injector Flow Rate: 2200cc/min per injector
• Flow Rating: 220 lb/hr per injector
• Set Quantity: Matched set of 4 fuel injectors
• Injector Body Style: Bosch EV14
• Injector Length: 48mm compact configuration
• Fitment Sizing: 11mm
• Application Type: Universal multi-port EFI
• Compact Injector Profile: Short 48mm body supports compatible installations with limited injector-height clearance
• Four-Injector Layout: Designed for compatible inline-four, rotary, ITB, and custom EFI fuel systems
• High-Flow Fueling: Built for engine combinations with major fuel-delivery requirements
• Custom System Planning: Match with compatible fuel rails, O-rings, connectors, fuel type, and ECU calibration
• Installation Note: Confirm injector dimensions, upper and lower seal sizes, electrical connector style, and tuning requirements before ordering

Fitment:

• Universal: Custom fuel-injection applications using Bosch EV14-style 48mm injectors with 11mm fitment dimensions

The DeatschWerks 16S-10-2200-4 is a matched set of four Bosch EV14 universal fuel injectors rated at 2200cc/min, or 220 lb/hr. With a compact 48mm configuration and 11mm fitment sizing, this high-flow injector package is designed for custom EFI systems where injector height, seal dimensions, fuel rail layout, and ECU calibration need to be matched precisely. The four-injector format is well suited to compatible four-cylinder, rotary, individual throttle body, and custom multi-port fuel injection builds requiring substantial fuel-system capacity.
