DeatschWerks 2200cc Injectors CTS-V, Corvette, GTO, GT500 - 16S-12-2200-8

Key Features & Specs:

• Brand: DeatschWerks
• Part Number: 16S-12-2200-8
• Injector Flow Rate: 2200cc/min per injector
• Flow Rating: 220 lb/hr
• Set Quantity: Matched set of 8 fuel injectors
• Injector Body Style: Bosch EV14
• Injector Length: 48mm compact configuration
• Fitment Sizing: 14mm
• Engine Coverage: GM LS2 V8 & Ford Shelby GT500 5.4L, 5.8L applications
• High-Flow Fueling: Designed for builds requiring substantial injector headroom
• Compact Package: Shorter 48mm design helps accommodate compatible rails and intake setups with limited injector-height clearance
• Matched Set Benefit: Supports a more consistent fuel-delivery baseline across all eight cylinders
• Performance Use: Suitable for properly calibrated boosted, race, drag, and high-output street builds
• Tuning Note: Proper ECU calibration is required after changing injector size

Fitment:

• 2005-2006 Pontiac GTO LS2
• 2005-2007 Chevrolet Corvette LS2
• 2006-2007 Cadillac CTS-V LS2
• 2007-2014 Ford Mustang Shelby GT500 5.4L, 5.8L

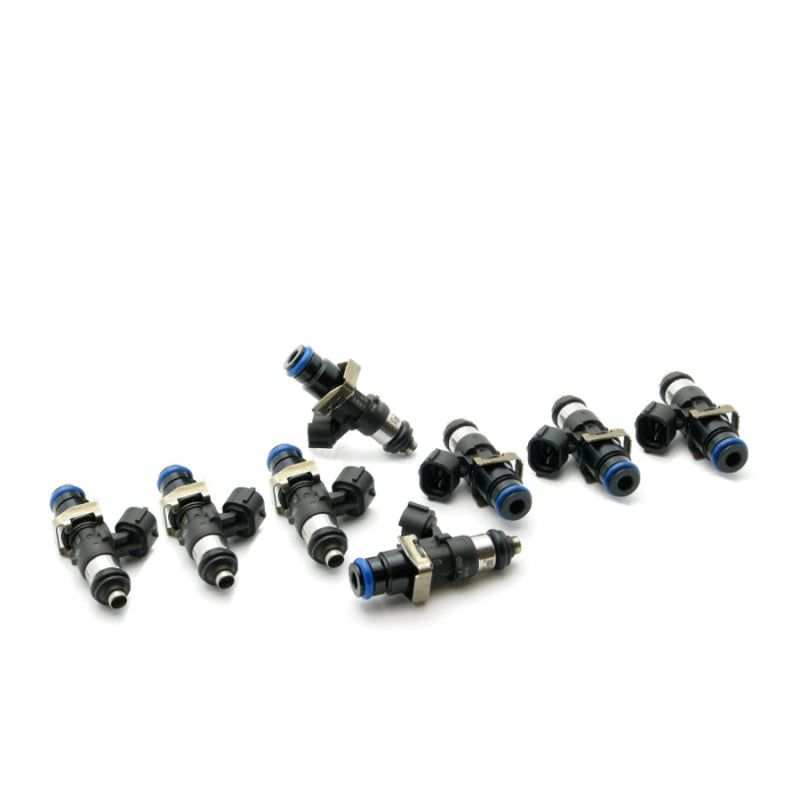

The DeatschWerks 16S-12-2200-8 is a matched set of eight 2200cc/min Bosch EV14 fuel injectors for select Cadillac CTS-V, Chevrolet Corvette, Pontiac GTO, and Ford Mustang Shelby GT500 applications. Featuring a compact 48mm configuration with 14mm fitment sizing, this high-flow injector set is built for properly tuned LS2 and supercharged GT500 projects that require major fuel-system capacity. Its matched eight-injector design provides complete V8 coverage for high-output street, drag, track, turbocharged, and supercharged combinations.
