DeatschWerks 550cc Bosch EV14 Universal 48mm Injectors Set of 6 - 17U-00-0050-6

Key Features & Specs:

• Brand: DeatschWerks
• Part Number: 17U-00-0050-6
• Injector Flow Rate: 550cc/min per injector
• Pound Rating: 50 lb/hr per injector
• Set Quantity: Matched set of 6 fuel injectors
• Injector Body Style: Bosch EV14
• Injector Length: 48mm standard configuration
• Seat-to-Seat Height: 1.890 in.
• Fuel Rail Bore: 14mm
• Fuel Rail O-Ring Outside Diameter: 0.551 in.
• Connector Style: USCAR
• Injector Impedance: 12.4 ohms
• O-Rings: Included
• Wiring Harness: Not included
• Condition: New, not remanufactured
• OEM Replacement: No
• Application Type: Universal custom multi-port EFI
• Tuning Note: Proper injector characterization and ECU calibration are required after installation

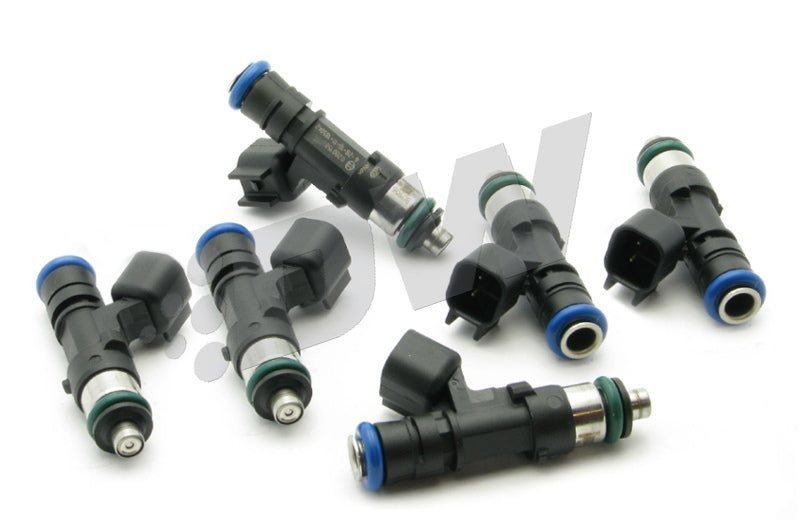

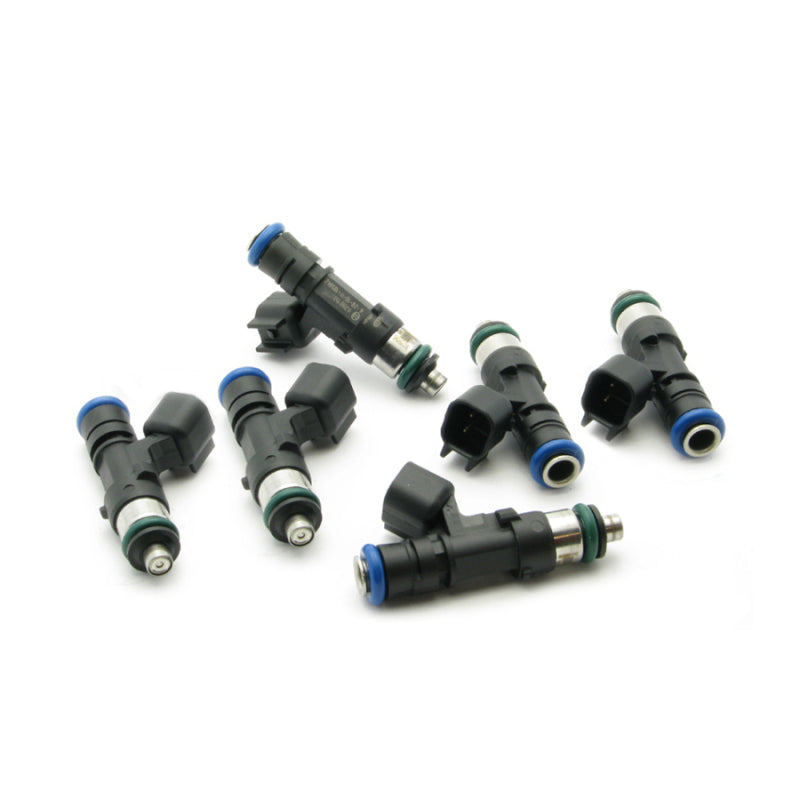

The DeatschWerks 17U-00-0050-6 is a matched set of six 550cc/min Bosch EV14 universal fuel injectors for custom multi-port EFI applications. Featuring a standard 48mm configuration, 14mm fuel rail bore fitment, USCAR connectors, and 12.4-ohm impedance, this set is designed for applications that require verified injector height, seal dimensions, rail compatibility, and ECU calibration. Included O-rings support installation planning for compatible V6, inline-six, rotary, and custom EFI fuel systems.
