DeatschWerks 650cc Bosch EV14 Universal 48mm Injectors Set of 6 - 17U-00-0060-6

Key Features & Specs:

• Brand: DeatschWerks
• Part Number: 17U-00-0060-6
• Injector Flow Rate: 650cc/min per injector
• Pound Rating: 60 lb/hr per injector
• Set Quantity: Matched set of 6 fuel injectors
• Injector Body Style: Bosch EV14
• Injector Length: 48mm standard configuration
• Fuel Rail Bore: 14mm
• Connector Style: USCAR
• Injector Impedance: 12.4 ohms
• O-Rings: Included
• Wiring Harness: Not included
• Condition: New, not remanufactured
• OEM Replacement: No
• Application Type: Universal custom multi-port EFI
• Catalog Flow Note: Product description references 630cc/min, while supplied advertised flow data lists 650cc/min; verify the intended calibration data before purchase
• Tuning Note: Proper injector characterization and ECU calibration are required after installation

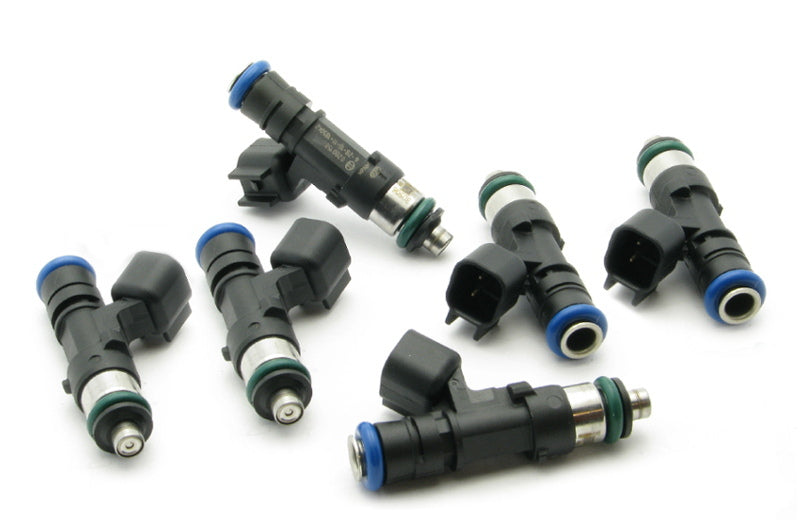

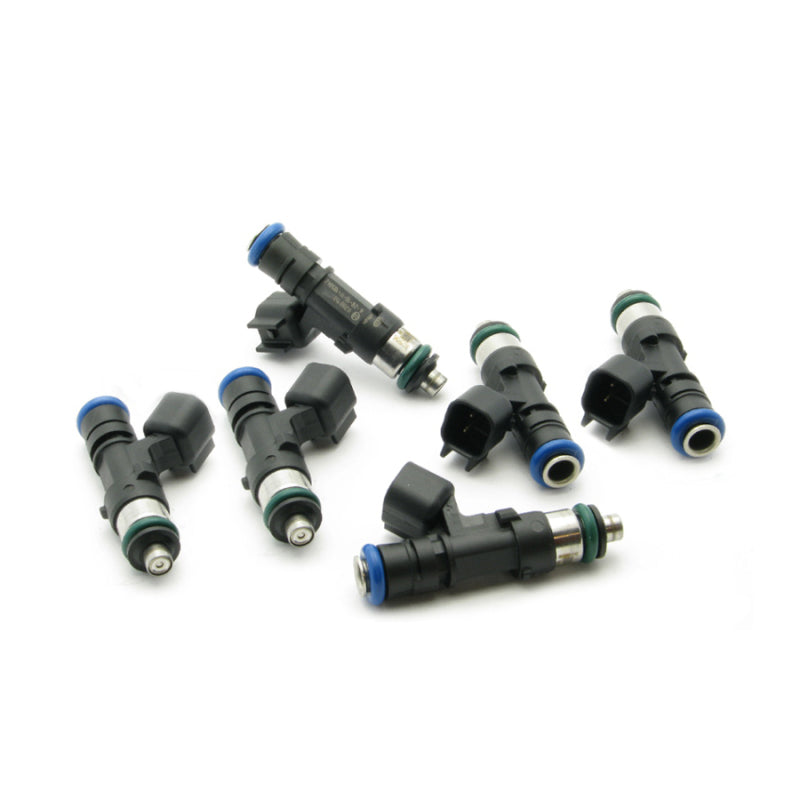

The DeatschWerks 17U-00-0060-6 is a matched set of six Bosch EV14 universal fuel injectors for custom multi-port EFI applications. Rated at 60 lb/hr with a supplied advertised flow specification of 650cc/min per injector, these standard-length 48mm injectors use USCAR connectors, 12.4-ohm impedance, and a 14mm fuel rail bore configuration. Included O-rings support installation planning, but injector height, seal dimensions, rail fitment, fuel type, and ECU calibration must be verified before installation.
