DeatschWerks 2200cc Bosch EV14 Universal 60mm, 11mm Injectors Set of 6 - 16S-11-2200-6

Key Features & Specs:

• Brand: DeatschWerks
• Part Number: 16S-11-2200-6
• Injector Flow Rate: 2200cc/min per injector
• Pound Rating: 215 lb/hr per injector
• Set Quantity: Matched set of 6 fuel injectors
• Injector Body Style: Bosch EV14
• Injector Length: 60mm long-body configuration
• Fuel Rail Bore: 11mm
• Seat-to-Seat Height: 2.362 in.
• Fuel Rail O-Ring Outside Diameter: 0.433 in.
• Connector Style: Sumitomo pigtail
• Injector Impedance: 8.8 ohms
• O-Rings: Included
• Wiring Harness: Not included
• Wiring Requirement: Pigtail connector ends must be soldered into the vehicle wiring
• Condition: New, not remanufactured
• OEM Replacement: No
• Application Type: Universal custom multi-port EFI
• Tuning Note: Proper injector characterization and ECU calibration are required after installation

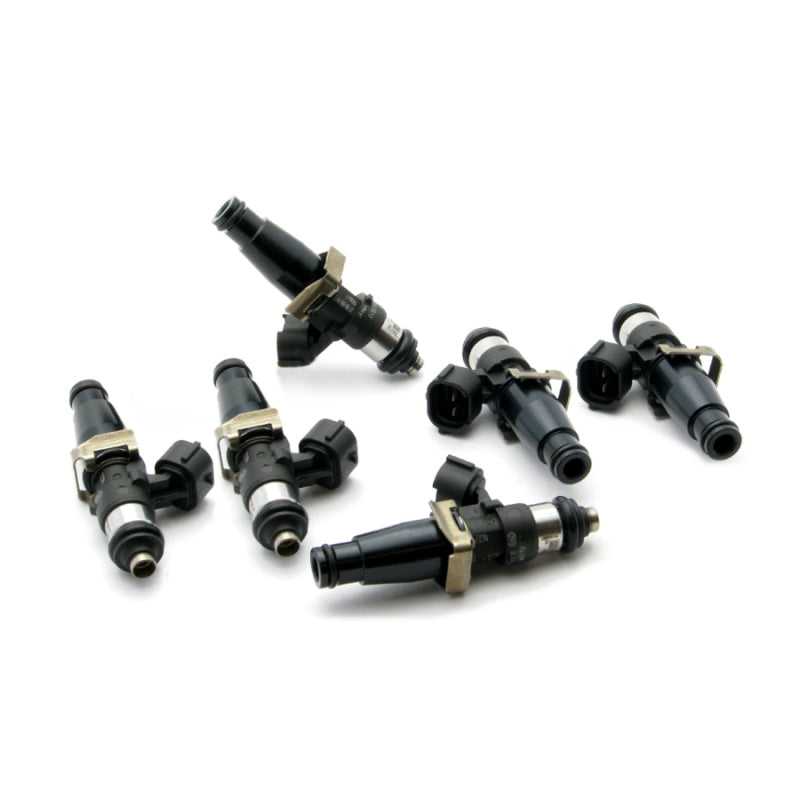

The DeatschWerks 16S-11-2200-6 is a matched set of six 2200cc/min Bosch EV14 universal fuel injectors for custom high-output multi-port EFI systems. These long-body 60mm injectors use an 11mm fuel rail bore configuration, Sumitomo pigtail-style connectors, 8.8-ohm impedance, and included O-rings. The pigtail connector ends must be soldered into the vehicle wiring. Confirm injector height, seal dimensions, rail fitment, fuel compatibility, and ECU calibration before installation.
