DeatschWerks Bosch EV14 630cc Universal Fuel Injectors 60mm - 18U-00-0060-4

DeatschWerks | Bosch EV14 | 630cc Fuel Injectors | Universal 60mm | USCAR | High Impedance | E85 Compatible | Matched Set of 4

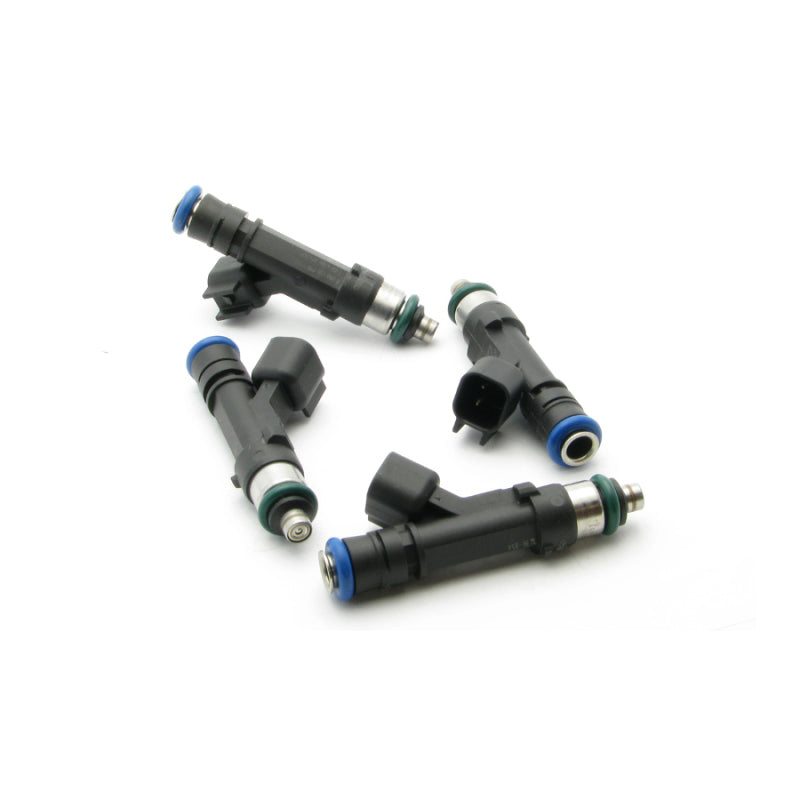

Build a precise, high-flow fuel system with the DeatschWerks Bosch EV14 630cc Universal Fuel Injector Set, part number 18U-00-0060-4. Featuring a 60mm long-body design, USCAR electrical connectors, 12.4-ohm high-impedance coils, and 14mm fuel rail O-ring fitment, these injectors are designed for compatible multi-port fuel injection systems. Each injector delivers a manufacturer-rated 630 cc/min (approximately 0.63 L/min), with a nominal 60 lb/hr rating. Supplied as a matched set of four with O-rings, a custom flow report, and injector tuning data, this set offers consistent fuel delivery and gasoline/E85 compatibility for properly configured performance builds.

Key Features & Specifications:

• Brand: DeatschWerks

• Part Number: 18U-00-0060-4

• Injector Series: Bosch EV14 Universal

• Product Type: High-Flow Electronic Fuel Injectors

• Injector Configuration: Top-Feed, Multi-Port Fuel Injection

• Manufacturer Flow Rating: 630 cc/min Per Injector

• Flow Rate in Liters: 0.63 L/min Per Injector

• Advertised Flow Rate: 60 lb/hr Per Injector

• Injector Body Style: Bosch EV14 Long Body

• Injector Length: 60mm

• Seat-to-Seat Height: 2.362 Inches (Approximately 60mm)

• Fuel Rail Bore: 14mm

• Fuel Rail O-Ring Outside Diameter: 0.551 Inches (Approximately 14mm)

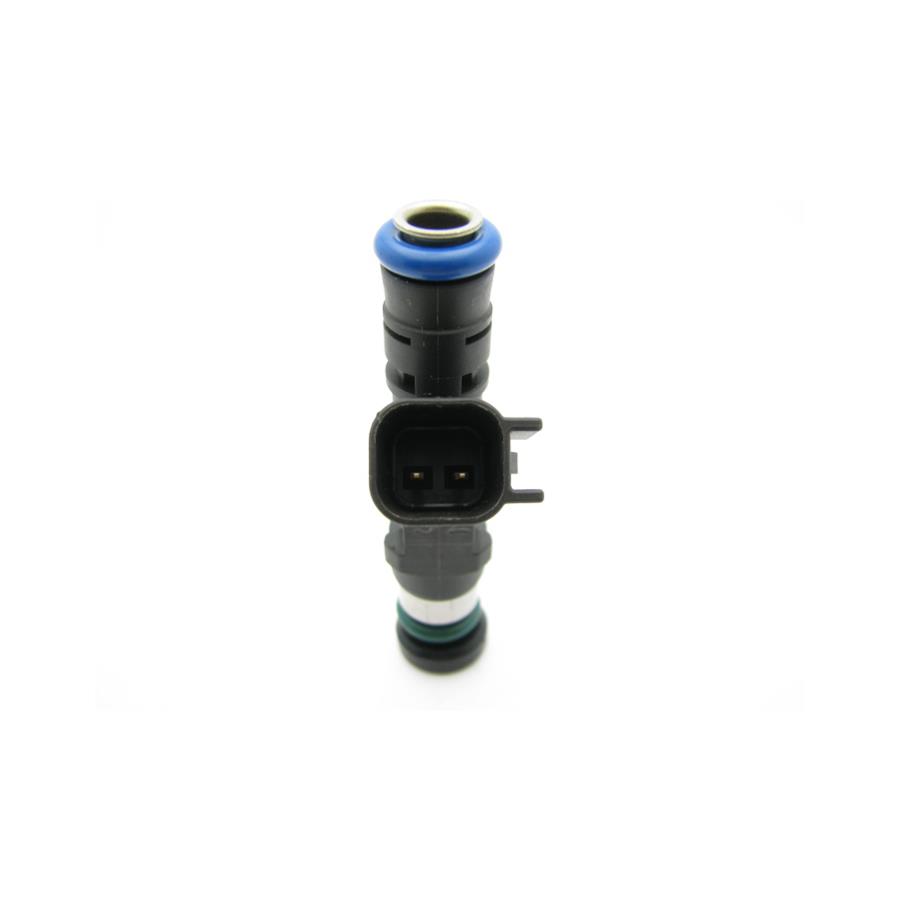

• Electrical Connector: USCAR

• Injector Impedance: 12.4 Ohms

• Impedance Category: High Impedance (High-Z)

• Injector Technology: Low-Inertia Ball-and-Seat Pintle

• Coil Construction: Copper

• Fuel Compatibility: Gasoline and Ethanol Fuels, Including E85

• Flow Matching: Static and Dynamic

• Flow Balance: Within Approximately 1-2% Across the Set

• Injector Response: Fast, Precise Opening Characteristics

• Spray Pattern: Designed for Consistent Fuel Atomization

• Fitment Type: Universal, Dimension-Specific

• O-Rings Included: Yes

• Wiring Harness Included: No

• Matched Set Flow Report: Included

• Injector Tuning Data: Included

• Quantity: Matched Set of 4 Fuel Injectors

• Warranty: DeatschWerks Limited Lifetime Warranty

• UPC: 00887753526922

Kit Includes:

• 4 x DeatschWerks Bosch EV14 630cc Fuel Injectors

• Injector O-Rings

• Custom Matched-Set Flow Report

• Injector Tuning Data

About the DeatschWerks Bosch EV14 Fuel Injectors

DeatschWerks Bosch EV14 universal injectors combine increased fuel delivery capacity with precise electronic control for performance multi-port fuel injection systems.

The EV14's low-inertia ball-and-seat pintle design and copper coils support fast injector opening and closing, helping maintain controlled fuel delivery during idle, acceleration, and high-load operation.

Each four-injector set is statically and dynamically flow-matched to reduce cylinder-to-cylinder variation. The included custom flow report and tuning data provide a reliable starting point for accurate ECU calibration.

These 630cc injectors use a 60mm long-body design, making them especially relevant to custom fuel systems and compatible fuel rails requiring this specific injector length. Their 14mm fuel rail O-ring configuration, USCAR connectors, and high-impedance electrical design establish the key mechanical and electrical requirements for installation.

Gasoline and ethanol compatibility, including E85, makes this set suitable for properly configured performance fuel systems using either fuel type.

Fitment & Installation Notes:

• Universal Application: Compatible multi-port fuel injection systems using 60mm Bosch EV14 top-feed injectors.

• Injector Length: 60mm (2.362-inch seat-to-seat height).

• Fuel Rail Fitment: 14mm fuel rail bore and 0.551-inch fuel rail O-ring outside diameter.

• Electrical Connector: USCAR.

• Injector Impedance: 12.4 ohms, high impedance.

• Fuel Compatibility: Gasoline and ethanol fuels, including E85.

• Vehicle Compatibility: Verify injector length, fuel rail and manifold seating, electrical connections, and ECU driver compatibility.

• Wiring Harness: Not included. Connector adapters may be necessary for some installations.

• Installation: Inspect O-ring seating and confirm correct injector retention and fuel sealing.

• ECU Tuning: Required when upgrading from injectors with a different flow rate.

• Tuning Requirements: Configure injector flow scaling, latency, and battery voltage compensation using the appropriate characterization data.

• Flow Rating: 630 cc/min per injector. Actual fuel delivery varies with differential fuel pressure.

• Fuel System Requirements: Confirm fuel pump output, pressure regulation, fuel rail compatibility, and supporting components.

The DeatschWerks 18U-00-0060-4 combines a matched set of four 630cc Bosch EV14 injectors, 60mm long-body fitment, high-impedance USCAR connections, and E85 compatibility for custom performance fuel systems.
