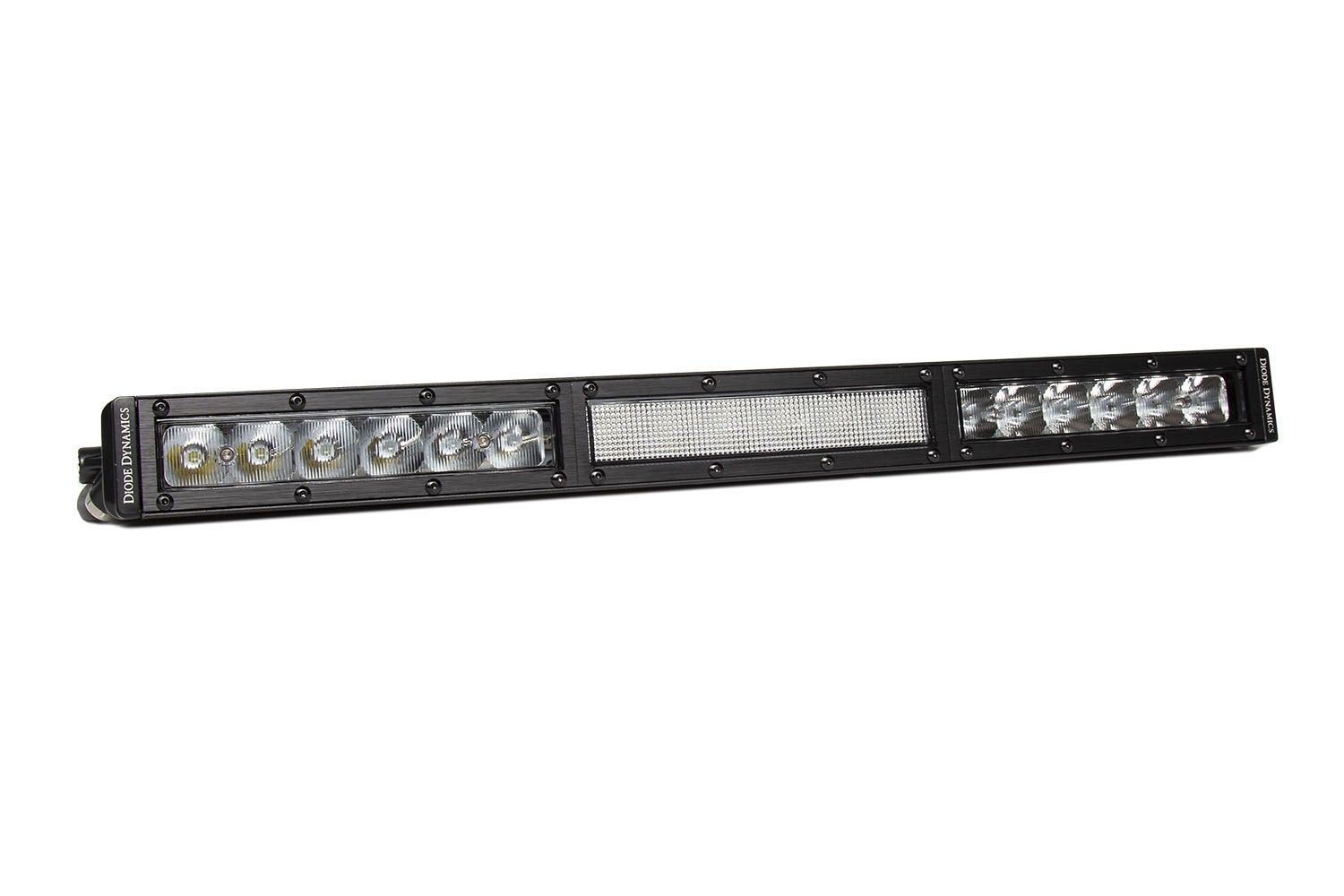

Diode Dynamics Stage Series 18in White Combo Light Bar for Universal Fitment - DD5030

The Diode Dynamics DD5030 Stage Series 18-inch White Classic Light Bar delivers powerful, focused auxiliary lighting in a slim, low-profile package. Its combo beam pattern combines driving and flood illumination for long-range visibility with broad foreground coverage. Advanced TIR optics, high-intensity Luxeon Z ES LEDs, and a durable IP69K-rated housing make this light bar a dependable choice for off-road vehicles, work vehicles, overland builds, and universal auxiliary-light applications.

Key Features & Specs:

• Brand: Diode Dynamics
• Part Number: DD5030
• Series: Stage Series
• Light Bar Length: 18 inches
• Light Color: Pure White
• Color Temperature: 6000K
• Beam Pattern: Combo beam with driving and flood output
• Driving Beam Angle: 20° x 8°
• Optics: Advanced TIR optics for efficient, focused light output
• LED Emitters: Luxeon Z ES automotive-grade LEDs
• Power Draw: 79.8 watts
• Operating Voltage: 9-24V
• Current Draw: 5.7 amps at 14V
• Polarity: Polarity specific
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Connector: Deutsch DT input connector
• Housing: Slim 42mm matte powder-coated aluminum extrusion
• Lens Material: Polycarbonate
• Internal Materials: Aluminum PCB and aluminum heatsink
• Mounting Brackets: Stainless steel
• Cooling: Passive heatsink cooling
• Waterproof Rating: IP69K high-pressure waterproof construction
• Overall Dimensions: 19 x 3 x 1.63 inches
• Included Hardware: Two M6 hex screws for main mounting and two M5 hex screws for rear mounting

Fitment:

• Universal Fitment: Compatible with vehicles and equipment that have a suitable auxiliary-light mounting location
• Installation Note: Custom mounting brackets, wiring, switches, and vehicle-specific harnesses may be required depending on the application
