Diode Dynamics SS10 LED Grille Kit for 2022-2025 Honda Talon - DD7928

Key Features & Specs:

• Part Number: DD7928
• Product Type: SS10 LED grille lightbar kit
• Vehicle Application: Honda Talon
• Mounting Style: Stainless steel replacement grille with integrated SS10 LED lightbar
• Installation: Vehicle-specific bolt-on fitment
• Airflow: Designed not to restrict airflow
• Light Colors: 6000K white
• Beam Patterns: Combo, driving, SAE driving, or 60° x 30° flood
• Power Levels: Sport, Pro, or Max
• Sport Power: 40W
• Pro Power: 51.5W
• Max Power: 61W
• Operating Voltage: 9-30V
• Sport Current Draw: 3.13A at 12.8V
• Pro Current Draw: 4.00A at 12.8V
• Max Current Draw: 4.77A at 12.8V
• LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, and Lumileds automotive-grade LEDs
• Connector Type: Deutsch DT input
• Lens Material: Polycarbonate
• Housing: Aluminum heatsink with aluminum and copper circuit boards
• Bracket Material: Stainless steel
• Cooling: Passive heatsink cooling
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Temperature: -40°F to 185°F
• Manufacturing: Made in the USA with global materials
• Warranty: Limited lifetime warranty

Fitment:

• 2022-2025 Honda Talon

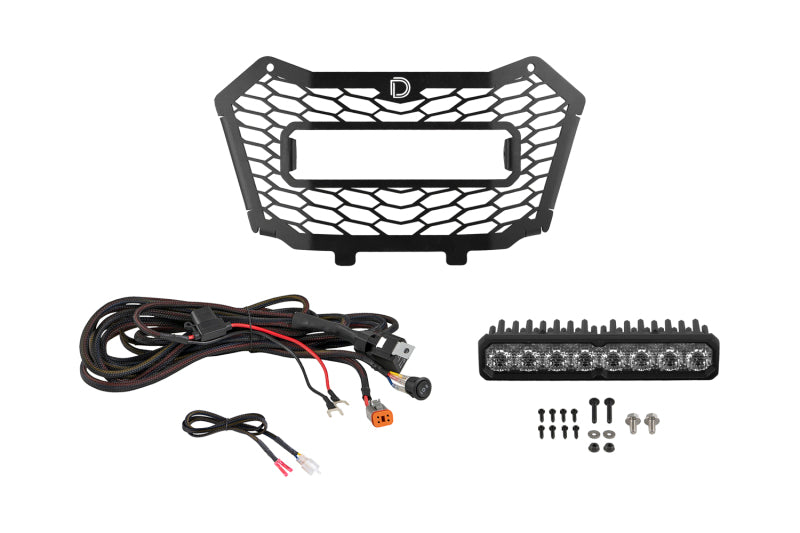

Add high-output forward lighting and a clean integrated appearance to your 2022-2025 Honda Talon with the Diode Dynamics DD7928 SS10 LED Grille Kit. This vehicle-specific upgrade replaces the factory grille with a durable stainless steel grille featuring an integrated SS10 LED lightbar. Designed for direct bolt-on installation, the kit provides powerful auxiliary illumination without restricting airflow. Choose from white or yellow output, multiple beam patterns, and Sport, Pro, or Max power levels to match your trail or off-road lighting needs.
