Diode Dynamics SS5 Sport White Grille Lightbar Kit for 2022-2026 Toyota Tundra - DD7407

Key Features & Specs:

• Part Number: DD7407

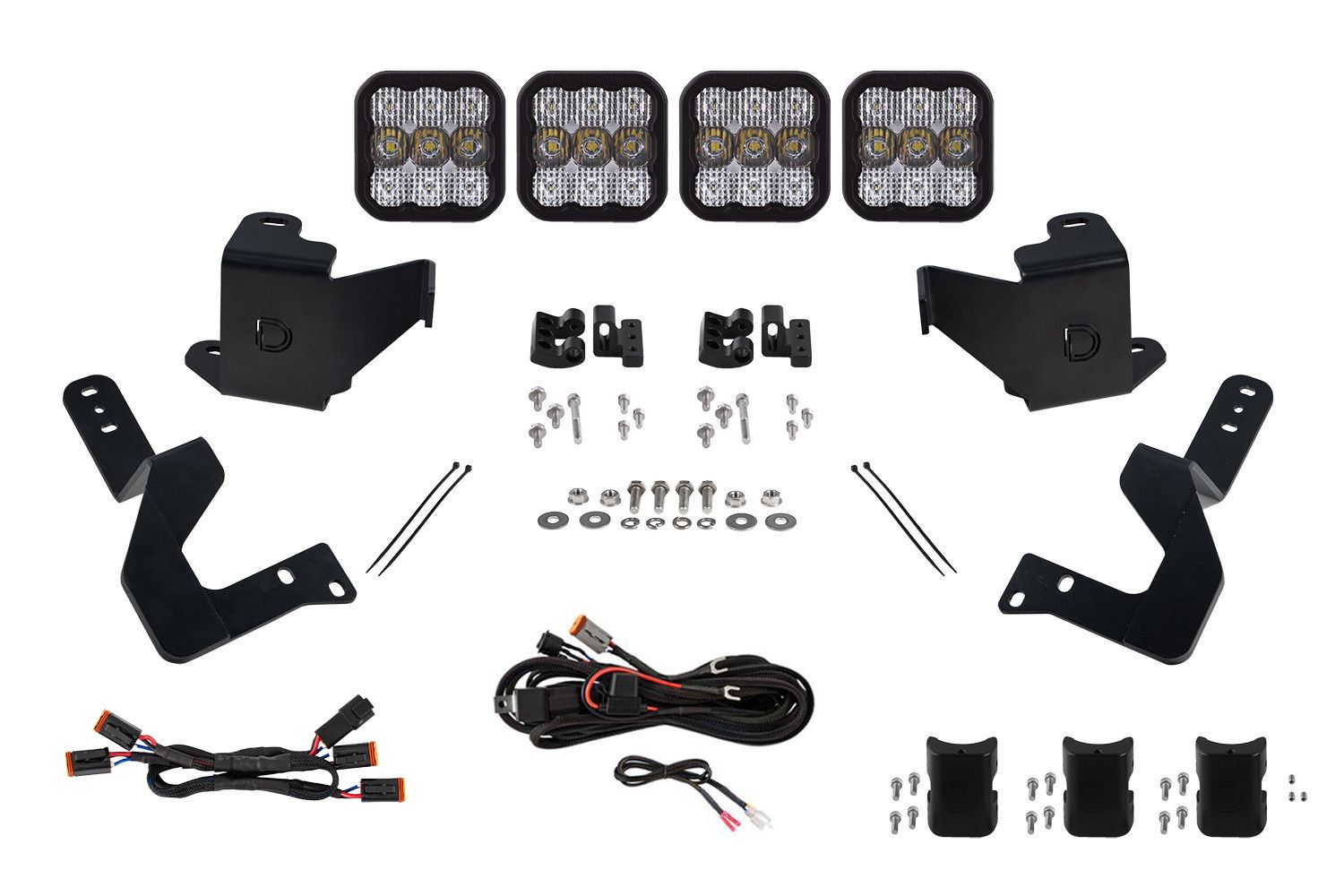

• Product Type: SS5 Sport grille CrossLink LED lightbar kit
• Light Configuration: Four linked SS5 Sport LED pods
• Light Color: 6000K white
• Beam Pattern: Combo driving and flood
• Main Beam Power: 40W per pod
• Main Beam Current: 2.75A at 12.8V per pod
• Backlight Power: 3.17W per pod

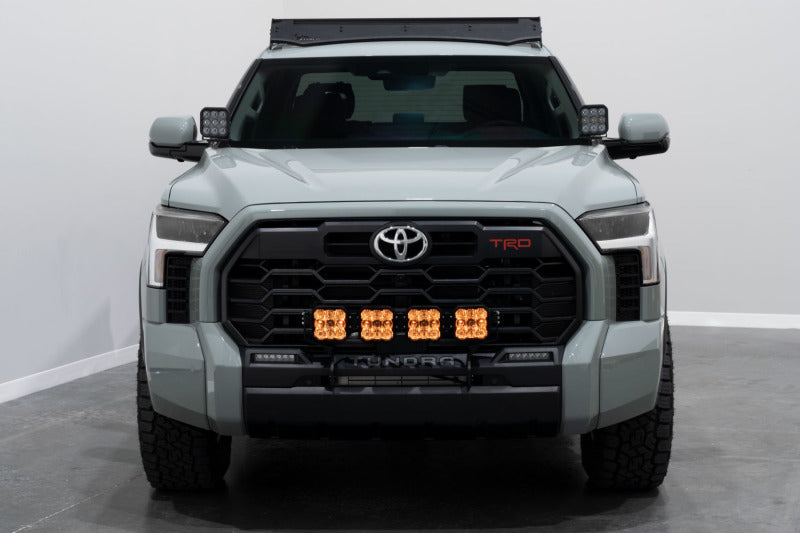

• Backlight: Selectable eight-color backlight
• Optics: Custom-engineered Total Internal Reflection optics
• Mounting: Factory grille mounting points
• Installation: Bolt-on; no cutting or drilling required
• Construction: Heavy-duty aluminum pod housings with steel mounting brackets
• Connector Type: Deutsch DT input
• Driver Features: Constant-current driver
• Lens Material: Polycarbonate
• Cooling: Passive pin-fin heatsink
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Waterproof Rating: IP69K high-pressure waterproof
• Assembly: Assembled in the USA
• Warranty: 8-year warranty

Fitment:

• 2022-2026 Toyota Tundra

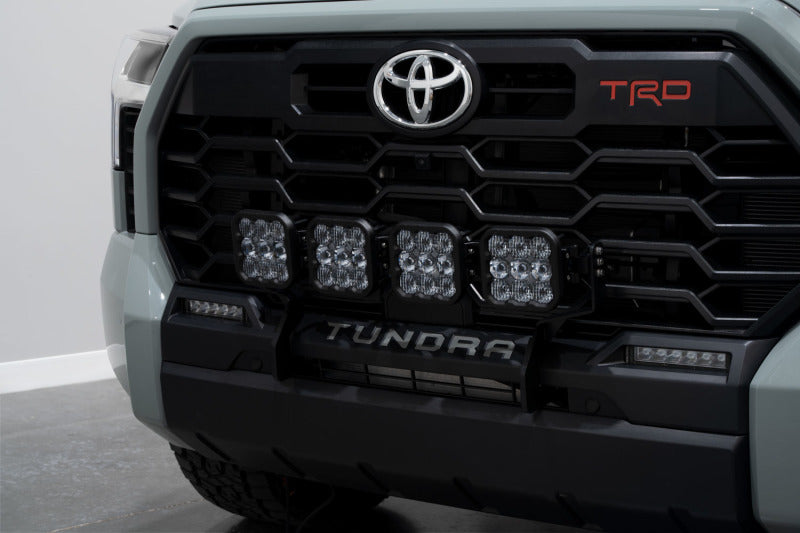

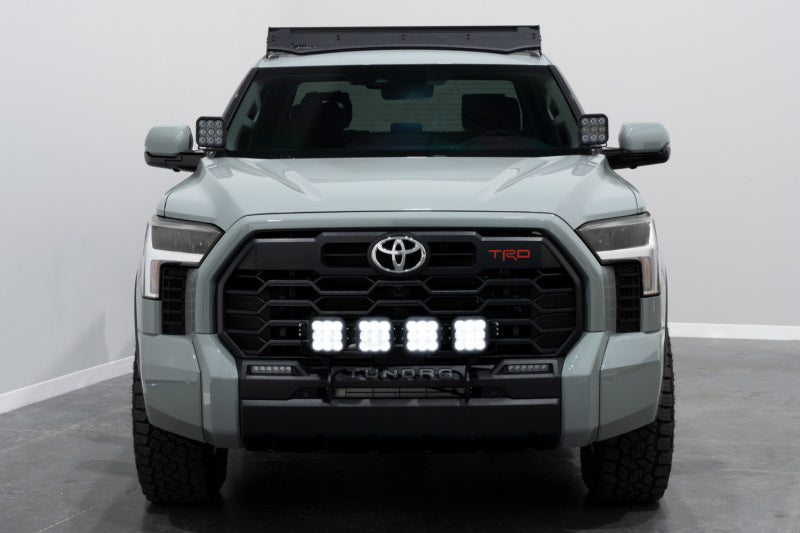

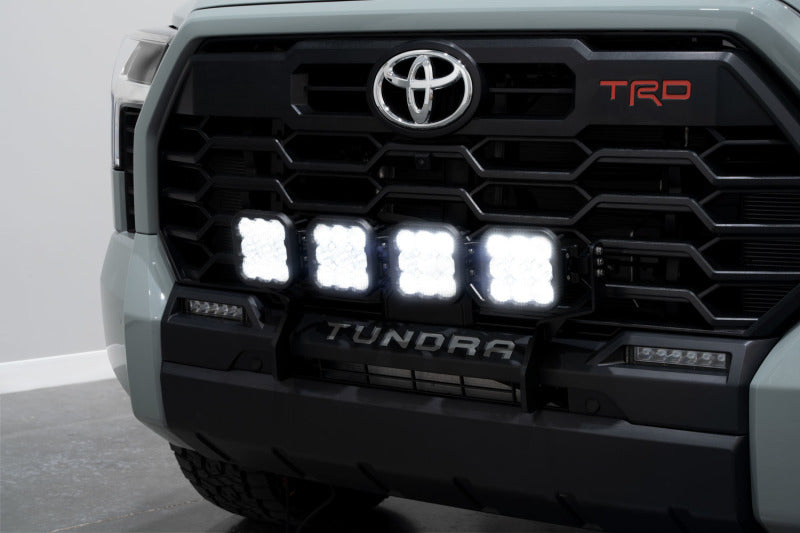

Add clean, high-output auxiliary lighting to your Toyota Tundra with the Diode Dynamics DD7407 SS5 Sport White Grille CrossLink Lightbar Kit. This vehicle-specific system mounts a four-pod SS5 Sport CrossLink lightbar across the grille using existing mounting points for a secure, no-drill installation. The 6000K white combo beam blends driving and flood illumination for improved downrange visibility and wide trail coverage. Custom-engineered TIR optics focus light efficiently, while the white-lens pods include a selectable eight-color backlight for added styling.
