Diode Dynamics SS5 Pro Grille CrossLink Lightbar for 2021-2023 Ford F-150 - DD7321

Key Features & Specs:

• Part Number: DD7321
• Product Type: Grille-mounted CrossLink LED lightbar kit
• Light Series: SS5 Pro
• Main Beam Color: 6000K white
• Beam Pattern: Combo driving and flood
• Measured Output: 9,600 lumens
• Peak Intensity: 75,700 candela
• Main Beam Power: 90W
• Backlight Power: 3.17W

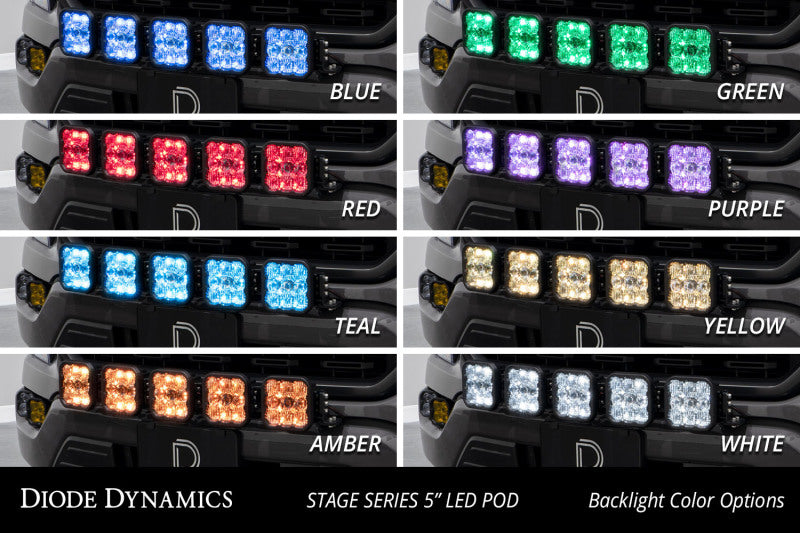

• Backlight: Selectable multicolor backlight
• Optics: Advanced Total Internal Reflection (TIR) optics
• Mounting: Vehicle-specific grille installation
• Drilling Required: No
• Bracket Material: Steel
• Connector Type: Deutsch-style DT connectors
• Waterproof Rating: IP69K high-pressure waterproof
• Compliance Rating: SAE J575 durability tested
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Finish: Flat black

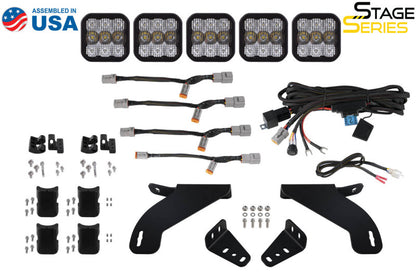

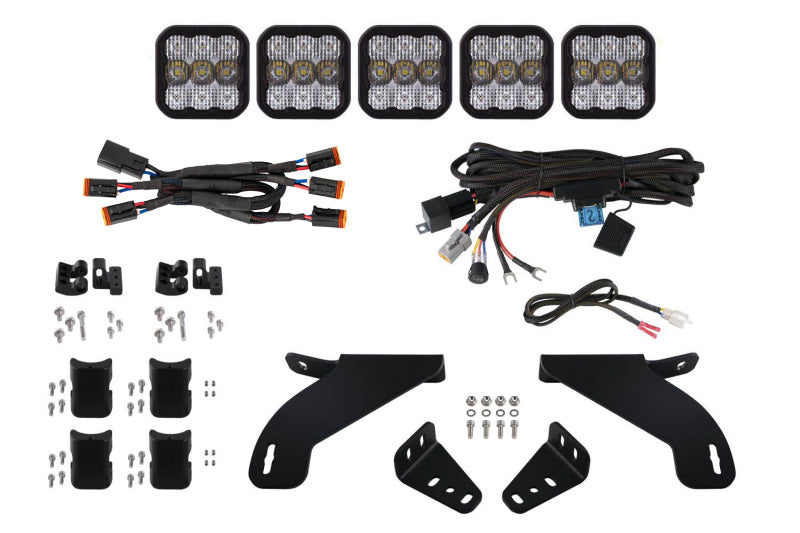

• Harness: Ultra-heavy-duty single-output and CrossLink harnesses included

Fitment:

• 2021-2023 Ford F-150

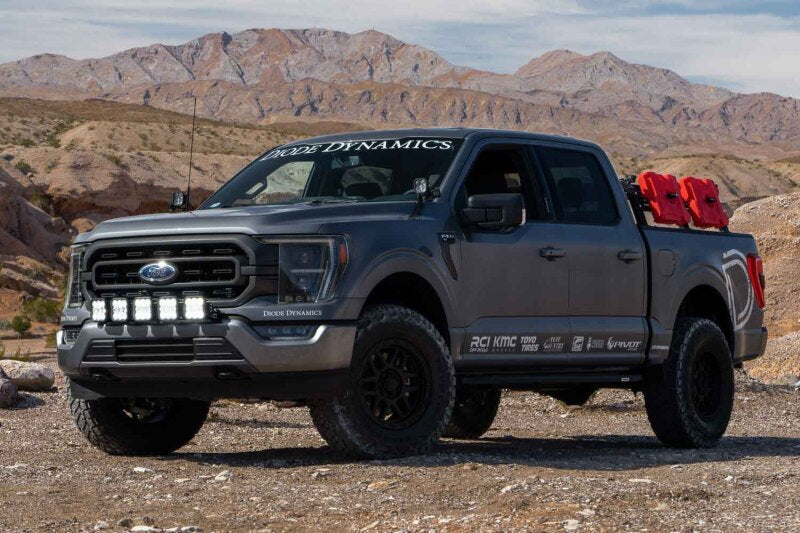

Upgrade your 2021-2023 Ford F-150 with the Diode Dynamics DD7321 SS5 Pro Grille CrossLink Lightbar Kit. This vehicle-specific kit integrates high-output SS5 Pro white combo LED pods behind the grille for a clean, factory-style appearance without drilling. Advanced Total Internal Reflection optics deliver focused driving light with broad flood coverage, while the selectable multicolor backlight adds a custom accent when the main beam is off. Heavy-duty brackets, CrossLink hardware, and an ultra-heavy-duty harness are included for a durable, complete installation.
