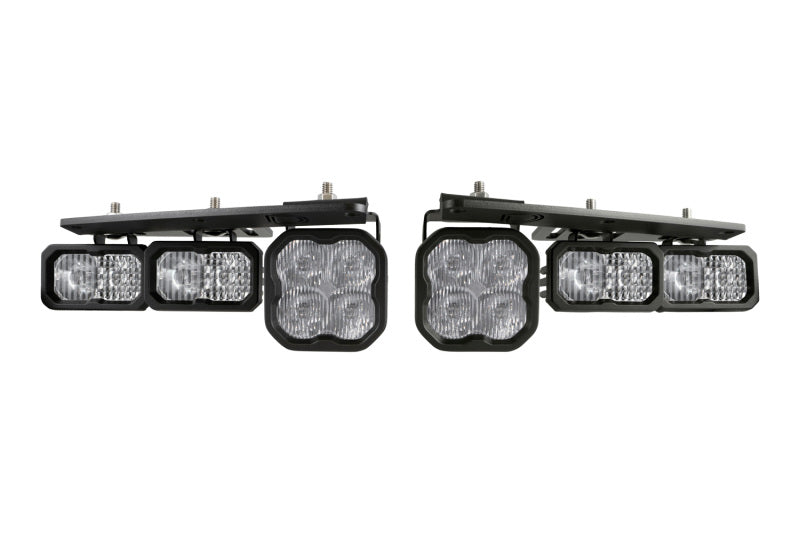

Diode Dynamics Max Fog Light Kit for 2021-2025 Ford Bronco - DD7182

Key Features & Specs:

• Part Number: DD7182
• Product Type: Stage Series Max fog pocket LED light kit
• Fog Light Configuration: Two SS3 Max white SAE fog pods
• Off-Road Light Configuration: Four SSC2 Pro white combo pods
• Fog Light Color: 6000K white
• Off-Road Light Color: 6000K white
• Fog Beam Pattern: SAE J583 fog beam
• Off-Road Beam Pattern: Combo driving and flood
• SS3 Max Output: 3,500 measured lumens per pod
• SSC2 Pro Output: 1,988 measured lumens per pod
• SS3 Max Power: 38.5W per pod
• SSC2 Pro Power: 25.6W per pod
• Backlight: Amber accent backlight
• Optics: Advanced Total Internal Reflection (TIR) optics
• Housing Material: Aluminum
• Lens Material: Polycarbonate
• Connector Type: Deutsch DT
• Mounting: Bolt-on factory fog-pocket installation
• Drilling Required: No
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Street Legal: Yes, when properly aimed and used in accordance with applicable laws
• Warranty: Limited lifetime warranty

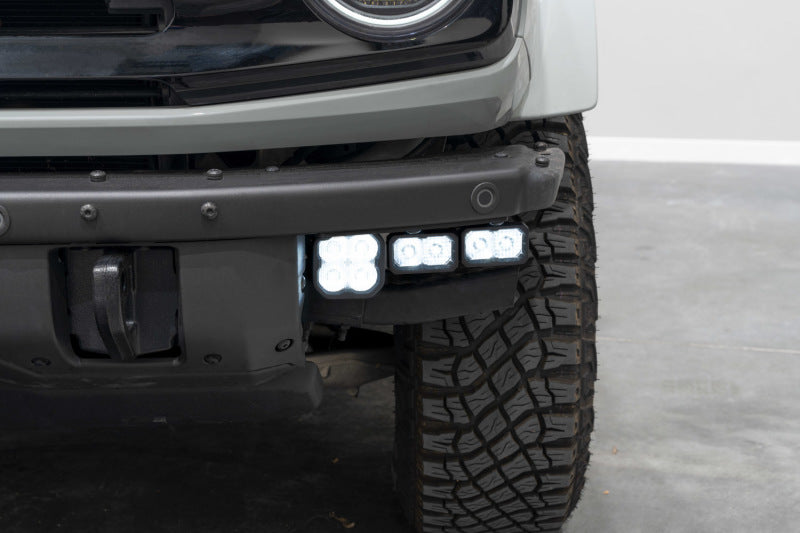

Add road-legal fog lighting and powerful auxiliary illumination to your 2021-2025 Ford Bronco with the Diode Dynamics DD7182 Stage Series Max Fog Pocket Kit. Designed exclusively for Broncos with the factory steel bumper, this bolt-on kit installs two SS3 Max white SAE fog pods and four SSC2 Pro white combo pods into the bumper’s factory fog openings. Separate harnesses allow independent control of the street-legal fog lamps and off-road lights, while amber backlighting delivers a clean accent appearance.
