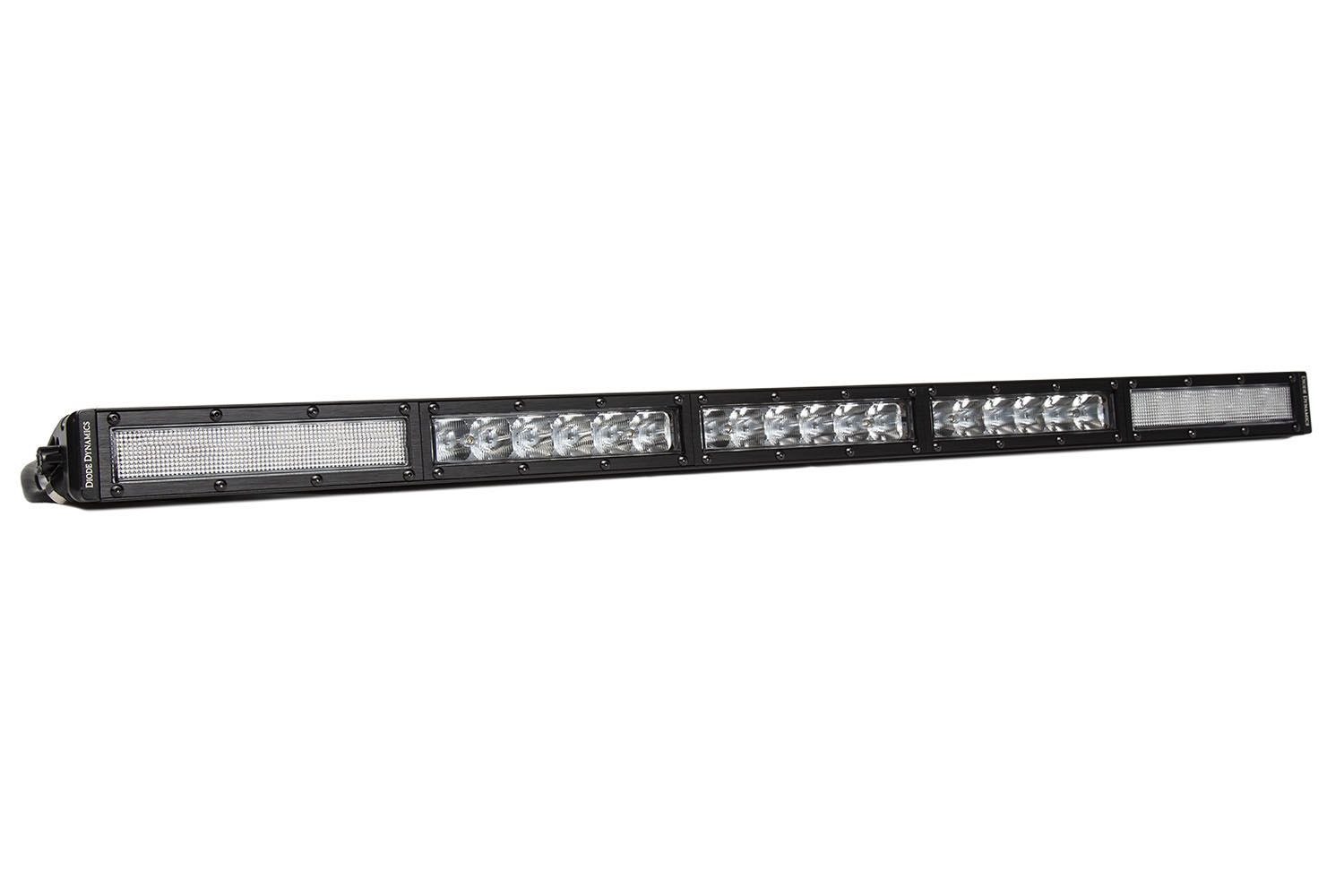

Diode Dynamics Stage Series 30in White Combo Light Bar Universal - DD5032

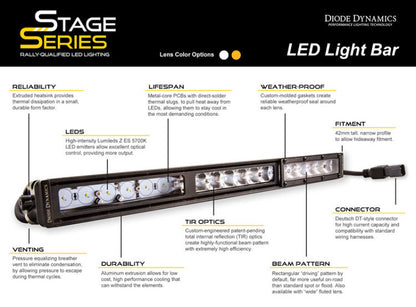

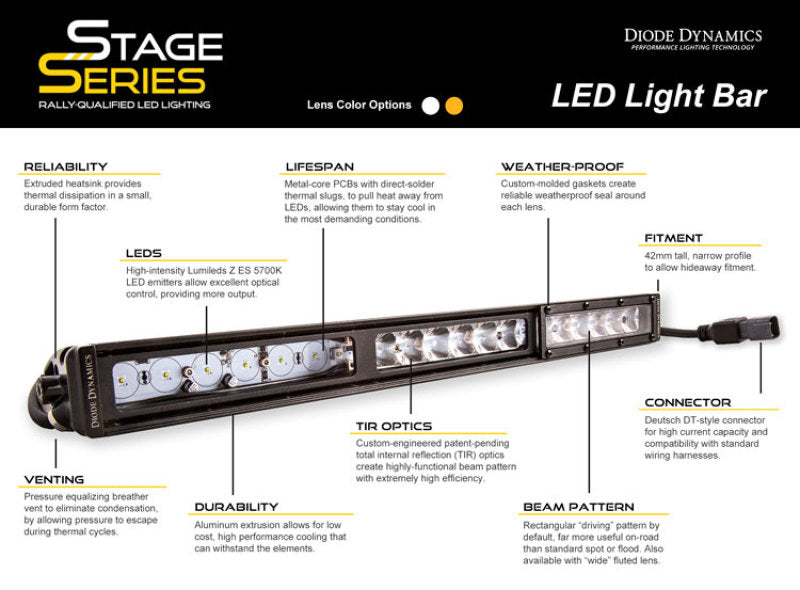

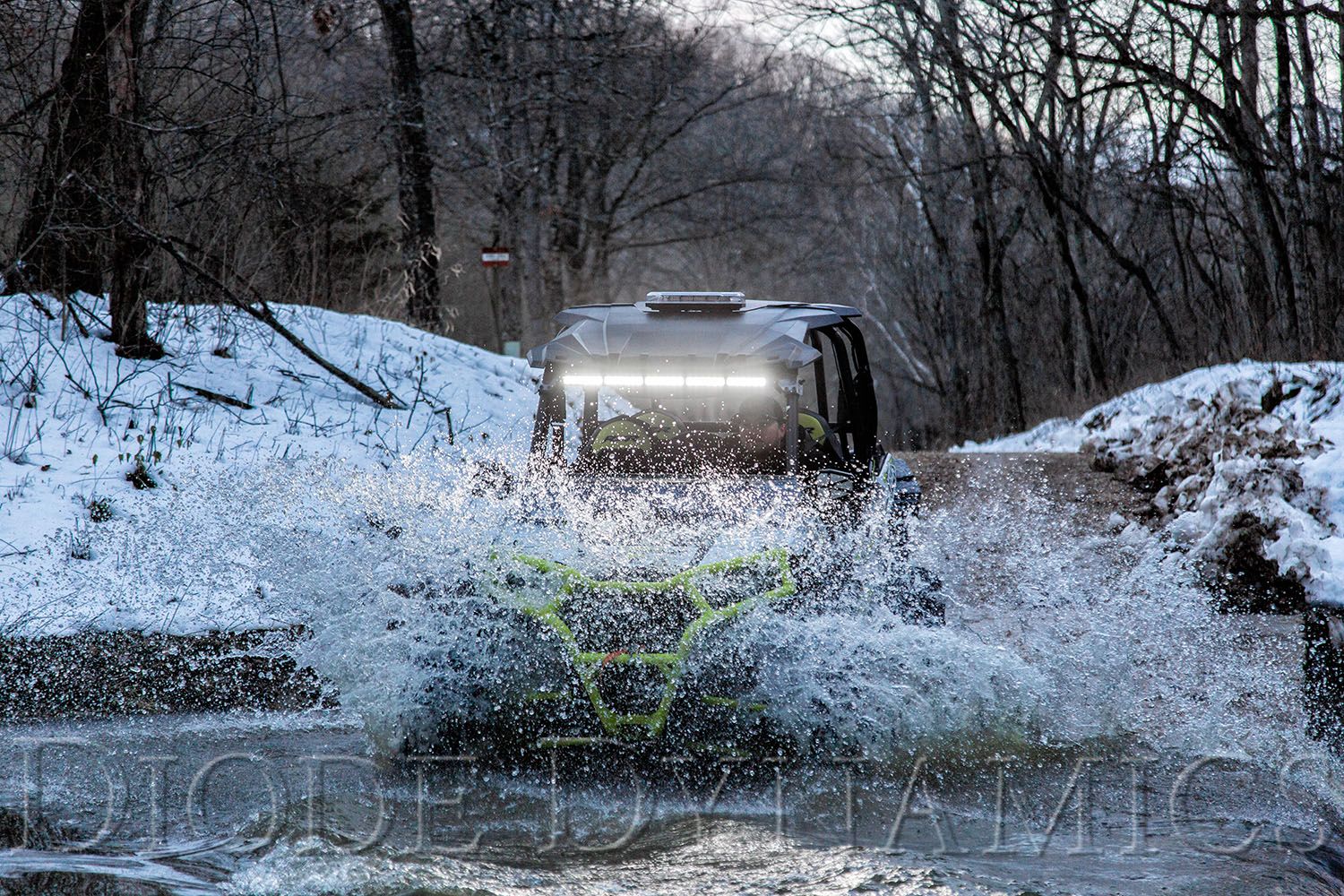

The Diode Dynamics DD5032 Stage Series 30-inch White Classic Combo Light Bar delivers versatile auxiliary lighting with both focused driving output and wide flood illumination. Designed with advanced TIR optics and high-intensity Luxeon Z ES LEDs, this single-row straight LED light bar produces crisp 6000K white light for off-road, rally, overland, work-truck, and universal lighting applications. A slim 42mm housing, matte powder-coated aluminum construction, stainless steel brackets, and IP69K waterproof protection provide reliable performance in demanding environments.

Key Features & Specs:

• Brand: Diode Dynamics
• Part Number: DD5032
• Series: Stage Series
• Light Bar Length: 30 inches
• Design: Single-row, straight light bar
• Lens Color: Clear
• Light Color: Pure White
• Color Temperature: 6000K

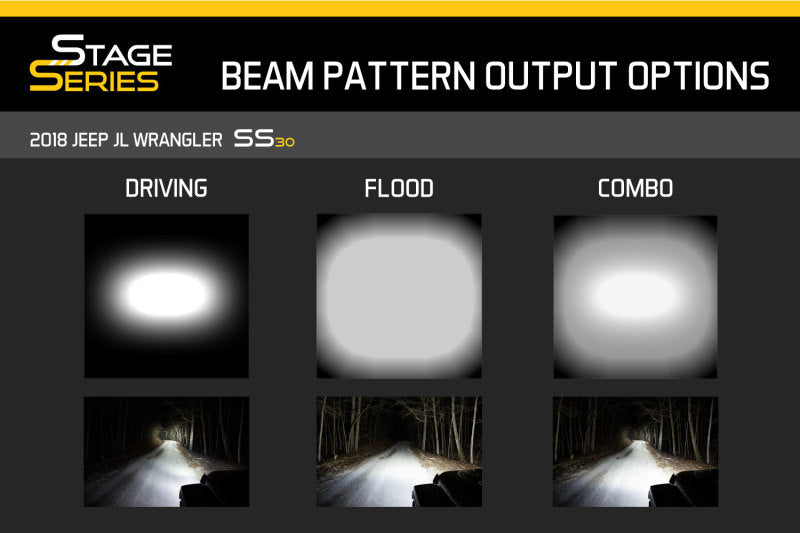

• Beam Pattern: Combo beam with driving and flood output
• Driving Beam Angle: 20° x 8°

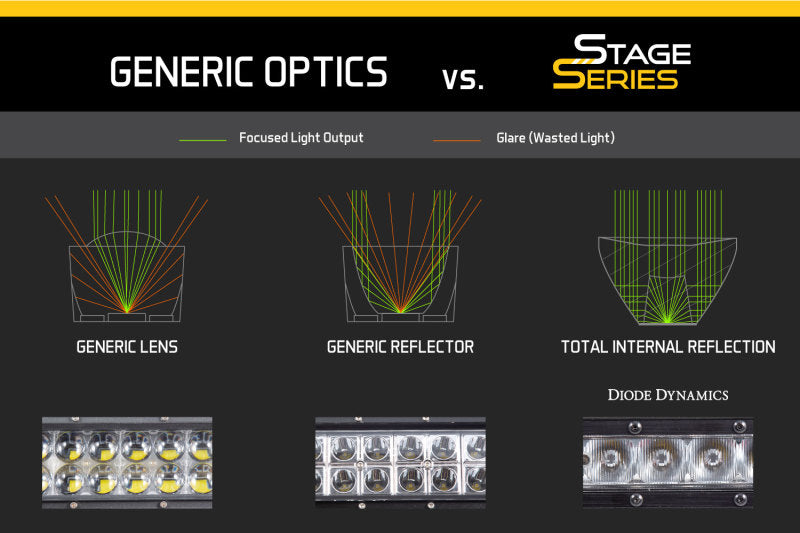

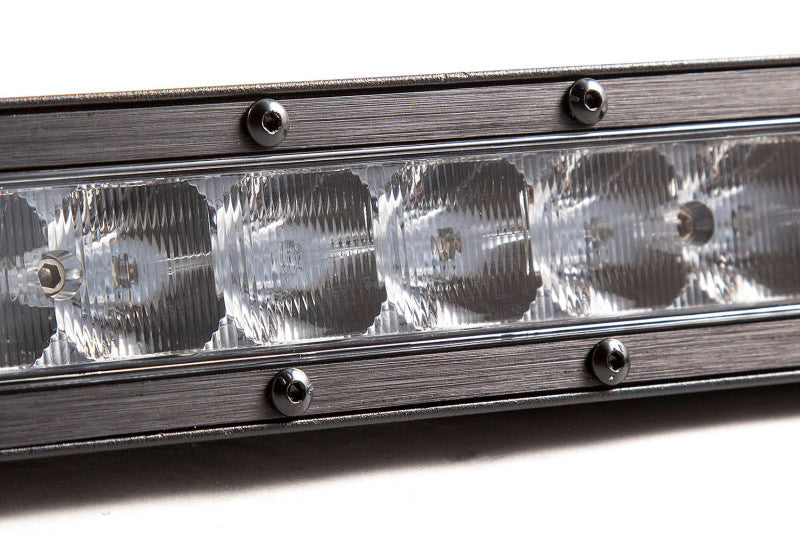

• Optics: Advanced TIR optics for efficient, focused illumination
• LED Emitters: Luxeon Z ES automotive-grade LEDs
• Power Draw: 137.2 watts
• Operating Voltage: 9-24V
• Current Draw: 9.8 amps at 14V
• Polarity: Polarity specific
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Connector: Deutsch DT input
• Housing: Slim 42mm matte powder-coated aluminum extrusion
• Lens Material: Polycarbonate
• Internal Materials: Aluminum PCB and aluminum heatsink
• Mounting Brackets: Stainless steel
• Cooling: Passive heatsink cooling
• Waterproof Rating: IP69K high-pressure waterproof construction
• Product Dimensions: 31 x 3 x 1.63 inches
• Product Weight: 7.37 lbs
• Included Hardware: Two M6 hex screws for main mounting and two M5 hex screws for rear mounting

Fitment:

• Universal Fitment: Fits vehicles and equipment with a suitable 30-inch auxiliary light bar mounting location
• Installation Note: May require custom or vehicle-specific brackets, wiring harnesses, switches, and related installation components
• Optional Brackets: Compatible with Diode Dynamics DD6028 Stage Series Universal Bracket Set
