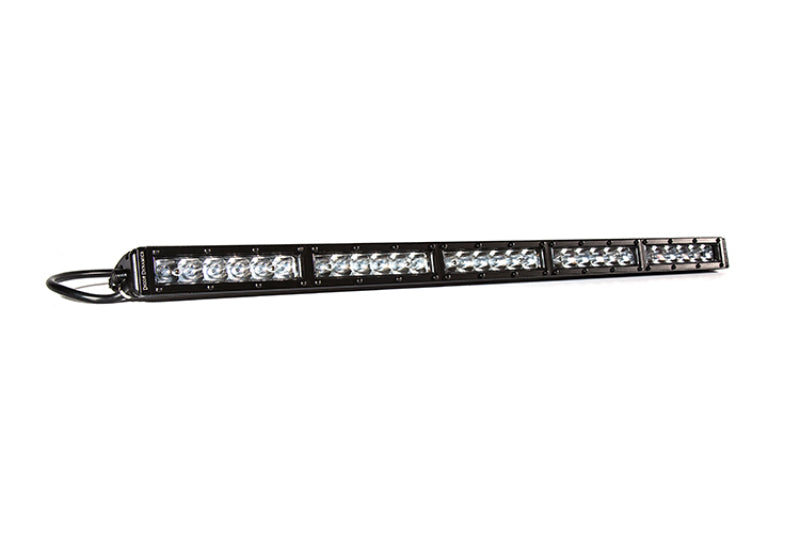

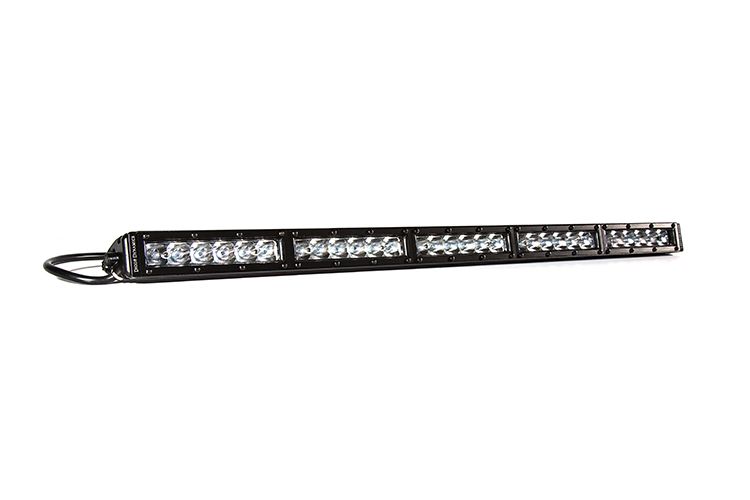

Diode Dynamics Stage Series 30in White Driving Light Bar Universal - DD5018

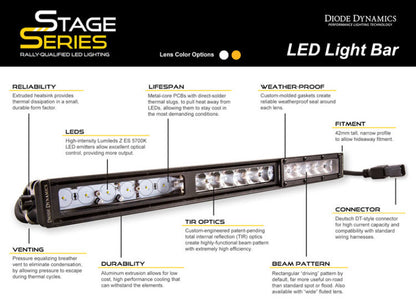

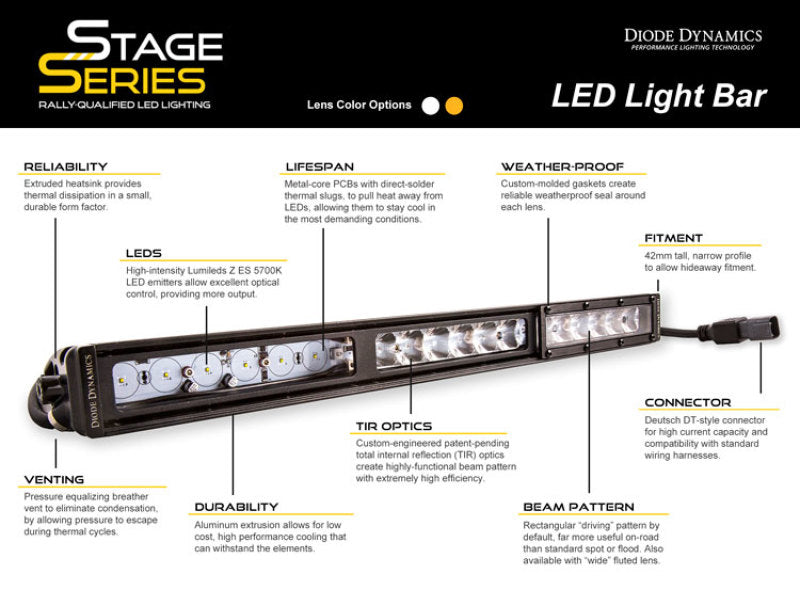

The Diode Dynamics DD5018 Stage Series 30-inch White Classic Light Bar provides powerful long-range illumination for off-road, rally, overland, work-truck, and universal auxiliary-lighting applications. Featuring a focused driving beam pattern, advanced TIR optics, and high-intensity Luxeon Z ES LEDs, this light bar delivers efficient 6000K white output in a slim 42mm housing. Its matte powder-coated aluminum construction, passive heatsink cooling, stainless steel brackets, and IP69K waterproof rating are built for demanding conditions.

Key Features & Specs:

• Brand: Diode Dynamics
• Part Number: DD5018
• Series: Stage Series
• Light Bar Length: 30 inches
• Light Color: Pure White
• Color Temperature: 6000K

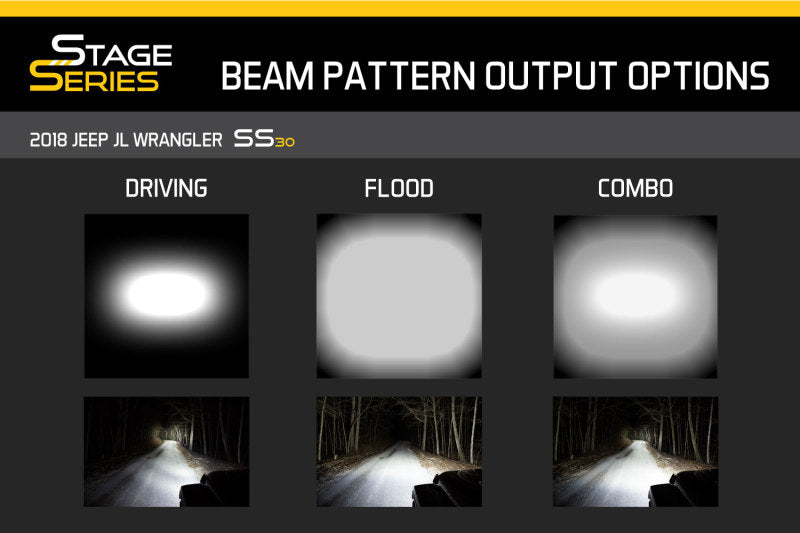

• Beam Pattern: Driving
• Beam Angle: 20° x 8°

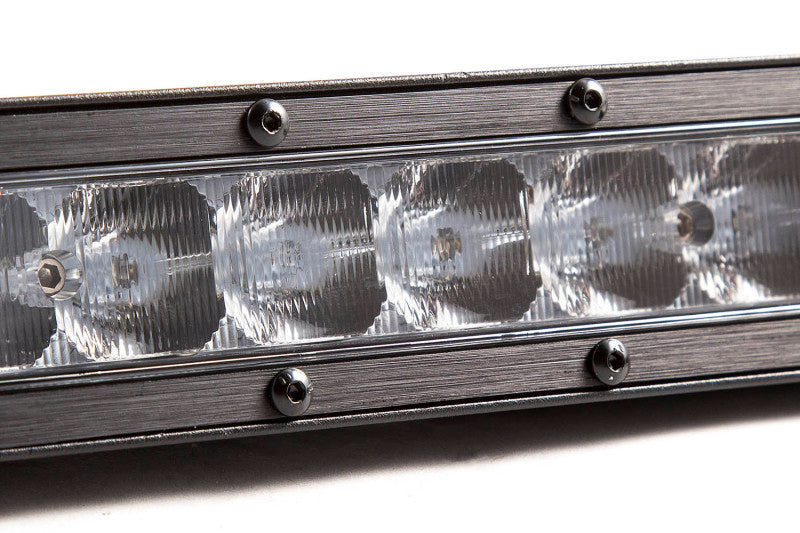

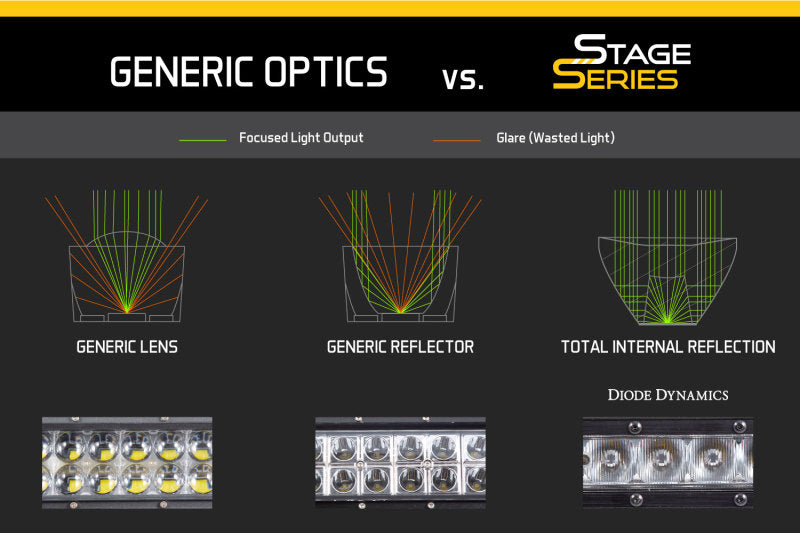

• Optics: Advanced TIR optics for focused, efficient illumination
• LED Emitters: Luxeon Z ES automotive-grade LEDs
• Power Draw: 137.2 watts
• Operating Voltage: 9-24V
• Current Draw: 9.8 amps at 14V
• Polarity: Polarity specific
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Connector: Deutsch DT input
• Housing: Slim 42mm matte powder-coated aluminum extrusion
• Lens Material: Polycarbonate
• Internal Materials: Aluminum PCB and aluminum heatsink
• Mounting Brackets: Stainless steel
• Cooling: Passive heatsink cooling
• Waterproof Rating: IP69K high-pressure waterproof construction
• Product Dimensions: 31 x 3 x 1.63 inches
• Product Weight: 7.37 lbs
• Included Hardware: Two M6 hex screws for main mounting and two M5 hex screws for rear mounting

Fitment:

• Universal Fitment: Fits vehicles and equipment with a suitable 30-inch auxiliary light bar mounting location
• Installation Note: May require vehicle-specific brackets, wiring harnesses, switches, or other installation components
• Optional Brackets: Compatible with Diode Dynamics DD6028 Stage Series Universal Bracket Set
