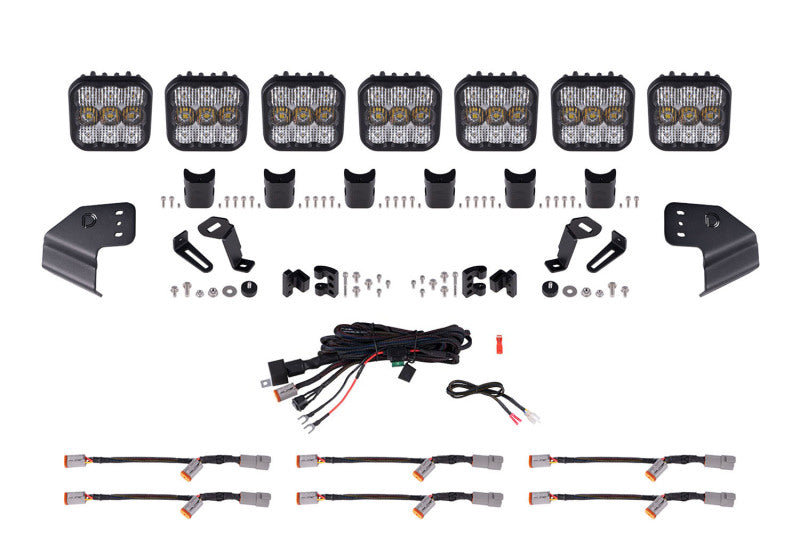

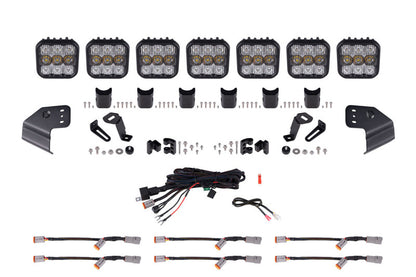

Diode Dynamics SS5 Sport Windshield Lightbar for 2021-2025 Ford Bronco - DD7232

Key Features & Specs:

• Part Number: DD7232
• Product Type: SS5 Sport CrossLink windshield lightbar kit
• Light Color: 6000K white
• Beam Pattern: Combo driving and flood
• Optics: Custom-engineered Total Internal Reflection (TIR) optics
• Measured Output: 3,700 lumens per pod
• Peak Intensity: 81,600 candela per pod
• Main Beam Power: 40W per pod
• Backlight Power: 3.17W per pod
• Backlight: Selectable eight-color backlight
• Compliance Rating: SAE J581 driving/auxiliary high beam pattern
• Mounting: Factory-location bolt-on windshield installation
• Drilling Required: No
• Bracket Material: Steel
• Connector Type: Deutsch-style DT
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Finish: Flat black
• Harness: Compatible with the factory auxiliary switch bank
• Assembly: Assembled in the USA
• Mounting Hardware: Included

Fitment:

• 2021-2025 Ford Bronco

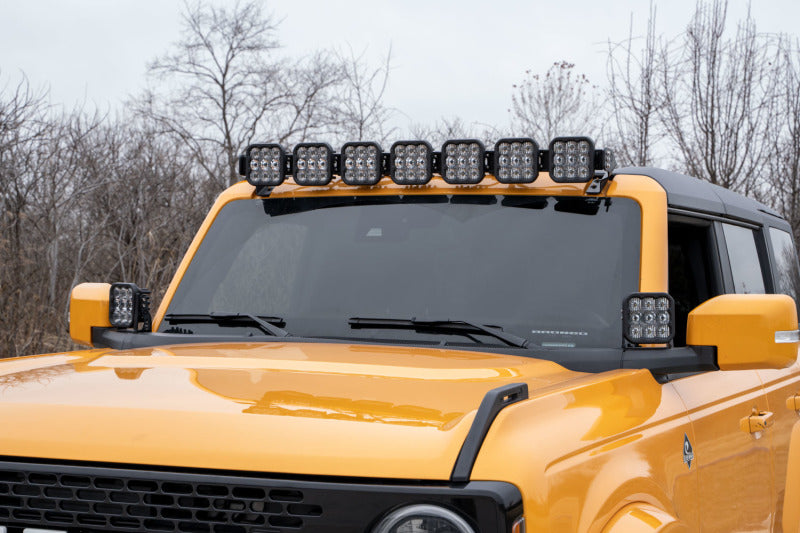

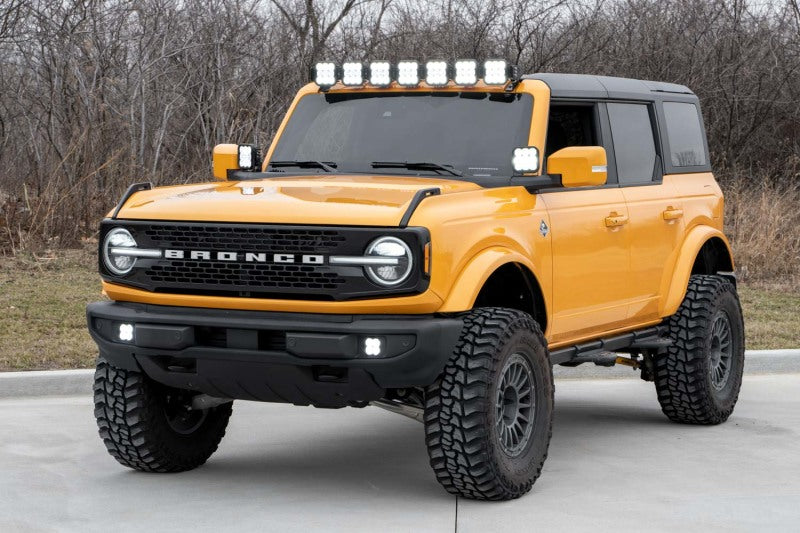

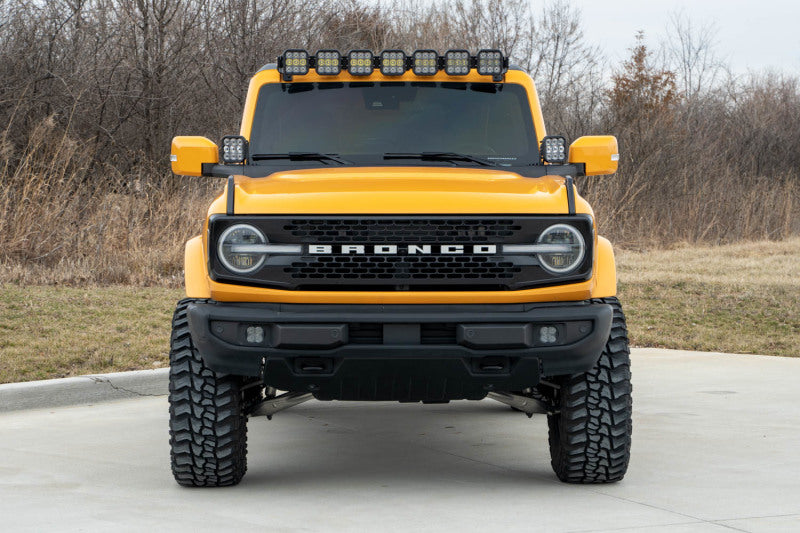

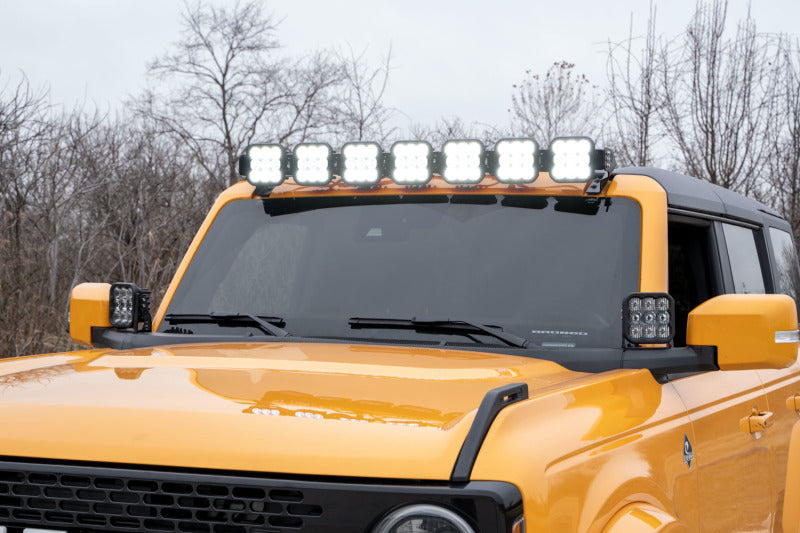

Add high-intensity forward lighting to your 2021-2025 Ford Bronco with the Diode Dynamics DD7232 SS5 Windshield CrossLink Lightbar Kit. This vehicle-specific white combo lighting system bolts to factory windshield mounting locations with no drilling required. SS5 Sport LED pods use custom-engineered TIR optics to provide focused driving illumination with broad flood coverage, while the selectable eight-color backlight adds a distinctive accent when the main beam is off. The included harness allows clean integration with the factory auxiliary switch bank.
