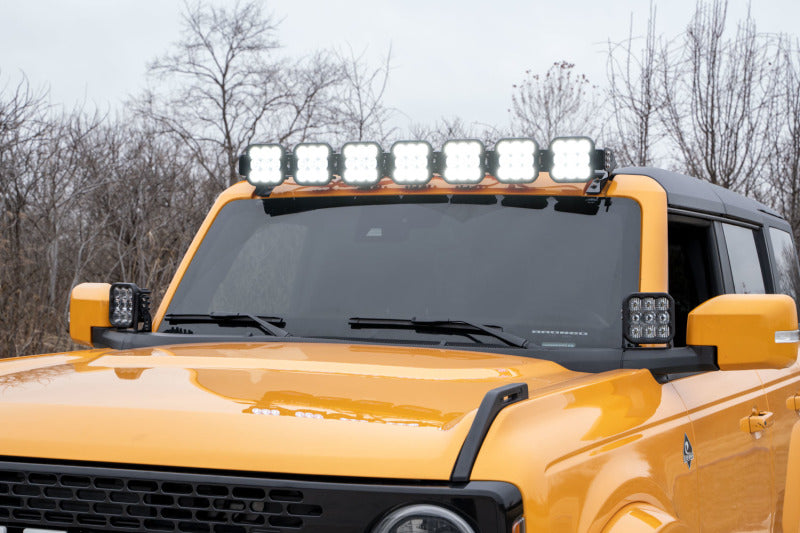

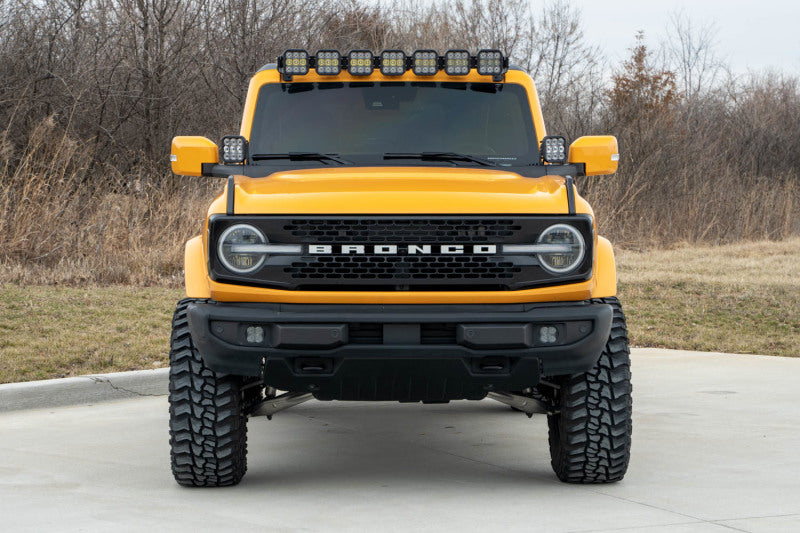

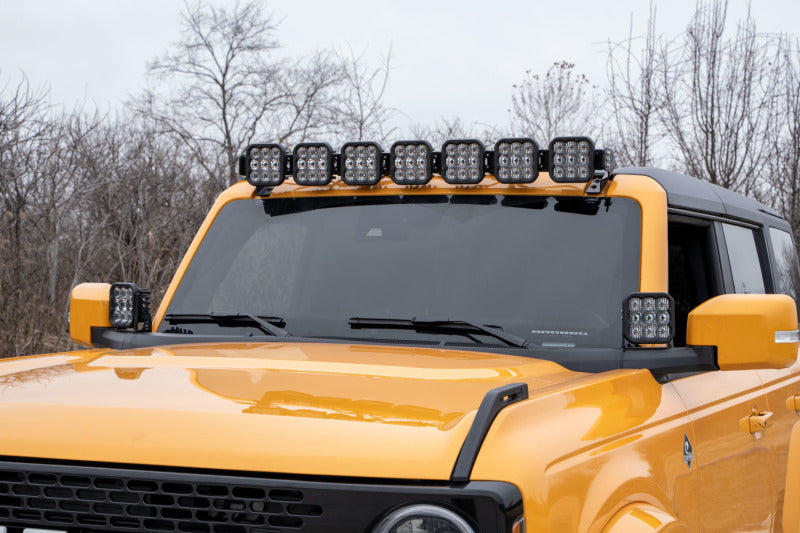

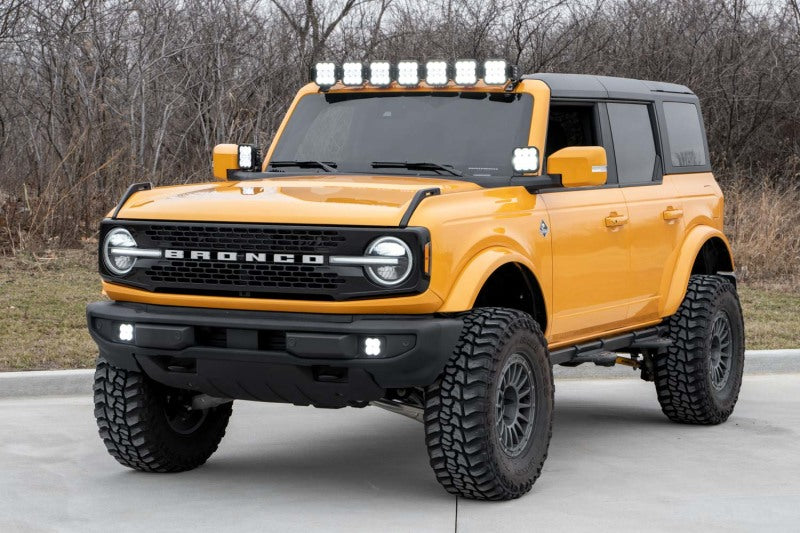

Diode Dynamics SS5 Windshield Light Bar Kit for 2021-2025 Ford Bronco - DD7233

Key Features & Specs:

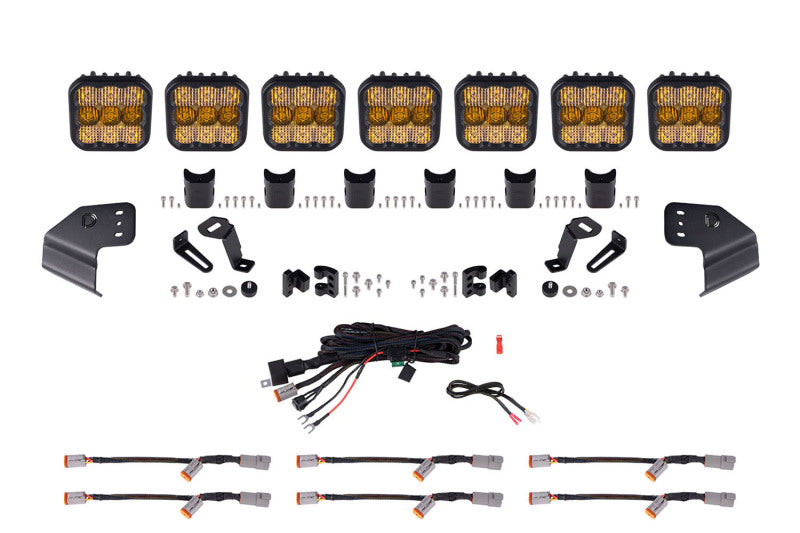

• Product Type: Windshield-mounted LED light bar kit
• Vehicle Application: 2021+ Ford Bronco
• Power Level: Sport
• Main Beam Power: 40 watts
• Light Color: Yellow
• Color Temperature: 3000K
• Beam Pattern: Combo driving and flood
• Optics: Custom-engineered total internal reflection (TIR) optics

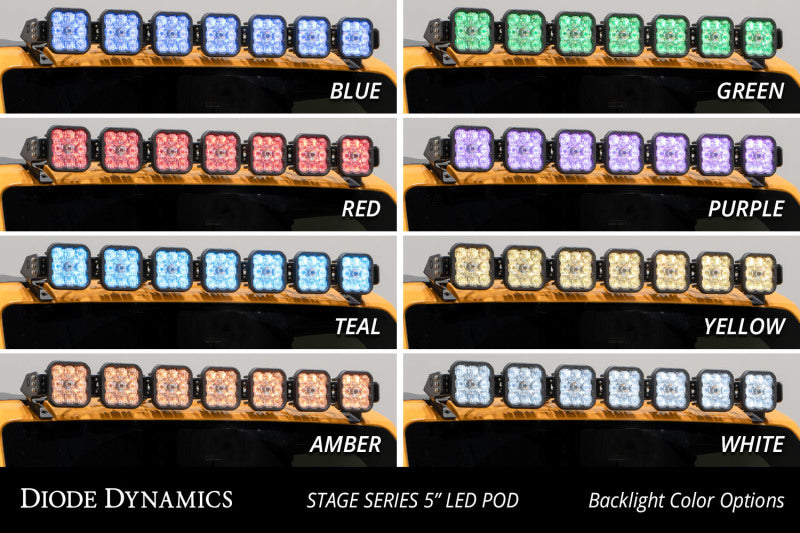

• Backlight: Selectable backlight with eight color options
• Main Beam Current: 2.8 amps at 12.8V
• Backlight Power: 3.07 watts in yellow
• Backlight Current: 0.24 amps at 12.8V in yellow
• Operating Voltage: 9–16V
• Connector Type: Deutsch DT input
• Driver Design: Constant current
• LED Emitters: Luxeon Z ES and Cree XP-L HI
• Lens Material: Polycarbonate
• Housing Material: Aluminum casting with rubber gasket
• Cooling: Passive pin-fin heatsink
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Temperature: -40°F to 185°F
• Switch Integration: Harness included for factory auxiliary switch bank
• Assembly: Assembled in the USA
• Part Number: DD7233

Fitment:

• 2021-2025 Ford Bronco

Add high-output auxiliary lighting to your Bronco with the Diode Dynamics DD7233 SS5 Windshield Light Bar Kit. Designed for a bolt-on installation on 2021+ Ford Bronco models, this Sport-level kit produces a 40-watt yellow 3000K Combo beam for useful driving-distance output and wide flood coverage. Custom TIR optics, selectable backlighting, durable IP69K-rated construction, and an included harness for the factory auxiliary switch bank make it a clean, vehicle-specific lighting upgrade.
