Diode Dynamics C1R HitchMount Reverse & Brake Light for 2in/2.5in Hitches - DD8902

Key Features & Specs:

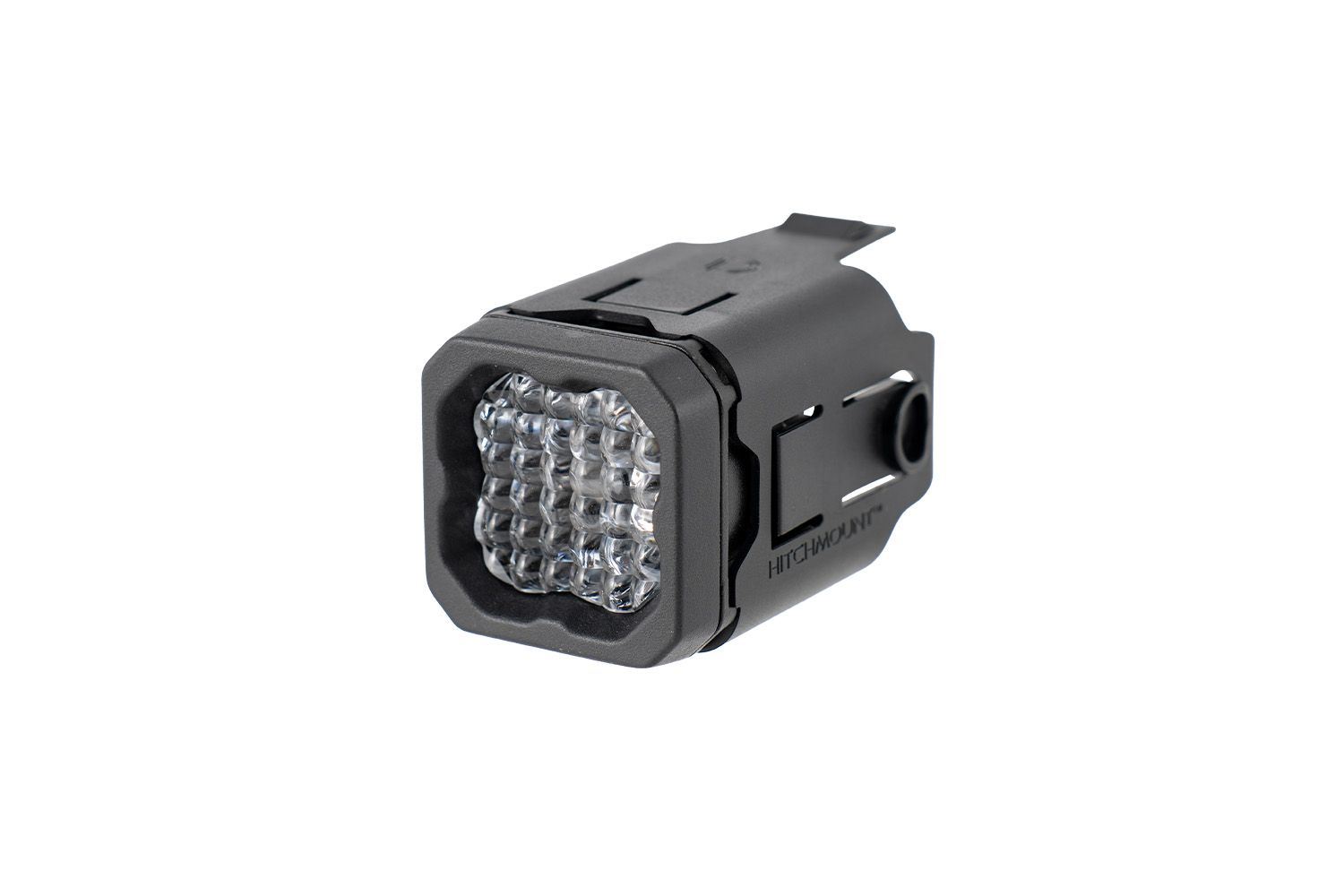

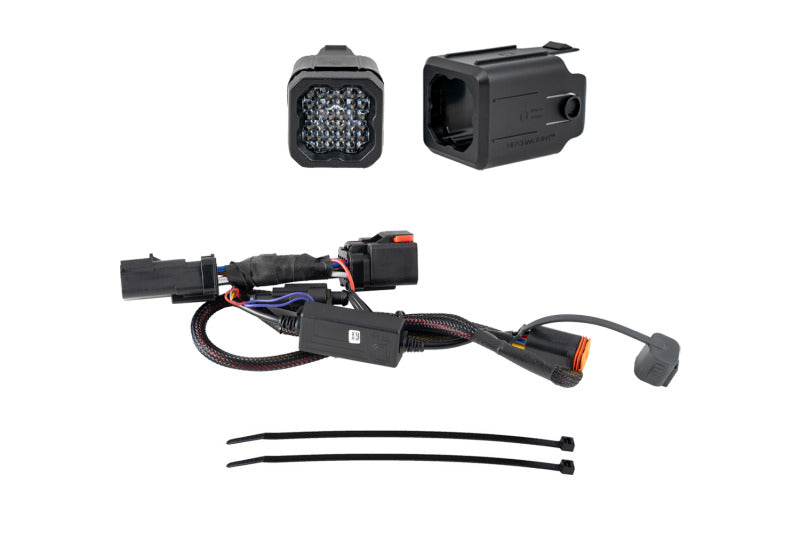

• Product Type: Hitch-mounted LED reverse and brake light kit
• Pod Configuration: C1R + Brake
• Mounting Location: 2-inch or 2.5-inch trailer hitch receiver
• Functions: Reverse light, fourth brake light, and running light
• Installation: Approximate 5-minute plug-and-play installation
• Wiring: No custom wiring or wire routing required
• SafetyStrobe: Optional brake light strobing function
• Light Color: White reverse output
• Color Temperature: 6000K
• Measured Output: 1,080 lumens
• Intensity: 480 candela
• Power Draw: 14.1 watts
• Current Draw: 1.1 amps at 12.8V
• Operating Voltage: 9–16V
• LED Emitters: Cree XP-L HI and Osram 1414 Pure

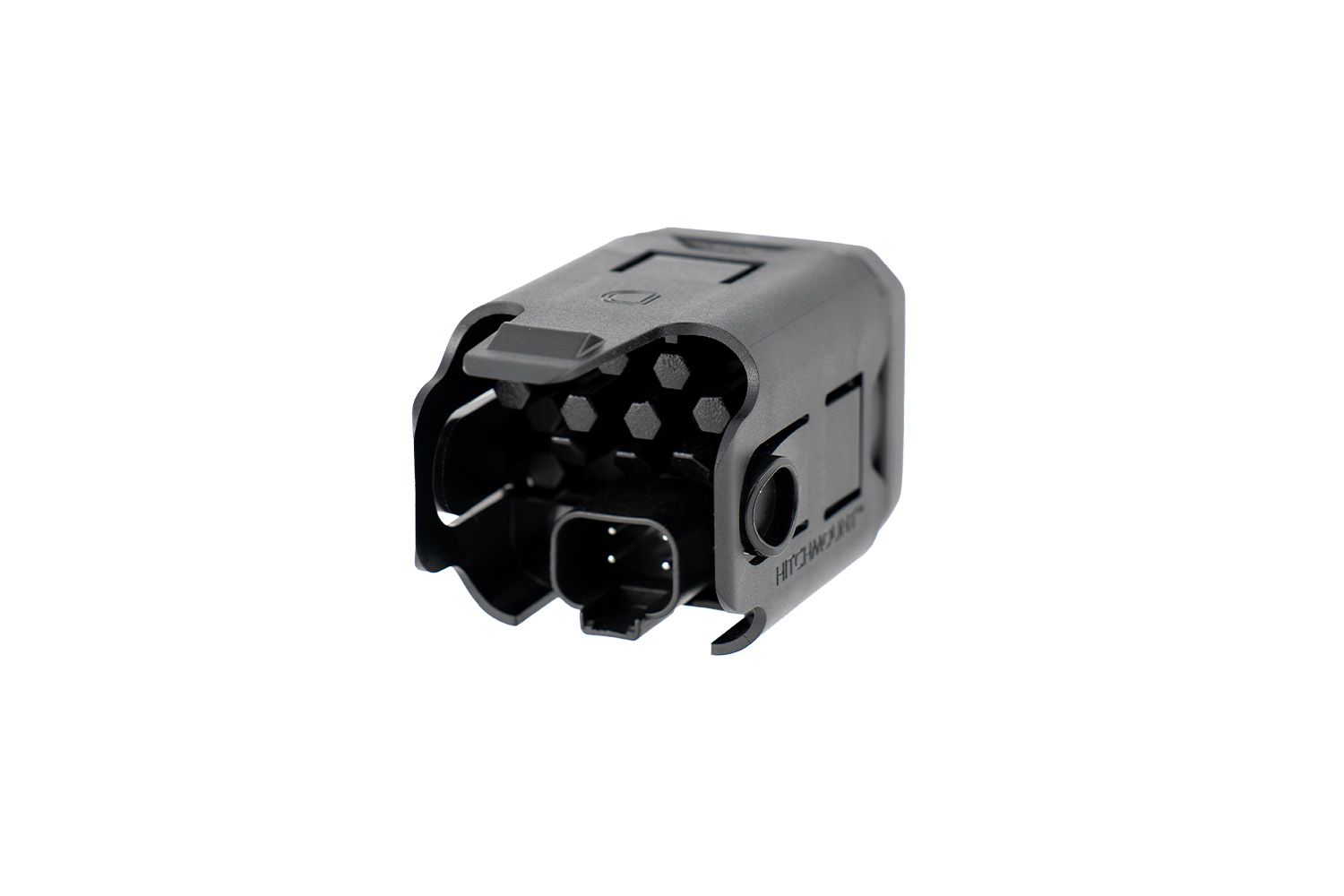

• Connector Type: Deutsch DT input
• Driver Design: Constant current
• Lens Material: Polycarbonate
• Housing Material: Aluminum casting with rubber gasket
• Cooling: Passive pin-fin heatsink
• Durability Rating: SAE J575 tested
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Temperature: -40°F to 185°F
• Design & Assembly: Designed and assembled in the USA
• Part Number: DD8902

Fitment:

• Universal Fit: Vehicles with a 2-inch trailer hitch receiver
• Universal Fit: Vehicles with a 2.5-inch trailer hitch receiver

Add highly visible reverse, brake, and running light output without drilling or running custom wiring using the Diode Dynamics DD8902 HitchMount LED Pod Kit. This 10-pin C1R + Brake configuration installs directly into a 2-inch or 2.5-inch trailer hitch receiver and delivers bright 6000K reverse illumination along with an integrated fourth brake light. Designed for a fast plug-and-play installation, the HitchMount is an ideal lighting upgrade for trucks, SUVs, Jeeps, and other vehicles equipped with a compatible receiver hitch.
