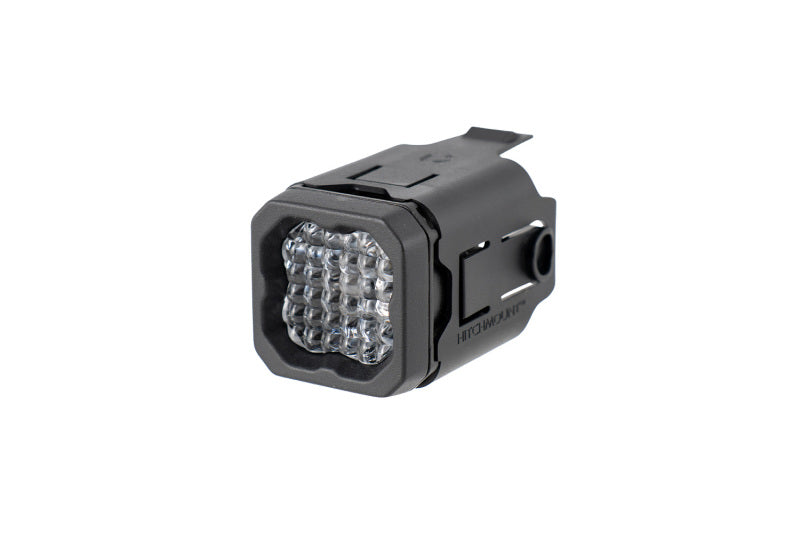

Diode Dynamics HitchMount LED Pod 4-Pin Reverse Kit - DD8762

Key Features & Specs:

• Part Number: DD8762
• Product Type: Hitch-mounted LED reverse light kit

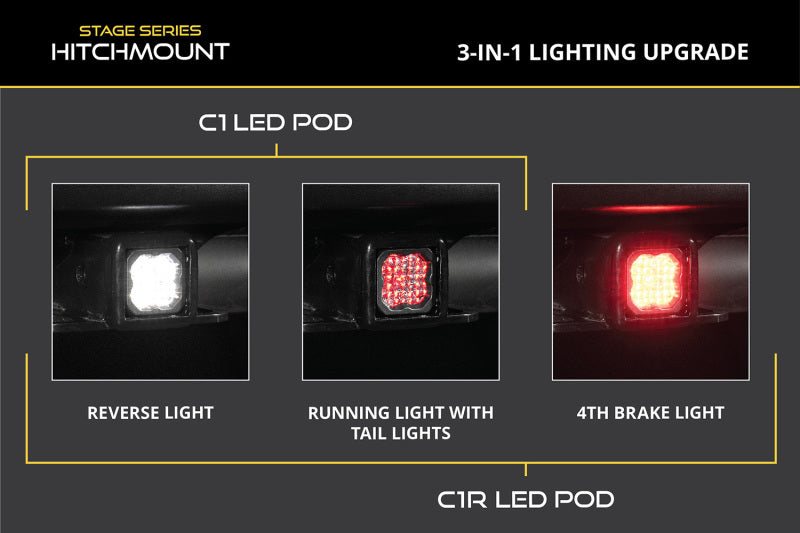

• Configuration: SSC1 Sport or C1R HitchMount LED pod
• Receiver Size: 2.5-inch hitch receiver

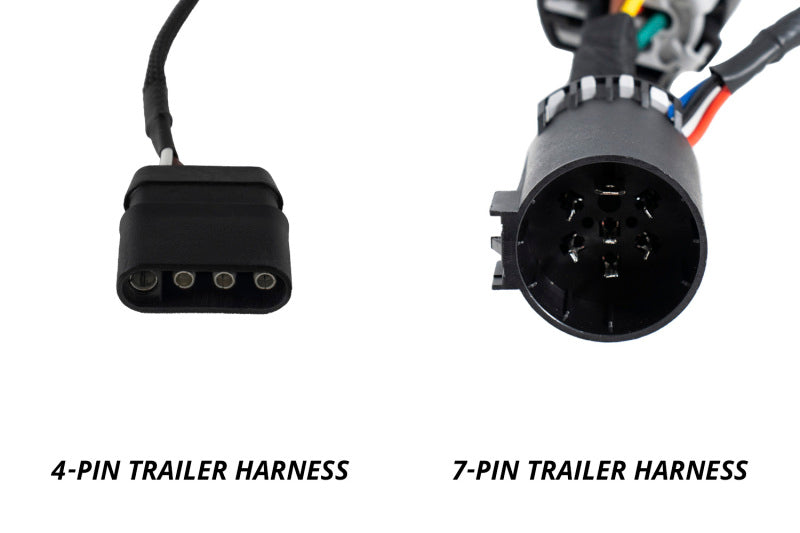

• Harness: 4-pin trailer single-output harness
• Color Temperature: 6000K cool white

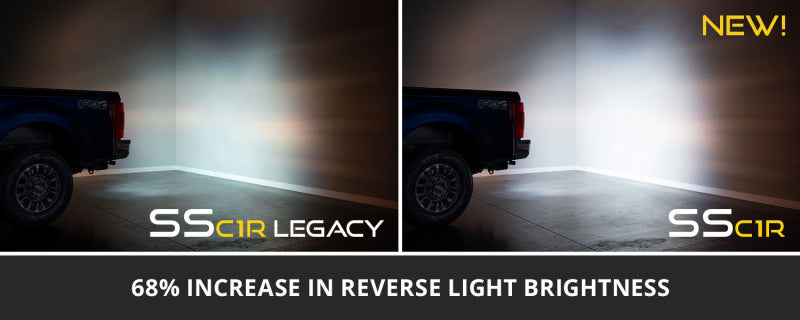

• Measured Lumens: SSC1 Sport: 1,030 lm; C1R: 1,080 lm
• Intensity: SSC1 Sport: 400 cd; C1R: 480 cd
• Power: SSC1 Sport: 12.8W; C1R: 14.1W
• Operating Voltage: 9-16V
• Current Draw at 12.8V: SSC1 Sport: 1.0A; C1R: 1.1A
• LED Emitters: Cree XP-L HI or Osram 1414 Pure
• Input Connector: Deutsch DT
• Lens Material: Polycarbonate

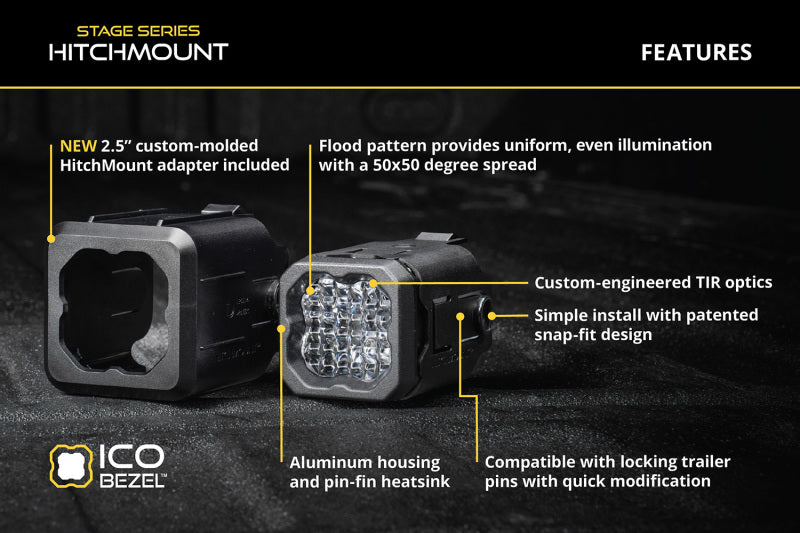

• Housing Material: Aluminum casting with rubber gasket
• Cooling: Passive pin-fin heatsink
• Waterproof Rating: IP69K high-pressure waterproof
• Durability Rating: SAE J575 tested
• Operating Temperature: -40°F to 185°F
• Warranty: Lifetime warranty
• Return Policy: 30-day returns with no restocking fee

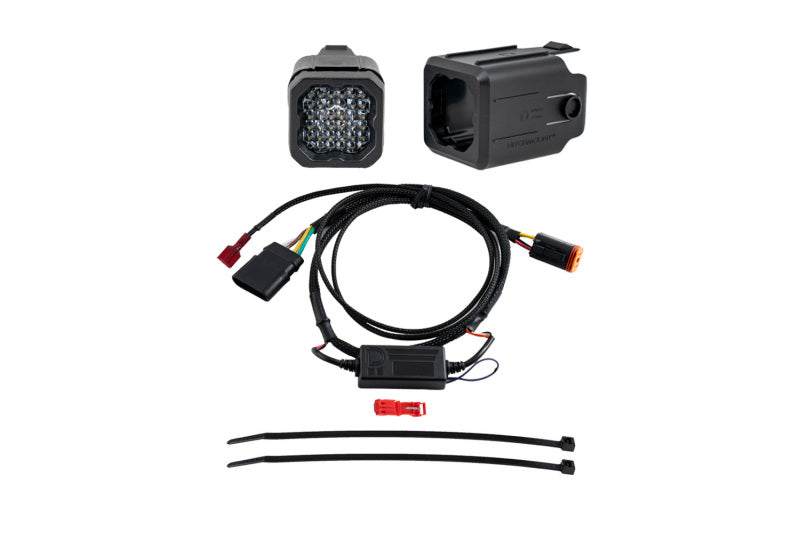

In the Box:

• One (1): SSC1 Sport or C1R HitchMount LED pod

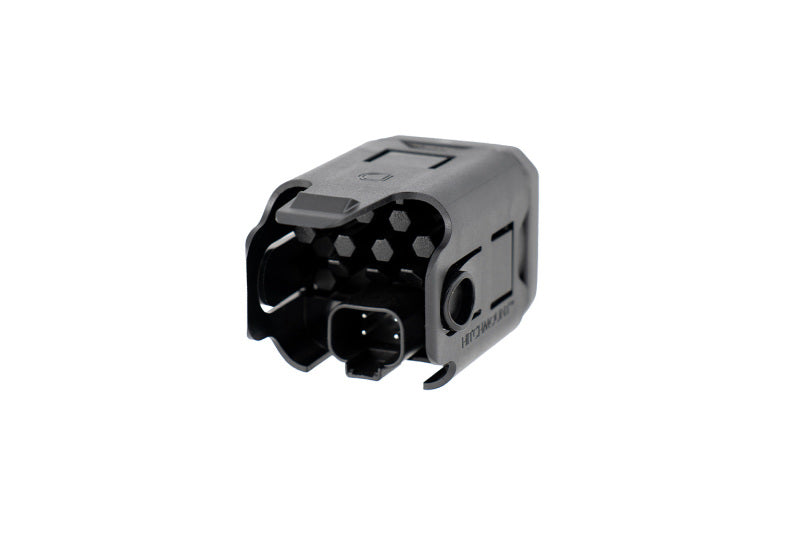

• One (1): Snap-in 2.5-inch receiver adapter
• One (1): 4-pin trailer single-output harness
• Two (2): Zip ties
• One (1): T-tap
• One (1): Installation guide

Fitment:

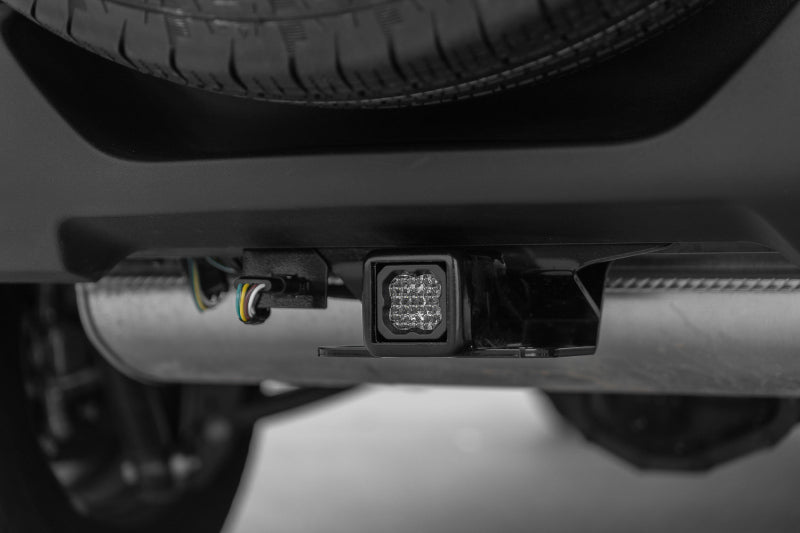

• Universal: Vehicles equipped with a 2.5-inch receiver hitch and compatible 4-pin trailer connector
• Note: HitchMount fitment and flushness may vary with factory trailer package design

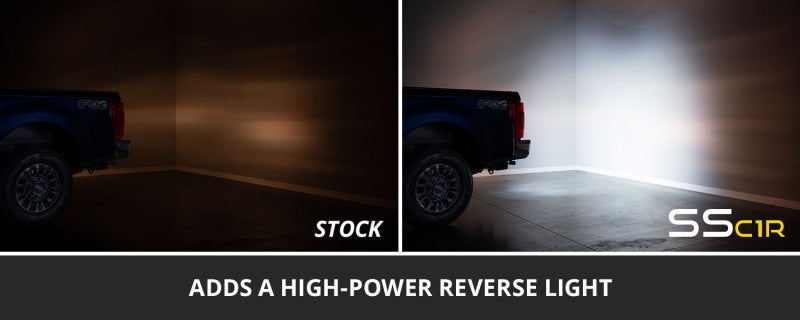

Add powerful auxiliary reverse lighting without permanent vehicle modifications using the Diode Dynamics DD8762 HitchMount LED Pod 4-Pin Reverse Kit. This universal hitch-mounted solution installs into a 2.5-inch receiver and connects through a 4-pin trailer harness for convenient reverse-light activation. Available with an SSC1 Sport or C1R LED pod, the kit delivers focused 6000K white illumination in a durable, weather-resistant housing. Please note that fitment may vary by trailer package, and the HitchMount may not sit completely flush on every vehicle.
