Diode Dynamics SS5 Pro White Grille CrossLink Lightbar for 2007-2018 Jeep JK - DD7272

Diode Dynamics SS5 Pro White Grille CrossLink Lightbar for 2007-2018 Jeep JK - DD7272

$1,439.96 USD
$1,799.95 USD $1,439.96 USD
-20%
Shipping calculated at checkout.
Diode Dynamics
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

DIODD7272
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

DD7272
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

In stock
Light Bars & Cubes
Key Features & Specs: Part Number: DD7272 Product Type: SS5 Pro Grille CrossLink LED lightbar kit Light Series: SS5 Pro Light Color: 6000K white Beam Pattern: Combo driving and flood...
Read more
Same Day Shipping Icon | Elite Race Fab

Free* Shipping on Orders Over $159

 Free Shipping | Elite Race Fab

Easy 30 Days- No Hassle Returns

 5 Star Reviews | Elite Race Fab

37,000+ 5 Star Reviews

 MFG Fitment Guarantee | Elite Race Fab

MFG Fitment Guarantee
Found a better price elsewhere?
secure-payments
View full details

Description

Key Features & Specs:

  • Part Number: DD7272

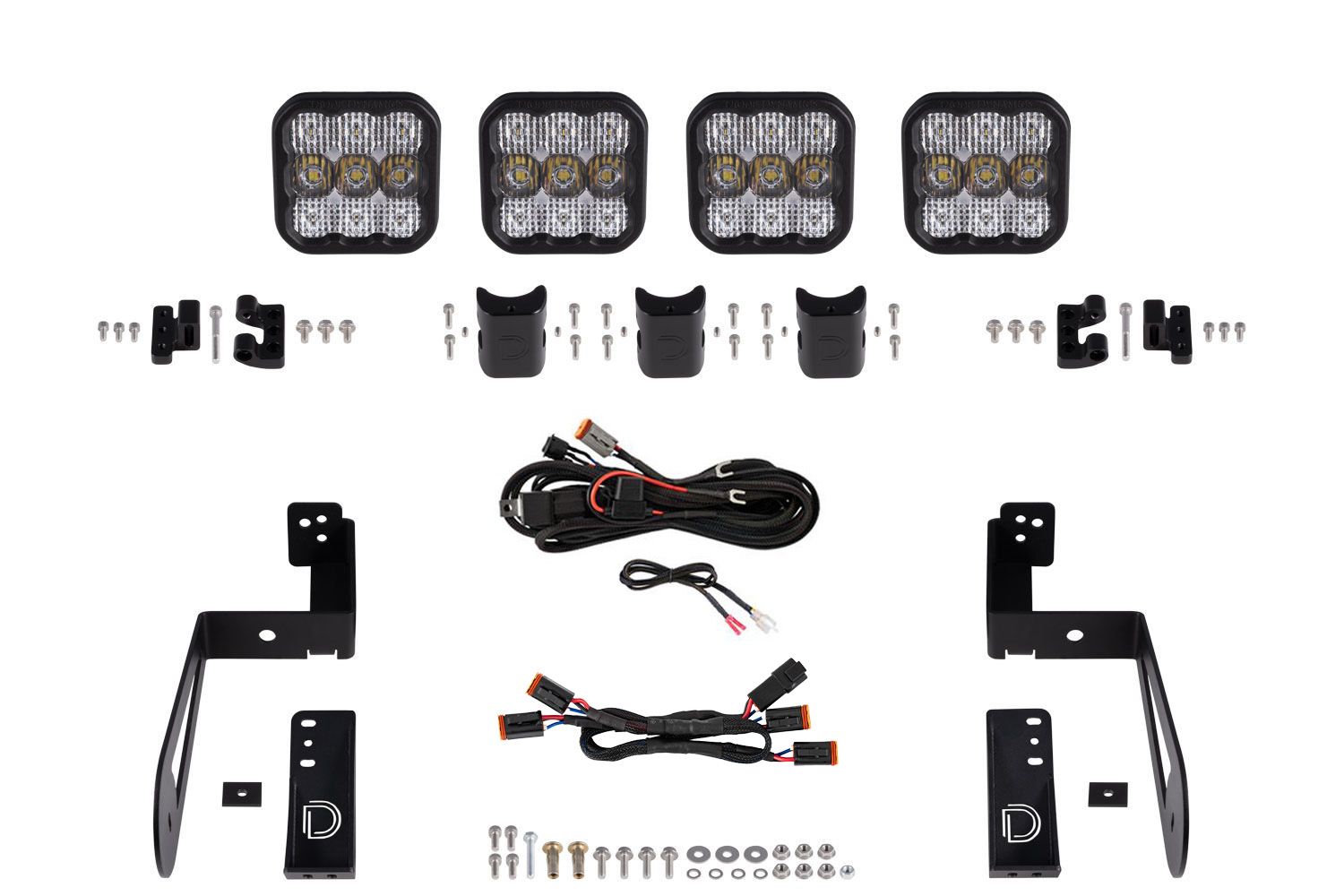

  • Product Type: SS5 Pro Grille CrossLink LED lightbar kit
  • Light Series: SS5 Pro
  • Light Color: 6000K white
  • Beam Pattern: Combo driving and flood
  • Main Beam Power: 90W
  • Main Beam Current: 6.7A at 12.8V
  • Backlight Power: 3.17W
  • Backlight: Selectable eight-color backlight
  • Optics: Custom-engineered Total Internal Reflection (TIR) optics

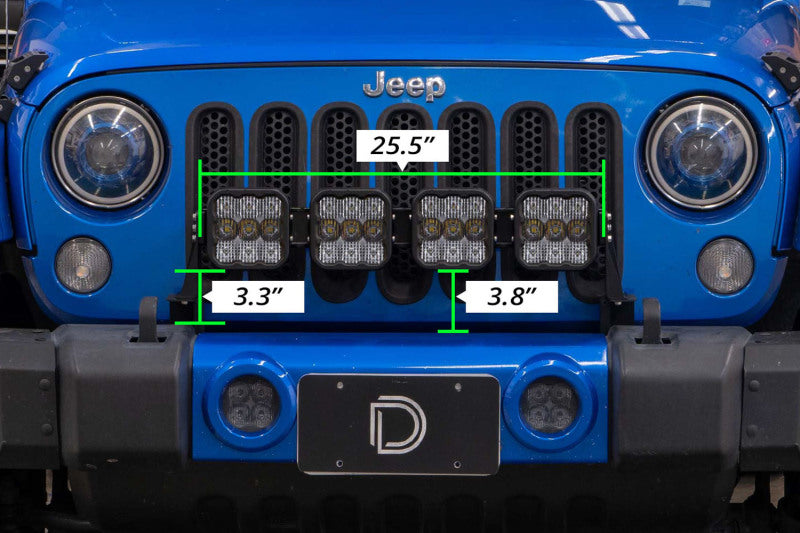

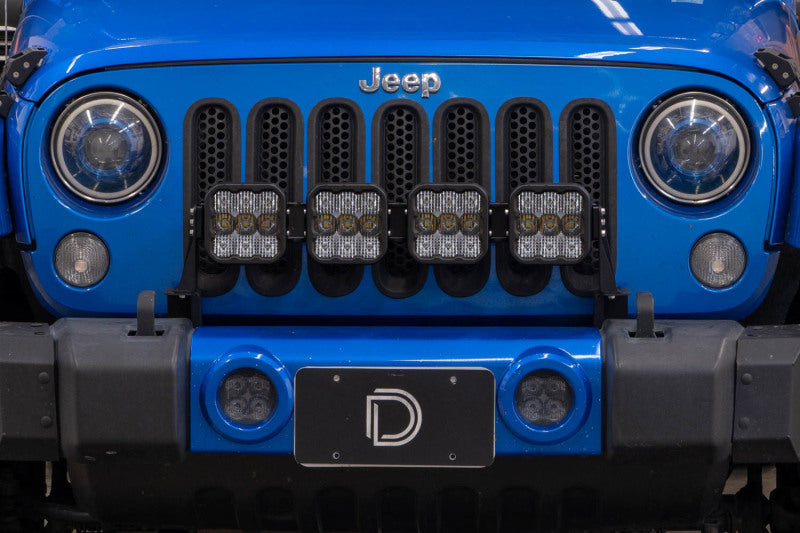

  • Mounting Location: Behind factory grille
  • Installation: Vehicle-specific bolt-on installation
  • Drilling Required: No
  • Connector Type: Deutsch DT input
  • LED Emitters: Luxeon Z ES and Cree XP-L HI
  • Driver Type: Constant current
  • Lens Material: Polycarbonate
  • Housing Material: Aluminum casting with rubber gasket
  • Cooling: Passive pin-fin heatsink
  • Operating Voltage: 9-16V
  • Operating Temperature: -40°F to 185°F
  • Waterproof Rating: IP69K high-pressure waterproof
  • Assembly: Assembled in the USA
  • Warranty: 8-year warranty

Fitment:

  • 2007-2018 Jeep Wrangler JK

Add high-output, integrated auxiliary lighting to your 2007-2018 Jeep Wrangler JK with the Diode Dynamics DD7272 SS5 Pro White Grille CrossLink Lightbar Kit. This vehicle-specific kit installs behind the factory grille using a bolt-on design for a clean appearance without drilling. SS5 Pro LED pods produce a 6000K white combo beam with long-range driving coverage and broad flood illumination, while advanced TIR optics maximize useful output. The white-lens configuration includes a selectable eight-color backlight for a custom accent when the main beam is off.
