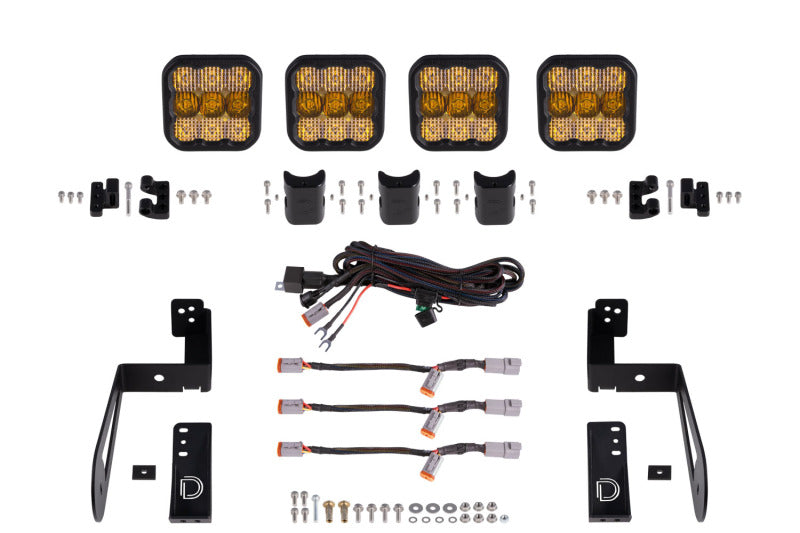

Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2007-2018 Jeep Wrangler JK - DD7230

Key Features & Specs:

• Part Number: DD7230
• Product Type: SS5 Grille CrossLink LED lightbar kit
• Vehicle-Specific Fitment: Jeep Wrangler JK
• Mounting Location: Behind factory grille
• Installation: Bolt-on, no-drill vehicle-specific design
• Light Series Options: SS5 Sport or SS5 Pro
• Main Beam Colors: 6000K white or 3000K yellow
• Beam Pattern: Combo driving and flood
• Optics: Custom-engineered Total Internal Reflection (TIR) optics
• Sport Main Beam Power: 40W
• Pro Main Beam Power: 90W
• White Backlight Power: 3.17W
• Yellow Backlight Power: 3.07W
• White Backlight: Selectable eight-color backlight
• Yellow Backlight: Amber only
• Connector Type: Deutsch DT input
• Driver Type: Constant-current driver
• Lens Material: Polycarbonate
• Housing Material: Aluminum casting with rubber gasket
• Cooling: Passive pin-fin heatsink
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Waterproof Rating: IP69K high-pressure waterproof
• Assembly: Assembled in the USA
• Warranty: 8-year warranty

Fitment:

• 2007-2018 Jeep Wrangler JK

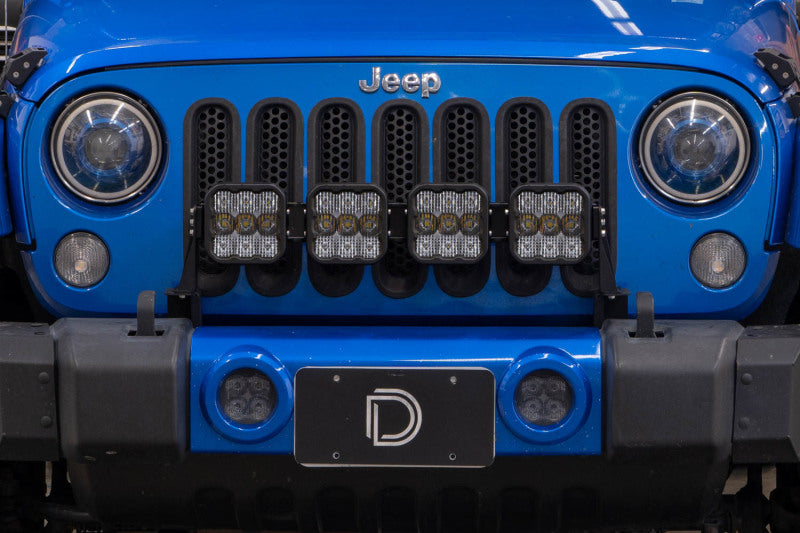

Add powerful, low-profile forward lighting to your 2007-2018 Jeep Wrangler JK with the Diode Dynamics DD7230 SS5 Grille CrossLink Lightbar Kit. This vehicle-specific system mounts linked SS5 LED pods behind the factory grille for a clean integrated appearance and bolt-on installation. Choose Sport or Pro output levels along with 6000K white or 3000K yellow combo beam options to match your lighting needs. Advanced TIR optics provide concentrated, usable illumination, while white-lens pods feature a selectable eight-color backlight for added style.
