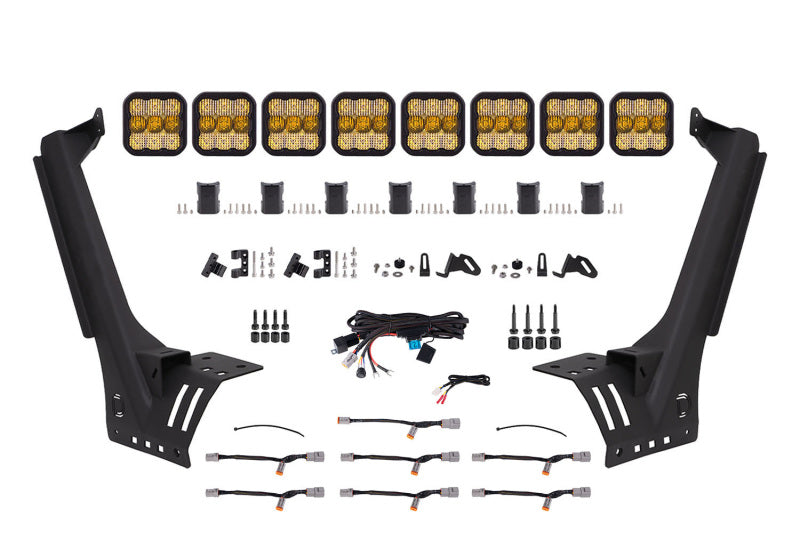

Diode Dynamics SS5 Pro CrossLink Windshield Lightbar Kit for 2018-2021 Jeep JL - DD7263

Key Features & Specs:

• Part Number: DD7263
• Product Type: Windshield-mounted CrossLink LED lightbar kit
• Light Configuration: Eight SS5 Pro LED pods
• Light Color: Yellow
• Color Temperature: 3000K
• Beam Pattern: Combo driving and flood
• Main Beam Output: 7,900 measured lumens
• Peak Intensity: 58,500 candela
• Main Beam Power: 90W
• Backlight Power: 3.07W
• Backlight Color: Amber only
• Optics: Custom-engineered Total Internal Reflection (TIR) optics
• CrossLink Design: Adjustable single-piece CNC aluminum linking system
• Pod Housing: Powder-coated aluminum
• Bracket Material: Steel
• Connector Type: Deutsch-style DT connectors
• Mounting: Factory-location bolt-on installation
• Drilling Required: No
• Waterproof Rating: IP69K high-pressure waterproof
• Durability Rating: SAE J575 durability tested
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Finish: Flat black
• Harness Compatibility: Supports control through the factory auxiliary switch bank with included harness
• Assembly: Assembled in the USA
• Warranty: 8-year warranty

Fitment:

• 2018-2021 Jeep Wrangler JL

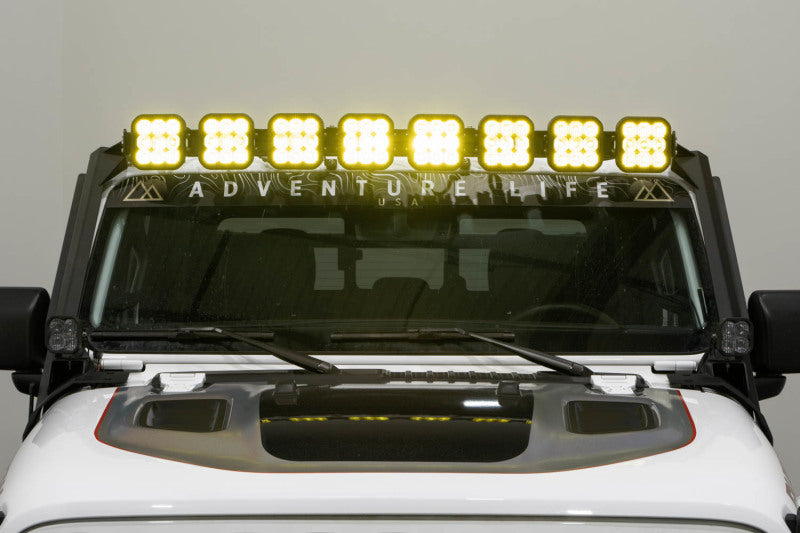

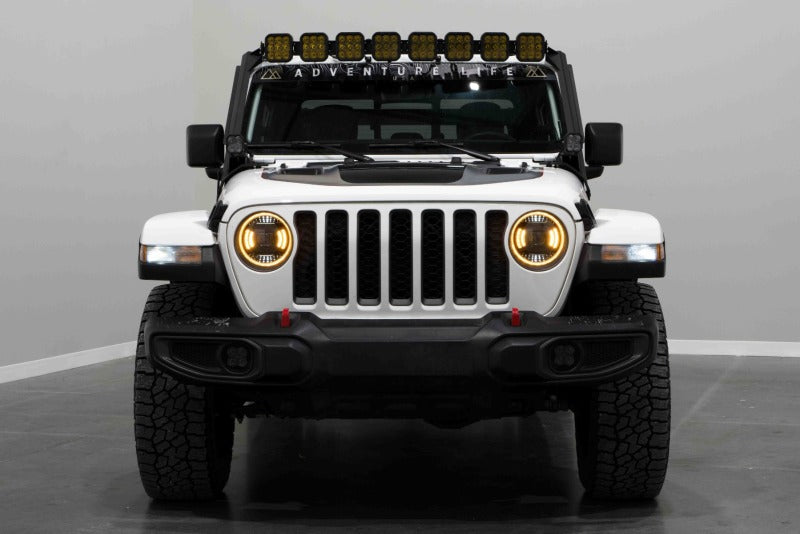

Take on dark trails with the Diode Dynamics DD7263 SS5 Pro CrossLink Windshield Lightbar Kit for the 2018-2021 Jeep Wrangler JL. This vehicle-specific kit mounts eight linked SS5 Pro LED pods above the factory windshield using existing mounting locations, with no drilling or cutting required. The 3000K yellow combo beam combines driving and flood illumination for powerful forward visibility, while advanced TIR optics concentrate output where it is needed most. Built with durable powder-coated aluminum pods, steel brackets, and integrated Deutsch-style connectors, this kit is engineered for demanding off-road use. Because this configuration uses yellow lenses, it includes an amber backlight only.
