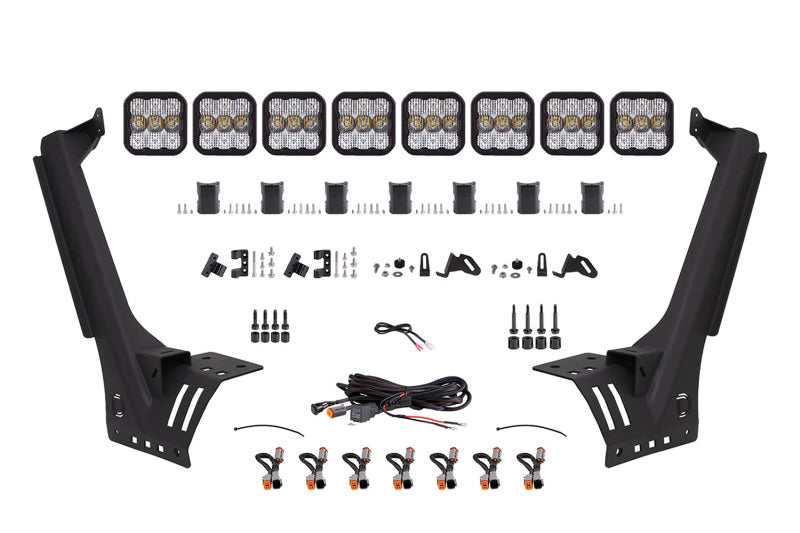

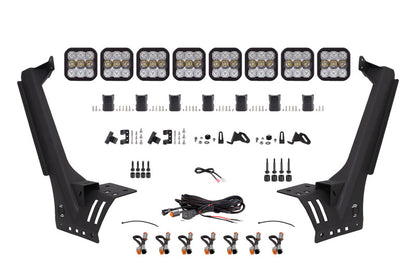

Diode Dynamics SS5 Sport Windshield Lightbar for 2018-2026 Jeep JL / 2020-2026 JT - DD6821

Key Features & Specs:

• Part Number: DD6821
• Product Type: SS5 Sport CrossLink windshield lightbar kit
• Light Configuration: Eight linked SS5 Sport LED pods
• Main Beam Color: 6000K white
• Beam Pattern: Combo driving and flood
• Optics: Engineered Total Internal Reflection (TIR) optics
• Measured Output: 3,800 lumens per pod
• Raw Output: 4,800 lumens per pod
• Peak Intensity: 81,600 candela per pod
• Illuminance at 10 Meters: 820 lux per pod
• Main Beam Power: 40W per pod
• Backlight Power: 3.17W per pod
• Backlight: Selectable eight-color backlight
• Compliance Rating: SAE J581 driving/auxiliary high beam pattern
• Connector Type: Deutsch DT input
• Housing Materials: Aluminum casting, polycarbonate lens, and rubber gasket
• Cooling: Passive pin-fin heatsink
• Mounting: Factory-location bolt-on windshield installation
• Drilling Required: No
• Bracket Material: Steel
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Finish: Flat black
• Assembly: Assembled in the USA
• Warranty: Limited lifetime warranty

Fitment:

• 2018-2026 Jeep Wrangler JL
• 2020-2026 Jeep Gladiator JT

Equip your Jeep Wrangler JL or Gladiator JT with high-output, full-width trail lighting using the Diode Dynamics DD6821 SS5 Sport CrossLink Windshield Lightbar Kit. This vehicle-specific system links eight SS5 Sport white combo LED pods into one rigid, adjustable lightbar and mounts above the windshield using factory mounting points. Advanced TIR optics provide focused driving and flood illumination, while the selectable eight-color backlight adds a custom accent appearance when the main beam is off. The included wiring harness supports factory auxiliary-switch activation, and installation requires no drilling or cutting.
