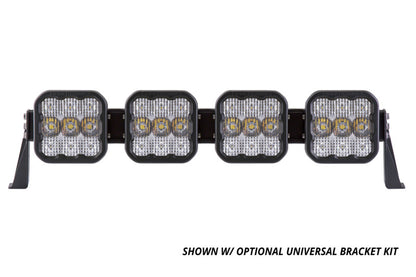

Diode Dynamics SS5 CrossLink 4-Pod 25" LED Light Bar - DD7252

Key Features & Specs:

• Part Number: DD7252
• Product Type: Universal CrossLink LED light bar

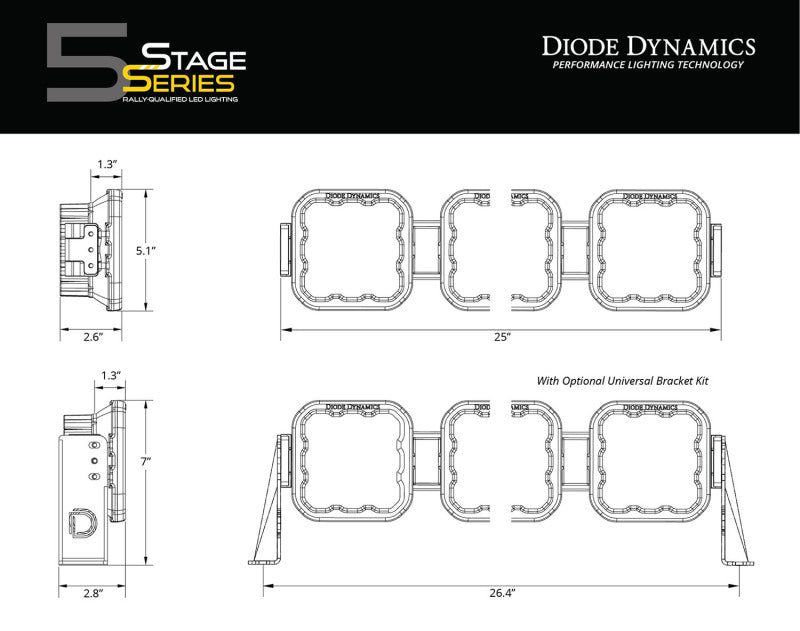

• Light Bar Length: 25-inch

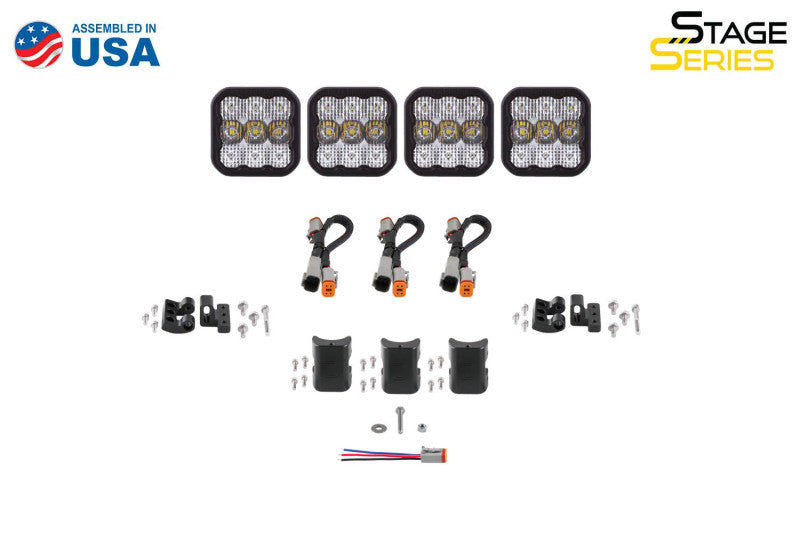

• Light Configuration: Four linked SS5 LED pods
• Light Color: 6000K white

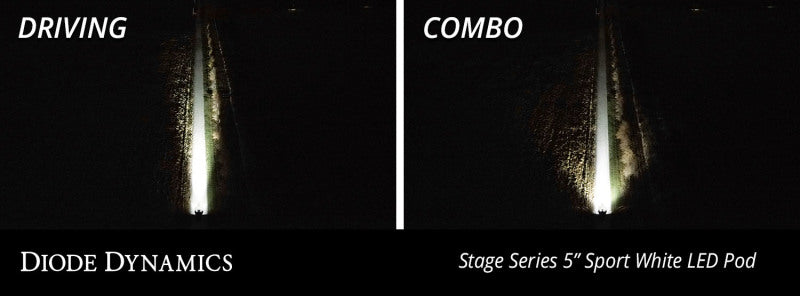

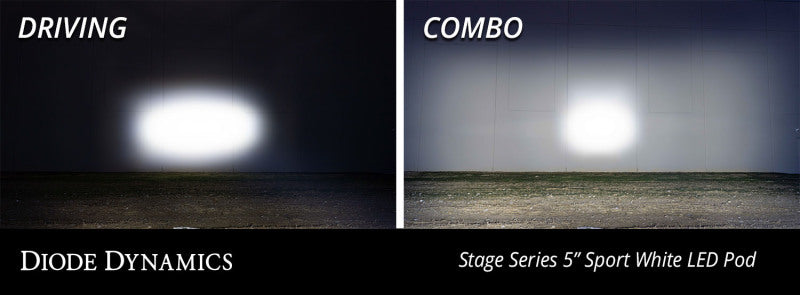

• Beam Pattern: Driving
• Beam Angle: 20° x 8°
• Measured Output: 9,700 lumens
• Peak Intensity: 170,000 candela
• Main Beam Power: 90W
• Backlight Power: 3.17W
• Optics: Advanced Total Internal Reflection (TIR) optics

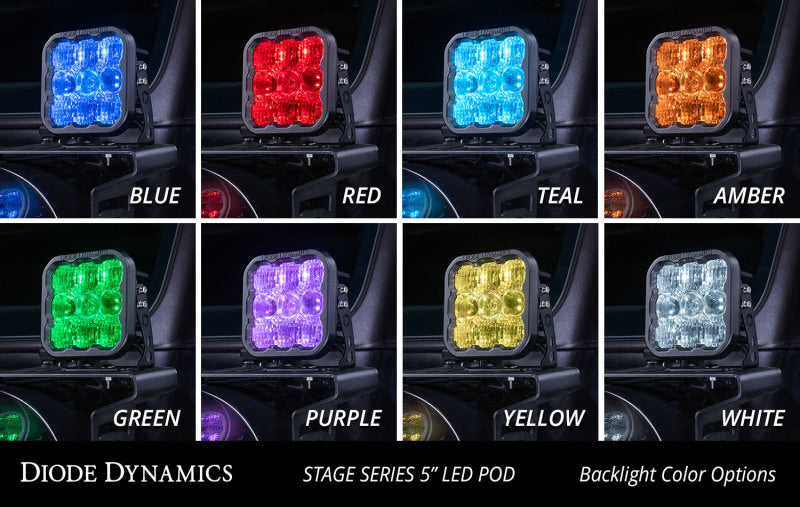

• Backlight: Selectable eight-color backlight for white-lens configuration
• Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
• Connector Type: Deutsch-style DT connectors
• Mounting: Universal mounting design

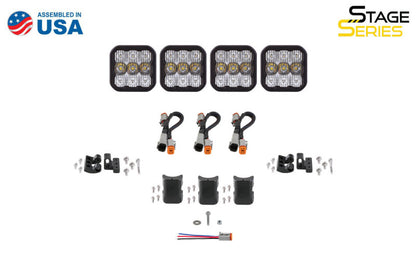

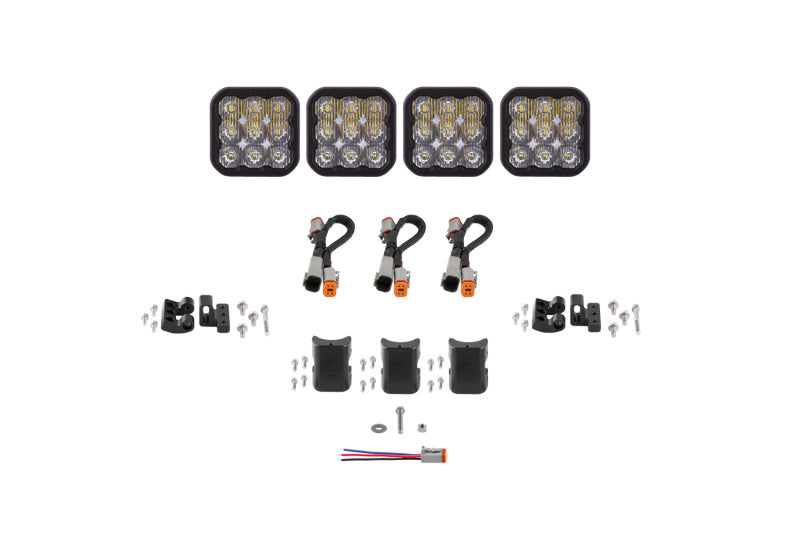

• Mounting Hardware: Included
• Waterproof Rating: IP69K high-pressure waterproof
• Operating Voltage: 9-16V
• Operating Temperature: -40°F to 185°F
• Finish: Flat black
• Assembly: Assembled in the USA
• Warranty: 8-year warranty

The Diode Dynamics DD7252 SS5 CrossLink 4-Pod 25-Inch LED Light Bar delivers high-output auxiliary lighting in a compact, modular linked-pod design. Built with four SS5 LED pods and a rigid CrossLink mounting system, this universal light bar produces a focused 6000K white driving beam for enhanced long-range visibility. Engineered TIR optics maximize light control and efficiency, while the selectable eight-color backlight adds a custom accent appearance. Durable construction, Deutsch-style connectors, and IP69K protection make it ready for demanding off-road and utility applications.
