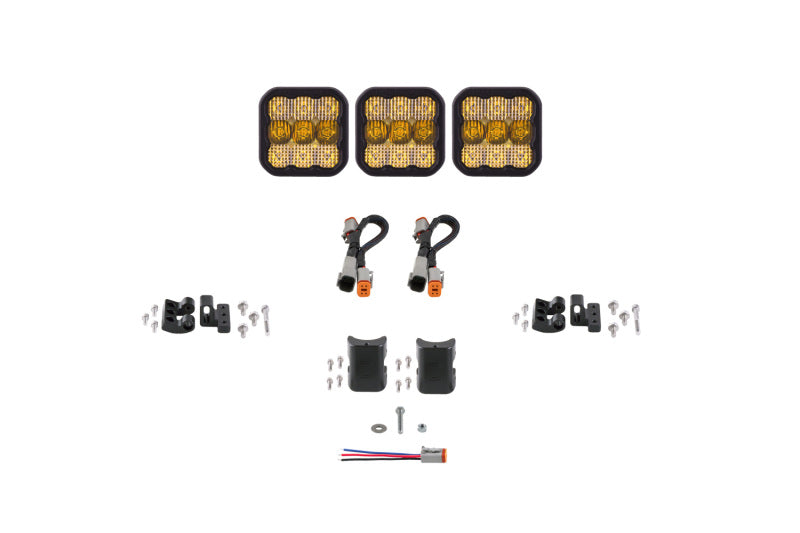

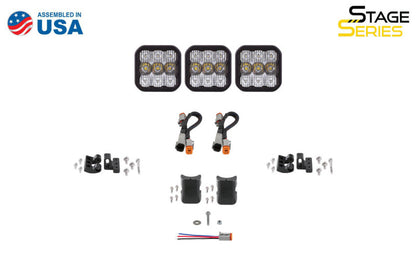

Diode Dynamics SS5 18.5in 3-Pod Yellow Combo Light Bar Sport - DD6793

Key Features & Specs:

• Product Type: Universal linked LED light bar

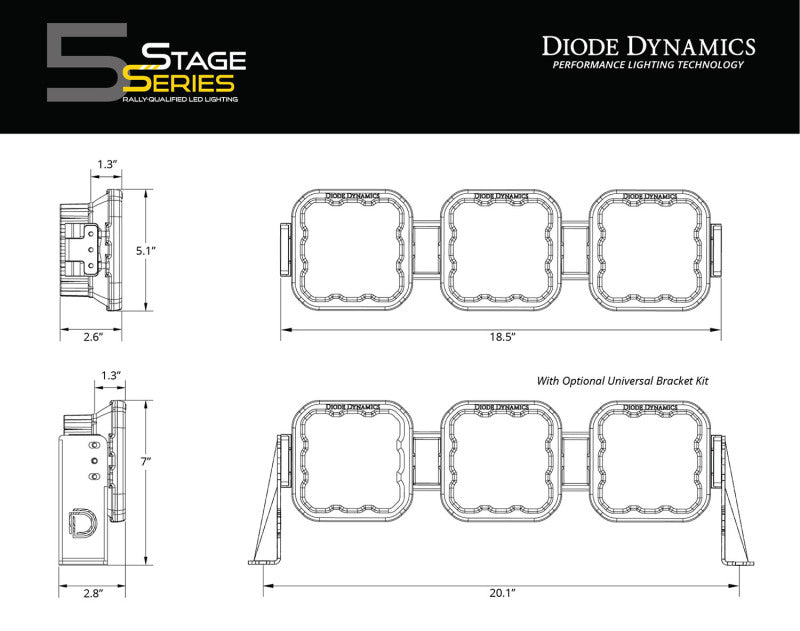

• Light Bar Length: 18.5 inches
• Pod Count: Three SS5 LED pods

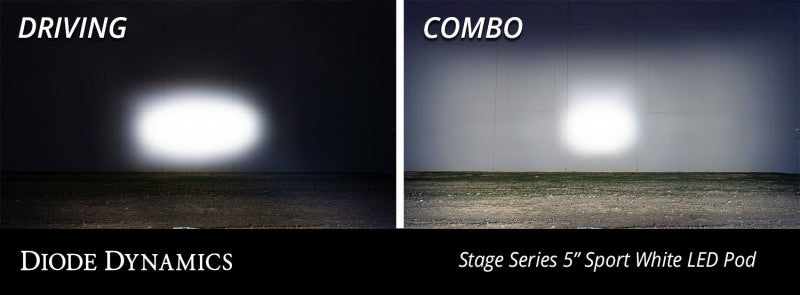

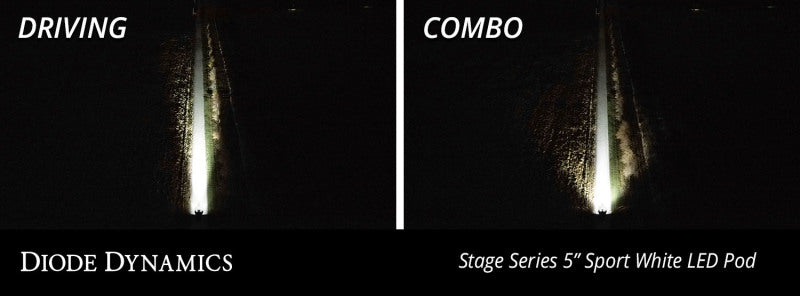

• Beam Pattern: Yellow Combo
• Power Level: Sport
• Main Beam Output: 40 watts
• Optics: Total internal reflection (TIR) optics

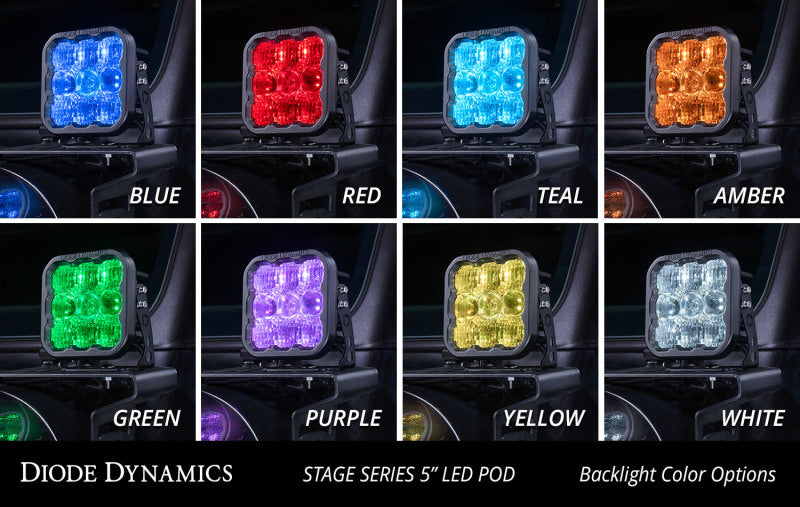

• Backlight: Selectable backlight with eight available color options
• Main Beam Color Temperature: 3000K or 6000K
• Operating Voltage: 9–16V
• Main Beam Current: 2.8 amps at 12.8V for Sport Yellow
• Backlight Power: 3.07 watts in yellow
• Backlight Current: 0.24 amps at 12.8V in yellow
• LED Emitters: Luxeon Z ES and Cree XP-L HI
• Connector Type: Deutsch DT input
• Lens Material: Polycarbonate
• Housing Material: Aluminum casting with rubber gasket
• Cooling: Passive pin-fin heatsink
• Waterproof Rating: IP69K
• Operating Temperature: -40°F to 185°F
• Assembly: Assembled in the USA
• Part Number: DD6793

Fitment:

• Universal Fit: Vehicles with a compatible custom mounting location and 9–16V electrical system

The Diode Dynamics DD6793 SS5 Universal LED Light Bar delivers a compact, high-output auxiliary lighting solution for off-road and universal applications. This 18.5-inch linked light bar combines three SS5 LED pods with a yellow Combo beam pattern, providing broad foreground illumination with added distance coverage. The Sport configuration produces 40 watts of main-beam output, while engineered TIR optics, a waterproof aluminum housing, and selectable backlighting make this a durable and versatile lighting upgrade.
