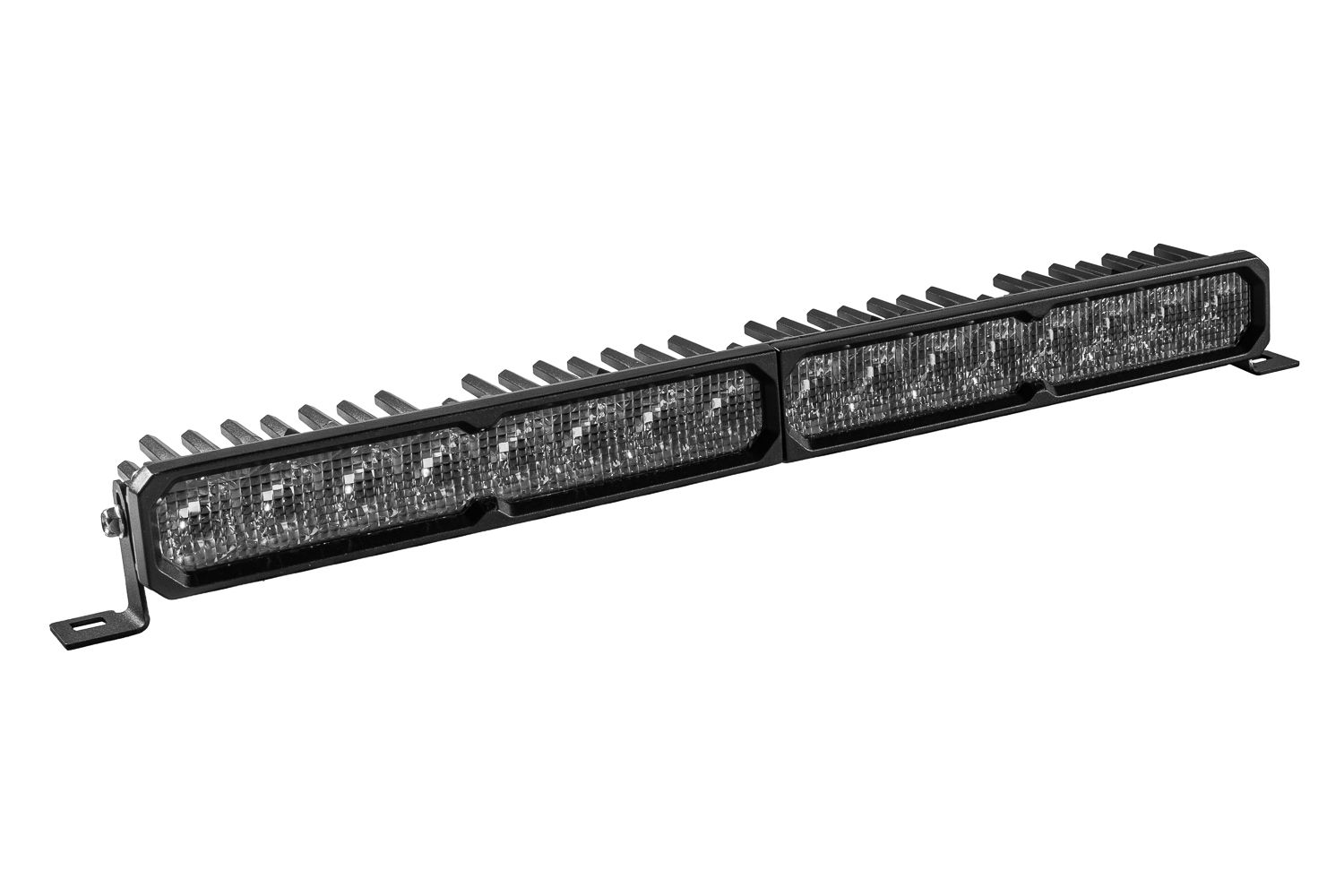

Diode Dynamics Stage Series SS20 20" LED Light Bar

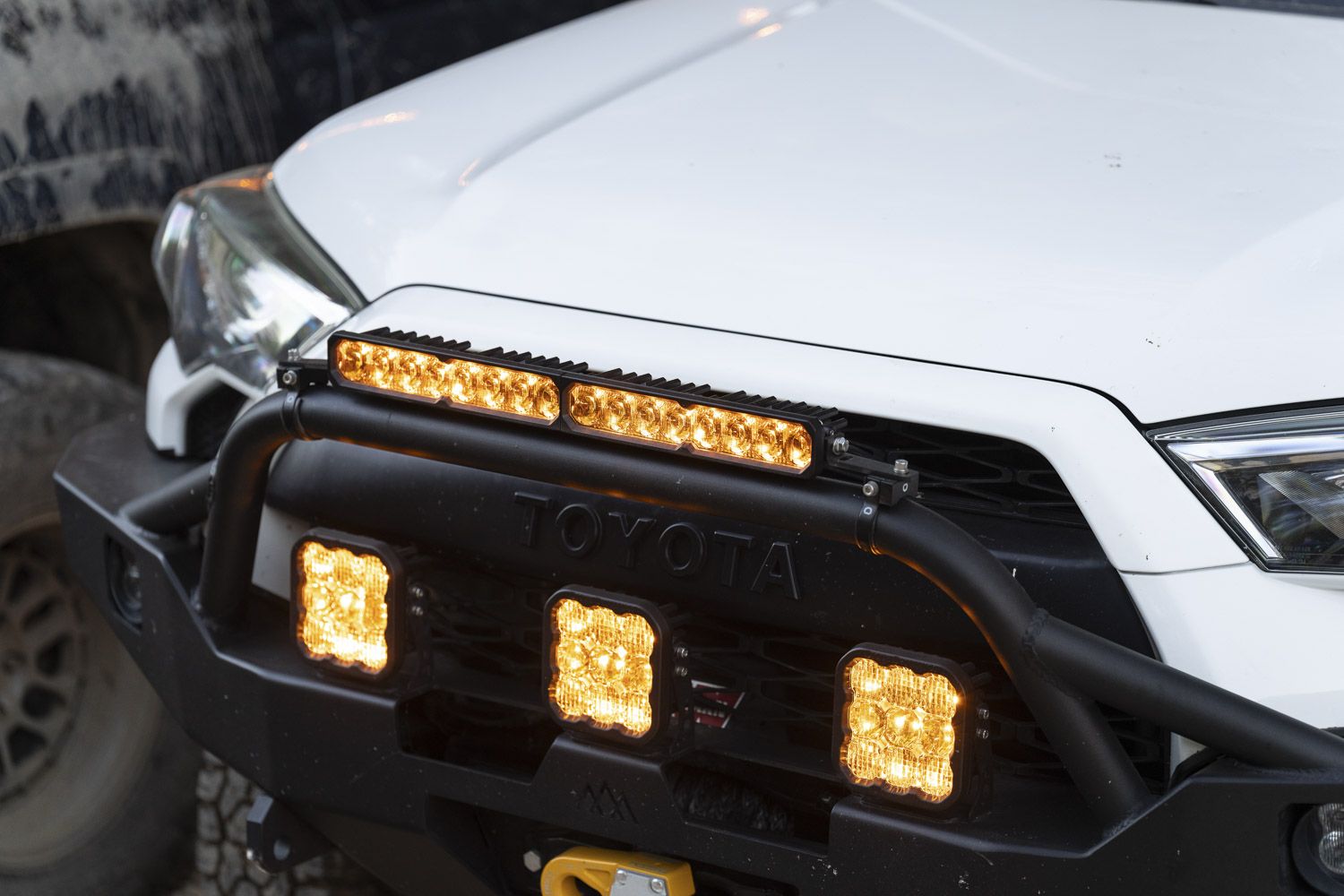

The Diode Dynamics Stage Series SS20 20" LED Light Bar delivers elite-level, high-intensity illumination in an ultra-compact, low-profile package. Perfectly optimized for front bumper openings, grille mounts, hood brackets, and UTV cages, the SS20 features custom-engineered, patented TIR (Total Internal Reflection) optics. Unlike generic, bulky light bars that scatter light all over the place, the SS20 focuses nearly 100% of its output straight down the trail, maximizing usable brightness while completely eliminating blinding glare.

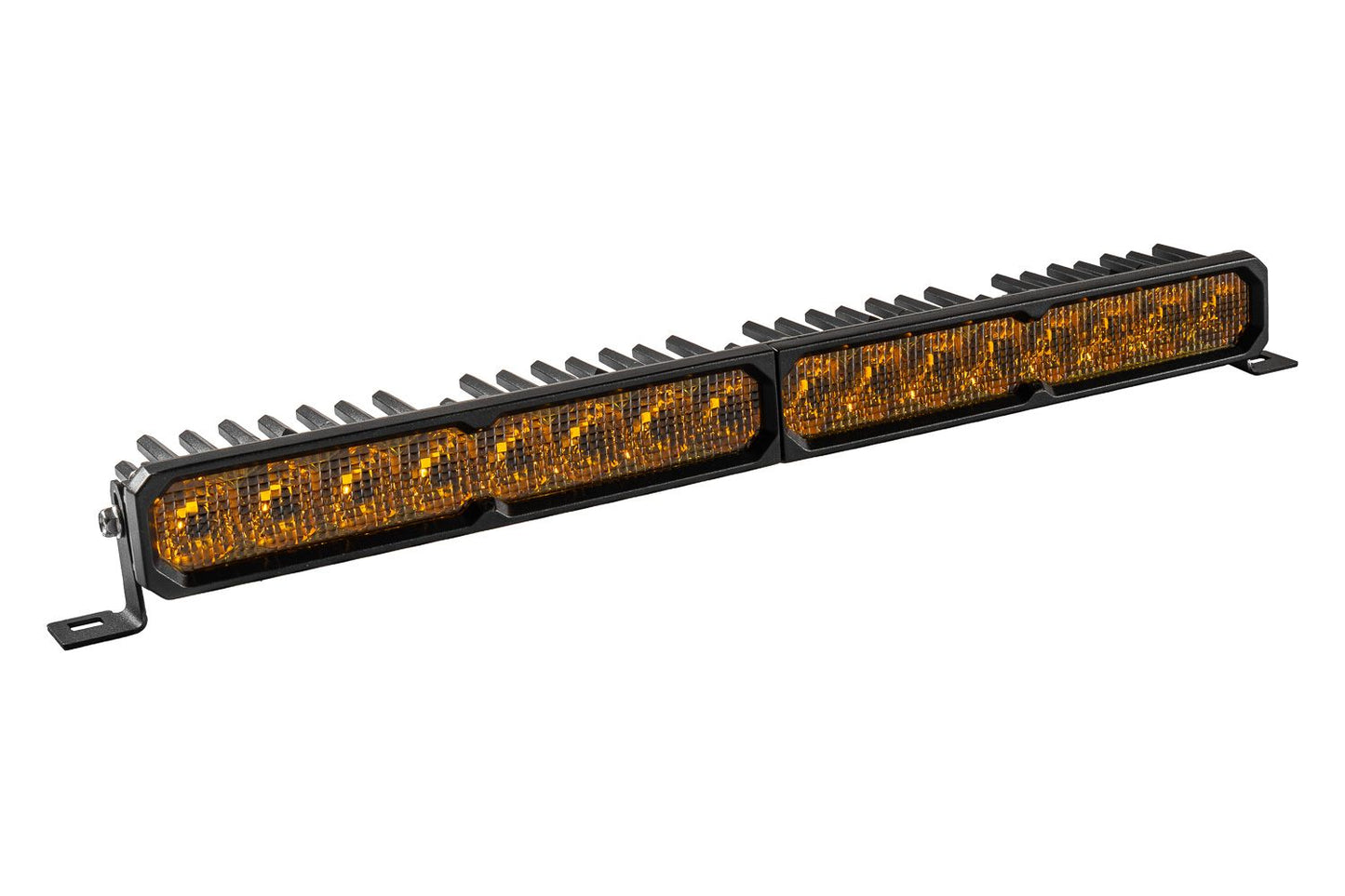

Fully customizable to match your exact driving environment, this master listing puts you in complete control. Select between crisp 6000K Cool White for maximum contrast and visual distance, or high-intensity Selective Yellow to safely pierce through zero-visibility dust, rain, heavy fog, and snow storms. Even better, every configuration includes a fully illuminated, built-in Amber Backlight that lights up the main optics, providing a striking accent light and extra vehicle safety on the trail

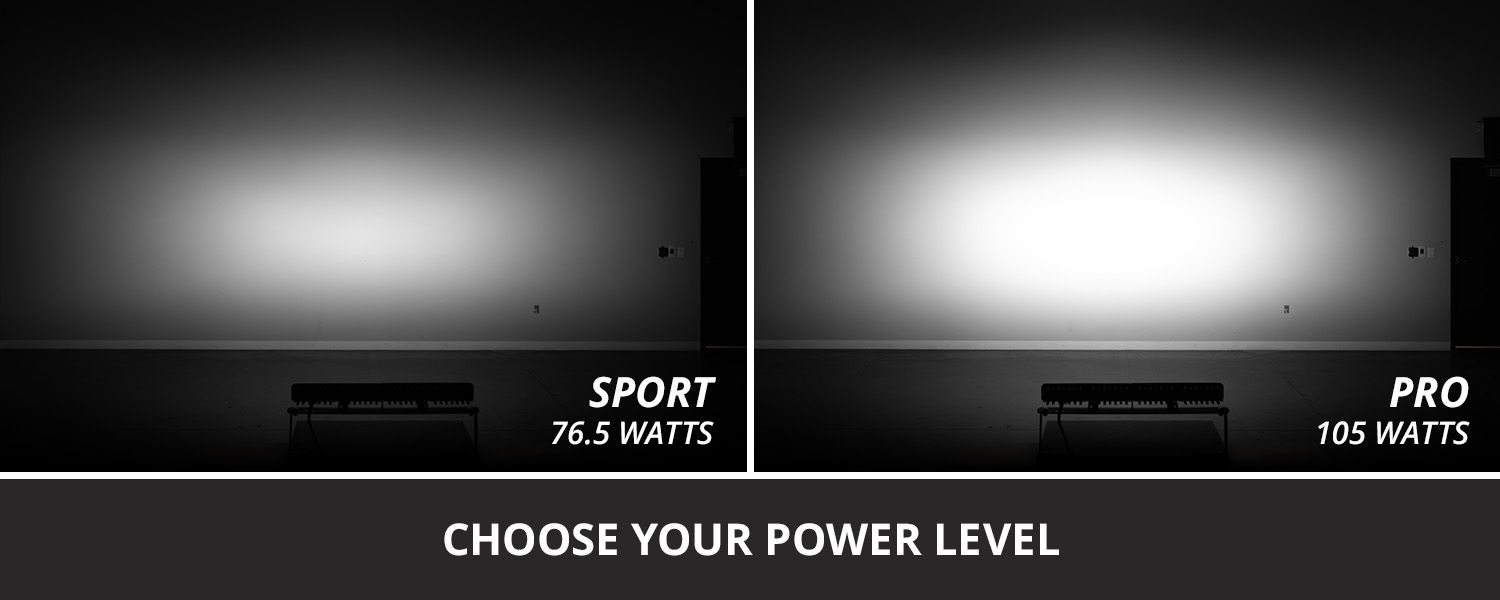

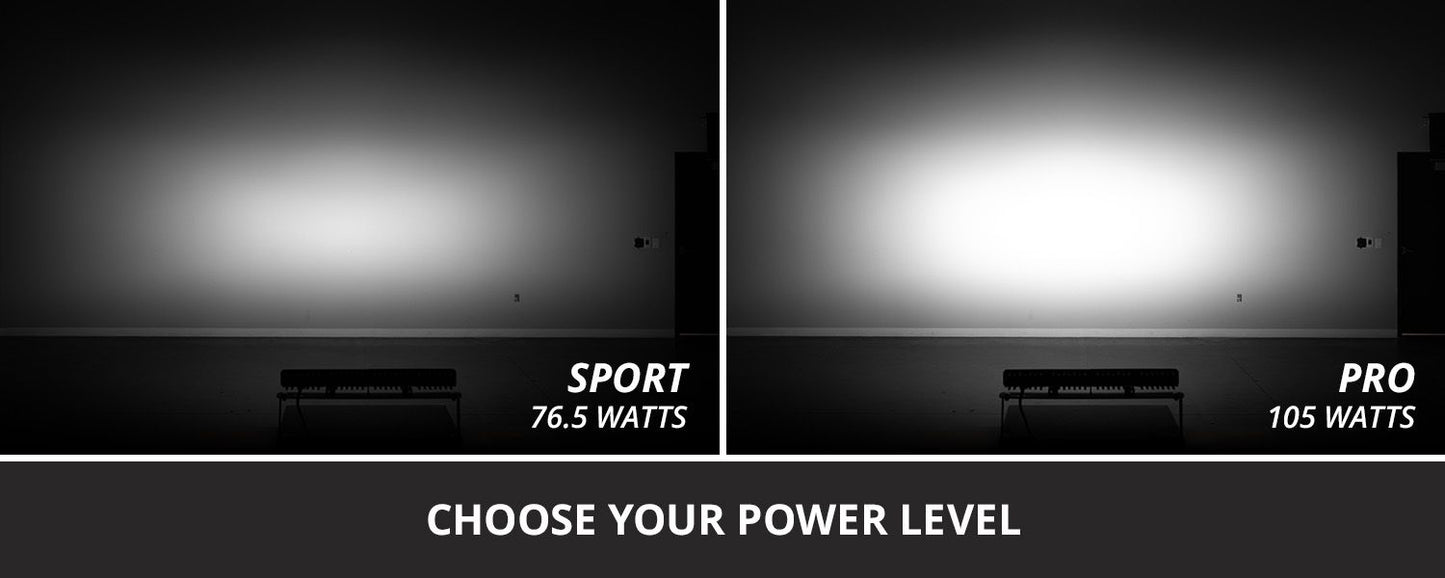

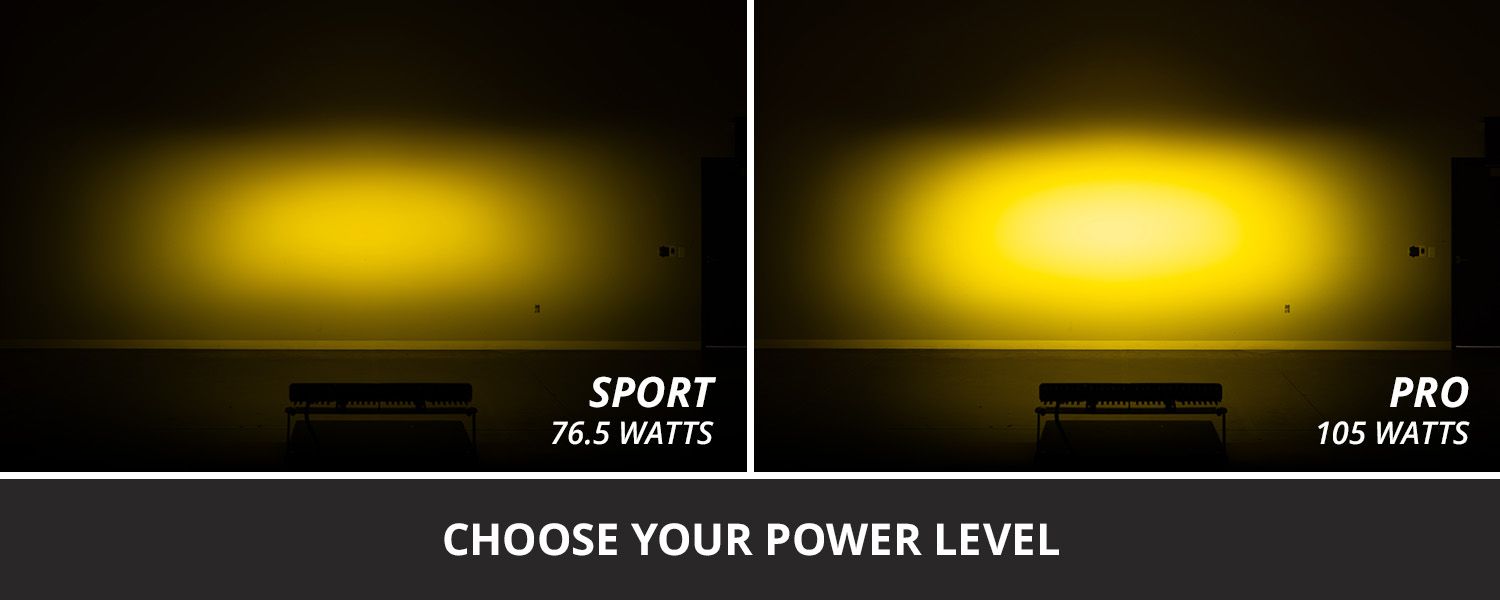

Choose Your Performance Tier & Power Level:

• Sport: Incredible value meets heavy-duty performance. Utilizing premium automotive-grade LEDs, the Sport model throws an exceptional 7,376 raw lumens down the trail while maintaining a highly efficient power draw that won’t stress your battery setup.

• Pro: A massive step up in raw lumen projection. The Pro tier utilizes heavily driven, larger-scale emitters to push a blinding 25,088 raw lumens, drastically amplifying your mid-range and long-range peripheral visibility on high-speed trail runs.

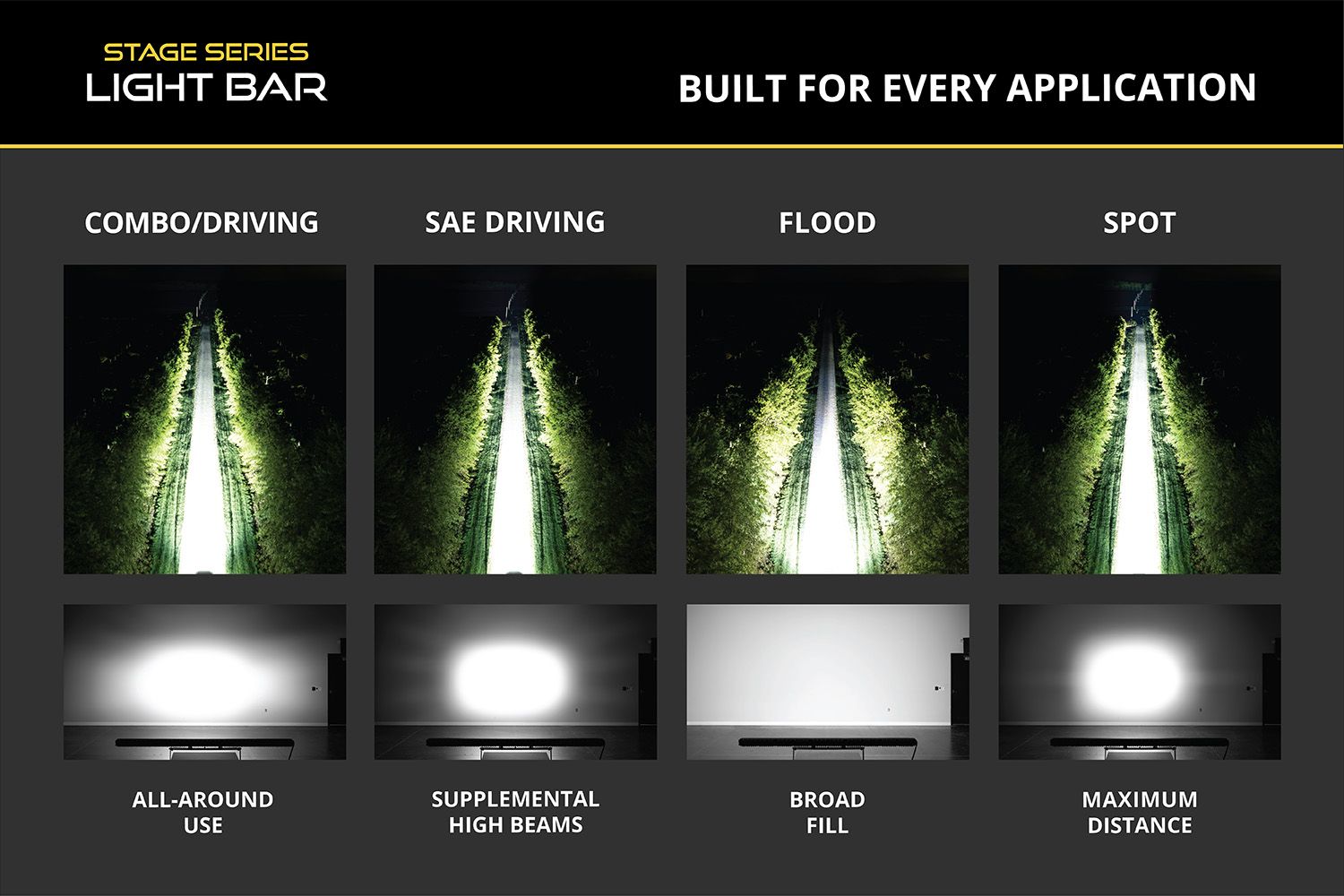

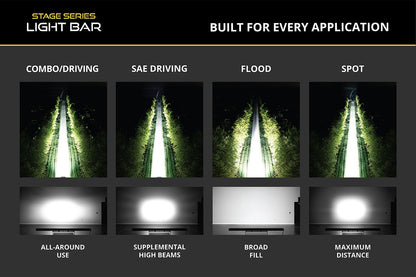

Select Your Optical Beam Pattern:

• Combo/Driving (60°x30°): The ultimate all-in-one setup. Blending both wide driving and focused distance optics, this pattern floods your close-range ditches while projecting a powerful beam directly down the center lane.

• Flood (100°x80°): Maximum close-range coverage. Spreading a massive, uniform wall of light, the Flood configuration is ideal for low-speed technical trails, rock crawling, tight woods riding, reversing, or lighting up a campsite.

• SAE Driving (20°x12°): Street-legal auxiliary illumination. This pattern projects an intensely wide, horizontally cut beam that meets strict SAE J581 regulations, giving you legal on-road high-beam assistance when installed in pairs.

• Spot (8°x8°): Uncompromised long-range downrange punch. A laser-focused, tight beam pattern designed to slice hundreds of yards into complete darkness, essential for high-speed desert running and early obstacle warning.

Premium Engineering & Construction Features:

• Advanced TIR Optics: Standard reflectors lose massive amounts of light to internal scatter. Custom-molded TIR optics capture almost every ounce of light from the internal LEDs and throw it forward.

• Swappable Lenses: Engineered with a smart modular layout, allowing you to easily swap external lenses or add snap-on protective covers down the road without risking moisture leaks or performance loss.

• Torture-Tested Build: Extensively tested to SAE standards for long-term operation from -40°F to 185°F, as well as severe shock, vibration, and salt-spray corrosion.

• Weatherproof Seals: Features a rugged aluminum housing, an ASTM-certified powder coat finish, and a punishing IP69K waterproof rating to withstand high-pressure washdowns.

• USA Assembled: Proudly designed, heavily tested, and hand-assembled right in St. Louis, Missouri.

• Warranty: Backed by an industry-leading limited lifetime manufacturer warranty.
