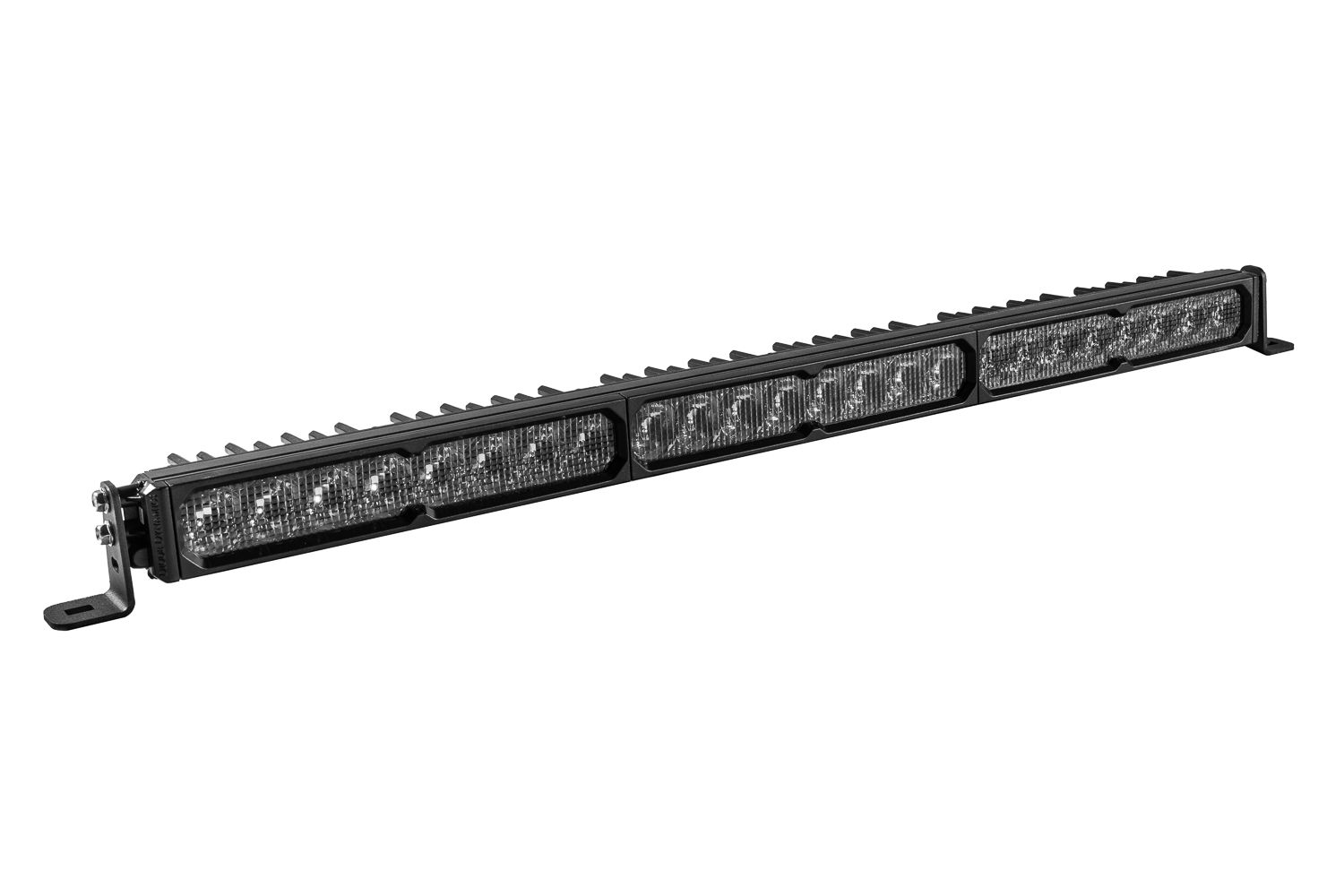

Diode Dynamics Stage Series SS30 30" LED Light Bar

The Diode Dynamics Stage Series SS30 30" LED Light Bar delivers professional-grade, wide-spectrum illumination engineered for serious trail trucks, overlanders, and full-size off-road builds. Spanning a commanding 30 inches, the SS30 utilizes Diode Dynamics’ custom-molded, patented TIR (Total Internal Reflection) optics. By capturing and projecting nearly 100% of the light output forward, this light bar completely eliminates the wasted glare and scattered beams common in generic reflector bars, giving you maximum trail visibility where it matters most.

Fully customizable to fit your rig, this master listing puts all standard configurations right at your fingertips. Choose between crisp 6000K Cool White for intense visual contrast, or piercing Selective Yellow to burn through heavy trail dust, rain, dense fog, and winter snow storms. Select the high-value Sport tier for an efficient, heavy-duty setup, or upgrade to the high-intensity Pro tier for massive raw lumen power. Every Standard SS30 light bar also includes an integrated, fully illuminated Backlight feature that serves as a bold, distinctive styling accent when your main beams are switched off.

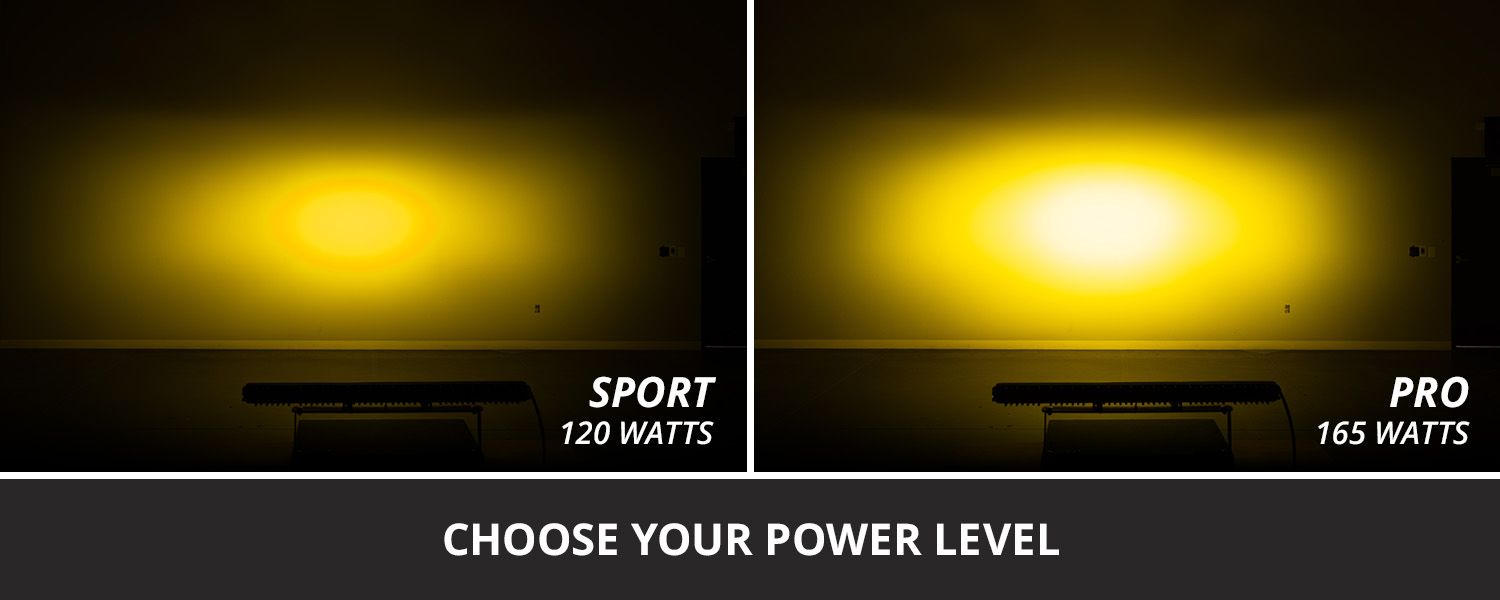

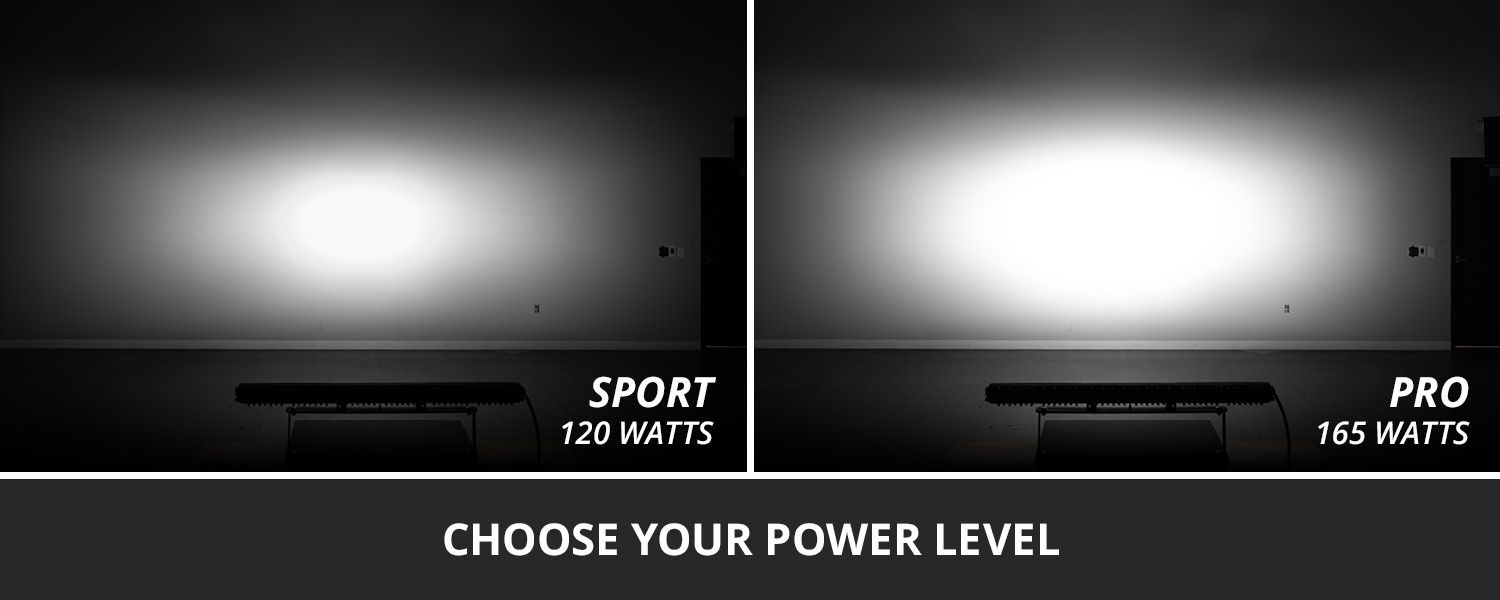

Choose Your Performance Tier & Power Level:

• Sport: Heavy-duty trail performance meets high efficiency. Operating at a solid 120 watts, the Sport configuration pumps out an impressive 11,064 raw lumens, throwing exceptional visual depth downrange without overwhelming your vehicle's factory electrical charging system.

• Pro: Professional-grade maximum illumination. Cranking the dial up to 165 watts, the Pro model utilizes heavily driven, premium emitters to unleash a staggering 37,632 raw lumens. This configuration massively multiplies your long-range peripheral visibility—essential for high-speed desert running and demanding night navigation.

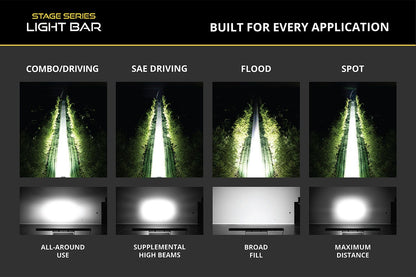

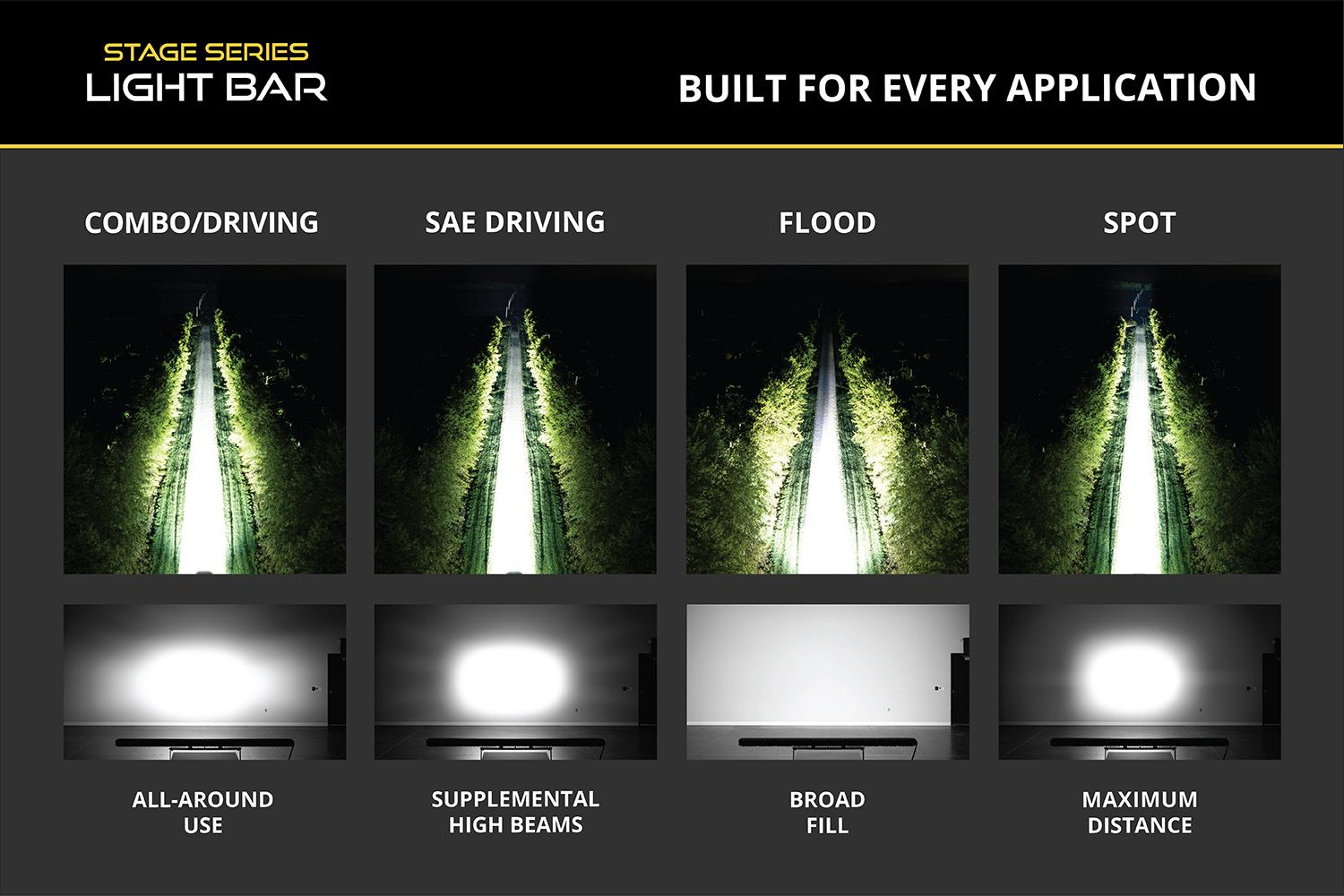

Select Your Optical Beam Pattern:

• Combo/Driving (60°x30°): The absolute best all-around pattern. Uses advanced pillow optics to blend long-distance focus with wide peripheral driving width, flooding roadside ditches while punching a powerful beam straight down the center line.

• Flood (100°x80°): True optically designed broad coverage. Spreading a uniform, flawless 100° x 80° blanket of light, this pattern completely avoids the harsh hotspots of generic lights. It is perfect for low-speed technical rock crawling, reversing, or lighting up a campsite.

• SAE Driving (20°x12°): Legal street performance. Projects a wide, horizontally cut broad-spot beam that satisfies strict SAE J581 auxiliary high-beam regulations, allowing for safe, legal on-road assistance when installed and used in pairs.

• Spot (8°x8°): Hyper-focused, long-range punch. Shines intense, concentrated light directly from the unmodified TIR optic in a tight 8° x 8° beam designed exclusively to pierce hundreds of yards into the horizon for maximum obstacle reaction time at high speeds.

Premium Engineering & Construction Features:

• Patented TIR Optics: Standard reflector cups allow massive amounts of light to bleed away into useless glare. Custom-engineered TIR optics capture almost every photon directly from the LED chips and aim it precisely down the road for unmatched efficiency.

• Swappable Polycarbonate Lenses: Built with a smart modular layout using 6000K internal emitters. This allows you to easily swap external lenses or add snap-on protective covers down the road to change colors or beam patterns without risking moisture leaks.

• Torture-Tested and Sealed: Extensively tested to withstand severe off-road vibration, high corrosion environments, and extreme temperatures ranging from -40°F up to 185°F.

• Weatherproof Construction: Features a rugged extruded aluminum housing, a heavy-duty copper-core PCB layout, and a strict IP69K waterproof rating to completely shrug off deep mud and high-pressure power washdowns.

• USA Assembled: Proudly designed, engineered, and hand-assembled in St. Louis, Missouri using globally sourced materials.

• Warranty: Backed by an industry-leading limited lifetime manufacturer warranty.
