Eagle H-Beam Connecting Rod Acura K20A2 - CRS5470K3D-1

Eagle H-Beam Connecting Rod Acura K20A2 - CRS5470K3D-1

Regular price $120.88 USD
Regular price Sale price $120.88 USD
Shipping calculated at checkout.
Eagle
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

EAGCRS5470K3D-1
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

CRS5470K3D-1
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Ships from the MFG
Connecting Rods - Single
Planning the next step for your Acura K20A2? This Eagle H-beam rod is made from forged 4340 steel and uses 3/8 in ARP2000 bolts. The 5.470 in (138.9 mm) center-to-center...
Read more
Found a better price elsewhere?
secure-payments
View full details

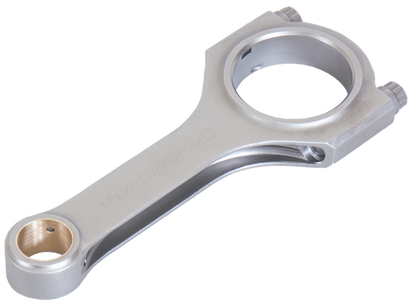

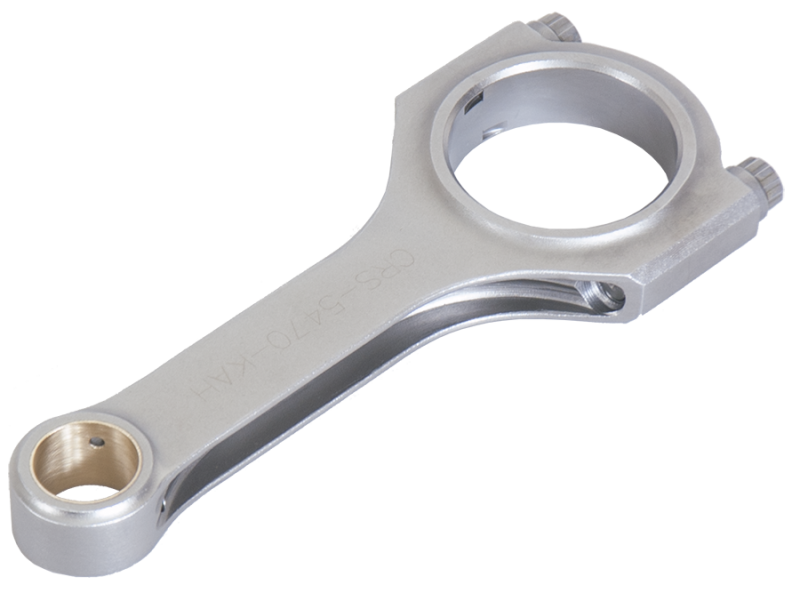

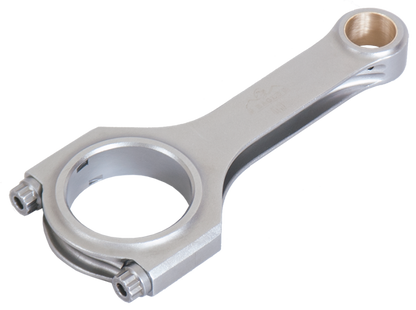

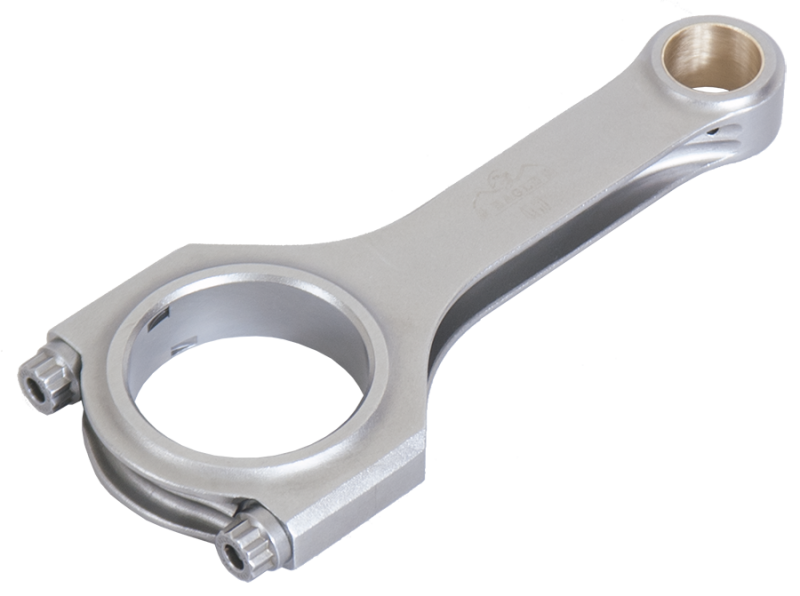

Planning the next step for your Acura K20A2? This Eagle H-beam rod is made from forged 4340 steel and uses 3/8 in ARP2000 bolts. The 5.470 in (138.9 mm) center-to-center length and 22 mm piston-pin diameter identify the dimensions to match to your crankshaft and pistons. Sold individually for a replacement or custom combination.

Specifications

Brand Eagle
Manufacturer Part Number CRS5470K3D-1
Product Type Connecting rod
Engine / Application Acura K20A2
Quantity 1 rod
Material Forged 4340 steel
Center-to-Center Length 5.470 in (138.9 mm)
Rod Bolts 3/8 in ARP2000
Piston Pin Diameter 22 mm
Housing Bore 2.008 in
Rod Journal Diameter 1.890 in
Big End Width 0.779 in
Bushed for Full-Floating Piston Pins Yes
Pin End Width 0.877 in
Rod Design H-beam
