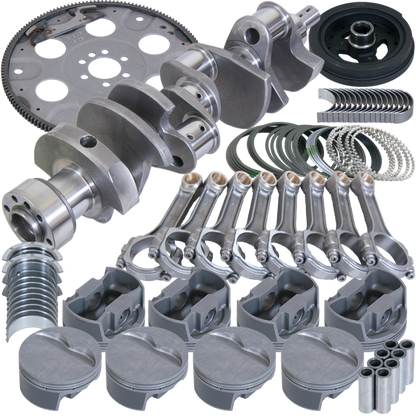

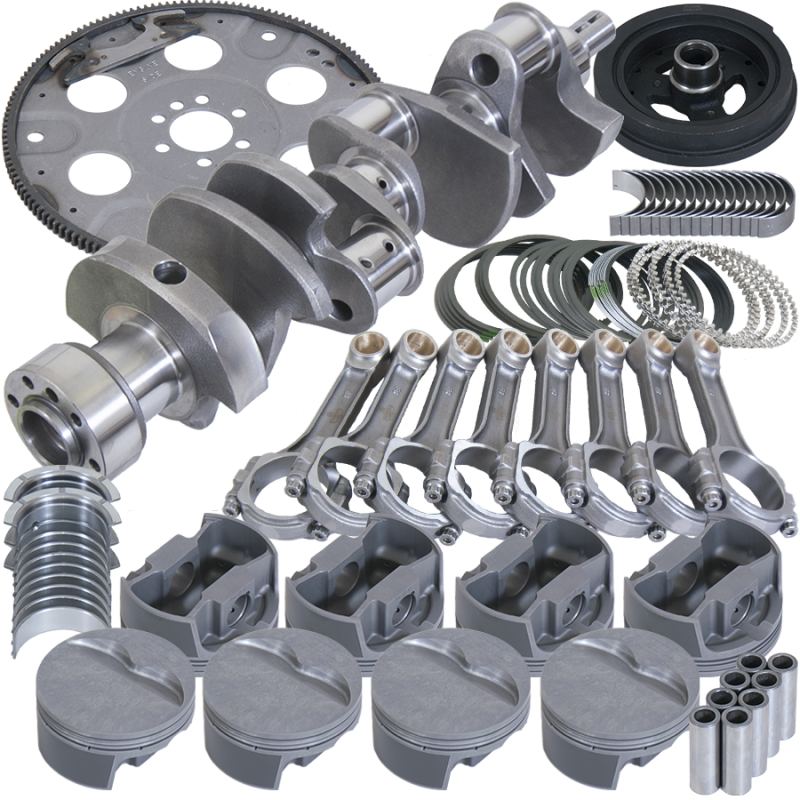

Eagle Balanced Street & Strip Rotating Assembly SBC 350 - B13004L03053

Eagle Balanced Street & Strip Rotating Assembly SBC 350 - B13004L03053

Regular price $1,594.96 USD
Regular price Sale price $1,594.96 USD
Shipping calculated at checkout.
Eagle
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

EAGB13004L03053
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

B13004L03053
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Ships from the MFG
Rotating Assemblies
Got a small-block Chevy 350 project on the engine stand? This Eagle Street & Strip rotating assembly uses KB hypereutectic dished pistons with a 4.030-inch bore and 3.750-inch stroke. The...
Read more
Found a better price elsewhere?
secure-payments
View full details

Got a small-block Chevy 350 project on the engine stand? This Eagle Street & Strip rotating assembly uses KB hypereutectic dished pistons with a 4.030-inch bore and 3.750-inch stroke. The 5.700-inch I-beam rods and -18 cc piston crown volume are key details when matching the package to your block and cylinder heads. The package includes a street damper and a 153 tooth flexplate.

Specifications

Brand Eagle
Manufacturer Part Number B13004L03053
Product Type Rotating assembly
Engine / Application SBC 350
Quantity 1 assembly
Assembly Balanced Yes
Balance Configuration External
Connecting Rod Bolt Diameter 3/8 in
Connecting Rod Bolt Material ARP8740
Connecting Rod Design I-beam
Connecting Rod Length 5.700 in
Connecting Rod Material Forged 5140 steel
Crankshaft Center Counterweights No
Crankshaft Flange Bolt Holes 6
Crankshaft Main Journal Diameter 2.449 in
Crankshaft Material Cast Steel
Crankshaft Reluctor No
Crankshaft Rod Journal Diameter 2.100 in
Crankshaft Stroke 3.750 in
Cylinder Bore Diameter 4.030 in
Damper Included Yes
Flexplate / Flywheel Included 153 Tooth Flexplate
Main Bearing Type O.E. Replacement
Main Bearings Included Yes
Oil Rail Support Included No
Piston Brand KB
Piston Crown Volume -18 cc
Piston Face Type D-cup
Piston Material Hypereutectic Aluminum
Piston Pin Diameter 0.927 in
Piston Pin Type Full Floating
Piston Ring Gap Standard gap
Piston Ring Thickness 5/64 in / 5/64 in / 3/16 in
Rod Bearing Type O.E. replacement
Rod Bearings Included Yes
Second Piston Ring Type Reverse Twist Iron
Thrust Washer Included No
Top Piston Ring Type Barrel Faced Plasma-Moly
Assembly Type Balanced Street & Strip Assembly
Piston Type Inverted Dome Hypereutectic
Product Line Street & Strip
Series Street & Strip
Rear Main Seal Type 1-piece
