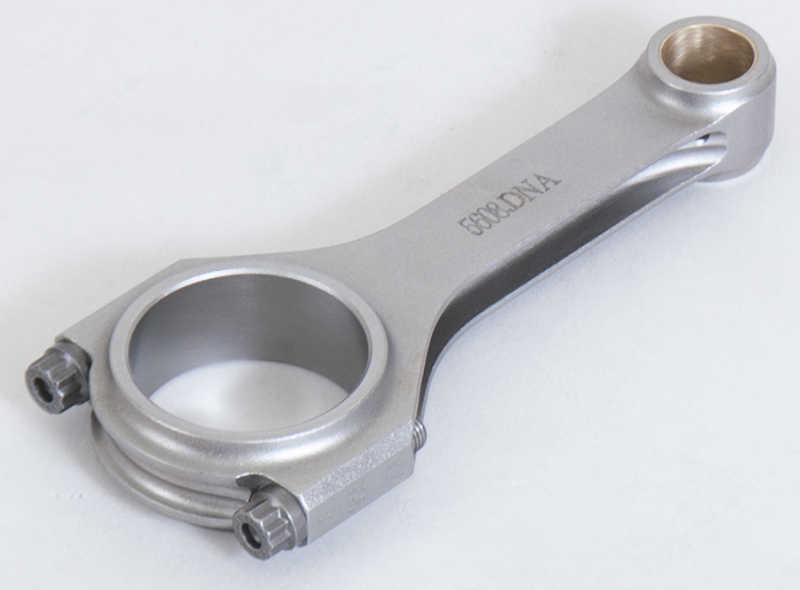

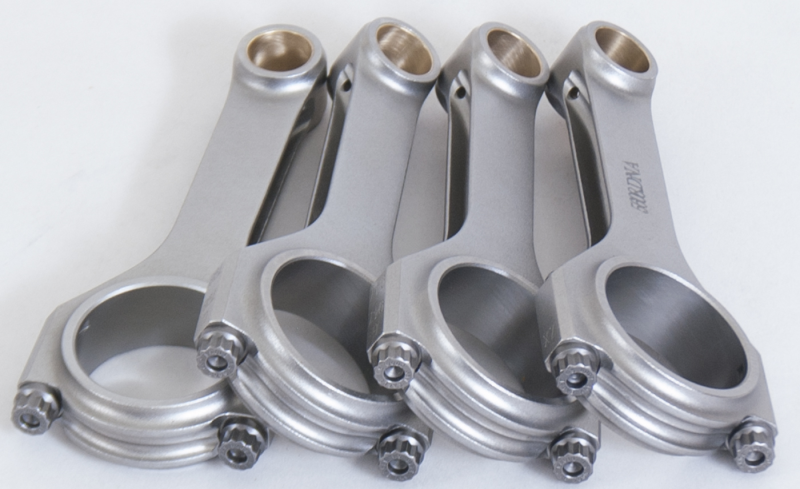

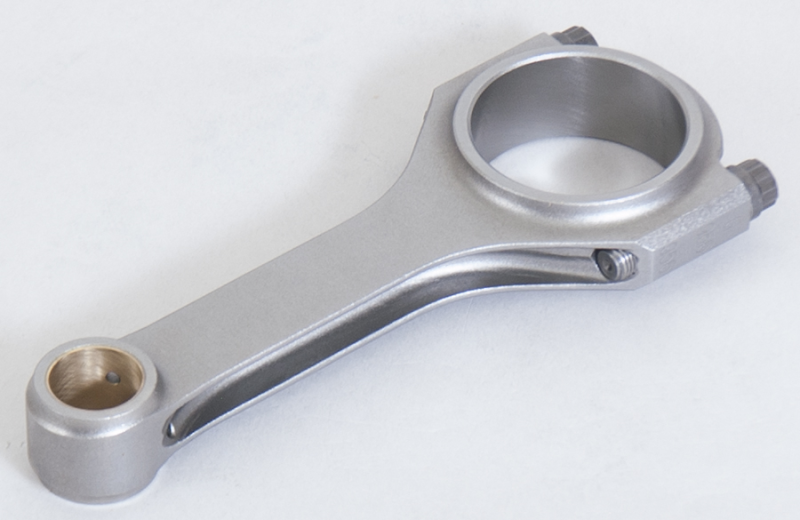

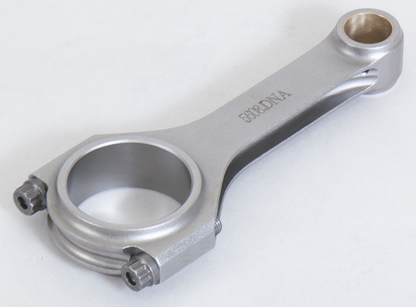

Giving your Chrysler 420A a fresh start? This Eagle H-beam rod set is made from forged 4340 steel and uses 3/8 in ARP2000 bolts. The 5.608 in center-to-center length and 21 mm piston-pin diameter identify the dimensions to match to your crankshaft and pistons. Supplied as a set of 4 rods. This is a non-standard rod length; match piston compression height and deck clearance to the listed length.
| Brand | Eagle |
|---|---|
| Manufacturer Part Number | CRS5608N3D |
| Product Type | Connecting rod set |
| Engine / Application | Chrysler 420A |
| Quantity | 4 rods |
| Material | Forged 4340 steel |
| Center-to-Center Length | 5.608 in |
| Rod Bolts | 3/8 in ARP2000 |
| Piston Pin Diameter | 21 mm |
| Typical Rod Weight | 550 g |
| Housing Bore | 2.008 in |
| Rod Journal Diameter | 1.890 in |
| Big End Width | 1.032 in |
| Bushed for Full-Floating Piston Pins | Yes |
| Pin End Width | 1.035 in |
| Rod Length Configuration | Non-standard length |
| Rod Design | H-beam |
