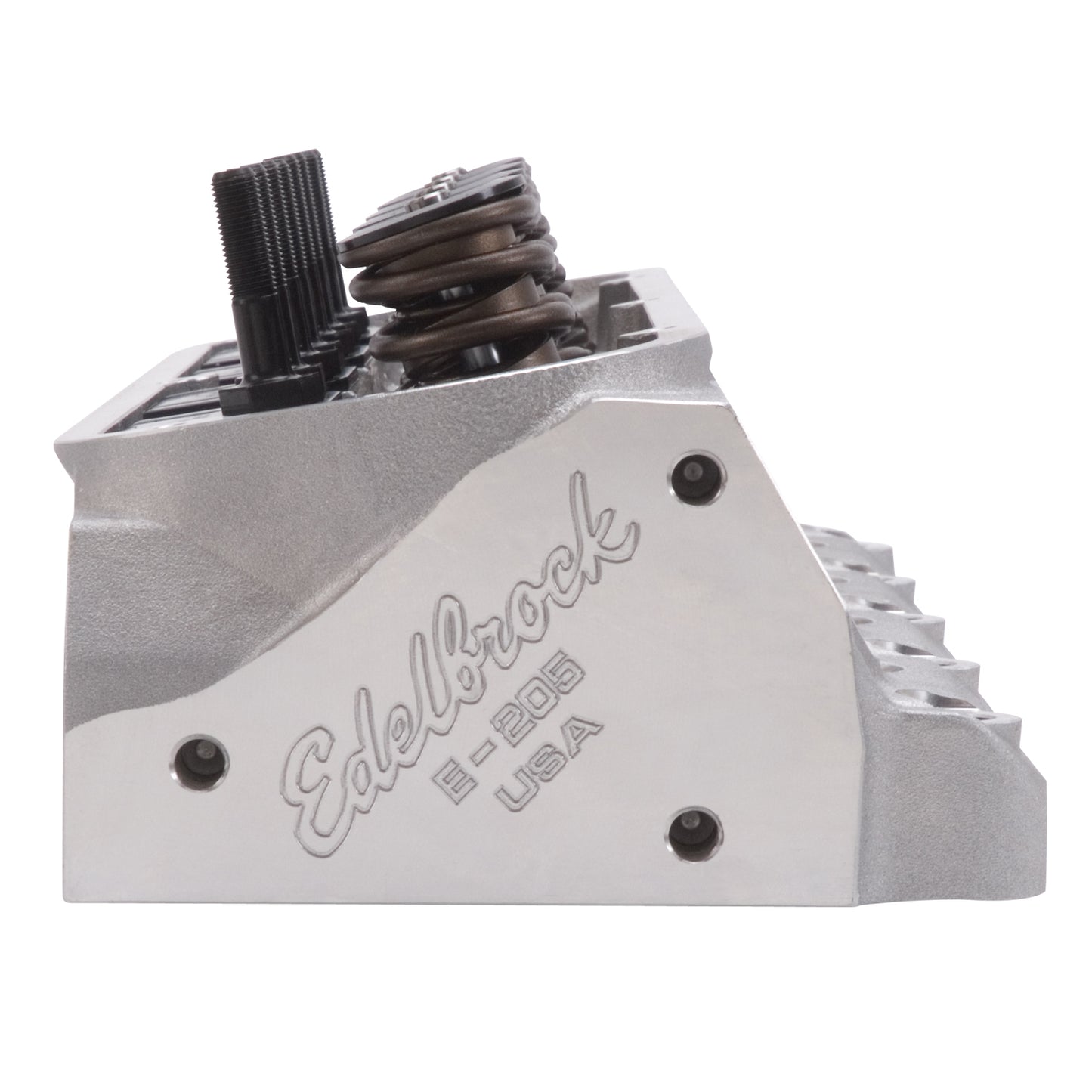

The #5027 E-Series Cylinder heads are for SBFord engines. They are a step up in performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger dia. springs for high lift camshafts.
The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
SPECS
Manufacturer | Edelbrock |
---|---|
Application | Application Specific |
UPC | 00085347050277 |
Series | E-Series |
Grade Type | Performance |
Quantity | Set of 2 |
Guide Plate Material | Hardened Steel |
Camshaft Type | Hydraulic Roller |
Horsepower | 400-525 HP |
Availability Note | Available to Order |
Warranty | 12 Months |
Seat Angle | Exhaust 45 deg/Intake 45 deg |
Emissions Code | |
Hazardous Materials Warning |
![]() |
Installation Notes |
|
Intake Valve Diameter | 2.08 in |
Intake Runner Volume | 205 cc |
Material | Aluminum |
Push Rod Diameter | (Suggested) 0.3125 in |
Rocker Stud Diameter | 0.375 in |
Valve Angle | 20 deg |
Valve Spring Diameter | 1.55 in |
Valve Spring Maximum Lift | 0.650 in |
Valve Stem Diameter | 0.3438 in |
