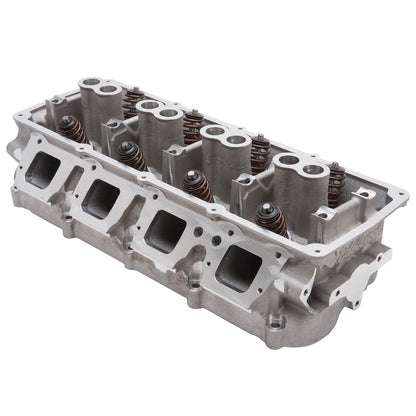

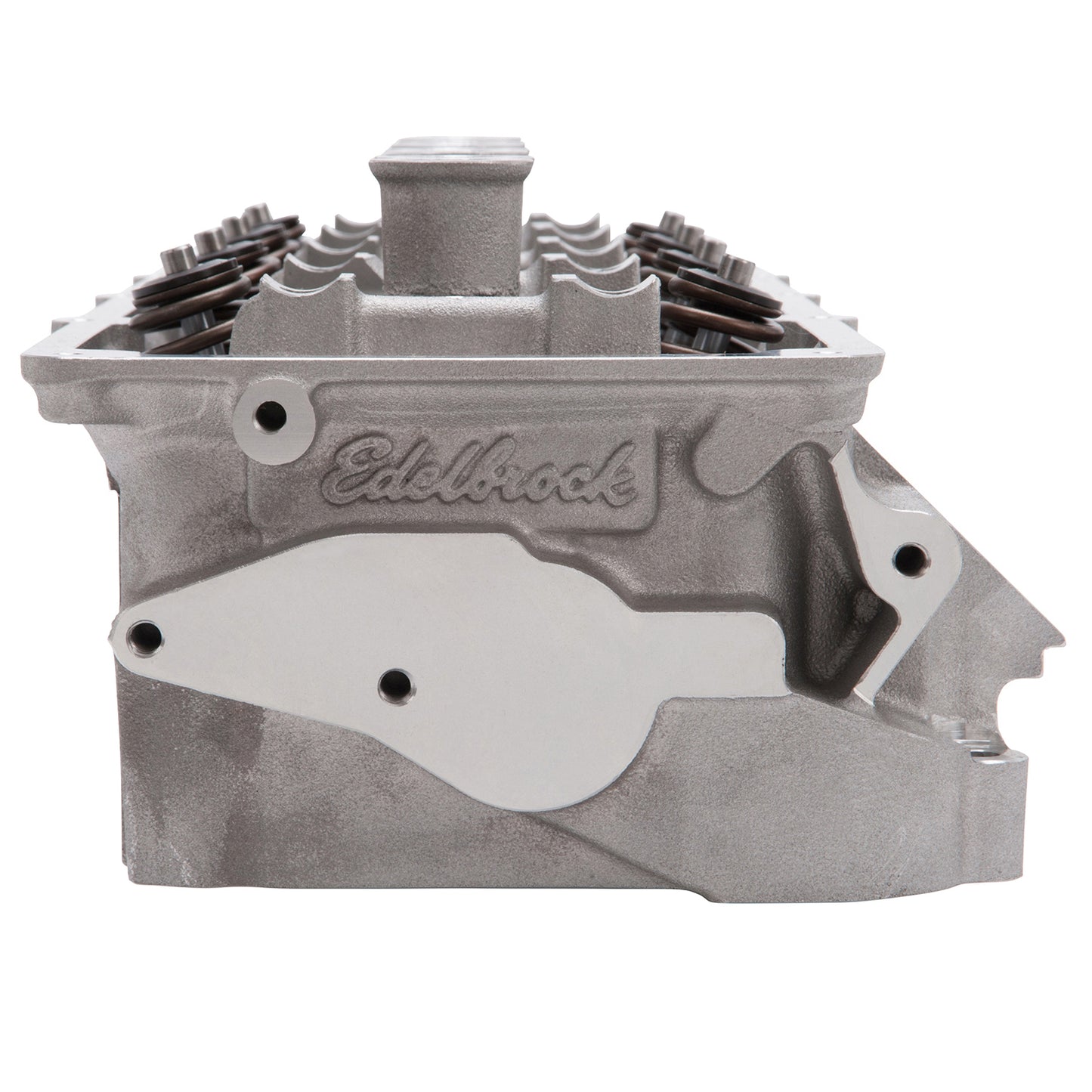

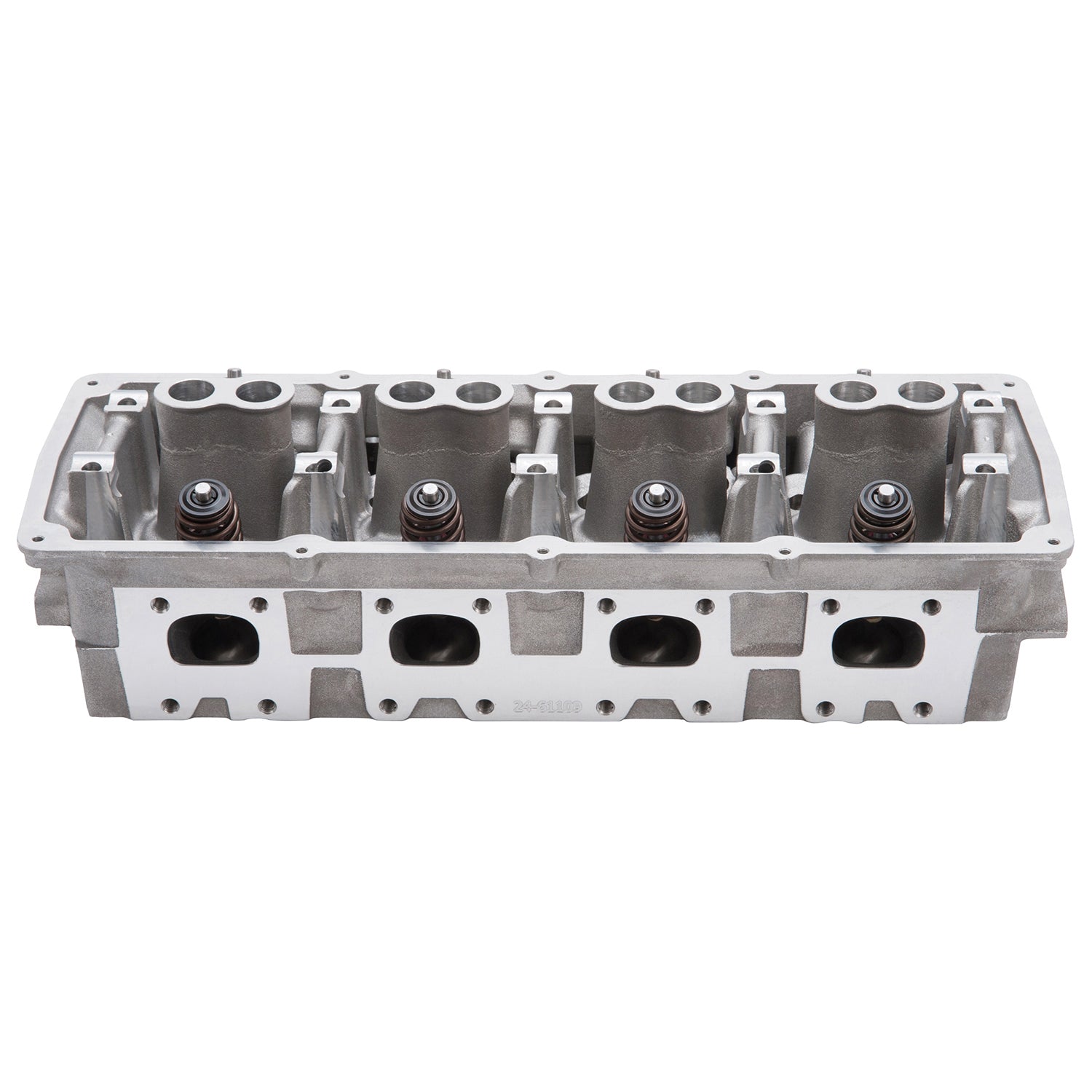

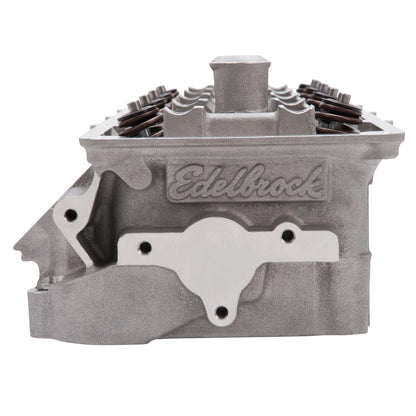

Edelbrock RPM Cylinder Head For 05-Present Gen III HEMI V8 Hydraulic Roll 73cc Complete - 61119

The #61119 Performer RPM cylinder heads are a bolt-on performance upgrade for 2005-Present Gen III HEMI 6.1L, 6.2L, 6.4L engines. It's designed to fit with the stock intake manifold, exhaust manifold, valve cover, rockers and accessories.

The Edelbrock #61119 Performer RPM cylinder head is a bolt-on performance upgrade for 2005-Present Gen III HEMI 6.1L, 6.2L, 6.4L engines. It's designed to fit with the stock intake manifold, exhaust manifold, valve cover, rockers, spark plugs and accessories, as well as Hellcat components. this cylinder head have been machined to be used on either the driver or passenger side of the block. They are cast from A356 aluminum and heat treated to T6 specifications, machined and assembled at Edelbrock's facility in Torrance, California for guaranteed quality. The Edelbrock #61119 Performer RPM cylinder head features fully CNC machined combustion chambers along with CNC profiled bowls and port entries/exits for improved air flow. They also feature more material in the deck and reinforced combustion chambers for increased cylinder pressures. The rocker bosses have been reinforced for improved stability and strength. Extra material has been added around the intake and exhaust ports to allow for porting in racing applications. Both the intake and exhaust port flanges have remained in the factory location for use with OEM components. The intake and exhaust valves have been tipped away from bore wall to unshroud the larger valves, while maintaining factory geometry. The seat diameters have also been increased for improved heat transfer and durability over stock. Match with an Edelbrock Victor EFI #7179 intake manifold for the ultimate in Edelbrock Gen III HEMI performance.

PDF-Installation Instructions

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347611195
Series	Performer RPM
Grade Type	Performance
Quantity	Sold Individually
Camshaft Type	Hydraulic Roller
Horsepower	450-700 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code	EO Number: D-215-119
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER APPLICATIONS; Includes all factory accessory holes (Including Hellcat).; Compatible with stock valve covers and coils; C.A.R.B. (D-215-119) legal for 2005-2019 6.1L, 6.2L, and 6.4L models only.
Intake Valve Diameter	2.165 in
Intake Runner Volume	202 cc
Material	Aluminum
Push Rod Diameter	(Suggested) Stock
Rocker Stud Diameter	0.375 in
Valve Angle	Exhaust 16.8 deg/Intake 18.8 deg
Valve Spring Diameter	1.066 in/ 1.300 in
Valve Spring Maximum Lift	0.680 in
Valve Stem Diameter	0.314961 in
