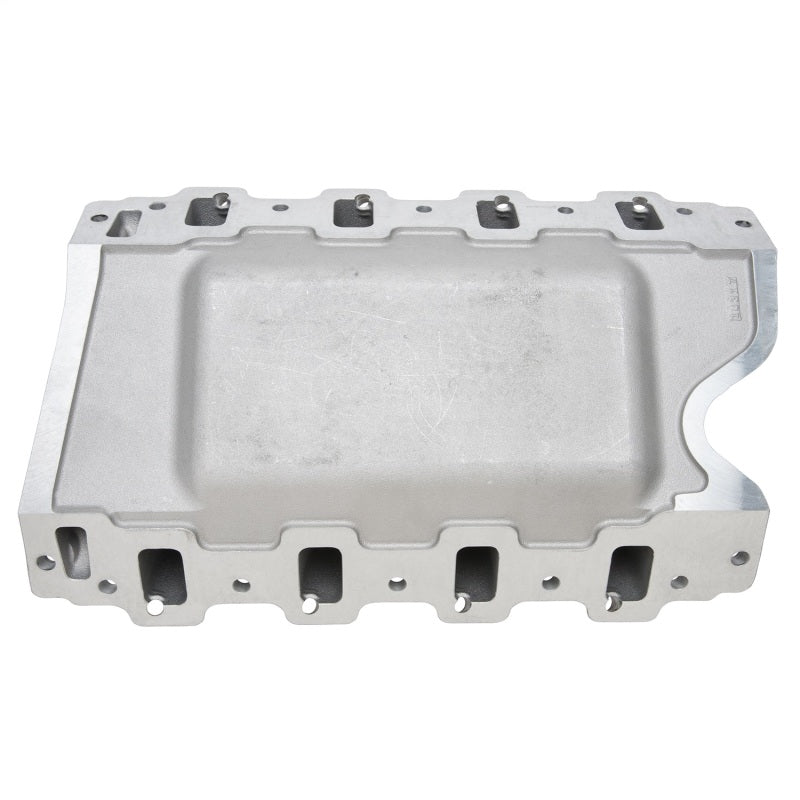

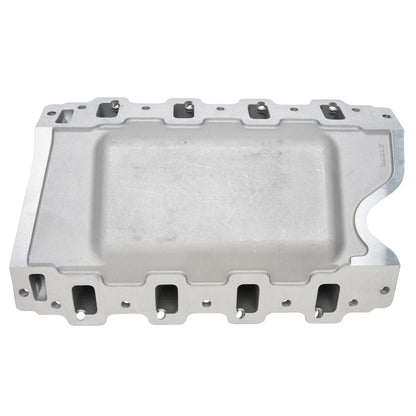

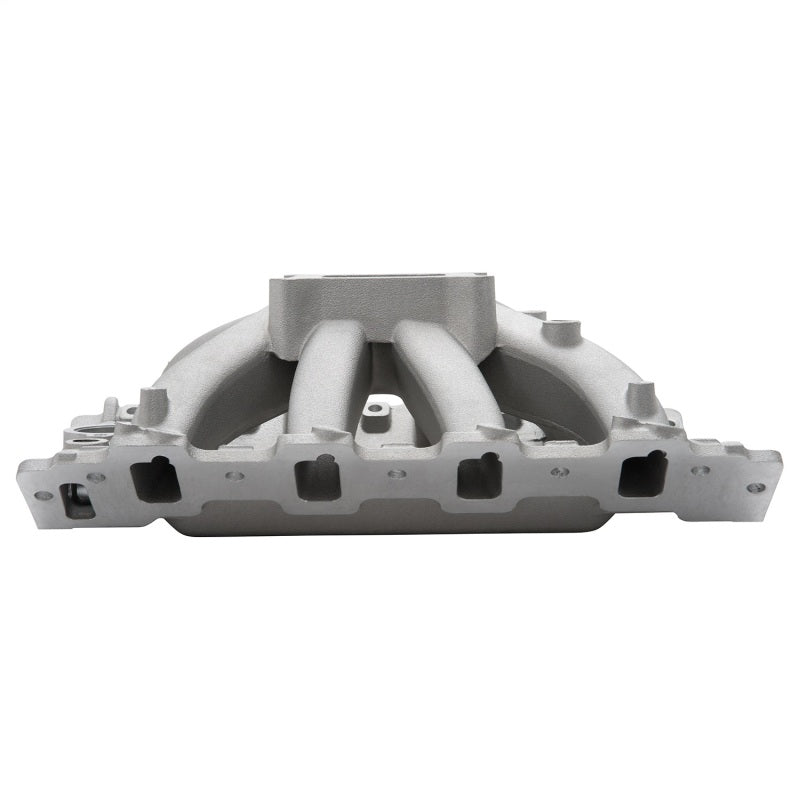

Edelbrock Intake Manifold Victor Jr Holden V8 VN EFI Single Plane 4150 Throttle Body

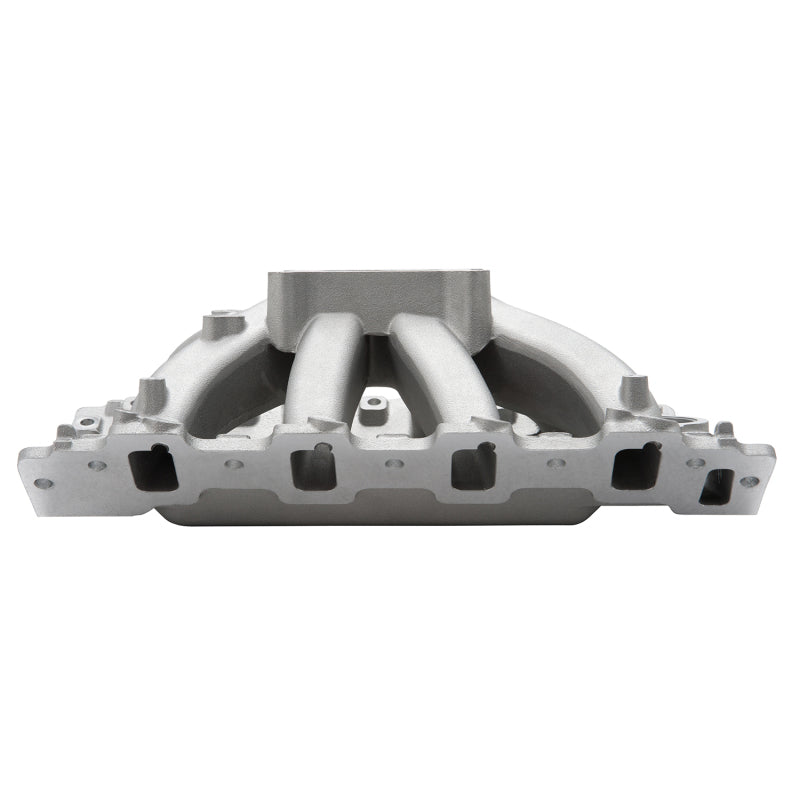

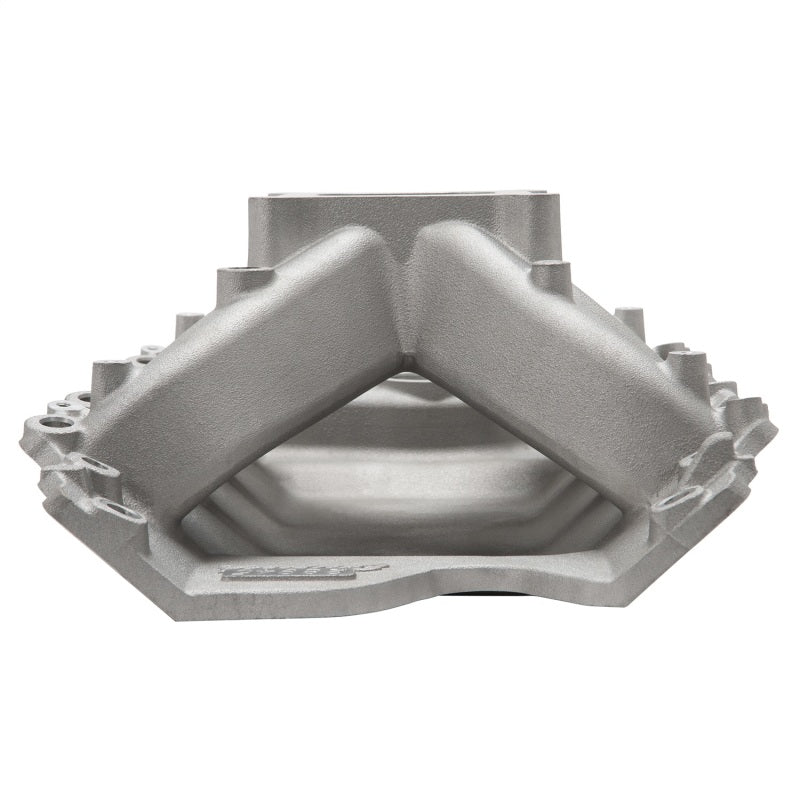

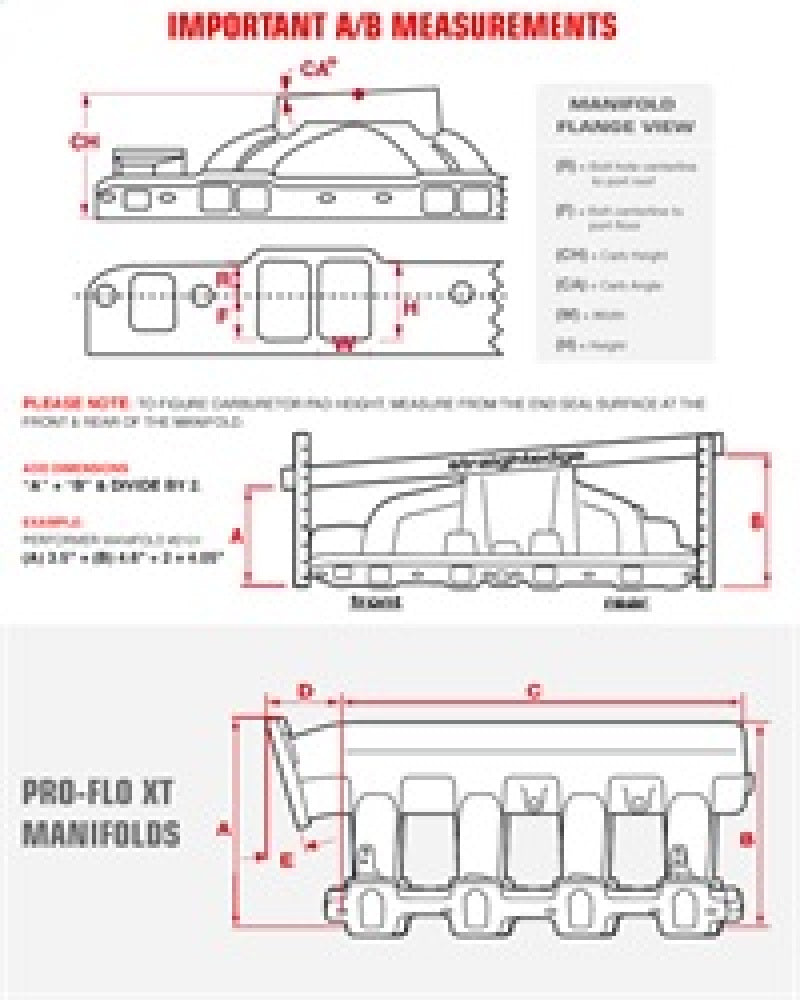

The Edelbrock Victor Jr. Holden is for use with competition 355plus c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck. Carburetor Recommendations: OEM 4-bbl. Edelbrock Thunder Series AVS or Performer Series carb, 600-800 cfm Installation Notes: .Recommended intake gasket: stock gasket set or equivalent. Manifold Dimensions: Manifold height: A-6.95Gg, B-6.95Gg, Carb pad height: 6.95Gg. Port exit dimensions: 1.18Gg x 2.02Gg.
