Edelbrock Edelbrock Chevrolet SB Performer EPS Manifold w/ Gaskets, Bolts, Studs - 2040

Name: Edelbrock Edelbrock Chevrolet SB Performer EPS Manifold w/ Gaskets, Bolts, Studs - 2040
Brand: Edelbrock
SKU: EDE2040
Price: 316.95 USD
Availability: InStock

$316.95 USD

~~$385.16 USD~~ $316.95 USD

-17%

Shipping calculated at checkout.

Brand: Edelbrock

SKU: EDE2040

Part Number: 2040

Availability: In stock

Product Type: Carbureted Intake Manifold

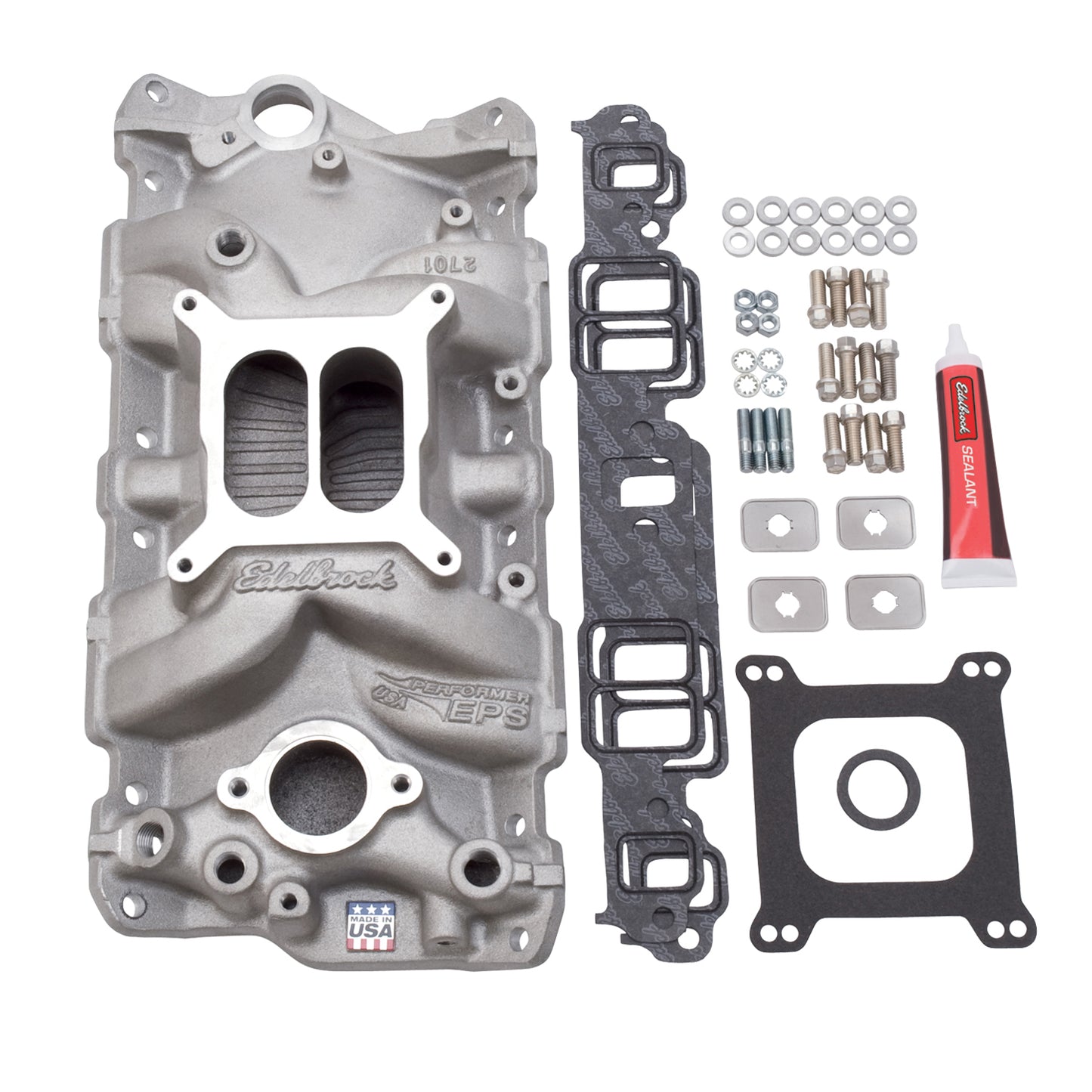

Edelbrock Manifold Installation kit PN 2040 includes all the necessary components to replace your existing intake: PN 2701 Performer EPS intake manifold, intake gasket set, carburetor base gasket, RTV sealant,...

Quantity

Free* Shipping on Orders Over $159

Easy 30 Days- No Hassle Returns

37,000+ 5 Star Reviews

MFG Fitment Guarantee

View full details

Description

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347020409
Vehicle Model	Chevrolet
Series	Performer
Gasket Or Seal Included	Yes
Quantity	Kit
Availability Note	Available to Order
Warranty	12 Months
Ec Basic Operating Rpm Range	Idle-5500 RPM
Mounting Hole Quantity	(Carb Bolt) 4
Mounting Hole Diameter	(Carb Bolt) 5/16-18 UNC in
Angle	(Carb) 3 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Manifold ht: A-3.74", B-4.80"; Carb pad height: 4.27"; Port exit dimensions: 1.15" x 1.87".; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Finish	Satin
Material	Aluminum
Rear Maximum Height	(B) (Measured To Engine Block) 4.80 in
Single Or Dual Plane Type	Dual
