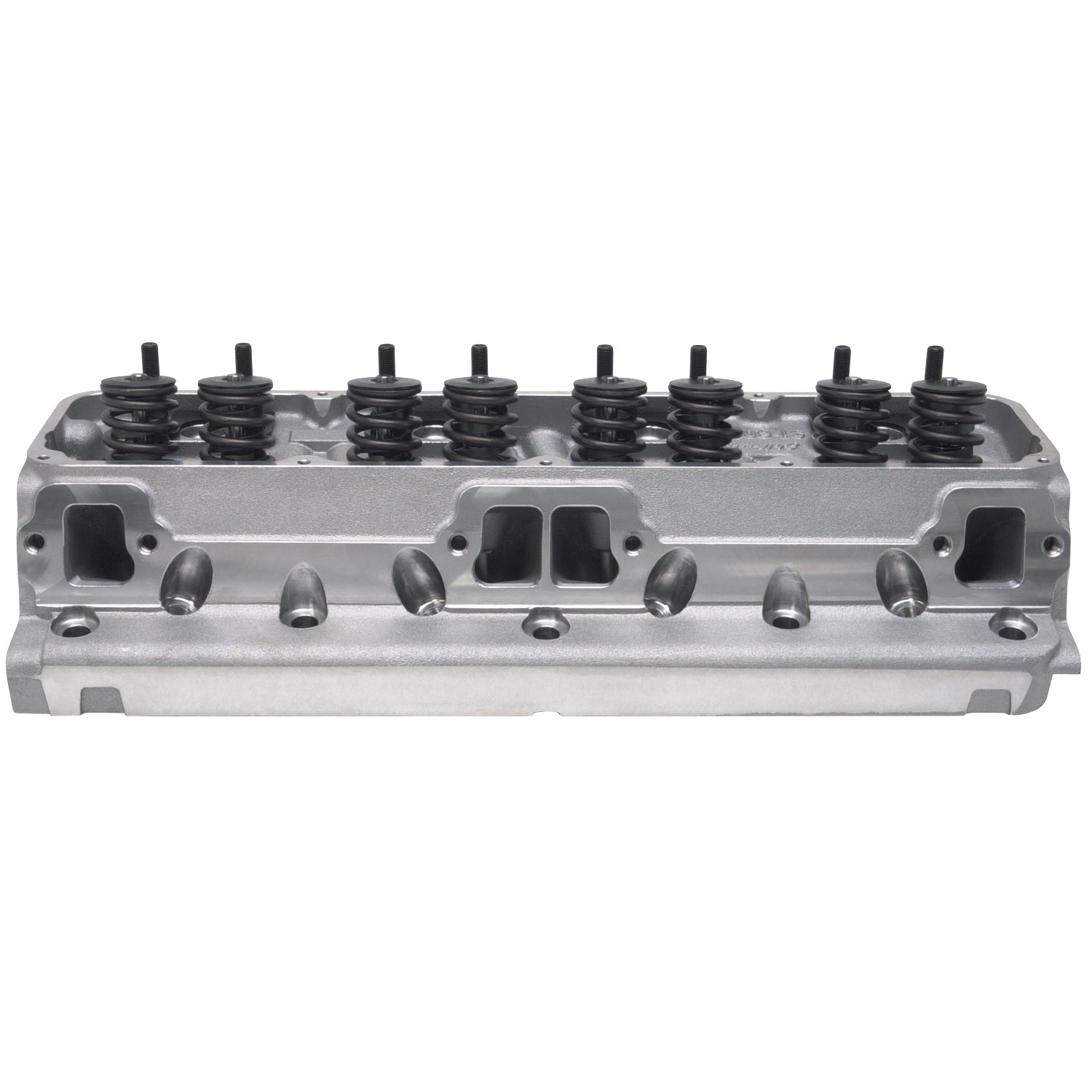

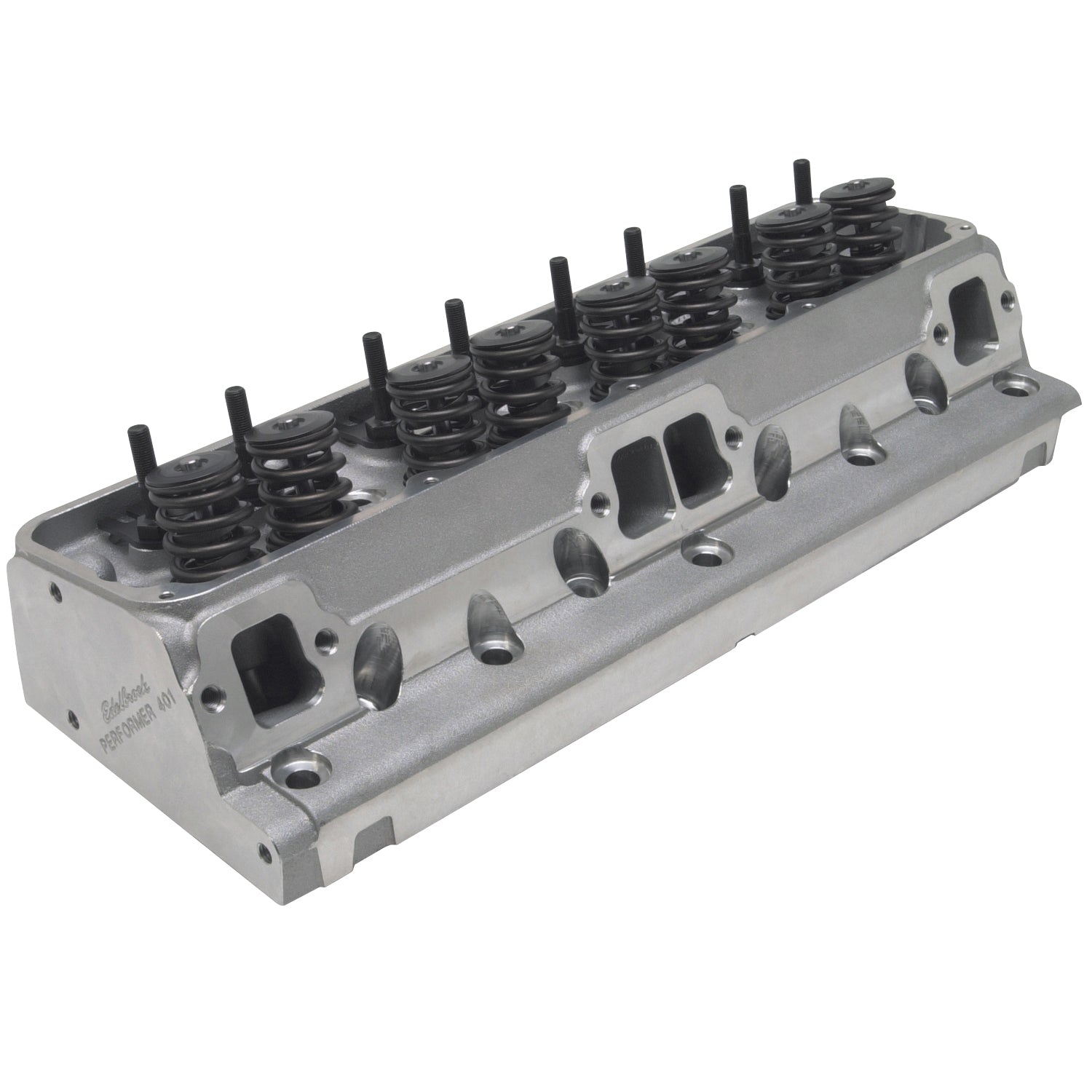

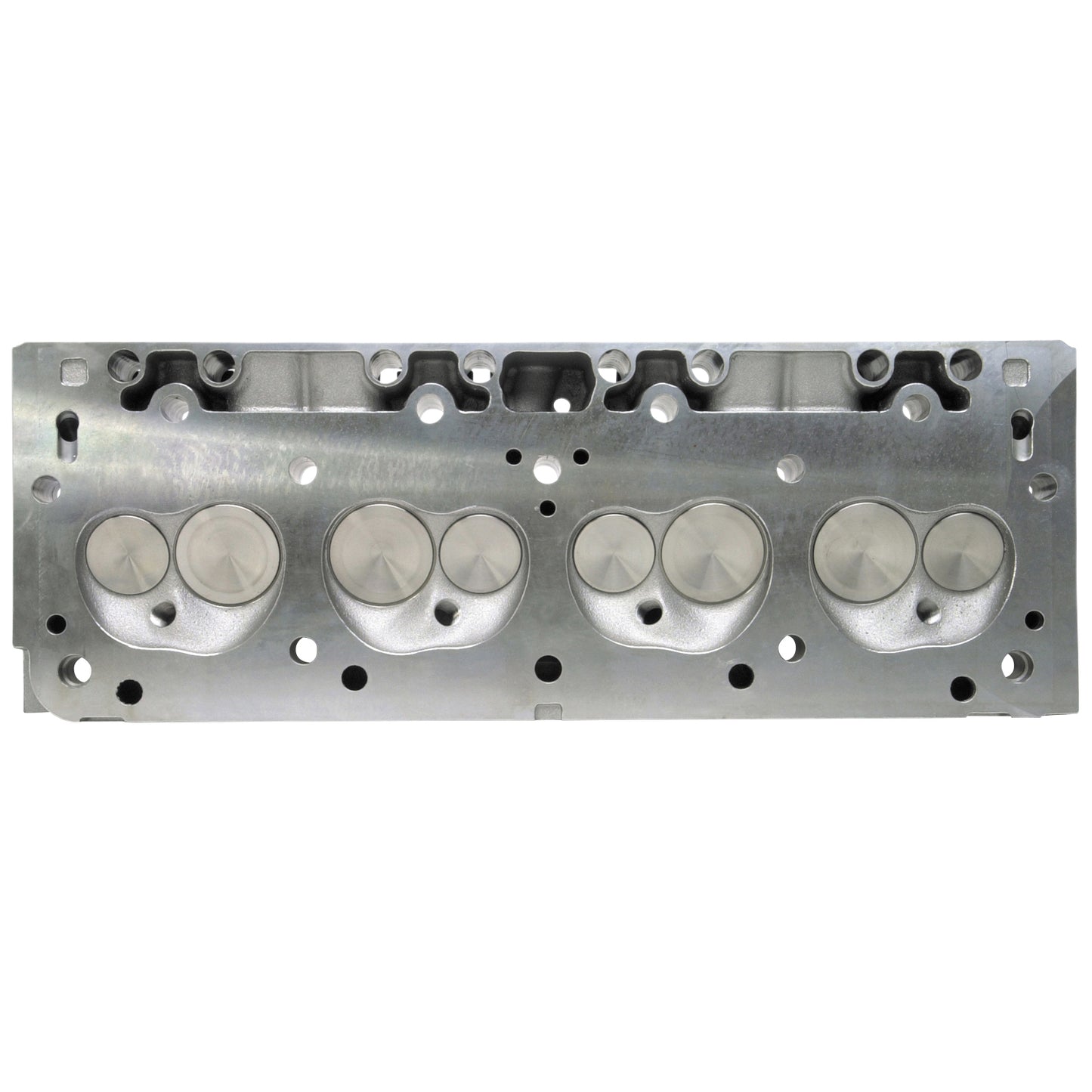

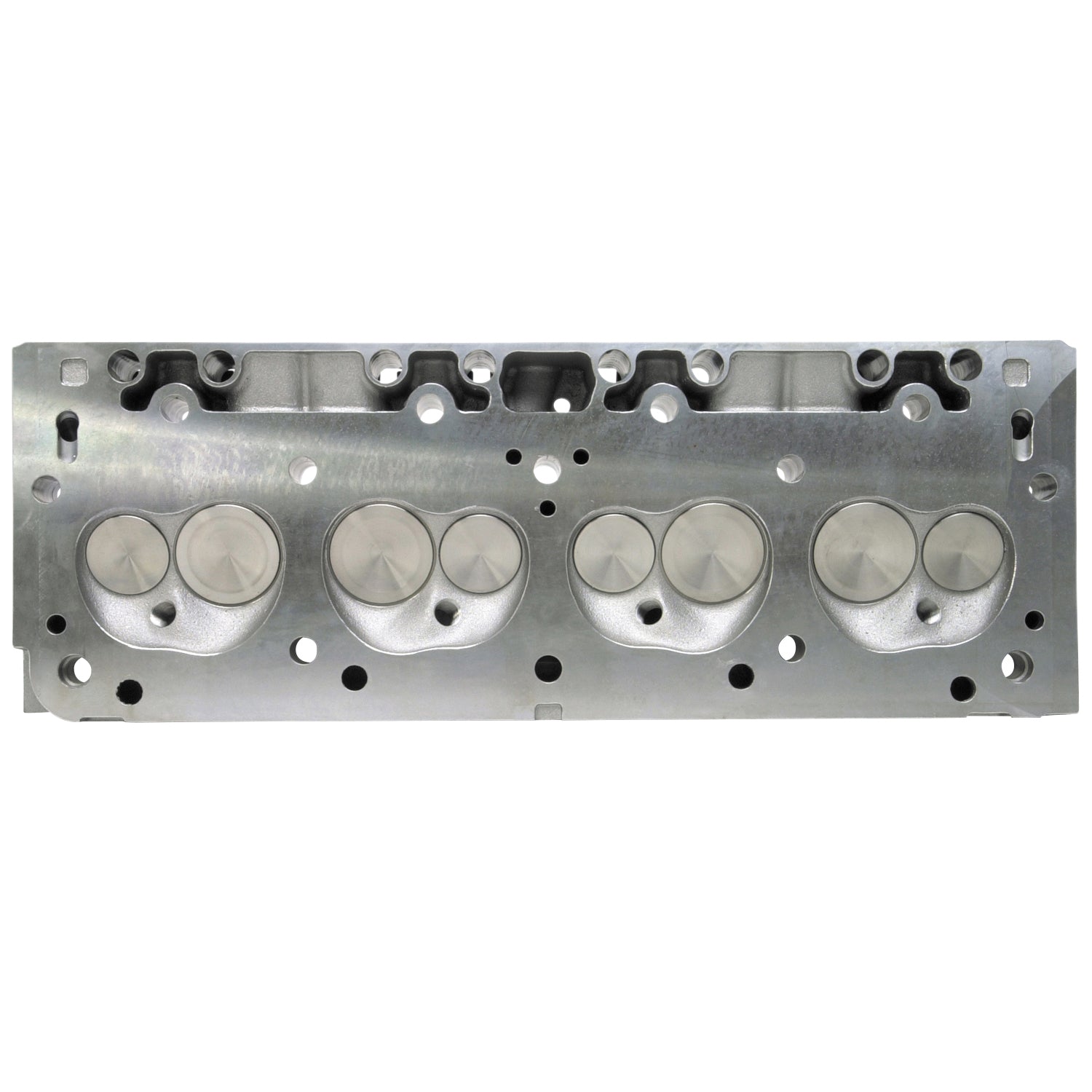

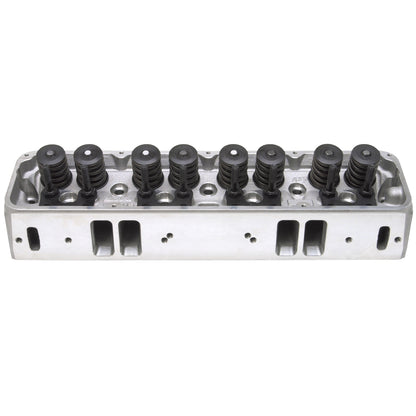

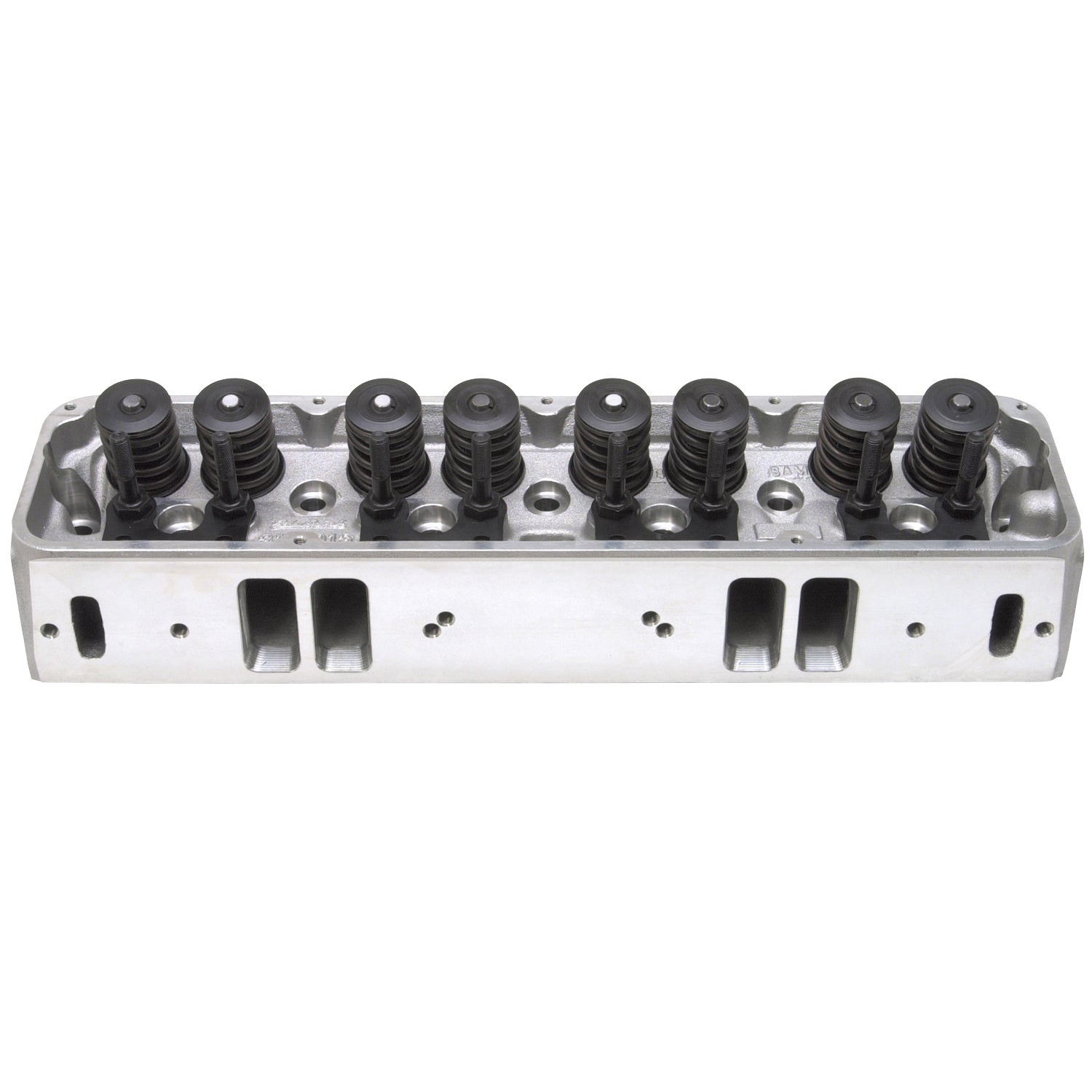

The Edelbrock #60119 Performer RPM Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine.
The Edelbrock #60119 Performer RPM cylinder head is designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. A Complete head includes larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, This head includes step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45deg intake seat angle offers improved mid- to high-lift flow over the stock 30deg angle.
PDF-Installation Instructions
SPECS
Manufacturer | Edelbrock |
---|---|
Application | Application Specific |
UPC | 00085347601196 |
Series | Performer RPM |
Quantity | Sold Individually |
Guide Plate Material | Hardened Steel |
Camshaft Type | Flat Tappet |
Horsepower | 300-450 HP |
Availability Note | Available to Order |
Warranty | 12 Months |
Seat Angle | Exhaust 45 deg/Intake 45 deg |
Emissions Code | |
Hazardous Materials Warning | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Installation Notes |
|
Intake Valve Diameter | 2.02 in |
Intake Runner Volume | 185 cc |
Material | Aluminum |
Push Rod Diameter | (Suggested) 0.3125 in |
Rocker Stud Diameter | 0.375 in |
Valve Angle | 18 deg |
Valve Spring Diameter | 1.55 in |
Valve Spring Maximum Lift | 0.580 in |
Valve Stem Diameter | 0.34375 in |
