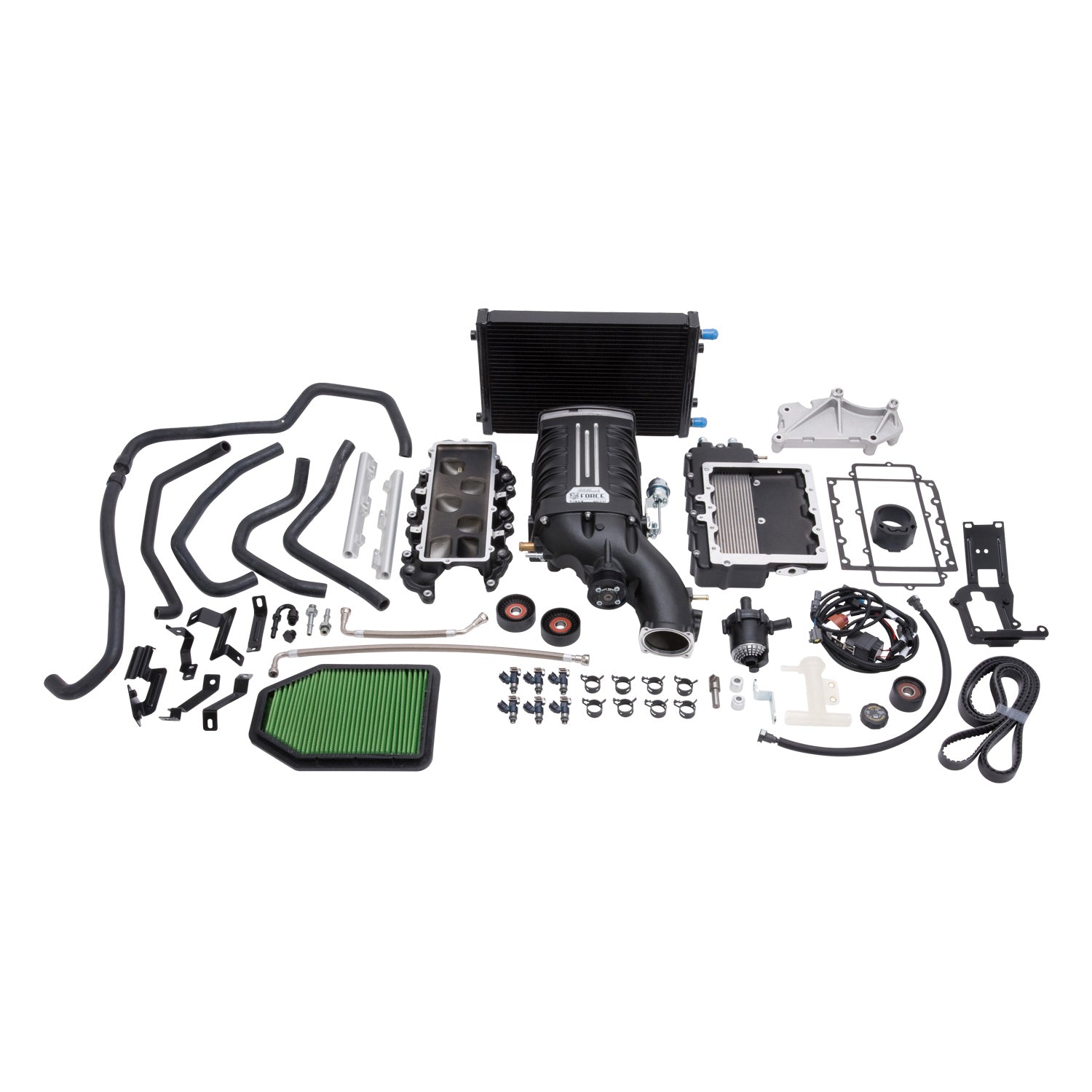

Edelbrock Stage 1 Supercharger For 2015-18 Jeep Wrangler JK 3.6l W/ Tune - 1528

Edelbrock part #1528 Jeep Wrangler 3.6L V6 2015-18 Pentastar Supercharger, delivers 317 RWHP and 277 RWTQ for a MANUAL and 303 RWHP and 262 RWTQ for an auto.

The Edelbrock Supercharger System #1528 for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path that for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modification, no handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.

DOCUMENTS & INSTALLATION NOTES

JPG-Installation Instructions

PDF-Installation Instructions

PDF-Material Safety Data Sheet

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347015283
System Type	Stage 1 - Street System
Vehicle Model	Wrangler
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	125 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	2.625 in
Maximum Torque	277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires ft-lb
Fuel Injector Type	42 lb/hr
Maximum Horsepower	317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-118
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Finish	Black Powder Coated
Maximum Boost Pressure	8 PSI
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
