  • Edelbrock Max-fire (Ultra-spark 50) GM LS Truck Spark Plug Wire Set - 22716
-28%

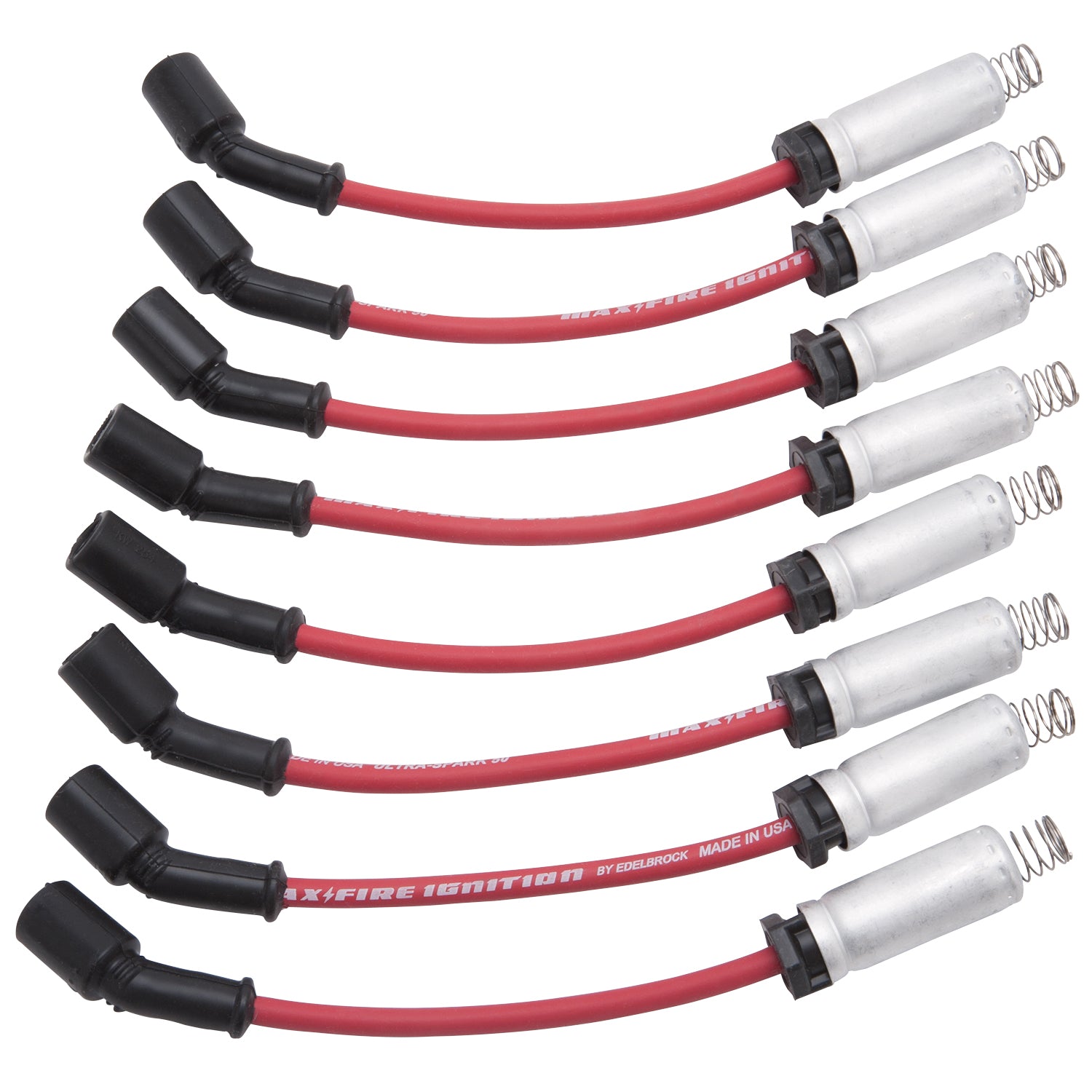

Edelbrock Max-fire (Ultra-spark 50) GM LS Truck Spark Plug Wire Set - 22716 Edelbrock
Click to zoom in
Load image into Gallery viewer, Edelbrock Max-fire (Ultra-spark 50) GM LS Truck Spark Plug Wire Set - 22716 Edelbrock

Edelbrock Max-fire (Ultra-spark 50) GM LS Truck Spark Plug Wire Set - 22716

2 sold in last 8 hours
Edelbrock
EDE22716
In stock
Spark Plug Wire Sets
$116.66 $83.33
Edelbrock Max-Fire High Performance's Spark Plug Wires The Edelbrock #22716 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the...

Edelbrock Max-fire (Ultra-spark 50) GM LS Truck Spark Plug Wire Set - 22716
Description

Edelbrock Max-Fire High Performance's Spark Plug Wires

The Edelbrock #22716 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.

SPECS

Manufacturer Edelbrock
Application Application Specific
UPC 00085347227167
Spark Plug Boot Material Compact Silicone
Noise Suppression Type Yes
Spark Plug Wire Resistance 50
Core Material Magnetic Kevlar Core
Wire Separators Included No
Coil End Boot Color Black
Insulation Outside Diameter 0.23 in
Insulation Color White
Insulation Material EPDM
Spark Plug End Boot Color Black
Availability Note Available to Order
Hazardous Materials Warning WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Check your spark plug wires regularly! Like everything else on your car, spark plug wires need to be checked and require periodic changing. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles.
Outside Diameter 8.5 mm
Resistance 50 Ohms
Spark Plug End Boot Degree 45 deg
Spark Plug End Boot Quantity Straight 8
Spark Plug End Terminal Type LS
Universal Or Specific Fit Specific
Wire 1 Length 12.5 in
Wire 2 Length 12.5 in
Wire 3 Length 12.5 in
Wire 4 Length 12.5 in
Wire 5 Length 12.5 in
Wire 6 Length 12.5 in
Wire 7 Length 12.5 in
Wire 8 Length 13.0 in
