Edelbrock Stage 1 Supercharger Kit For 2019-20 Ford F-150 5.0L 4V W/ Tune - 15812

Edelbrock has released a new Edelbrock Supercharger System #15812 for the 2019-2020 Ford F-150 truck powered by the 5.0L Ti-VCT Coyote V-8 engine. This kit is 50-state emissions legal and produces 601 horsepower with 468 ft-lbs of torque.

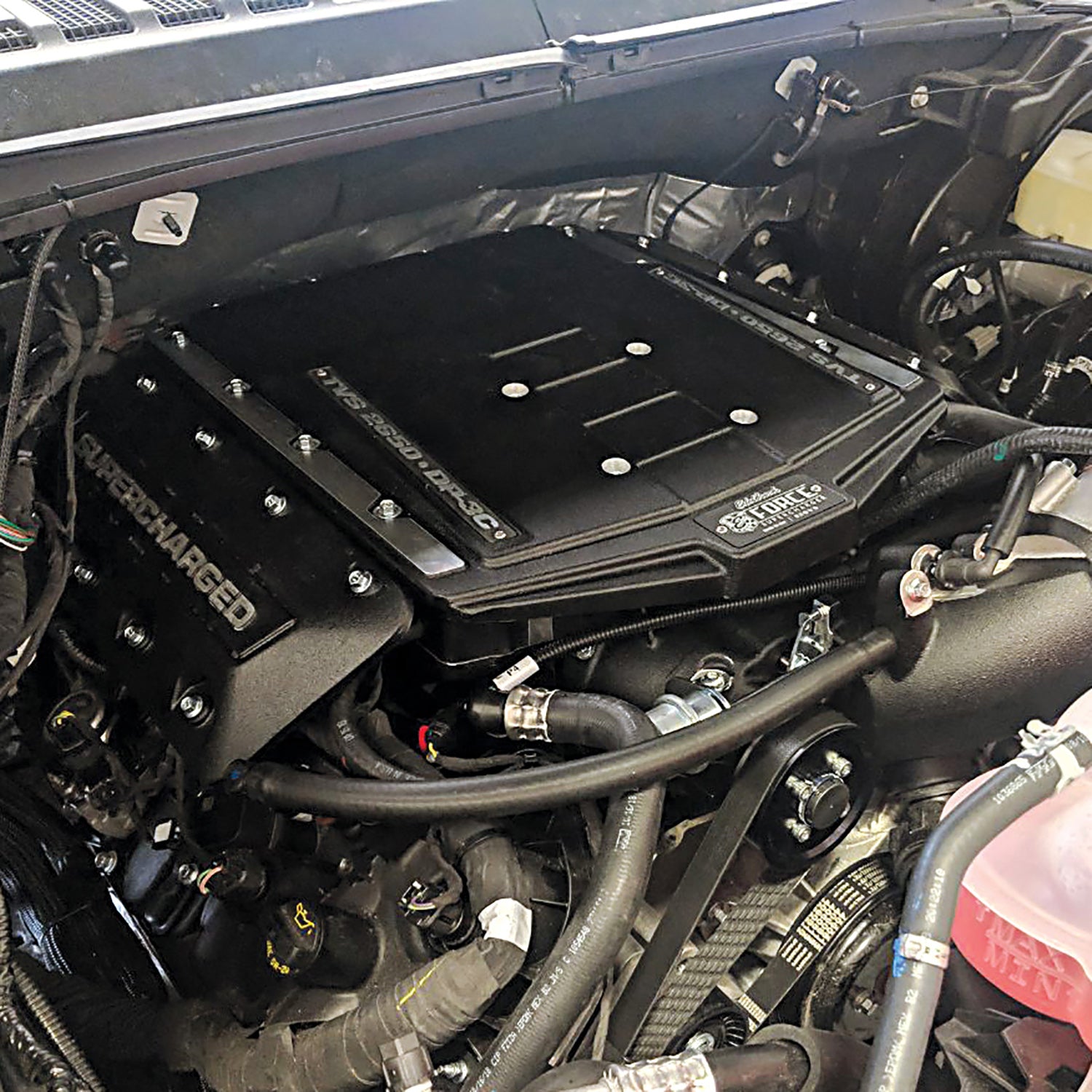

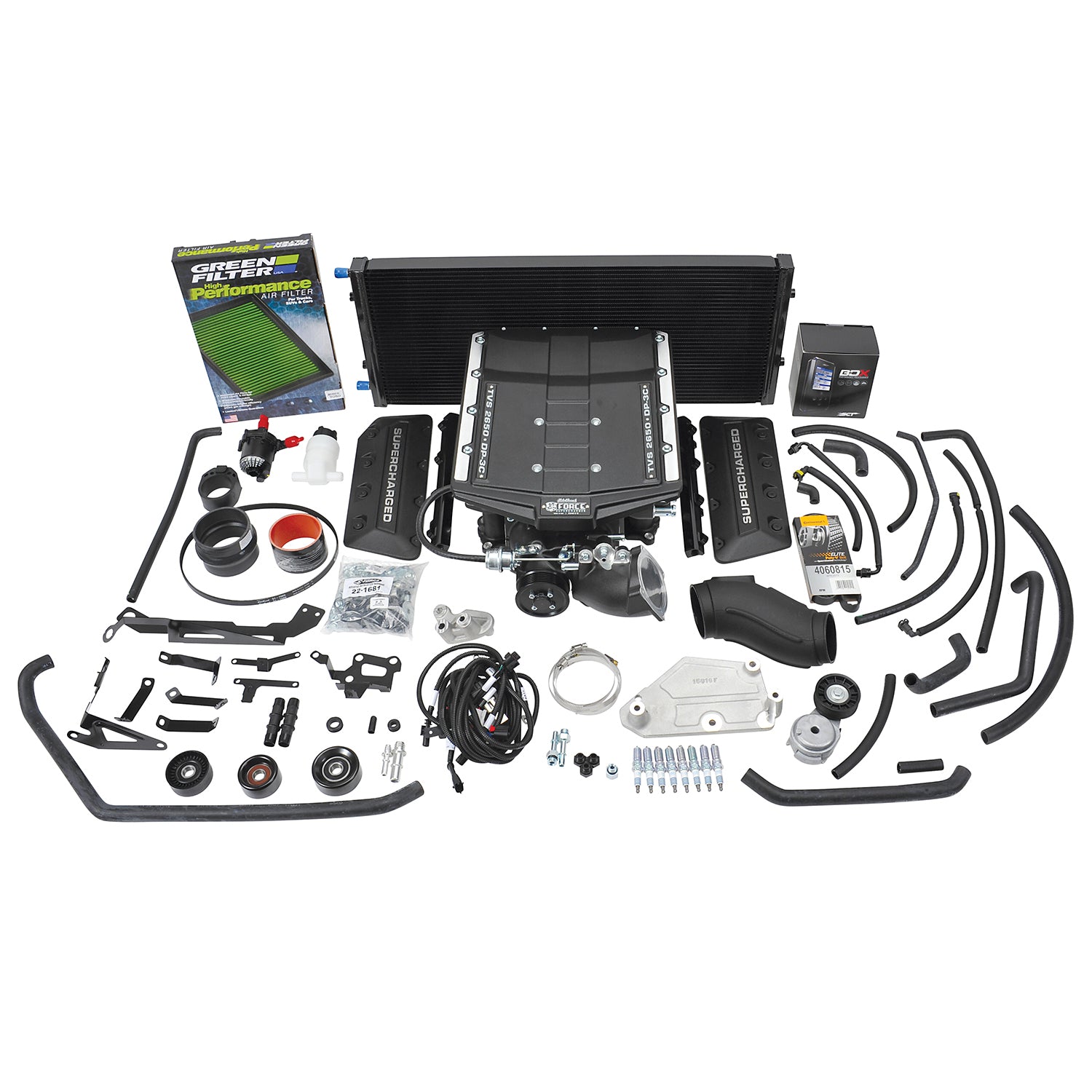

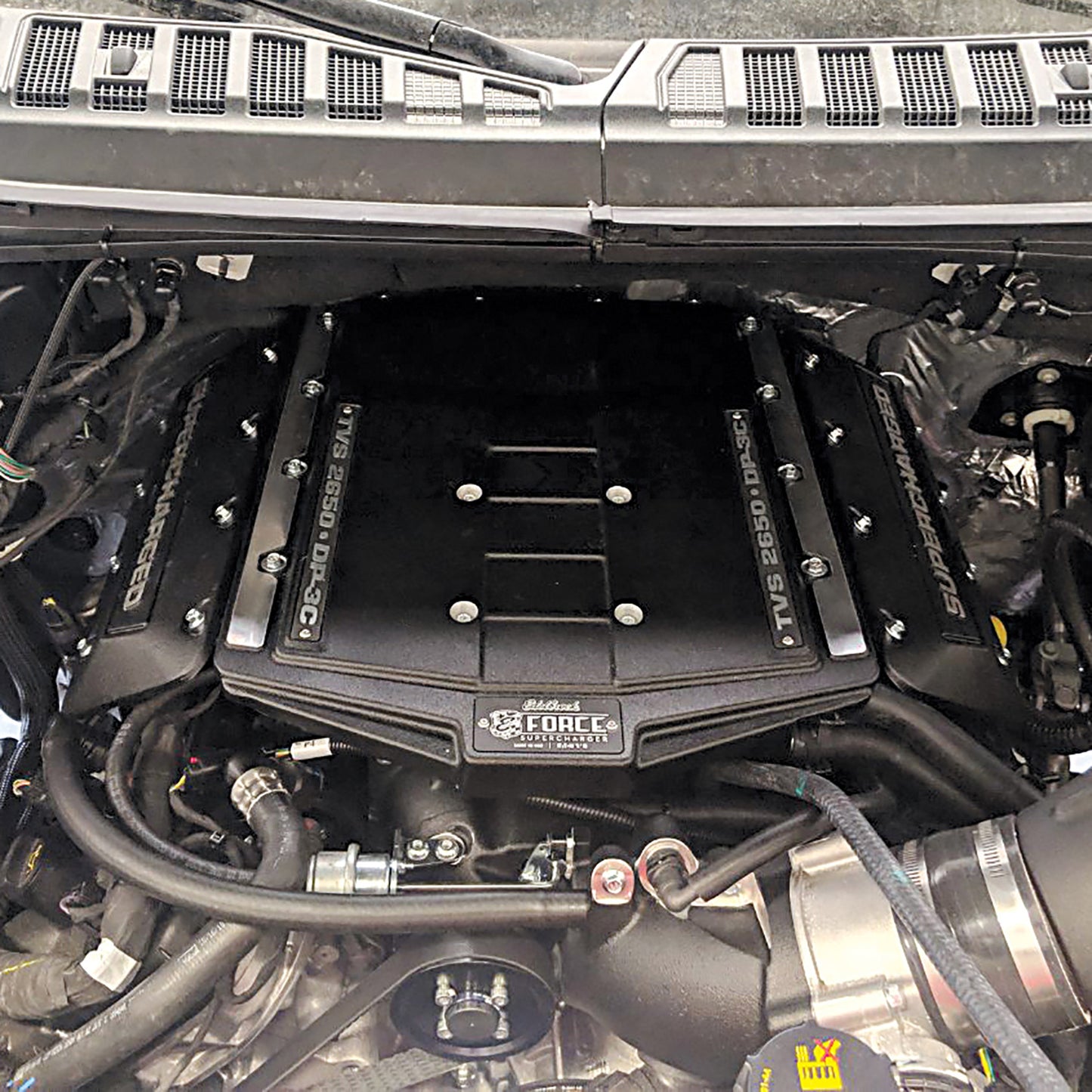

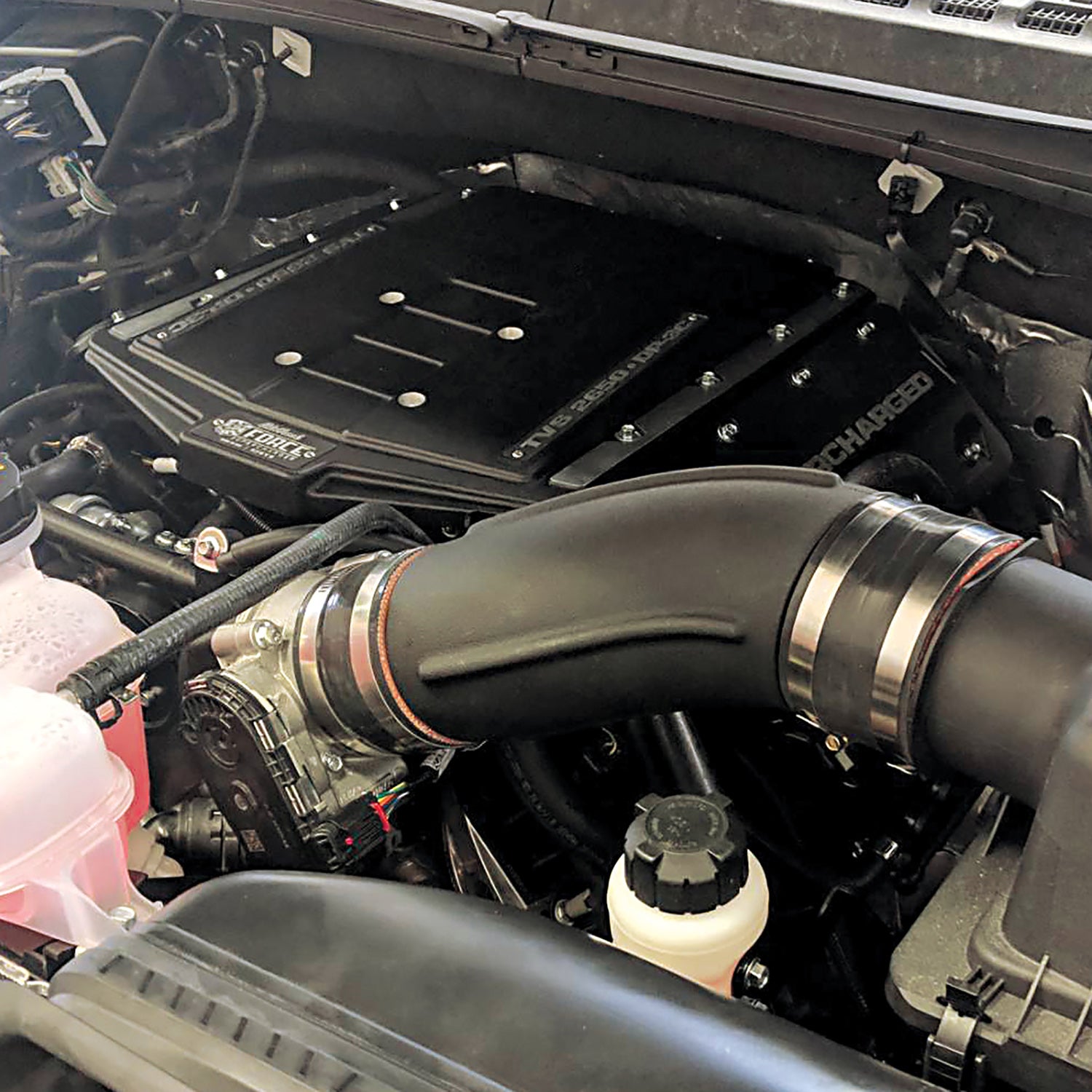

The Edelbrock Supercharger System part #15812 is designed for use on a 2019-2020 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #15812 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit includes a tune for 91 or 93 octane fuels and makes approximately 601whp 468wtq using 93 octane backed by our FREE, industry-leading 3-year/36,000 mile powered train warranty where applicable.

JPG-Installation Instructions

PDF-Installation Instructions

PDF-Material Safety Data Sheet

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347158126
System Type	Stage 1 - Street System
Vehicle Model	F-150
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	150 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Pulley Groove Quantity	6-Rib
Outside Pulley Diameter	3.5 in
Maximum Torque	468RW ft-lb
Maximum Horsepower	601RW
Availability Note	Available to Order
Warranty	36 Months
Rotor Type	Eaton TVS 2650
Mounting Hardware Included	Yes
Calibration	Yes
Emissions Code	EO Number: D-215-122
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Color	Black
Finish	Black Powder Coated
Maximum Boost Pressure	13 PSI
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
