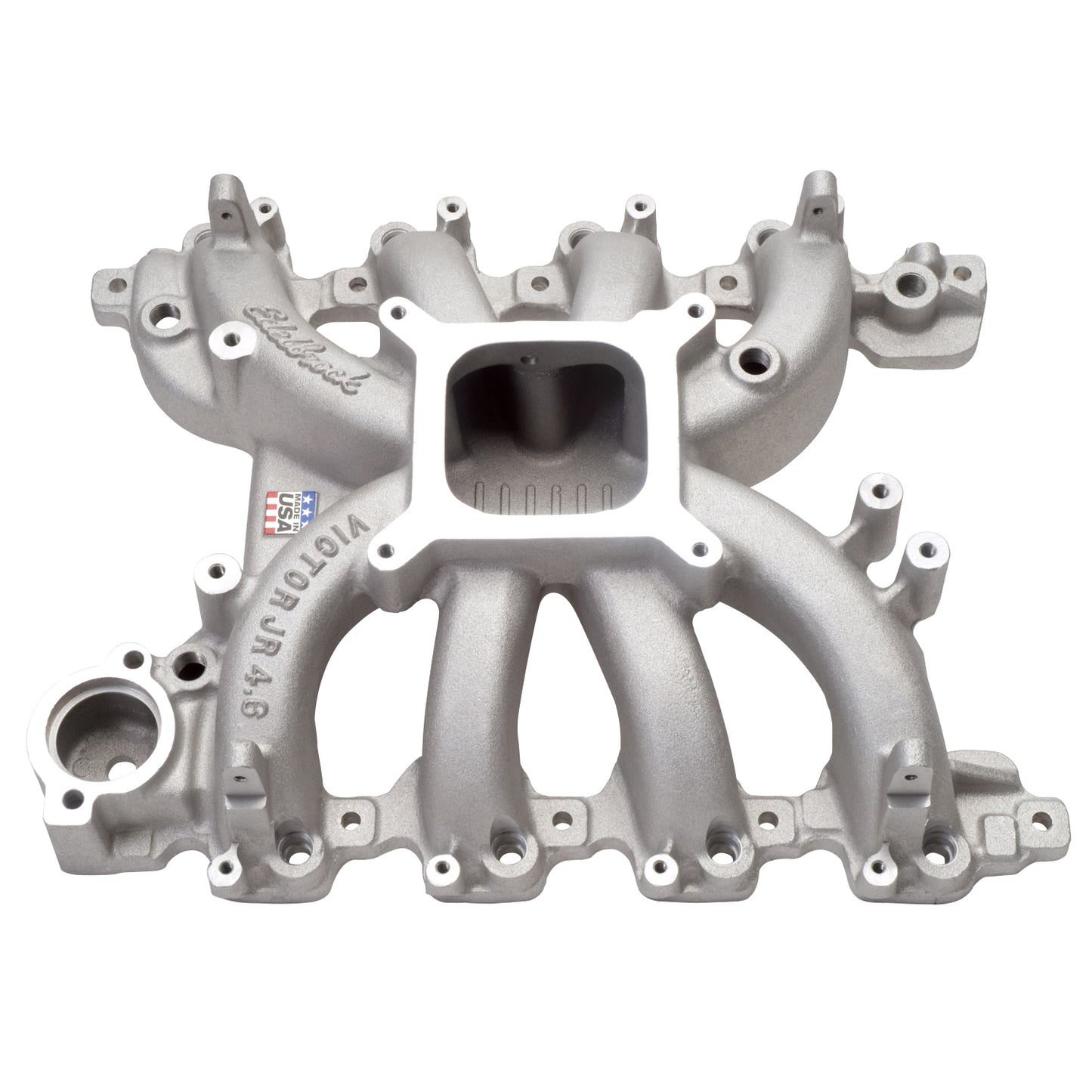

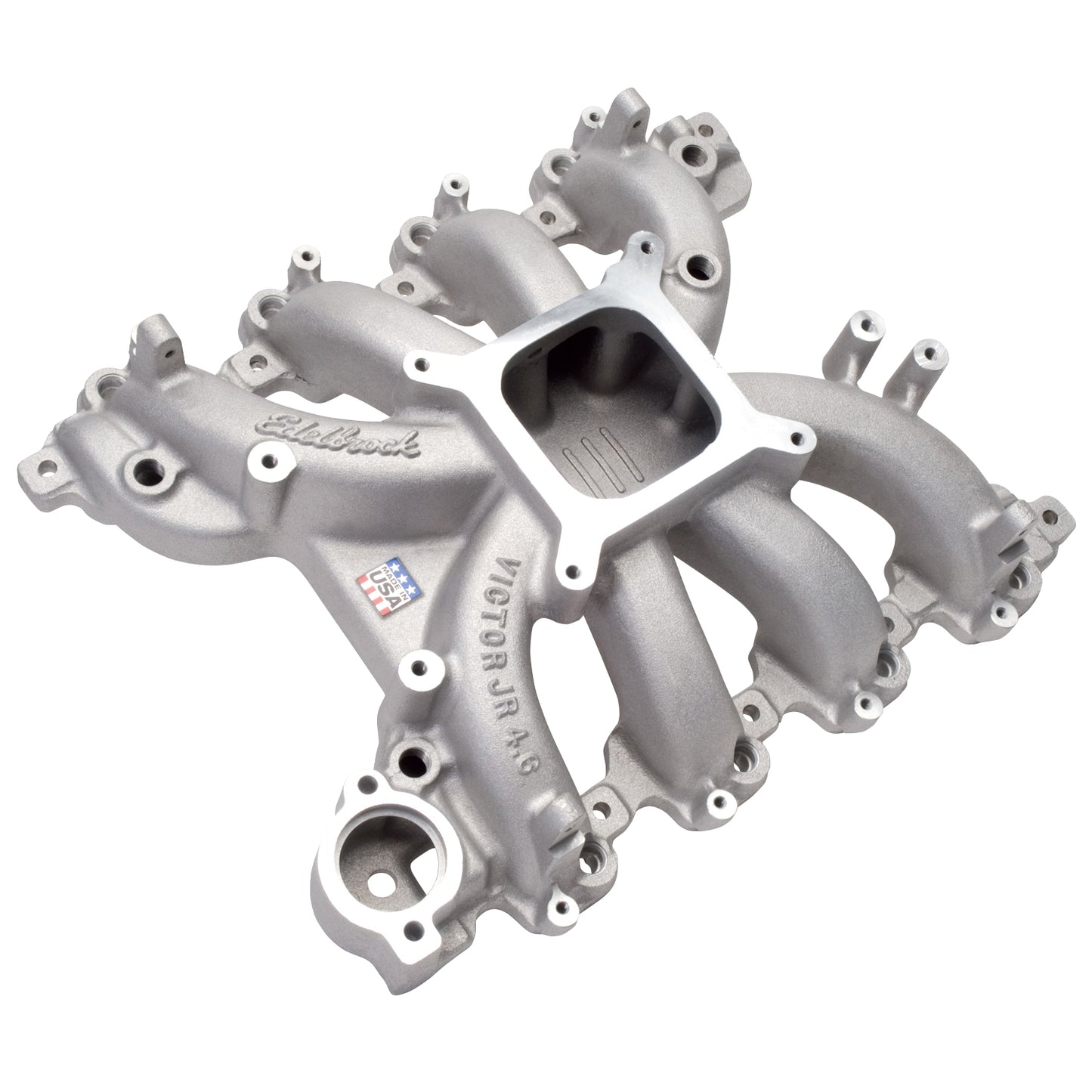

Edelbrock Victor Jr Ford 4.6L Modular Intake Manifold EFI - 28385

Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold

Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.

PDF-Installation Instructions

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347283859
Series	Victor
Grade Type	Performance
Gasket Or Seal Included	No
Vehicle Model	Ford
Availability Note	Available to Order
Warranty	12 Months
Ec Basic Operating Rpm Range	3500-7500 RPM
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Recommended fuel rail: Edelbrock #3639; Recommended intake gasket: OEM factory gaskets; Throttle body recommendations: Edelbrock #38783 4150 style 4V; or #3848 competition EFI elbow and #3818 90mm throttle body.; Manifold height: A-4.75", B-4.75", 0 Deg carb angle; Port exit dimensions: 1.42" x 1.72"; Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies.; Built in water crossover with clearance for the stock 1999-2004 alternator location.
Finish	Satin
Material	Aluminum
Rear Maximum Height	4.750 in
Single Or Dual Plane Type	Single
