Edelbrock Victor Jr. 23 Degree Intake Manifold For Chevy Small-Block 262-400 V8 - 2975

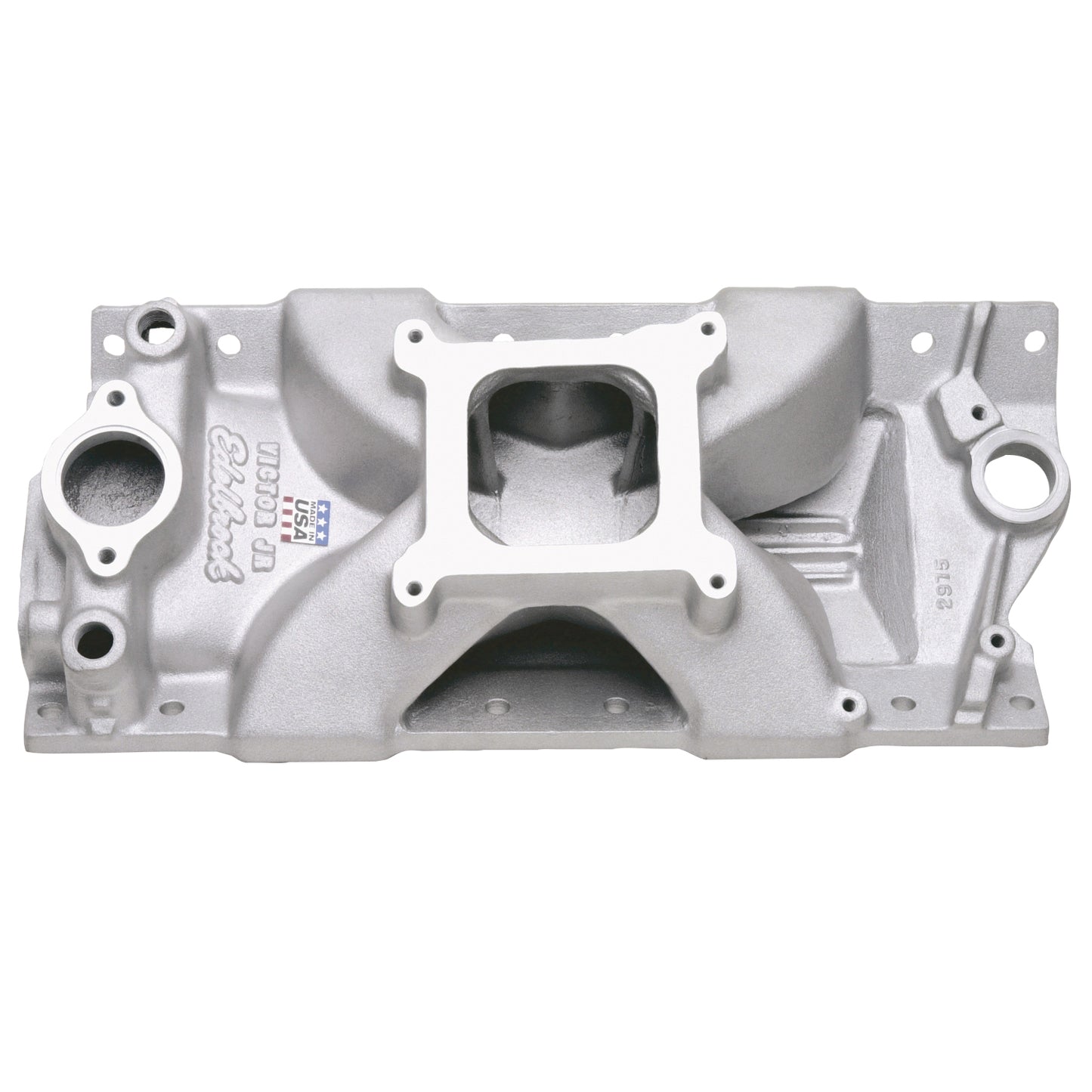

Edelbrock Victor Jr. 23 Degree Intake Manifold For Chevrolet 262-400 Small-Block V8

Edelbrock part #2975 Victor Jr. intake manifold is excellent for many applications from drag to circle track racing. This intake manifold provides maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. The Edelbrock Victor Jr. #2975 is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

PDF-Installation Instructions

SPECS

Manufacturer	Edelbrock
Application	Application Specific
UPC	00085347029754
Series	Victor
Gasket Or Seal Included	No
Vehicle Model	Chevrolet
Availability Note	Available to Order
Warranty	12 Months
Ec Basic Operating Rpm Range	3500-8000 RPM
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206.; No provisions for exhaust heated chokes or EGR.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
Finish	Satin
Material	Aluminum
Rear Maximum Height	0.010 in
Single Or Dual Plane Type	Single
