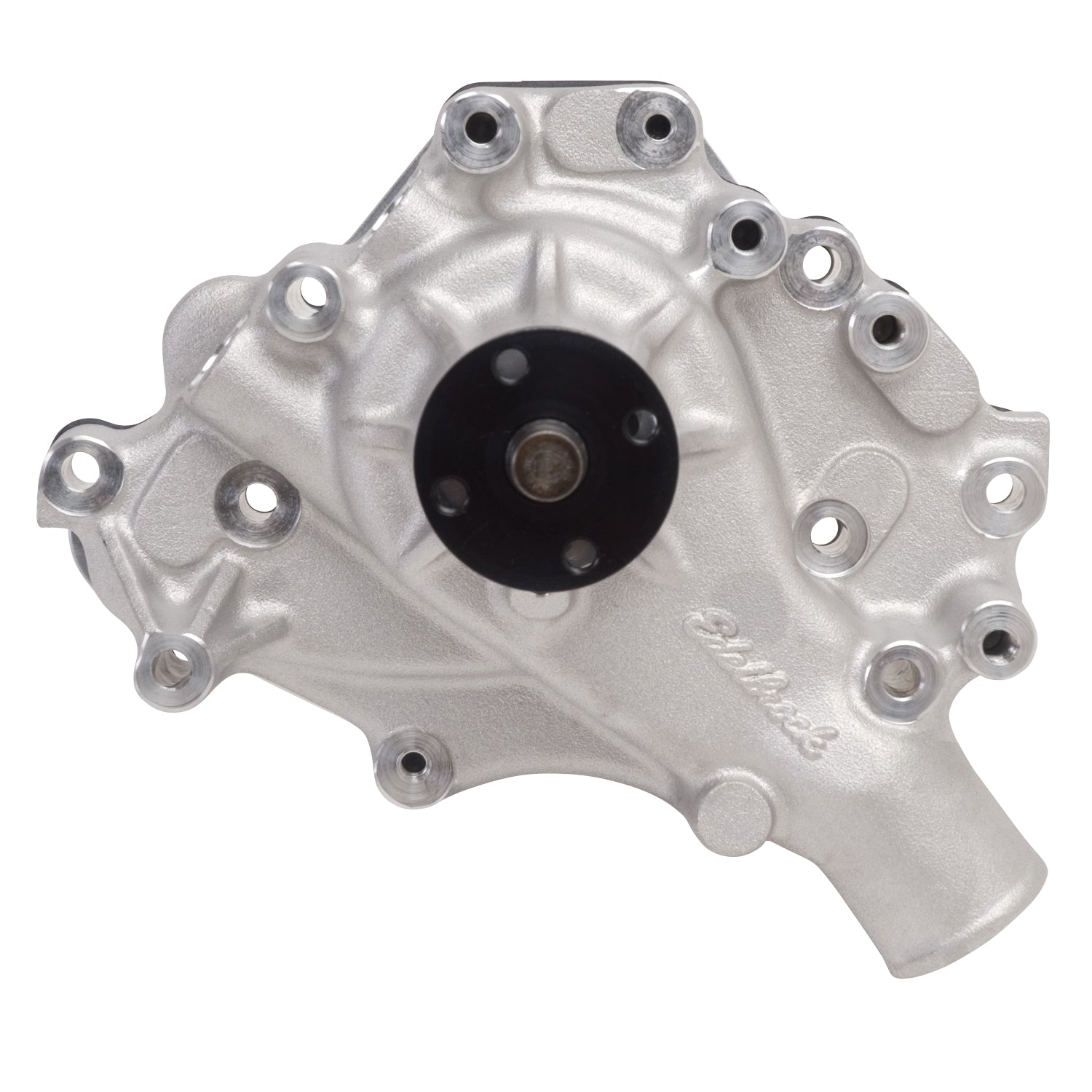

Edelbrock Water Pump For Small-block Ford 351w In Satin Finish - 8843
Click to zoom in
Load image into Gallery viewer, Edelbrock Water Pump For Small-block Ford 351w In Satin Finish - 8843

Edelbrock Water Pump For Small-block Ford 351w In Satin Finish - 8843

2 sold in last 8 hours
Edelbrock
EDE8843
In stock
Water Pumps
$308.95
Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w V8 Ideal to prevent overheating in street rods and street machines Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87...

Edelbrock Water Pump For Small-block Ford 351w In Satin Finish - 8843
Description

Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w V8 Ideal to prevent overheating in street rods and street machines

Edelbrock #8843 Water Pump Ford 1970-78 302 & 1970-87 351w v8 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.

PDF-Installation Instructions

SPECS

Manufacturer Edelbrock
Application Application Specific
UPC 00085347088430
Thermostat And Housing Included No
Thermostat And Housing Included No
Mounting Hole Quantity 10
Housing Material Aluminum
Impeller Material Powdered Metal
Installation Warnings Yes
Hub Hole Quantity 6
Fan Clutch Included No
Impeller Vane Quantity 6
Includes Back Housing Yes
Related Cooling Fan Components No
Casting Number 8843
Availability Note Available to Order
Warranty 12 Months
Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Installation is the same as for original equipment water pumps; Consult service manual for specific procedures, if necessary; Remove two screws from backing plate and apply RTV silicone to gasket just before installation; Reassemble backing plate and install on engine using RTV silicone; Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing; Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications; The distance from the flange surface to the hub should measure 5.75".; Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch with the pump shaft. Concentricity is not assured when universal type clutches are used. The universal fan clutch has a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft. This adapter bushing is supplied with the unit. These adapter bushings add to the machine tolerances of the assembly, so special care must be taken to maintain concentricity with the shaft and the clutch fan. The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump.
Outlet Quantity 1
Pulley Included No
Water Pump Drive Type V-Belt
