Edge Products Insight CTS3 In-Cabin Monitor - OBDII Plug-In - 84130-3

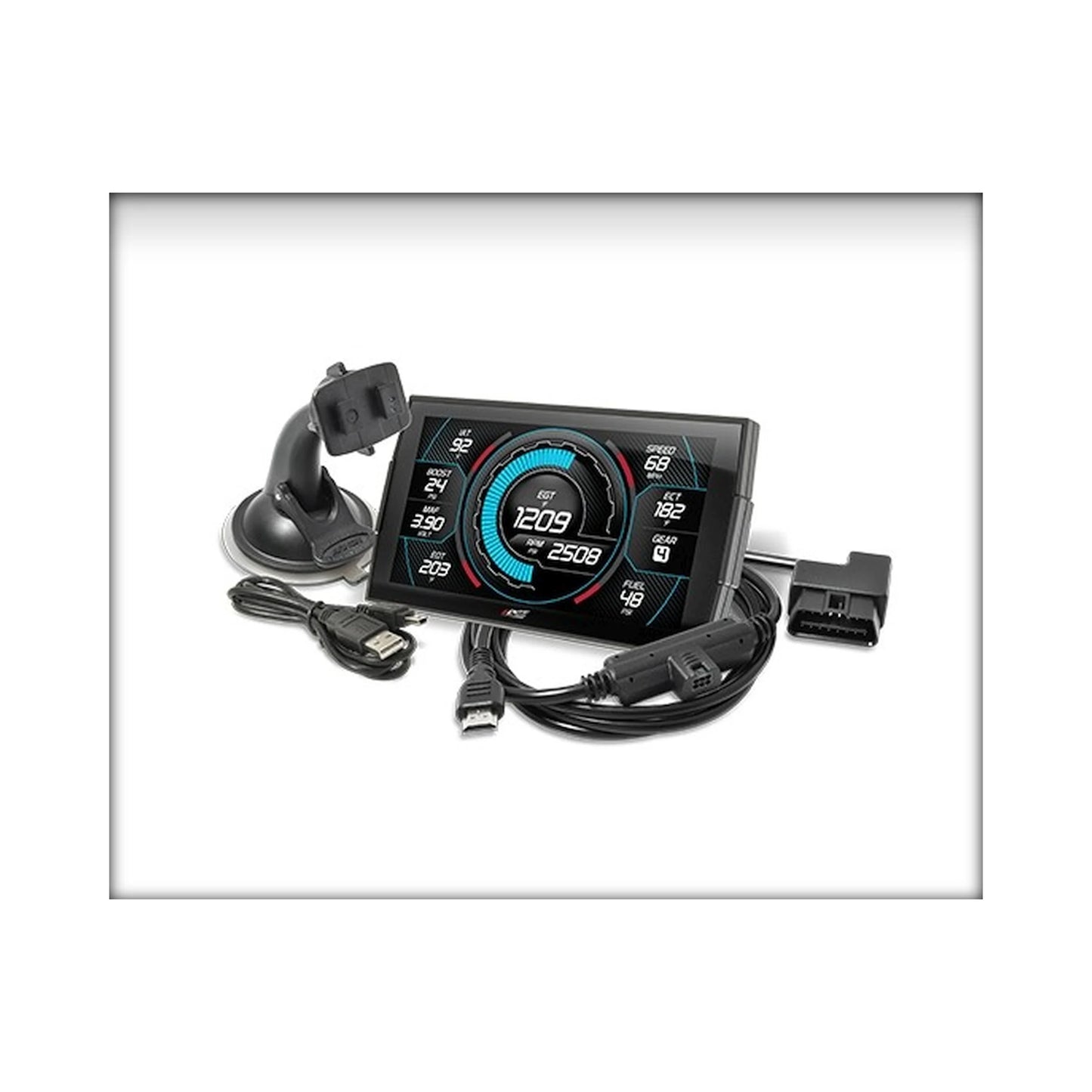

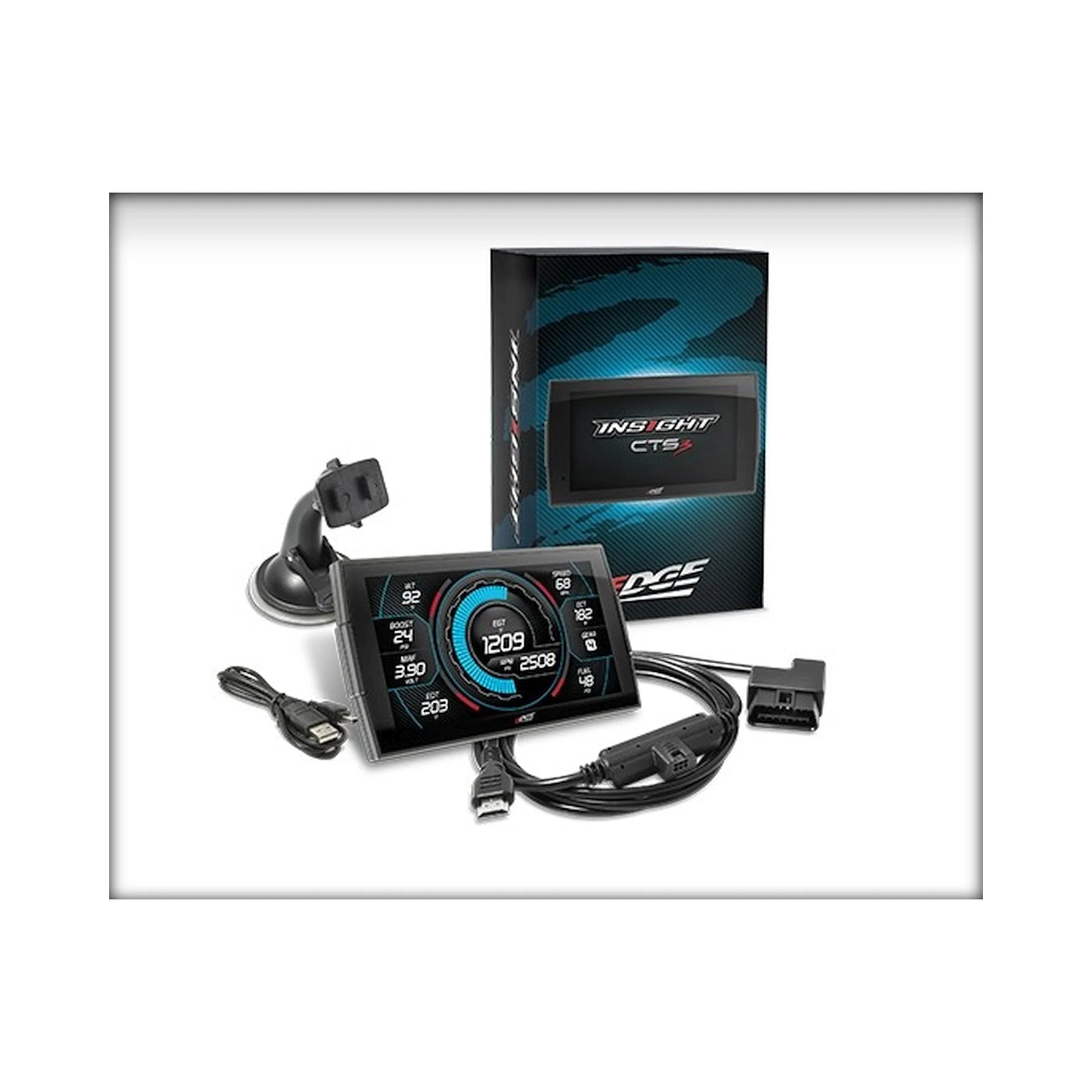

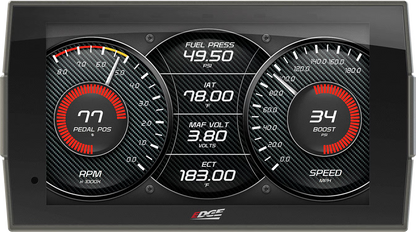

The Edge Products Insight CTS3 is a full-color, in-cabin monitoring display designed for trucks and SUVs. Featuring a fast third-generation platform and a 5-inch capacitive touchscreen, the CTS3 provides real-time vehicle data, advanced diagnostics, and highly customizable gauge layouts.

The CTS3 installs easily by plugging directly into the vehicle’s OBDII port with no additional wiring required. It boots directly to the gauge screen on key cycle and allows swipe-based navigation between screens for towing, performance, economy, or daily driving. The system supports data logging, performance testing, DTC reading and clearing, and Wi-Fi updates.

This product does not modify vehicle emissions systems and does not require a CARB EO.

Key Features:

• In-cabin vehicle monitoring display
• 3rd generation design for faster performance
• Plug-and-play OBDII installation
• Full-color 5 inch capacitive touchscreen
• Auto-dimming display

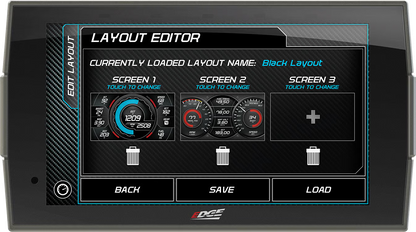

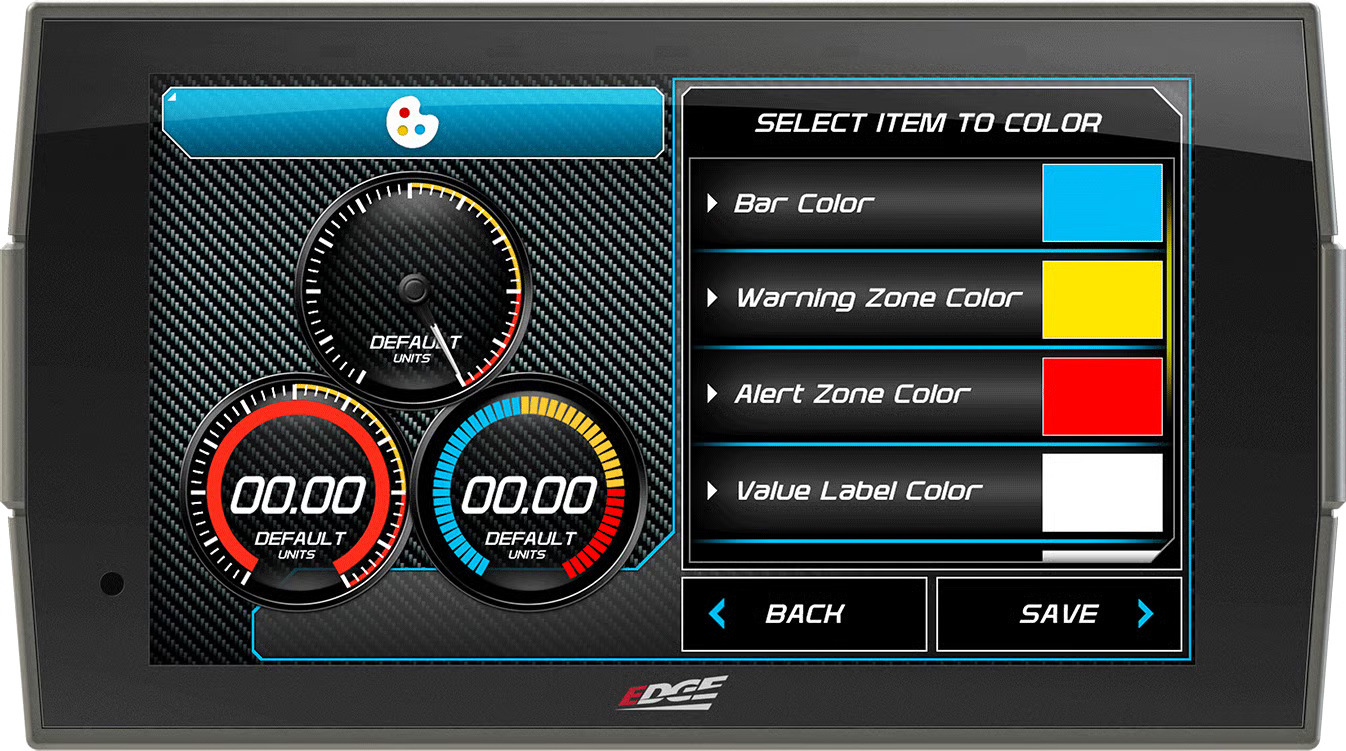

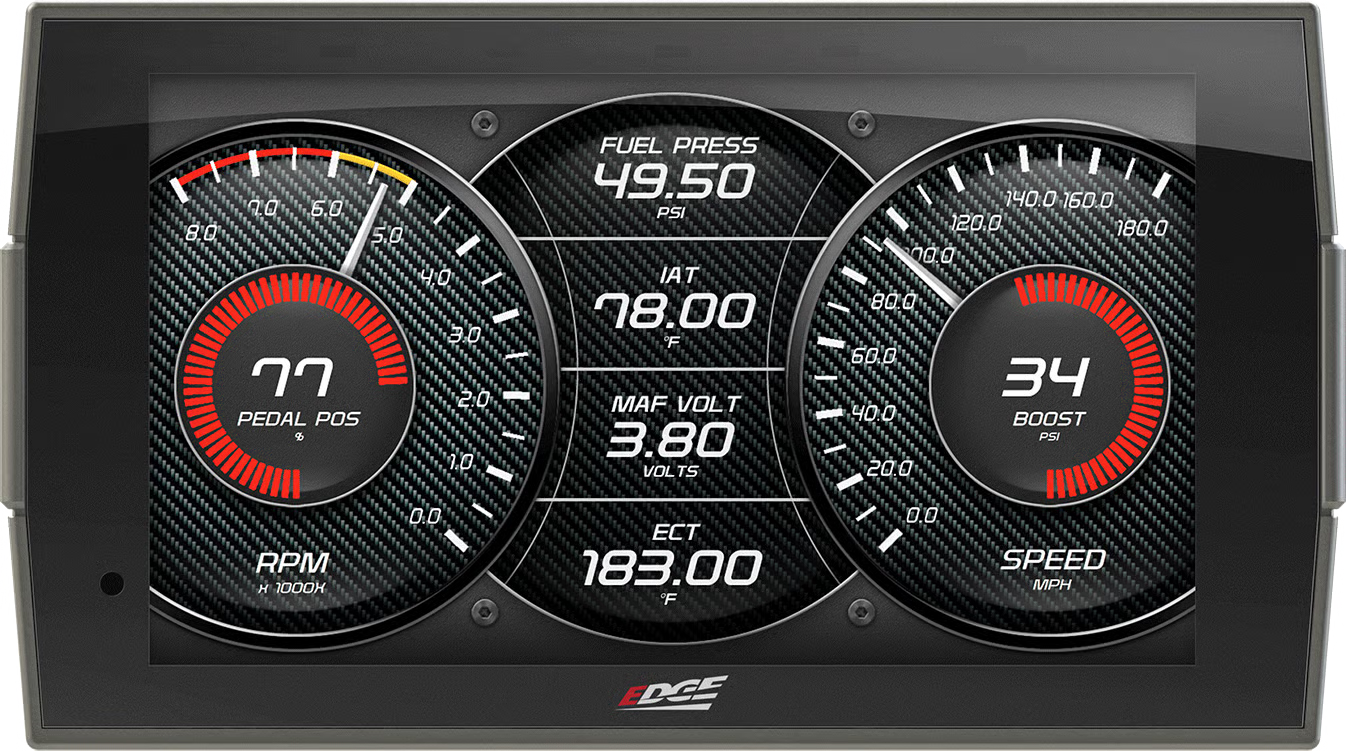

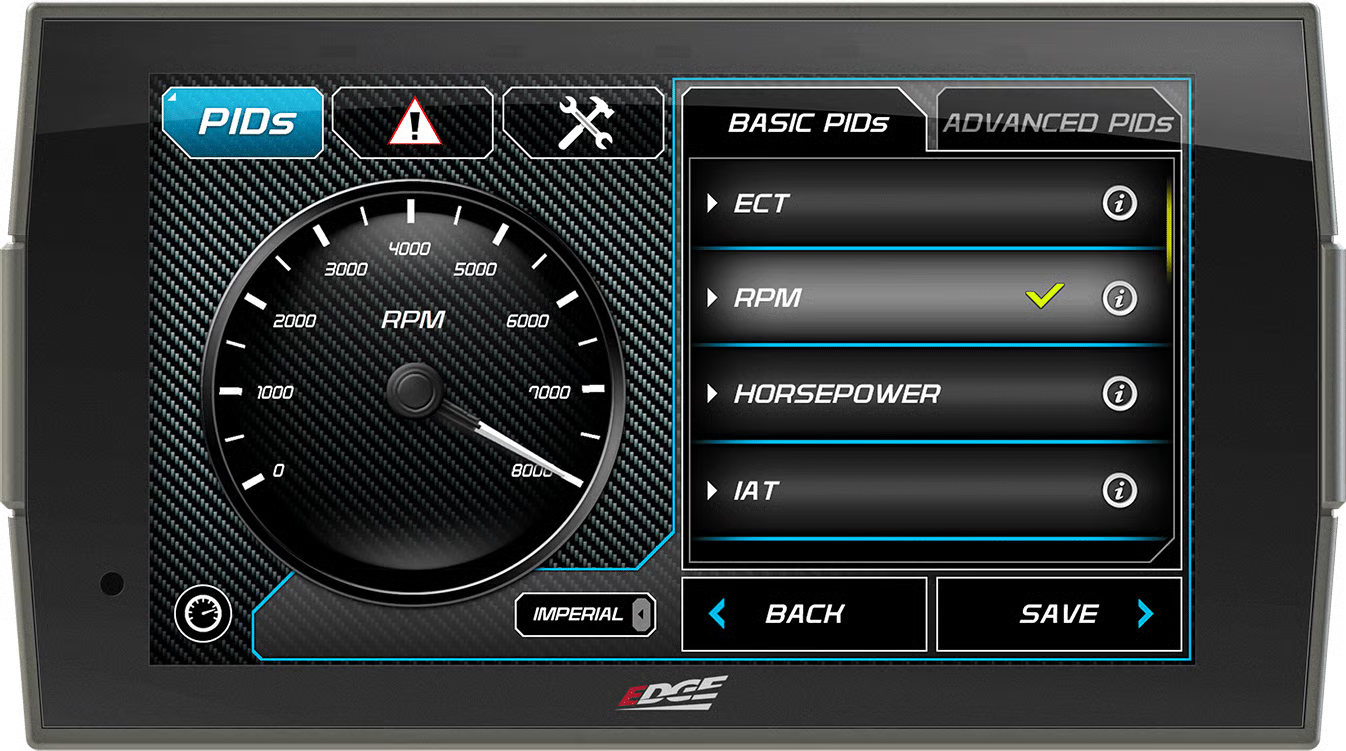

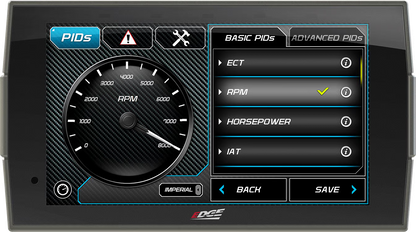

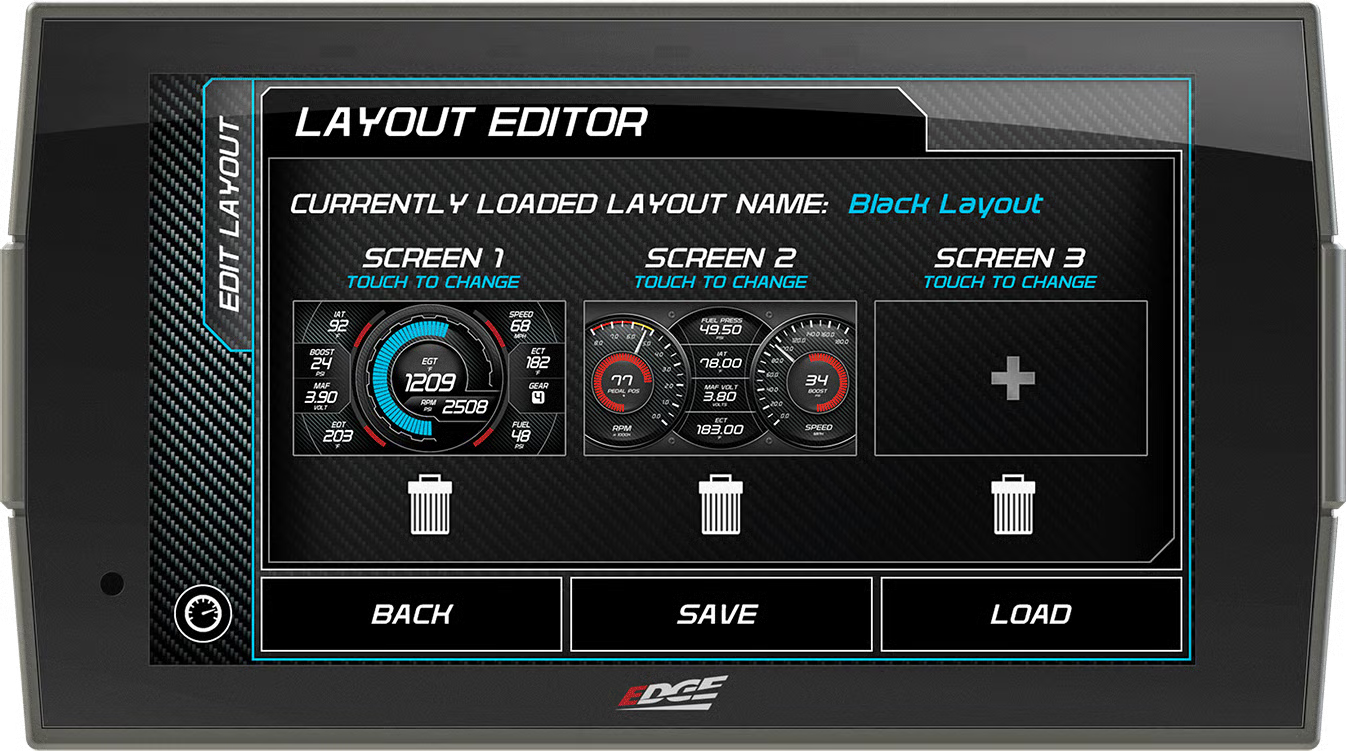

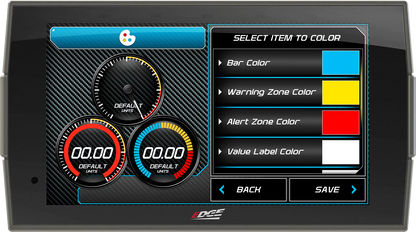

• Customizable gauges and backgrounds

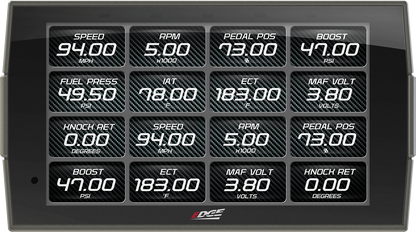

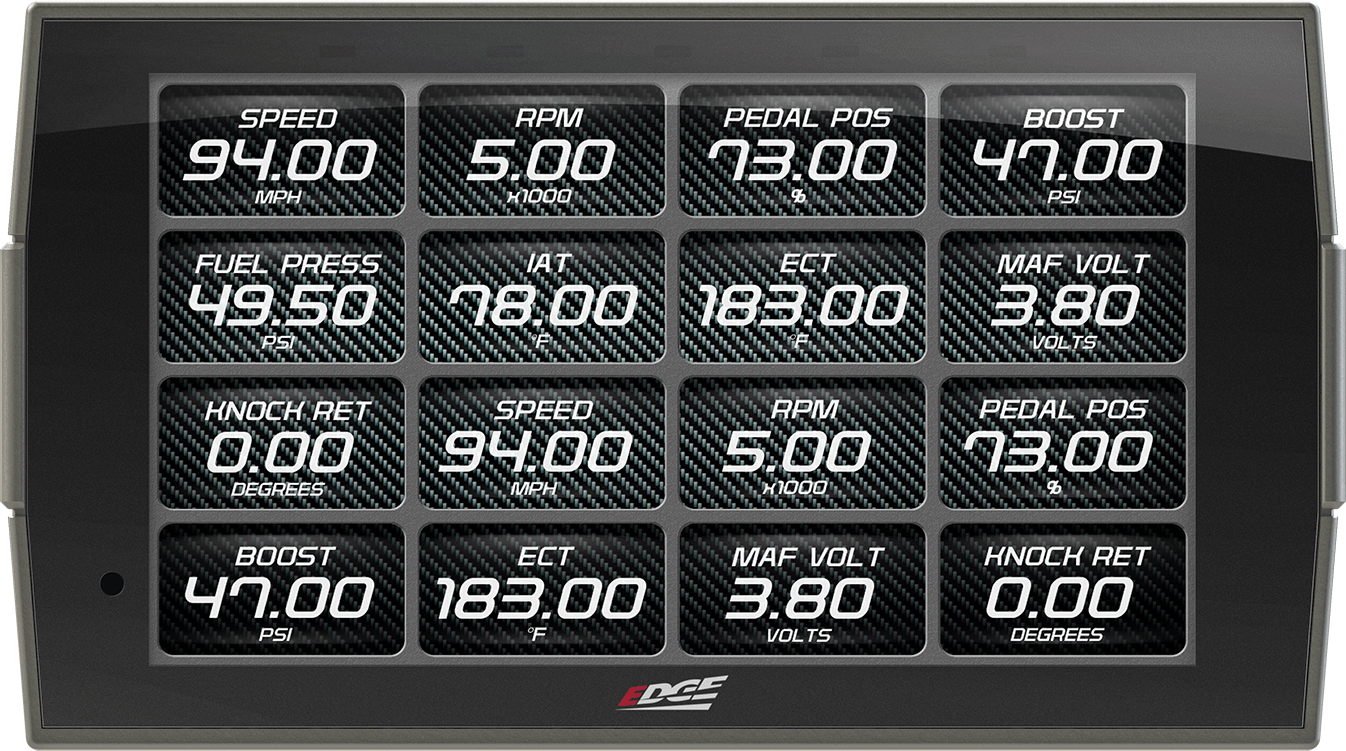

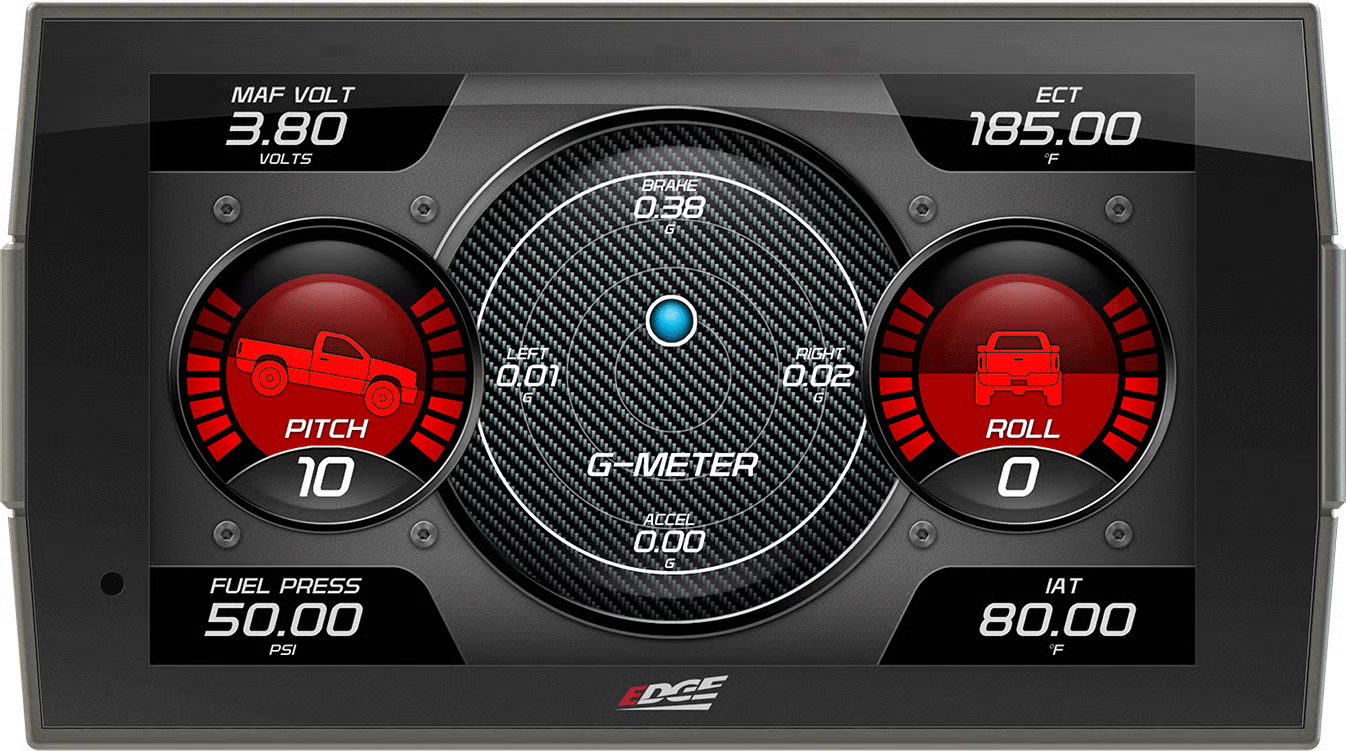

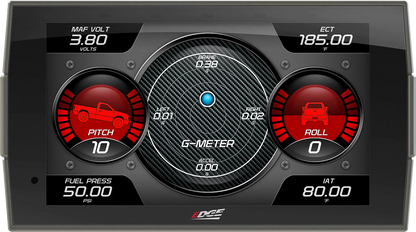

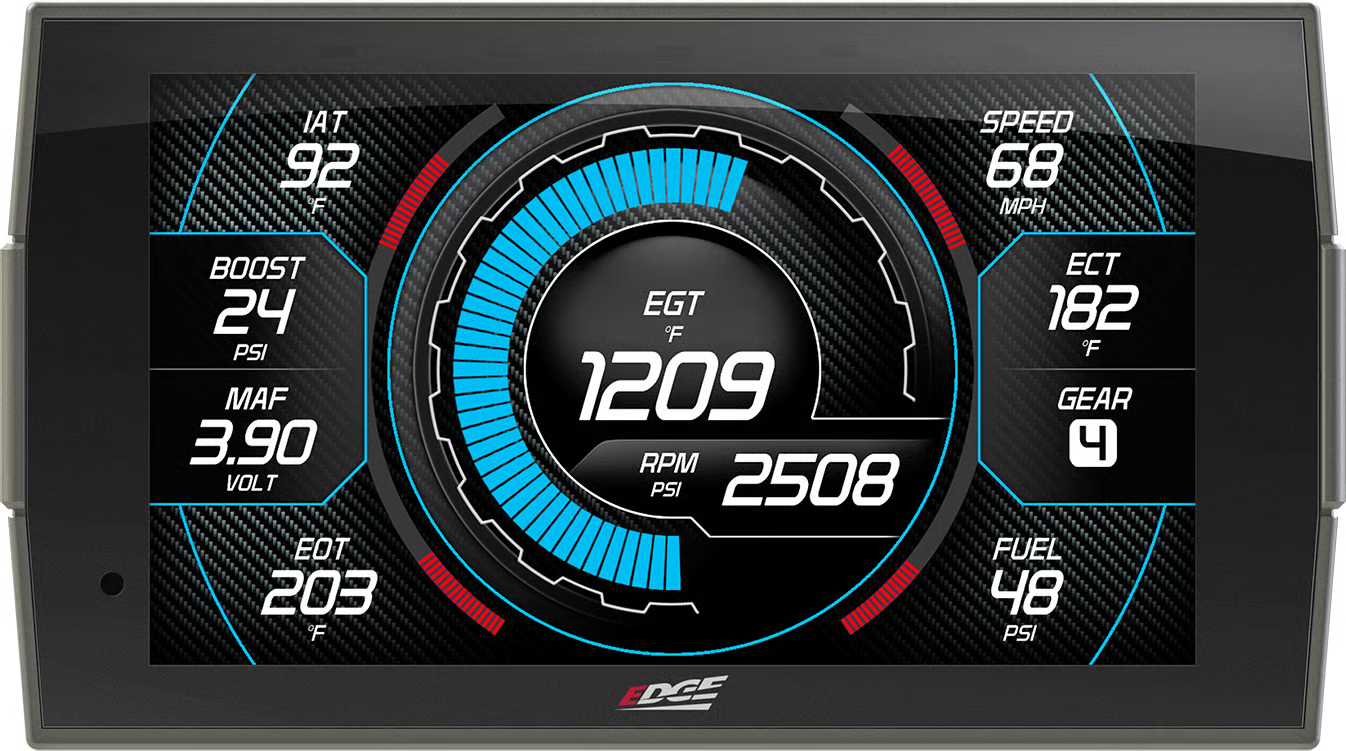

• Real-time monitoring of engine and drivetrain data
• Boot-to-gauge screen on key cycle
• Swipe navigation between screens
• Reads and clears diagnostic trouble codes
• Built-in performance testing: 0-60 MPH / 1/4 mile times
• Integrated data logging with export capability
• Wi-Fi updateable
• Integrated accessory system support

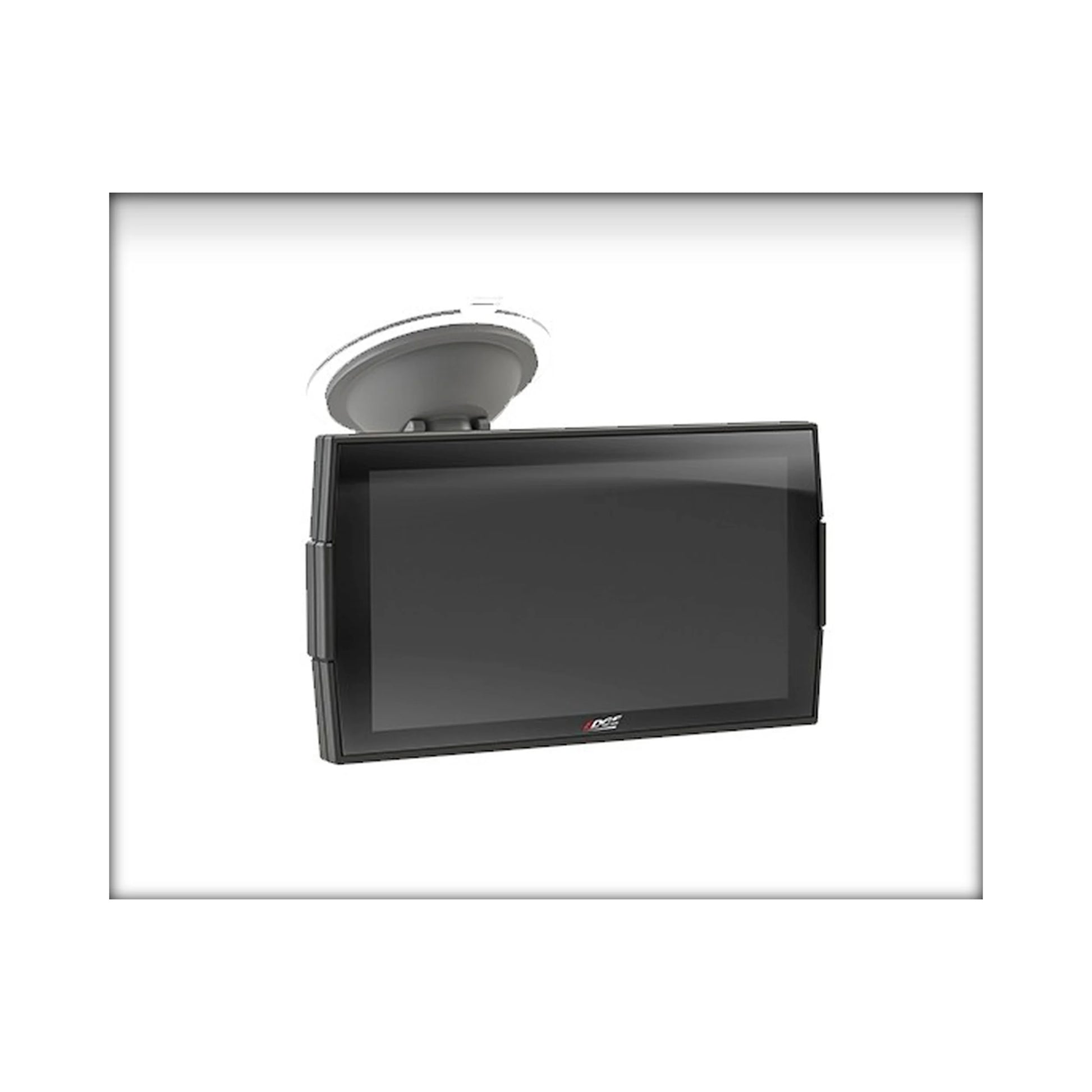

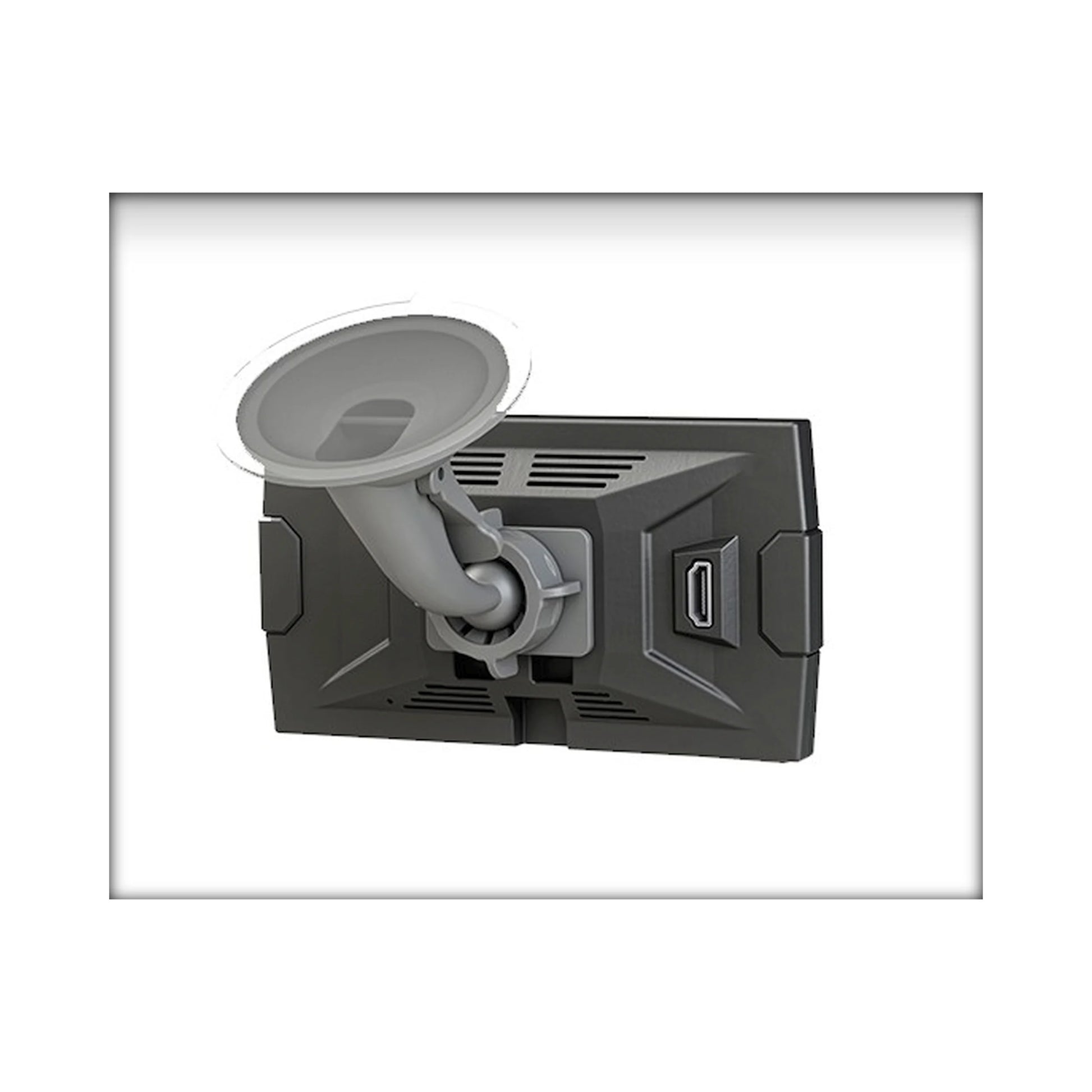

• Includes windshield mounting bracket

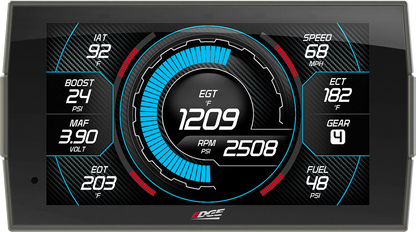

Monitored Parameters:

• EGT
• Boost
• Transmission temperature
• RPM
• Regeneration cycles
• Dozens of additional vehicle-specific parameters

Diesel-Specific Features
Manual DPF Regeneration Support

• 2018-2020 Ford F-150 3.0L Diesel
• 2011-2024 Ford 6.7L Diesel
• 2007.5-2024 GM 6.6L Diesel
• 2020-2022 GM 3.0L Duramax

Mobile DPF Regeneration Support

• 2015-2022 Ram 3.0L Diesel
• 2007-2018 Ram 6.7L Diesel
• 2011-2023 GM 6.6L Diesel

Emissions & Compliance:

• Legal for emissions-controlled vehicles
• Legal for non-emissions-controlled vehicles
• Legal for racing use only vehicles
• Does not affect vehicle emissions
• CARB EO not required

Product Specifications:

• Product Type: In-Cabin Monitor
• Display: Color touch screen
• Auto Dimming: Yes
• In-Cab Monitoring: Yes
• Data Logging: Yes
• 5V Data Logging Inputs: Yes
• Performance Tests: Yes
• Expandable Accessory System: Yes
• Video Capable: Yes
• Wi-Fi Updates: Yes
• Emission Code: 5
• UPC: 810009938903

• Part Number: 84130-3
