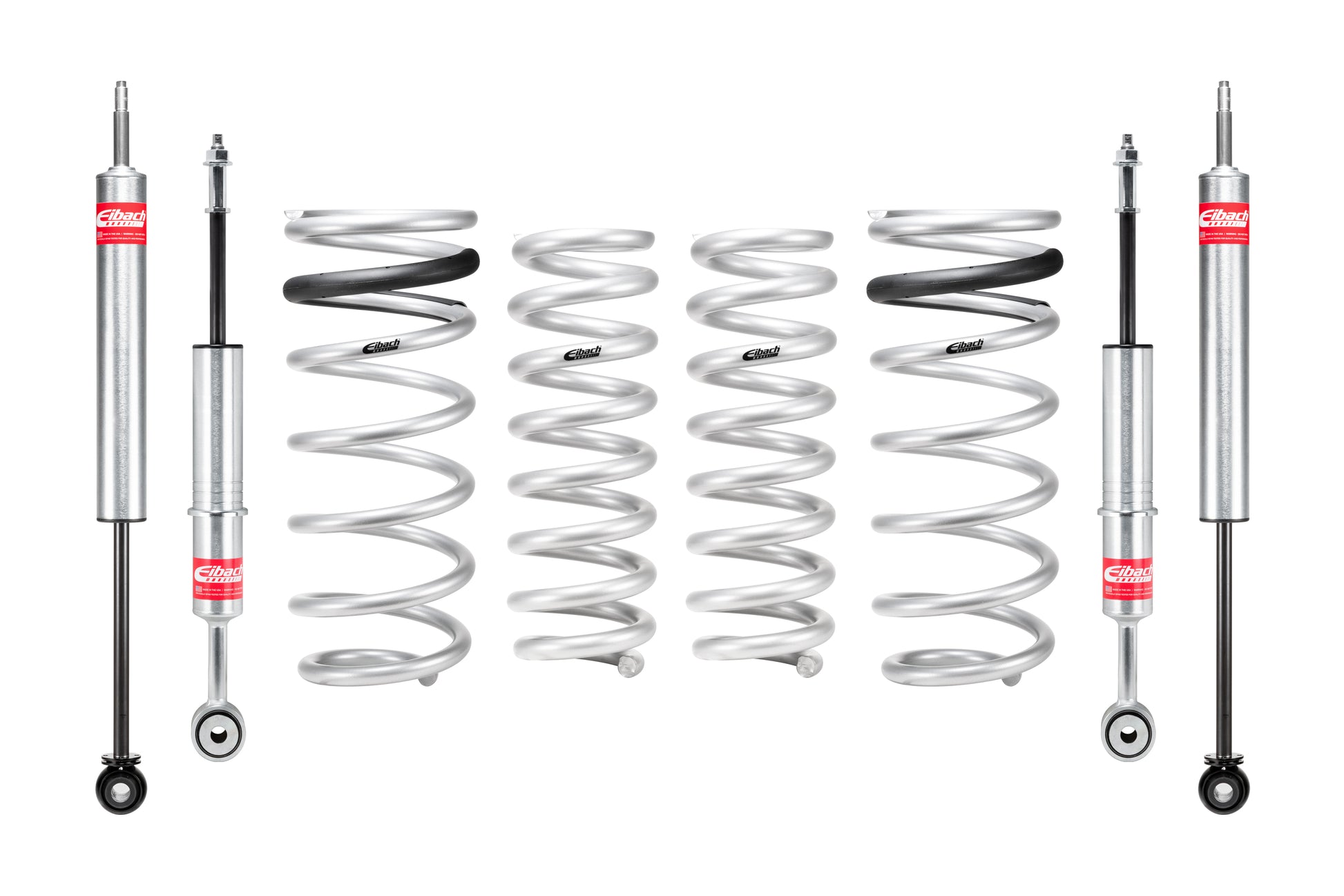

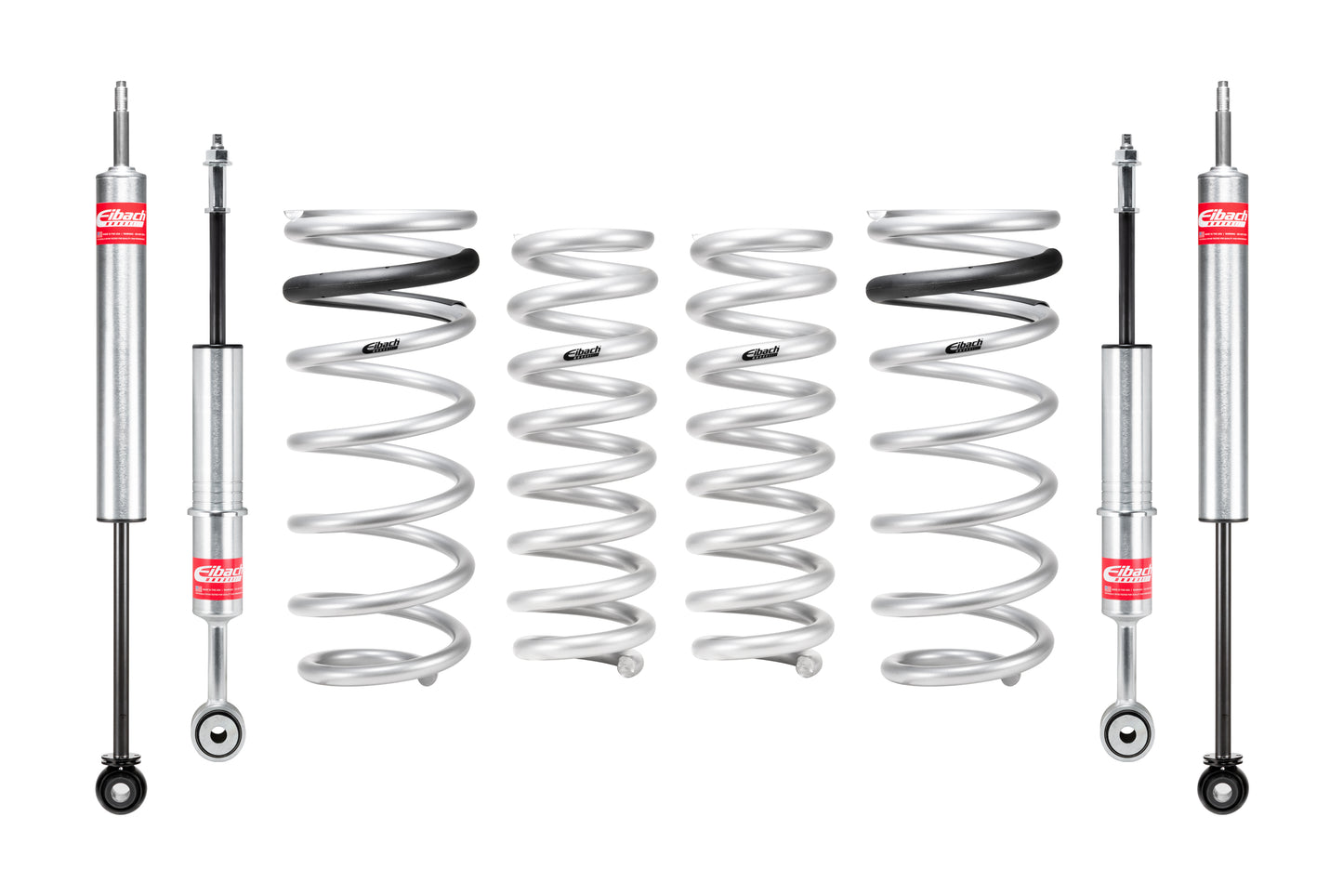

Eibach Pro-Truck-Lift Stage 2R Lift Kit for 2023-2026 Toyota Sequoia - E86-82-099-02-22

The Eibach E86-82-099-02-22 Pro-Truck-Lift Stage 2R Lift Kit is a complete suspension system for select 2023-2026 Toyota Sequoia SR5, Limited, and Platinum 4WD models. The kit combines height-adjustable Pro-Truck Coilover 2.0 front coilovers, Pro-Truck Reservoir Sport rear shocks, and Pro-Lift Kit rear springs. It provides approximately +1.4 to +3.25 inches of front lift and +1.2 inches of rear lift while adding ride-height adjustability and external-reservoir damping for increased off-road capability.

Key Features & Specs:

• Brand: Eibach
• Series: Pro-Truck-Lift Stage 2R
• Part Type: Suspension Lift Kit
• Included: Pair of Front Coilovers + Rear Reservoir Shocks + Rear Springs
• Front Lift Range: +1.4 to +3.25 in.
• Rear Lift: +1.2 in.
• Front Suspension: Pro-Truck Coilover 2.0
• Rear Shocks: Pro-Truck Reservoir Sport
• Rear Springs: Pro-Lift Kit Springs
• Front Adjustment: Threaded height-adjustable coilovers
• Rear Shock Design: External reservoir
• Shock Design: Monotube
• Piston Size: 46mm
• Valving: Nitrogen-filled Variable Force Valving
• Coilover Mounts: Anodized 6061-T6 billet aluminum
• Testing: Individually dyno tested for matched performance and reliability
• Bushings: Heavy-duty bushing system, cycle tested
• Product Weight: 77.46 lbs
• Manufacturing: Engineered, tested, and manufactured by Eibach in the USA
• Warranty: Two-Year Warranty
• UPC: 803050548962
• Manufacturer Part Number: E86-82-099-02-22
• SKU: EIBE86-82-099-02-22

Fitment:

• 2023-2026 Toyota Sequoia SR5, Limited & Platinum
• 4WD
• Front Lift: +1.4 to +3.25 in.
• Rear Lift: +1.2 in.
• Excludes: Adaptive Variable Suspension (AVS)
• Excludes: Load-Leveling Rear Height Control Air Suspension

The Pro-Truck-Lift Stage 2R Lift Kit combines adjustable front ride height with external-reservoir rear damping and matched rear lift springs. The threaded front coilovers allow ride height to be fine-tuned for vehicle setup and clearance, while the rear reservoir shocks provide additional fluid capacity for more consistent damping during demanding off-road use.

The front coilovers are set out of the box to approximately level the vehicle with the OE rear springs. Additional preload is required to level the front when using the included Eibach rear springs. Final ride height can vary depending on trim level, options, vehicle equipment, and weight distribution.

This kit excludes vehicles equipped with Adaptive Variable Suspension (AVS) and excludes vehicles with Load-Leveling Rear Height Control Air Suspension. Eibach does not guarantee fitment, lift height, or warranty coverage on unlisted applications.
